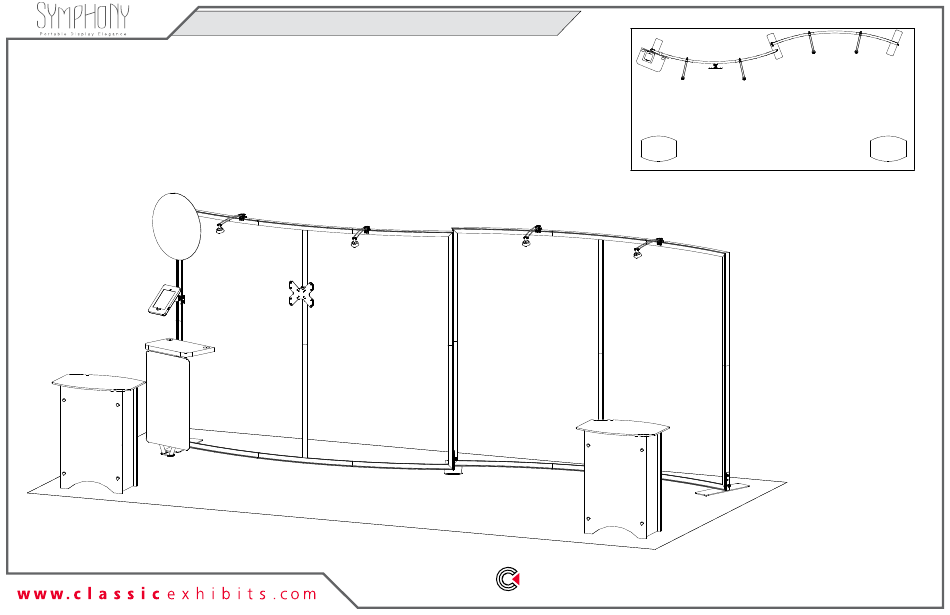

SYK-2021 - 10' x 20' Portable Display
10'
20'
Plan View

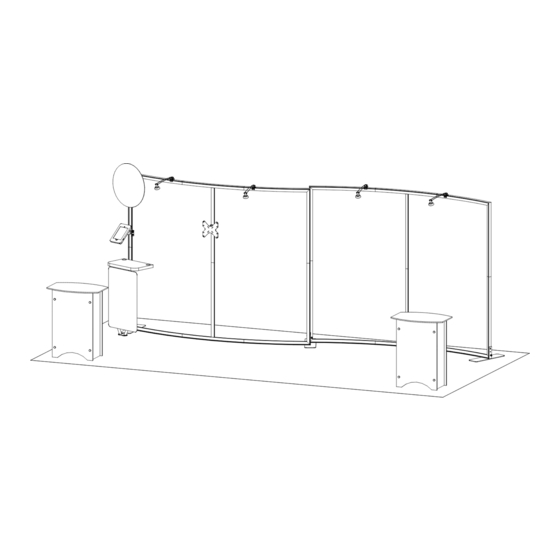

Perspective View
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com
