Li-ion battery pack for charcoal smoker controller (AUB6500)
Warning: To reduce the risk of fire or burns, DO NOT attempt to open, disassemble, or service the battery
pack. DO NOT crash, puncture, short external contacts, or dispose it in fire or water above 140˚F. Please
use supplied charger only.
Important: Must turn on the power switch to charge.
1. Specifications
AUB6500:
Operating/storage temperature:
Capacity: 6500mAH/12V, 15000mAH/5V or
78WH
Voltage input: 12.6VDC
Voltage output: 12VDC (barrel connector), and
5VDC (USB)
2. Names of parts
1. USB (5V DC) power output
2. Power indicator
3. Power output / power input (12V DC)
4. Power switch
5. Testing button for remaining battery level
6. Battery level indicators (4 levels)
3. Package list:
Version 1.0 (August 2016)
≤ 140 ˚F

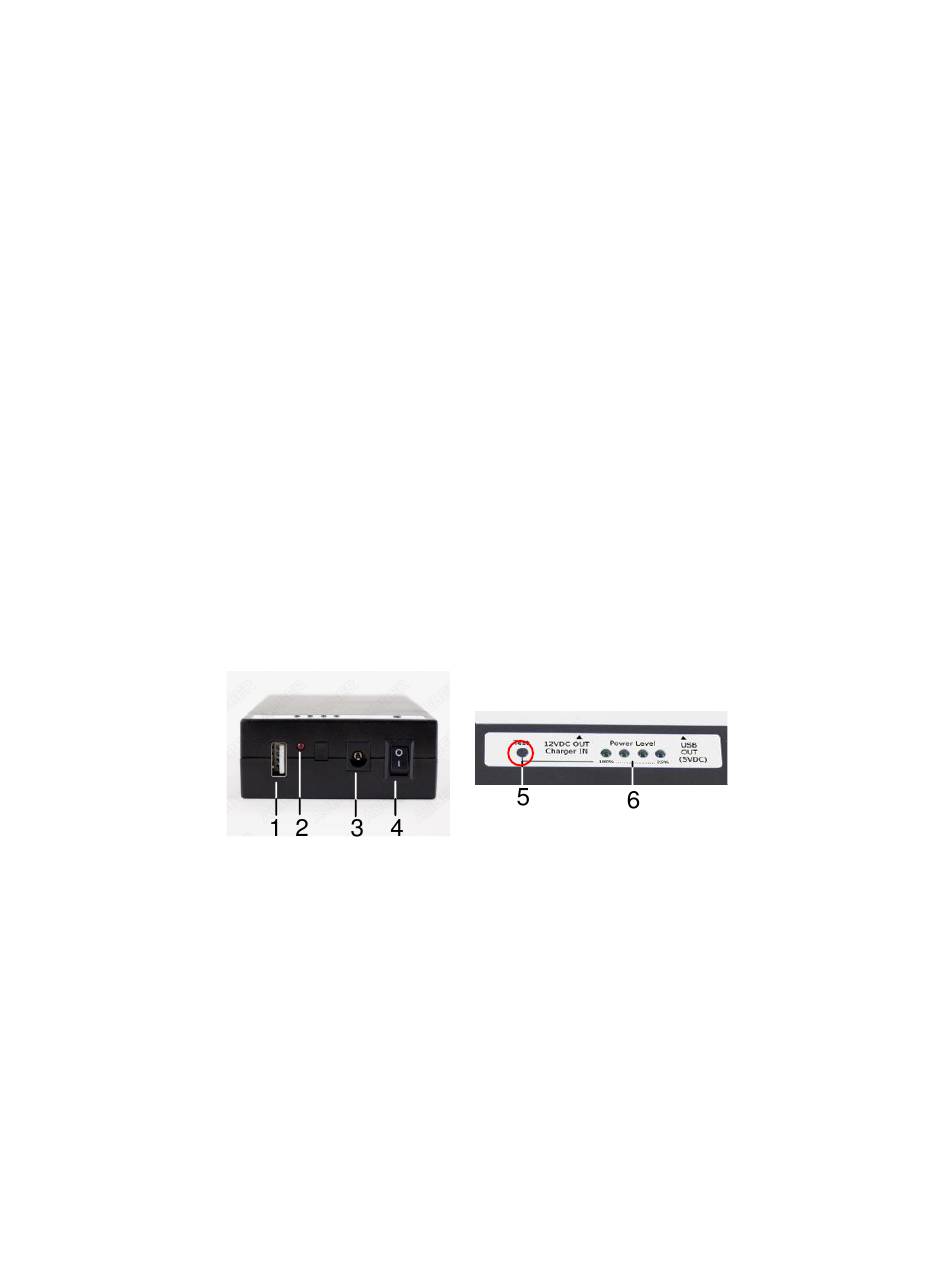

Figure 2. Names of parts on battery pack AUB6500.
1/2
Copyright 2007-2016. Auber Instruments All Rights Reserved.
Barrel connector: 5.5 mm O.D., 2.1 mm I.D.
Dimension: 124 x 73 x 29 mm (4.9 x 2.9 x 1.2")
Battery weight: 0.8 lb (12.9 oz)
AUB6500 charger:
Input voltage: 110-240VAC
Output voltage: 12.6VDC
Output maximum current: 1A
