Cosmos XP-702IIIS Series Instruction Manual

Gas leak detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
This instruction manual explains the use of three models listed on the left.
Keep this instruction manual available for quick reference when needed.
Read this instruction manual and throughly understand before using the
product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XP-702IIIS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cosmos XP-702IIIS Series

Summary of Contents for Cosmos XP-702IIIS Series

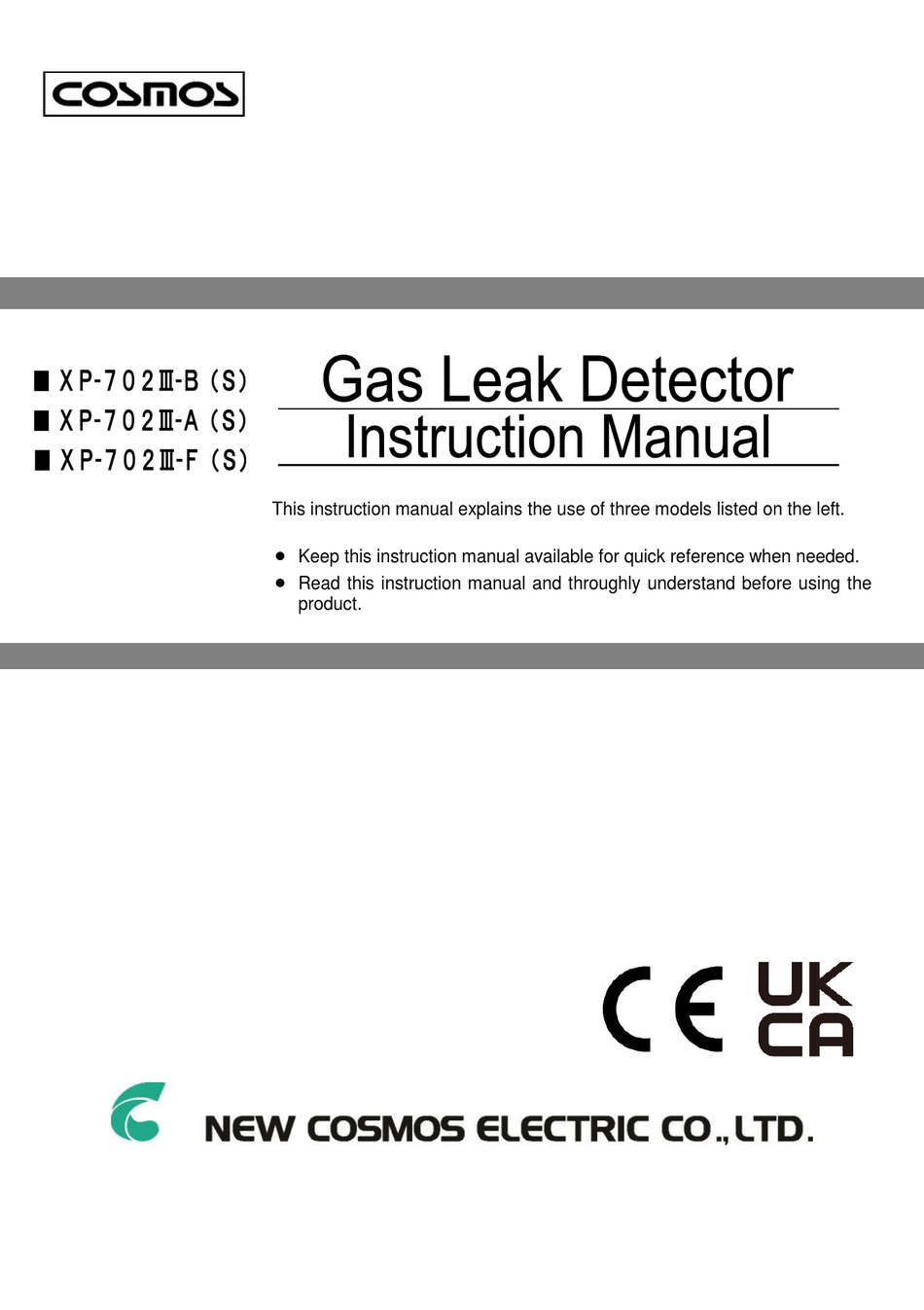

  • Page 1 This instruction manual explains the use of three models listed on the left.  Keep this instruction manual available for quick reference when needed.  Read this instruction manual and throughly understand before using the product.

  • Page 2: Table Of Contents

    Table of Contents － Included in this Package － ..............1 1. Introduction .................... 2 Symbols ....................2 Safe Operation ..................3 2. Part Names and Functions..............4 3. Operating Procedure ................7 Operating Procedure ................7 Displaying the Target Gas Name ............12 Changing the Target Gas ...............

  • Page 3: Included In This Package

    Detector, be sure to check that all items have been provided. Every precaution has been taken in preparing the Gas Leak Detector. However, if any items are missing or damaged, please contact your New Cosmos distributor. Replacements for any missing or damaged items will be sent.

  • Page 4: Introduction

    1. Introduction Thank you for purchasing a New Cosmos Gas Leak Detector. Please read this Instruction Manual thoroughly before using the Gas Leak Detector to help prevent gas leakage accidents and to aid in safety inspections. XP-702III-A(S) and XP-702III-F(S) Gas Leak Detector detect leakage of any two gases of town gas, LPG, and Freon (switchable)*.

  • Page 5: Safe Operation

    Safe Operation Be sure to observe the following to use the product safely and properly.  If the gas alarm is activated, take all necessary precautions immediately DANGER to prevent explosion.  High concentration of combustible gas may exhaust from the gas outlet.

  • Page 6: Part Names And Functions

    2. Part Names and Functions - 4 -...
  • Page 7 Name Functions AT-2G Gas Probe Gas inlet. Protects the Gas Leak Detector from water, dust, DF-114 Drain Filter and other foreign matter. Protects the Gas Leak Detector from fine dust, FE-106 Dust Filter sand, and other foreign matter. Outlet Gas outlet to exhaust sampled gas. Turns the power ON and OFF.
  • Page 8 Soft case Name Functions Side Zipper Open the zipper to replace the batteries. Back Pocket The Operating Guide is stored here. Inside Pocket A Replacement Filter Element is stored here. - 6 -...

  • Page 9: Operating Procedure

    3. Operating Procedure Operating Procedure Always perform the daily check before using the Gas Leak Detector. WARNING (Refer to page 19.) Insert Turn ON Warm- Turn OFF STEPS concentration Detection batteries power power display 1. Insert the batteries There are no batteries in the Gas Leak Detector at the point of purchase. Insert the enclosed batteries into the Gas Leak Detector.
  • Page 10 3) When the warm-up operation is completed, the buzzer SENS. sounds once, a gas sensitivity lamp (green) lights, and the gas sensitivity level is displayed on the LCD. The gas sensitivity level is set to level (1) immediately after the batteries are inserted. It starts up next time with the same settings of gas sensitivity level.
  • Page 11 4) The gas sensitivity can be set from five levels in descending order of sensitivity 0, 1/5, 1, 2 and 3. Change the gas sensitivity as needed when using the Gas Leak Detector.  The detected gas concentrations for the gas sensitivity levels are as NOTE follows.
  • Page 12 3. Detection  Alarm Buzzer DANGER If the alarm buzzer sounds or the alarm lamp (red) lights up /flashes, take necessary measures. If necessary, evacuate to a safe place and confirm the safety of gas concentration before going back to the location where the alarm occurred.
  • Page 13  Automatic Gas Exhaust Mode If there is any gas remaining in the Gas Leak Detector when the power is turned OFF, it will enter automatic gas exhaust mode. When it enters automatic gas exhaust mode, the buzzer will sound once, “60” will be displayed on the LCD, and a countdown will start (59, 58...).

  • Page 14: Displaying The Target Gas Name

    Displaying the Target Gas Name The target gas is displayed on the LCD by pressing the restart pump button. To display the gas sensitivity level again, press the restart pump button while the gas name is being displayed. By pressing the power button while the gas name is displayed, the gas sensitivity level is changed and displayed.

  • Page 15: Changing The Target Gas

    Changing the Target Gas SENS. The target gas can be changed when turning ON the power for a model of two-gas type (XP-702III-A(S) or XP-702III-F(S)). Either “GAS1” or “GAS2” will be displayed on the LCD as the target gas. To change the target gas after the power is already ON, turn OFF the power once.

  • Page 16: Deactivating The Alarm Buzzer

    Deactivating the Alarm Buzzer Alarm sound indicator The alarm buzzer for gas detection can be turned ON or OFF. SENS. Press the buzzer button while the power is ON, the buzzer sounds once and the alarm buzzer sound will be turned ON or OFF. The alarm sound indicator on the LCD will light (buzzer ON) or go out (buzzer OFF).

  • Page 17: Error Displays (Error Alarms)

    4. Error Displays If an error occurs with the Gas Leak Detector, the error lamps will flash, an error will be displayed on the LCD, and the buzzer will sound repeatedly. The major errors are described in the following table. Take the corresponding action given in the table. Error Error Display Cause...

  • Page 18: Replacement Of Consumable Parts

    5. Replacement of Consumable Parts Filter Element Replacement When the Filter Element is dirty or wet, or when the water or liquid is inside the Drain Filter, clean out the Drain Filter and replace the Filter Element.  Do not replace the Filter Element while the Gas Leak Detector is CAUTION operating.

  • Page 19: Dust Filter Replacement

    Dust Filter Replacement  Make sure to attach FE-2 Filter Element in the Drain Filter when using CAUTION FE-106 Dust Filter.  It cannot prevent water from entering in the Gas Leak Detector unless using FE-2 Filter Element.  Do not replace FE-106 Dust Filter while the Gas Leak Detector is operating.

  • Page 20: Battery Replacement

    Battery Replacement  Use two AA alkaline dry cell batteries (LR6). Otherwise, it may affect WARNING the product performance. When the remaining battery charge indicator changes to , the battery charge is low. When the battery voltage drops and reaches to the final voltage, “E-B” (refer to Battery Alarm on page 15) will be displayed on the LCD and the Gas Leak Detector will not be working.

  • Page 21: Maintenance Check

    Replace the parts or request repairs. Periodic Inspection To maintain the accuracy of the Gas Leak Detector, request a periodic inspection at your New Cosmos distributor or directly from New Cosmos at least once a year. - 19 -...

  • Page 22: Consumable Parts, Replacement Parts, And Options

    Consumable Parts, Replacement Parts, and Options Part Name Model Part Code Remarks － Filter Element (10pcs) FE-2 59160022 － Drain Filter DF-114 59070018 － Dust Filter (5pcs) FE-106 59160335 Gas Probe AT-2G 20524843 For tubing and coupling AT-5 Gas Collector 20524430 For tubing and coupling AT-6...

  • Page 23: Troubleshooting

    7. Troubleshooting Check for the items in the following table before requesting repair work. * If operation becomes impossible, try again after removing all of the batteries for a few minutes and insert them again. ■ Gas Leak Detector Problem Cause Action Reference...

  • Page 24: Warranty

    New Cosmos warrants to the original purchaser and no other person or entity (customer) that gas detection product supplied by New Cosmos shall be free from defects in materials and workmanship for a period of one (1) year from the date of purchase. This warranty does not include consumables, such as fuses, filters, etc.

  • Page 25: Specifications

    9. Specifications Model XP-702Ⅲ-B(S) XP-702Ⅲ-A(S) XP-702Ⅲ-F(S) Two types of Combustible gas and One type of combustible Target Gas combustible gas: 13A, Freon gas: 13A, R-407C, gas: 13A, LPG, etc. LPG, etc. (switchable) R-410A, etc. (switchable) Detection Principle Hot-wire semiconductor sensor (Refer to page 24.) Gas Sampling Method Extractive type 3.3 x 10 Pa m...

  • Page 26: Detection Principle

    10. Detection Principle  Hot-wire Semiconductor Sensor When combustible gases react with oxygen absorbed on the surface of the semiconductor, free electrons increase in the semiconductor. As a result, the resistance of the semiconductor decreases. This resistance change is read as differential voltage using a bridge circuit for gas detection purpose.
  • Page 27 (Blank page) - 25 -...
