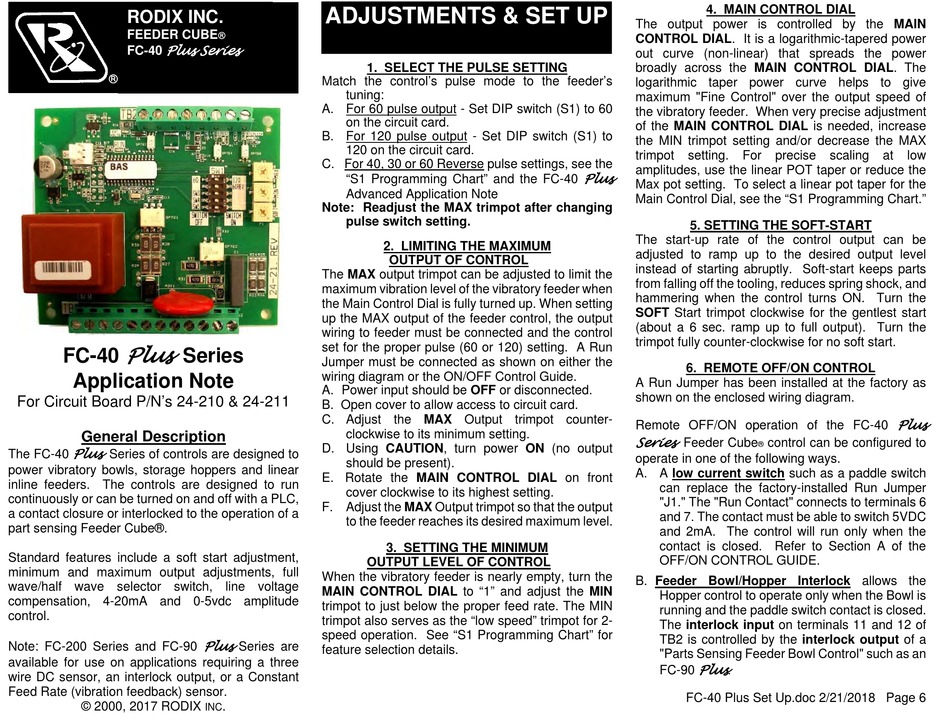

Rodix FEEDER CUBE FC-112 Plus Manual page 6

RODIX INC. RODIX INC.
FEEDER CUBE FEEDER CUBE
Plus Series Plus Series
FC-90 FC-40
GENERAL PURPOSE
 
Plus
FC-40 Series
Application Note
For Circuit Board P/N's 24-210 & 24-211
General Description
Plus
The FC-40 Series of controls are designed to
power vibratory bowls, storage hoppers and linear
inline feeders. The controls are designed to run
continuously or can be turned on and off with a PLC,
a contact closure or interlocked to the operation of a
part sensing Feeder Cube®.
Standard features include a soft start adjustment,
minimum and maximum output adjustments, full
wave/half wave selector switch, line voltage
compensation, 4-20mA and 0-5vdc amplitude
control.
Note: FC-200 Series and FC-90
available for use on applications requiring a three
wire DC sensor, an interlock output, or a Constant
Feed Rate (vibration feedback) sensor.
© 2000, 2017 RODIX
ADJUSTMENTS & SET UP
 
1. SELECT THE PULSE SETTING
Match the control's pulse mode to the feeder's
tuning:
A. For 60 pulse output - Set DIP switch (S1) to 60
on the circuit card.
B. For 120 pulse output - Set DIP switch (S1) to
120 on the circuit card.
C. For 40, 30 or 60 Reverse pulse settings, see the
"S1 Programming Chart" and the FC-40
Advanced Application Note
Note: Readjust the MAX trimpot after changing
pulse switch setting.
The MAX output trimpot can be adjusted to limit the
maximum vibration level of the vibratory feeder when
the Main Control Dial is fully turned up. When setting
up the MAX output of the feeder control, the output
wiring to feeder must be connected and the control
set for the proper pulse (60 or 120) setting. A Run
Jumper must be connected as shown on either the
wiring diagram or the ON/OFF Control Guide.
A. Power input should be OFF or disconnected.
B. Open cover to allow access to circuit card.
C. Adjust the MAX Output trimpot counter-
clockwise to its minimum setting.
D. Using CAUTION, turn power ON (no output
should be present).
E. Rotate the MAIN CONTROL DIAL on front
cover clockwise to its highest setting.
F. Adjust the MAX Output trimpot so that the output
to the feeder reaches its desired maximum level.
OUTPUT LEVEL OF CONTROL
When the vibratory feeder is nearly empty, turn the
MAIN CONTROL DIAL to "1" and adjust the MIN
trimpot to just below the proper feed rate. The MIN
trimpot also serves as the "low speed" trimpot for 2-
speed operation. See "S1 Programming Chart" for
Plus
Series are
feature selection details.
.
INC
2. LIMITING THE MAXIMUM
OUTPUT OF CONTROL
3. SETTING THE MINIMUM
4. MAIN CONTROL DIAL
The output power is controlled by the MAIN
CONTROL DIAL. It is a logarithmic-tapered power
out curve (non-linear) that spreads the power
broadly across the MAIN CONTROL DIAL. The
logarithmic taper power curve helps to give
maximum "Fine Control" over the output speed of
the vibratory feeder. When very precise adjustment
of the MAIN CONTROL DIAL is needed, increase
the MIN trimpot setting and/or decrease the MAX
trimpot setting. For
amplitudes, use the linear POT taper or reduce the
Plus
Max pot setting. To select a linear pot taper for the
Main Control Dial, see the "S1 Programming Chart."
5. SETTING THE SOFT-START
The start-up rate of the control output can be
adjusted to ramp up to the desired output level
instead of starting abruptly. Soft-start keeps parts
from falling off the tooling, reduces spring shock, and
hammering when the control turns ON. Turn the
SOFT Start trimpot clockwise for the gentlest start
(about a 6 sec. ramp up to full output). Turn the
trimpot fully counter-clockwise for no soft start.
6. REMOTE OFF/ON CONTROL
A Run Jumper has been installed at the factory as
shown on the enclosed wiring diagram.
Remote OFF/ON operation of the FC-40
Series
Feeder Cube
®
operate in one of the following ways.
A. A low current switch such as a paddle switch
can replace the factory-installed Run Jumper
"J1." The "Run Contact" connects to terminals 6
and 7. The contact must be able to switch 5VDC
and 2mA. The control will run only when the
contact is closed. Refer to Section A of the
OFF/ON CONTROL GUIDE.
B. Feeder Bowl/Hopper Interlock allows the
Hopper control to operate only when the Bowl is
running and the paddle switch contact is closed.
The interlock input on terminals 11 and 12 of
TB2 is controlled by the interlock output of a
"Parts Sensing Feeder Bowl Control" such as an
Plus
FC-90 .
FC-40 Plus Set Up.doc 2/21/2018 Page 6
precise scaling at low
Plus
control can be configured to
