SER200

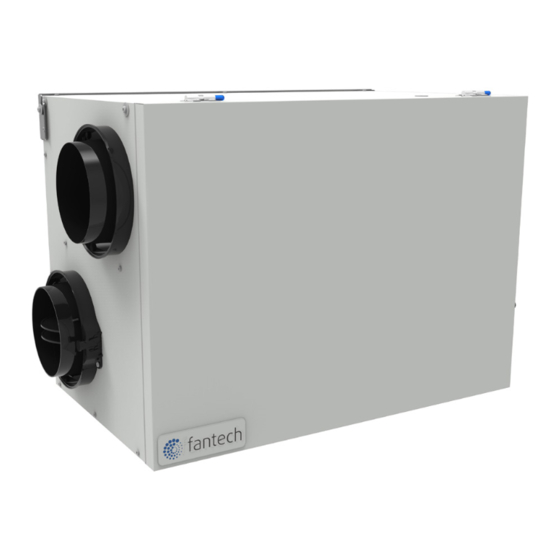

Energy Recovery Ventilators
PARTS IN THE BOX
Energy Recovery Ventilator, 1 pc
Hanging Chain Kit, 1 pc
Hardware Kit, 1 pc
Drain Hose Kit, 1 pc
Operation and Installation Manual, 1 pc
Your ventilation system should be installed in conformance with the appropriate provincial/state requirements or, in the
absence of such requirements, with the current edition of the National Building Code, and / or ASHRAE's "Good Engineering
Practices".
United States
10048 Industrial Blvd., Lenexa, KS, 66215
Tel.: 800.747.1762 • Fax: 800.487.9915
Canada
50 Kanalflakt Way, Bouctouche, NB, E4S 3M5
Tel.: 800.565.3548 • Fax: 877.747.8116
Fantech reserves the right to modify, at any time and without notice, any or all of its products' features, designs,
components and specifications to maintain their technological leadership position.
Please visit our website www.fantech.net for more detailed technical information.
Installation and Operation Manual
Item #: 445506
Rev Date: 2020-10-28
Advertisement
Table of Contents
Related Manuals for SystemAir Fantech SER200
Summary of Contents for SystemAir Fantech SER200
- Page 1 Item #: 445506 Rev Date: 2020-10-28 Installation and Operation Manual SER200 Energy Recovery Ventilators PARTS IN THE BOX Energy Recovery Ventilator, 1 pc Hanging Chain Kit, 1 pc Hardware Kit, 1 pc Drain Hose Kit, 1 pc Operation and Installation Manual, 1 pc Your ventilation system should be installed in conformance with the appropriate provincial/state requirements or, in the absence of such requirements, with the current edition of the National Building Code, and / or ASHRAE’s “Good Engineering Practices”.
- Page 2 Note Warning/ Information Technical Practical tip Important information note PLEASE READ AND SAVE THESE INSTRUCTIONS For residential use only Before installation careful consideration must be given to how this system will operate if connected to any other piece of mechanical equipment, i.e. a forced air furnace or air handler operating at a higher static pressure.
-
Page 3: Table Of Contents
TABLE OF CONTENTS DETERMINING YOUR AIRFLOW REQUIREMENT ........... . . 4 INSTALLATION EXAMPLES Fully dedicated system . -
Page 4: Determining Your Airflow Requirement
DETERMINING YOUR AIRFLOW REQUIREMENT Room Count Method Room classification Number of rooms CFM (L/s) CFM Required Master bedroom x 10 L/s (20 CFM) if yes add 10 L/s (20 CFM) Basement yes or no if no = 0 Bedrooms x 5 L/s (10 CFM) Living room x 5 L/s (10 CFM) Others... -
Page 5: Installation Examples
INSTALLATION EXAMPLES Suggested installation for: Example only – duct configuration may differ depending on the model. • Hydronic baseboard • Infloor heating FULLY DEDICATED SYSTEM • Electric baseboard BEST FOR NEW CONSTRUCTION • Mini split heat pump Benefits: Provides the best Stale air is drawn from key areas of the home requiring local exhaust fresh air distribution in the (bathroom, kitchen, laundry room). -
Page 6: Partially Dedicated System
INSTALLATION EXAMPLES (CONT'D) Suggested installation for: • Central furnace (air DIRECT CONNECTION of the FRESH air to living area to the RETURN PLENUM handling unit or central air of the AIR HANDLER (Stale air drawn from key areas of home) conditioners) •... -
Page 7: Simplified Installation
INSTALLATION EXAMPLES (CONT'D) Suggested installation for: • When bathroom and kitchen DIRECT CONNECTION of both the ERV SUPPLY AIR STREAM and EXHAUST AIR STREAM already have local exhaust to the FURNACE COLD AIR RETURN system • May be suitable for SIMPLIFIED INSTALLATION retrofitting (GOOD) -
Page 8: Exterior Ducting Installation
EXTERIOR DUCTING INSTALLATION WEATHERHOOD LOCATION OUTSIDE CORNER INSIDE CORNER • Decide where your intake and exhaust hoods will be located. 36" (1m) 36” (1m) Locating the Intake Weatherhood • Should be located upstream (if there are prevailing winds) from the 3' (900mm) exhaust outlet. -
Page 9: Interior Ducting Installation
INTERIOR DUCTING INSTALLATION • To maximize airflow through the ductwork system, all ducts should be kept short and have as few bends or elbows as possible. • 45º elbows are preferable to 90º. • Use “Y“ ducts instead of “T” ducts whenever possible. •... -
Page 10: Erv Installation
ERV INSTALLATION LOCATION The ERV must be located in a conditioned space where it will be possible to conveniently service the unit. Typically the ERV would be located in the mechanical room or an area close to the outside wall where the weatherhoods will be mounted. -
Page 11: Start Up Procedure
INSTALLING DRAIN LINE Through normal operation and during its defrost mode, the ERV may produce some condensation. This water should flow into a nearby drain, or be taken away by a condensate pump. The ERV and all condensate lines must be installed in a space where the temperature is maintained above the freezing point. A “P”... - Page 12 Airflow balancing (Cont'd) Adjusting airflows A damper is integrated into the Fresh Air to Building collar and on to the Stale Air to Outside. This damper replaces the installation of a separate damper into the Fresh Air to Building and on to the Stale Air to Outside ducting line.
-
Page 13: Low Voltage Control Systems
WALL CONTROLS * Please see instruction manuals for individual controls for proper wiring and set up of control systems. 1. Ensure that unit is not plugged when connecting the control 2. Recirculation mode is only available with the Flex100H ES, HERO series and the models with the “R” suffix at the end of the model number. - Page 14 WALL CONTROLS (CONT'D) EDF SERIES FEATURES CONNECTS TO • MODE button provides 3 modes of operations: Ventilation , Recirculation and Standby EDF7 • User selected fan speed: Reduced, Medium, Normal and 20 minutes per hour • AUTO setting allows the homeowner to deactivate the dehumidistat •...
-
Page 15: Wiring Diagram
WIRING DIAGRAM... - Page 16 WIRING DIAGRAM (CONT'D) WIRING DIAGRAM TO Standard Accessory Control Contact Standard Furnace Interlock Wiring FURNACE THERMOSTAT TERMINALS FOUR WIRE TWO WIRE heating only FOR A FURNACE CONNECTION TO A COOLING SYSTEM: On some newer furnaces and older FURNACE thermostats, energizing the R and 24-VOLT TERMINAL BLOCK G terminal at the furnace has the...
-
Page 17: Troubleshooting
TROUBLESHOOTING Problem Causes Solutions Air is too dry Dehumidistat control is set too low Increase the desired level of humidity. Change ventilation mode from continuous mode to standby. ERV out of balance Have contractor balance ERV airflows Air is too humid Dehumidistat control is set too high Reduce the desired level of humidity. -
Page 18: Erv Maintenance Chart
ERV MAINTENANCE CHART Limited Warranty • The Energy recovery core has limited 5 year warranty. Maintenance Required Recommended Frequency Date Maintenance Performed Check and Clean Filters Every 3 months or if • The warranty is limited to 5 years on parts and 7 years on fans from the dirty date of purchase, including parts... -
Page 19: Erv Core Washing Instruction
ERV core washing instructions For proper maintenance of your energy recovery core please follow these instructions Remove both filters by sliding them out. Remove the core from the unit. With one of your core's air inlets facing down, place it in a large sink, bathtub, or shower. -
Page 20: Parts List
PARTS LIST SER200 BOM # Description (463276) Kit, Repl, Motor, R2E220,mini 445516 Filter, 2x R-200 (11.5 x 15) Rep. Kit 40327 Energy Recovery Cell 12” x 12” x 15” 427789 Capacitors 10uF 410040 Kit,RV-CTRL,Replacement,H:F 428252 Door Switch 410867 Auto-Transformer 411963 Control Switch 410213 Kit Drain Plug... - Page 21 NOTES...
- Page 22 NOTES...
- Page 23 NOTES...
- Page 24 Fantech reserves the right to make technical changes. For updated documentation please refer to www.fantech.net Fantech®...
