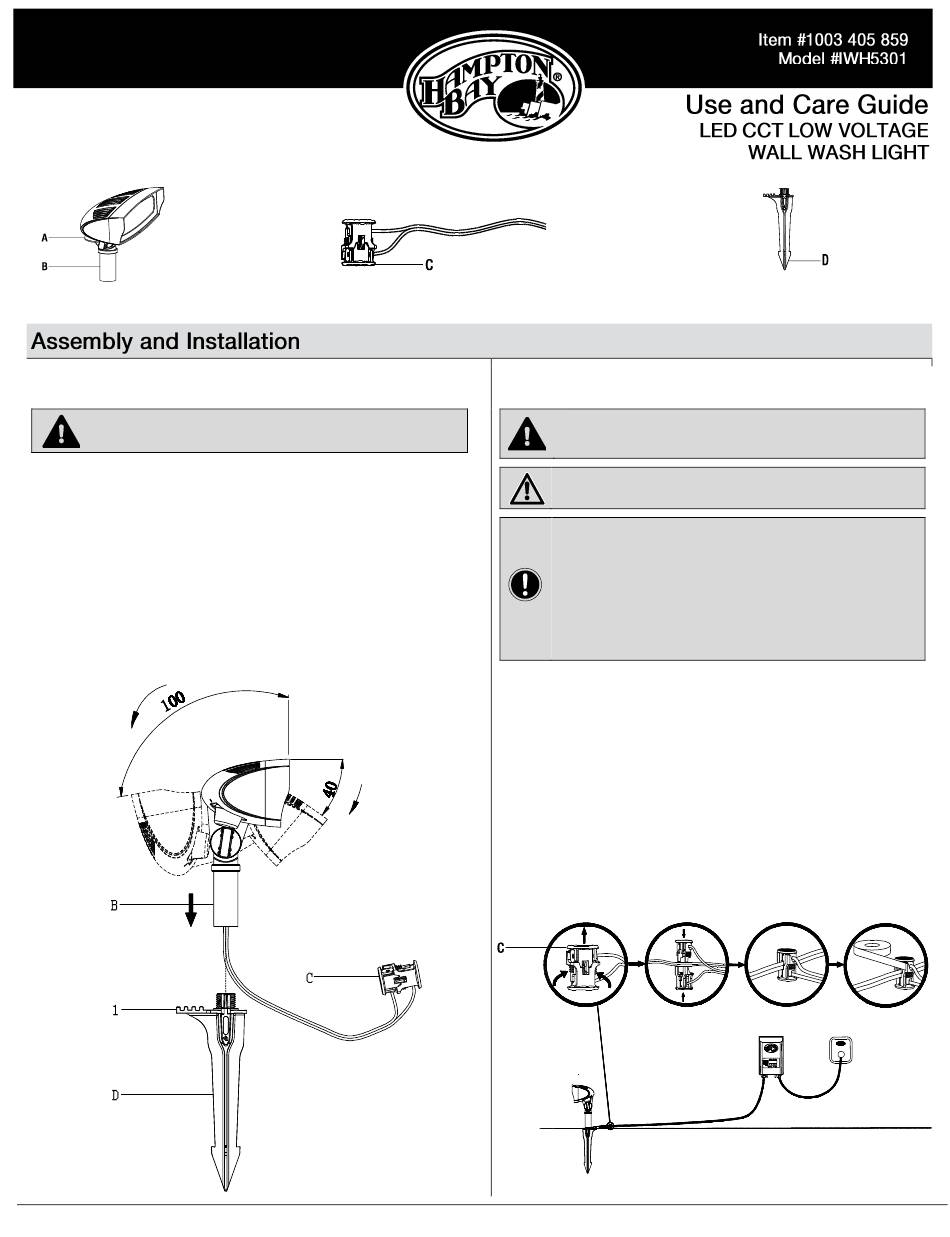

HAMPTON BAY IWH5301 Use And Care Manual

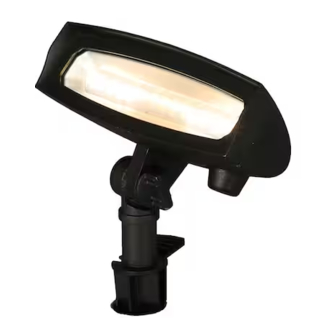

PACKAGE CONTENTS
A – Knob x1
B – Lamp Body x1
1
Attaching and installing the light
WARNING: Never push the fixture into the ground by the lamp body (B)
or use a hammer to insert the ground stake (D) into the ground.
Insert the fixture wire on the wire connector (C) into the groove located on
□
the top of the ground stake (D).
Screw the lamp body (B) onto the top of the ground stake (D). Ensure the
□
fixture wire on the wire connector (C) stays in the center of the groove of the
ground stake (D) to avoid damage to the fixture wire.
Prepare a hole in the installation location. Use a tool such as a screwdriver
□
(not included) to prepare the installation hole to ensure the hole is not
larger than the ground stake (D).
Install the fixture in the ground by pushing on the foot step (1) on the
□
ground stake (D). Do not push on the lamp body (B).
The lamp body (B) can rotate up and down 140 degrees.
□
C – Wire Connector x1
(with 12 in. wire attached to lamp body)
2
□
□
□
□
□
1
D – Ground Stake (6.693 in.) x1
Connecting the wires
WARNING: The wire connector (C) contacts have sharp edges for
piercing the main low voltage cable. To avoid injury, do not touch the
metal contacts.
CAUTION: The wire from low voltage power unit should be 12-16 AWG
type underground low Energy Circuit Cable.
IMPORTANT:
Protect the wiring by routing it in close proximity to the light
□
fitting, or next to a building structure such as a house or a deck.
The landscape wire and connector can also be hidden under
□
stone or buried under grass at a maximum depth of 6 in. (15.24
cm).
Do not install the fixture within 10 ft. of a pool, spa, or fountain.
□
Do not submerge the fixture in water.
□
Place the wire connector (C) on opposite sides of the low voltage
cable (not included) from the transformer (not included) where the
fixture will be located.
Align and fit the main low voltage cable vertically to the slot of the
wire connector (C).
Press the wire connector (C) together until it is locked around the
main low voltage cable. The pre-set prongs will pierce the cable
insulation and establish contact with the electrical wire inside.
Once the wire connector (C) is in place, it is recommended to wrap it
with electrical tape (not included).
After all fixtures are installed, turn on the transformer.
