HAMPTON BAY DL10103BKS Use And Care Manual

HAMPTON BAY DL10103BKS Use And Care Manual

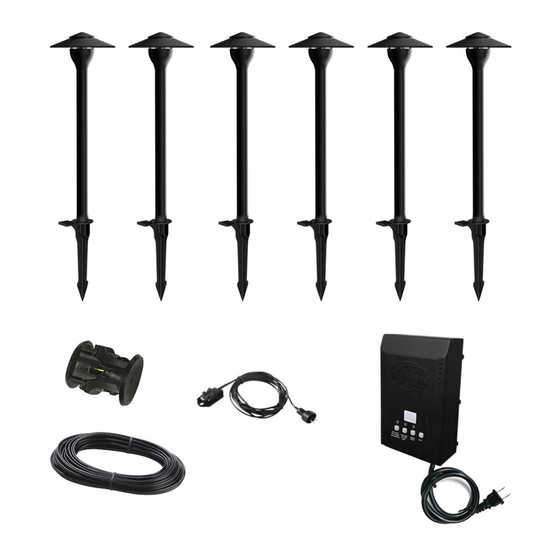

Led landscape light kit

Advertisement

Available languages

Available languages

Questions, problems, missing parts? Before returning to store,
7 a.m. - 6 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST Saturday
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing
USE AND CARE GUIDE
LED LANDSCAPE LIGHT KIT
call Hampton Bay Customer Service
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
Hampton Bay!
Item #1002757160
Model #DL10103BKS
We strive to

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL10103BKS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HAMPTON BAY DL10103BKS

  • Page 1 Model #DL10103BKS USE AND CARE GUIDE LED LANDSCAPE LIGHT KIT Questions, problems, missing parts? Before returning to store, call Hampton Bay Customer Service 7 a.m. - 6 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ........2 ......... Installation Safety Information ........2 ........... Operation Warranty ........... Care and Cleaning ........8 Pre-Installation ........Troubleshooting ................Tools Required ........Hardware Included ........4 Package Contents Safety Information IMPORTANT SAFETY INSTRUCTIONS WHEN INSTALLING OR USING THIS LANDSCAPE SYSTEM, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED INCLUDING THE FOLLOWING: Read all instructions prior to beginning the installation process.
  • Page 3: Warranty

    Warranty e date of purchase. If within this period the product is found to be defective in material or workmanship, the product must be returned, with a copy of the bill of sale as proof of purchase, to the original place of purchase. The manufacturer will, at its option, repair, replace, or refund the ue to consequential damages.
  • Page 4: Package Contents

    Pre-installation (continued) PACKAGE CONTENTS Part Description Quantity Fixture shade Fixture housing Fixture wire Stake Power pack 16# low voltage cable...
  • Page 5: Installation

    Installation Marking the installation hole □ Select a location near an outside 120-volt covered GFCI outlet cover plate marked for WET LOCATION. Using the mounting template (DD), mark holes for the power pack (G) at least 20 in. above ground level. 20 in.
  • Page 6 Installation (continued) Power pack installation □ Hang the power pack (F) on the Phillips screws (AA) using the keyhole slots on the back and bottom of the power pack (F). Installing the photo eye holder □ When selecting a location for the photocell cable (FF), make sure it will receive direct sunlight during the day.
  • Page 7 Installation (continued) Connecting the stake □ Attach the stake (E) to the bottom of the xture housing (B). □ CAUTION: DO NOT use a hammer. into the ground. For ground with hard soil, use a trowel (not included) to loosen soil. Connecting the wires □...
  • Page 8: Operation

    Operation Functional instruction □ After properly installing the power pack, turn on the power pack. There are four buttons for operation. Every time you press either button, it will turn to another working mode. Push either button repeatedly to move to the different selections. □...
  • Page 9: Troubleshooting

    Cable Selection 15 VOLT TAP Cable Length Total Fixture Wattage 0-50 feet 51-100 feet 101-150 feet 0-60 Watts 16 AWG* 16 AWG 16 AWG 61-120 Watts 16 AWG* 16 AWG 12 AWG 121-180 Watts 14 AWG* 14 AWG 12 AWG 181-240 Watts 14 AWG* 14 AWG...
  • Page 10 Questions, problems, missing parts? Before returning to store, call Hampton Bay Customer Service 7 a.m. - 6 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST Saturday 1-855-HD-HAMPTON HAMPTONBAY. COM Retain this manual for future use.
  • Page 11 ¿Preguntas, problemas o piezas faltantes? Antes de regresar a la tienda, llama al servicio al cliente de Hampton Bay, de lunes a viernes de 7 a.m. a 6 p.m., hora estándar del Este, y sábados de 9 a.m. a 6 p.m., hora estándar del Este 1-855-HD-HAMPTON HAMPTONBAY.COM...
  • Page 12 Índice Índice ..........2 ..........Instalación Información de Seguridad ........2 ........... Funcionamiento Garantía ........... Mantenimiento y Limpieza ........8 Pre-Instalación ..........Solución de Problemas ........Herramientas Necesarias ................... Herrajes Incluidos ........4 Contenido del paquete Información de Seguridad INSTRUCCIONES IMPORTANTES DE SEGURIDAD DURANTE LA INSTALACIÓN O USO DE ESTE SISTEMA DE JARDÍN, SE DEBEN TOMAR PRECAUCIONES BÁSICAS DE SEGURIDAD INCLUIDAS LAS SIGUIENTES: Lee todas las instrucciones antes de comenzar la instalación.
  • Page 13 Garantía El fabricante garantiza que esta lámpara estará libre de defectos en materiales y mano de obra por un periodo de tres años a partir de la fecha de su compra. Si durante este lapso, el producto resulta defectuoso en cuanto a material omano de obra, deberá devolverlo al lugar de la compra original, junto con una copia de la factura de venta comocomprobante de la compra.
  • Page 14 Pre-Instalación (continuación) CONTENIDO DEL PAQUETE Pieza Descripción Cantidad Pantalla de la lámpara Carcasa de la lámpara Cable de la lámpara Conector [preensamblado en el Cable de la lámpara (C)] Estaca Bloque de alimentación Cable #16 de bajo voltaje...
  • Page 15 Instalación □ Seleccione una ubicación cercadel tomacorriente exterior de 120 voltios tipo GFCI cubierto con una placa con la inscripción "PARA LUGAR HÚMEDO". alimentación (G) por lo estar a 50,8 cm sobre el nivel del suelo. 20 in. (50,8 cm) NOTA: Instale el transformador en un lugar donde el ojo de la fotografía de crepúsculo al amanecer reciba luz solar directa.
  • Page 16 Instalación (continuación) Instalación de la batería portátil □ Cuelgue el bloque de alimentación (F) en los tornillos Phillips (AA) mediante las ranuras en forma de cerradura ubicadas en la parte posterior del bloque de alimentación (F). Cómo instalar el soporte del sensor fotoeléctrico □...
  • Page 17 Instalación (continuación) Une el estaca □ Fije el estaca (E) a la parte inferior del carcasa de la lámpara (B). Coloca la lámpara clavándola en tierra □ Empuje la lámpara ensamblada para enterrarla. PRECAUCIÓN: NO use un martillo. NUNCA entierre la lámpara en el suelo empujándola desde el cabezal.
  • Page 18 Funcionamiento Instrucciones de funcionamiento □ Después de la instalación correcta del bloque de alimentación, active la fuente eléctrica. Existen dos botones de operación. Cada vez que presione algún botón, cambiará a otro modo de funcionamiento. Presione cualquier botón repetidamente para realizar las diversas selecciones. □...
  • Page 19 Selección por Cable GRIFO 15 VOLTIOS Longitud del Cable Total Fixture Potencia 0-50 pies 51-100 pies 101-150 pies 0-60 Watts 16 AWG* 16 AWG 16 AWG 61-120 Watts 16 AWG* 16 AWG 12 AWG 121-180 Watts 14 AWG* 14 AWG 12 AWG 181-240 Watts 14 AWG*...
  • Page 20 ¿Preguntas, problemas o piezas faltantes? Antes de regresar a la tienda, llama al servicio al cliente de Hampton Bay, de lunes a viernes de 7 a.m. a 6 p.m., hora estándar del Este, y sábados de 9 a.m. a 6 p.m., hora estándar del Este 1-855-HD-HAMPTON HAMPTONBAY.COM...
