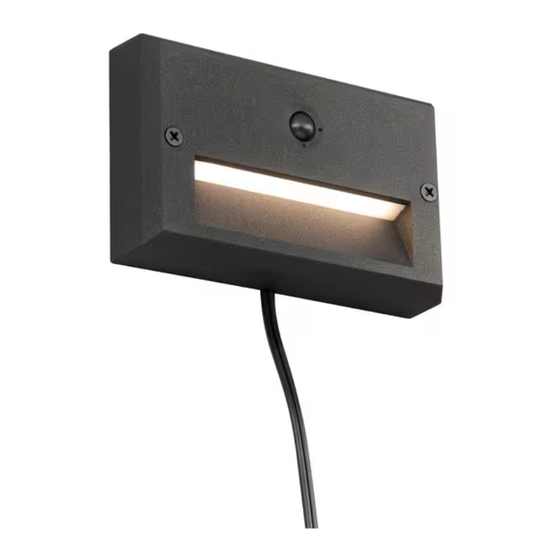

Led motion sensor deck/stair lights

Advertisement

Available languages

Available languages

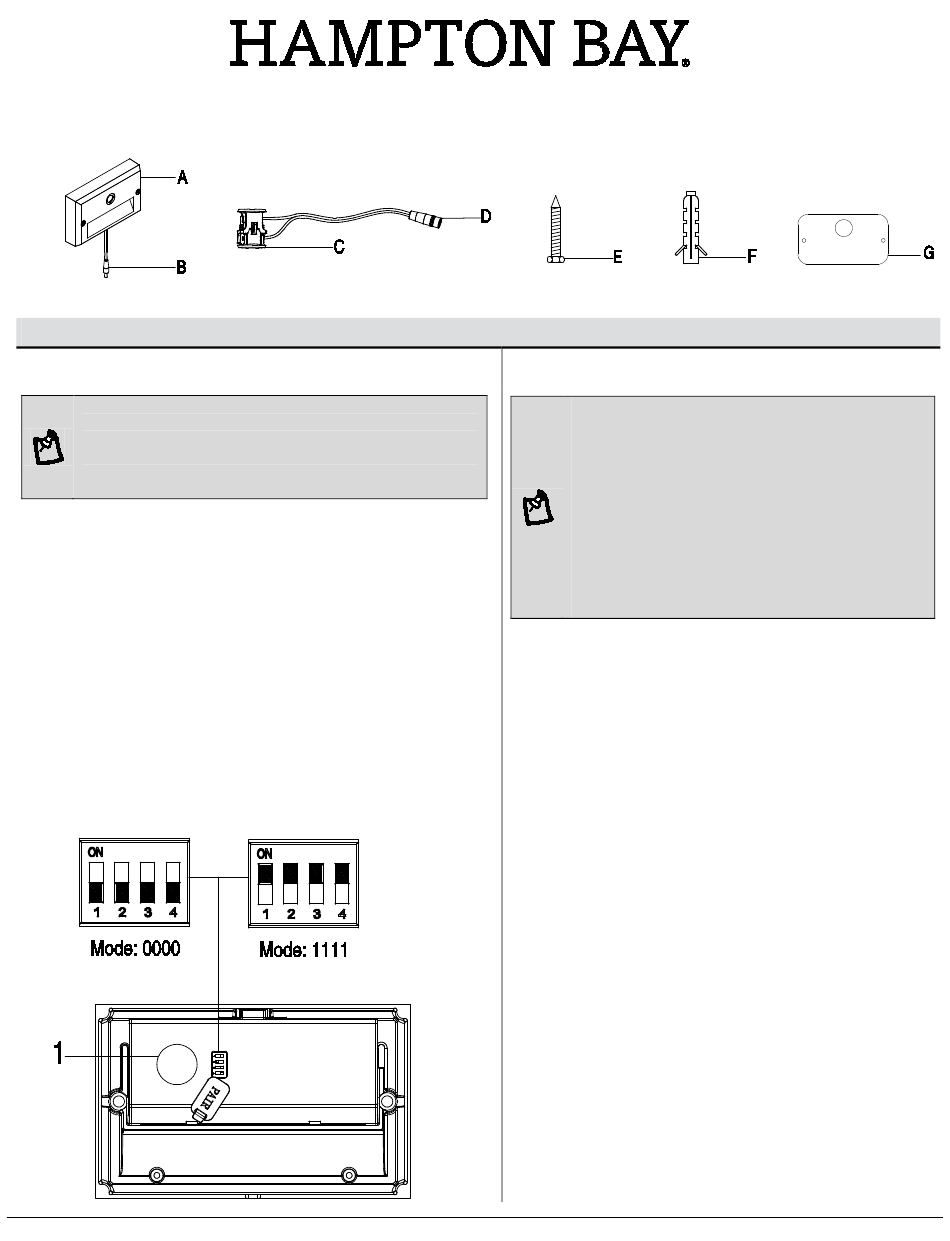

PACKAGE CONTENTS
A –Deck Lights x 1
B – Male Plug x 1 (with 36 in. wire)
Per assembly and Installation
1
Detect PIR deck lights pairing
What to know before intall:
–Decide which PIR Deck Lights will be grouped (up to 10 fixtures).
–Open the plastic cover on back of each PIR Deck Light.
–Refer to the "Pairing via DIP Switch'' Step to pair the deck lights.
–Close the plastic cover (to prevent water go inside fixture).
–When the gear is adjusted to "ON", it is "1"
- If operating only one fixture, place the fixture in its permanent location.
- To operate multiple fixtures, please pair the fixtures before installation,
follow the PAIR steps below
There is a DIP switch in the back of fixture, the 4 bottons on the
switch can be slided to up and down. The fixtures with the switch
bottons in the exactly same setting will be paired as a group . Groups
can be set freely (except "0000" and "1111").
When at Off mode (0000), fixture is at off status, will not pair.
When at Test mode (1111), fixture will turn on after detecting motion
whenever at day or night, then turn off after 3S of delay.
If Pairing lost efficacy, press the reset button (1) for 10 S, the light will
turn on for 10 S, then turn off, reset succeed. You can start a new
pairing.
C – Wire Connector (with 12 in. wire) x 1
D –Female Plug x 1
E – Self-Threading
Screw (45 mm) x 2
2
Preliminary motion sensor and pairing test
General Notes:
–When the transformer is turned off the fixture light will turn
off, then PIR function become active and converts to battery
power.
–PIR Function is only active after the sensor detects the
environmental brightness at less than 50LUX at night.
–When the sensor detects the environmental brightness of less
than 50LUX, plus PIR detects motion, the deck light will turn on
and stay on for 1 minute before turning off.
–When the sensor detects the environmental brightness higher
than 200LUX, after a 90 second delay time, deck light will turn
off. The purpose of setting 90 second delay is to prevent the
200LUX brightness caused by a flash of lightning or car light.
- Test the motion sensor function of a single deck light.
Connect deck light into main power cord by wire connectors.
Stir 4 buttons up to "ON" (Mode 1111) to make deck light on
test mode.
Turn over deck light to make PIR sensor toward clean surface
and to do preliminary function test.
Put up the deck light, this deck light will be powered on, this
means that the single deck light pairing function works.
- Test the pairing function of multiple deck lights.
Connect each deck lights into main power cord by wire
connectors (up to 10 deck lights).
Stir 4 buttons in any mode (except "0000" and "1111"), which
makes the deck light enter the multi-lamp pairing test mode.
The mode of all deck lights that need to be paired needs to be
set to the same.
Turn over each deck light to make PIR sensor toward clean
surface and to do preliminary function test.
Put up one deck light, this deck light will be powered on. The
rest of deck lights in a group will be sequentially powered on.
This means function of motion sensor and wirelessly link of
deck lights works.
1
Item # 1006 684 888
Model # PNB000003-03
Use and Care Guide
LED MOTION SENSOR
DECK/STAIR LIGHTS
F– Plastic Anchor
G – Cardboard
(25 mm) x 2
Template x1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PNB000003-03 and is the answer not in the manual?

Questions and answers

Summary of Contents for HAMPTON BAY PNB000003-03

  • Page 1 Item # 1006 684 888 Model # PNB000003-03 Use and Care Guide LED MOTION SENSOR PACKAGE CONTENTS DECK/STAIR LIGHTS A –Deck Lights x 1 C – Wire Connector (with 12 in. wire) x 1 E – Self-Threading F– Plastic Anchor G –...
  • Page 2: Assembly And Installation

    Assembly and Installation Installing the fixture with the wire routed behind the Installing the fixture with the wire in front of mounting surface the mounting surface Place the cardboard template (G) on the mounting surface and NOTE: This document provides two different methods for routing □...
  • Page 3 Assembly and Installation (continued) Installing the fixture on a surface using plastic anchors Connecting the wires If installation requires the plastic anchors (F), then place the cardboard □ WARNING: The wire connector (C) contacts have sharp edges for template (G) on the mounting surface and mark where the holes should piercing the main low voltage cable.
  • Page 4: Technical Specifications

    Technical Specifications Up t SPECIFICATIONS Up to 16.5 ft. (varies with surrounding temperature) Motion Sensor Range Sensor Detection Angle 90° Power supply AC 12V Installation Height Ideally, 1.31 ft. –0.65 ft. (0.4 – 0.2 m.) above the ground. Non-replaceable battery Rechargeable Li-ion Battery 3.7V, 800mA , 2.96 Wh Charging time 4 hours at charging current 300mA...
  • Page 5: Troubleshooting

    Troubleshooting Problem Possible Cause Solution □ □ Check the outlet and ensure that a breaker or GFCI circuit has not been tripped. The fixture will There is no power. □ □ Follow the wires from the fixture and ensure a continuous connected path back to the not light.
  • Page 6 Artículo # 1006 684 888 Modelo # PNB000003-03 GUÍA DE USO Y MANTENIMIENTO SENSOR DE MOVIMIENTO LED LUCES DE CUBIERTA / ESCALERA PACKAGE CONTENTS Conector Cable (con un cable de 12 pulgadas) x1 Tornillos Autorroscantes( 45 mm ) x2 A –Luz de Cubierta x 1 C –...
  • Page 7: Montaje E Instalación

    Montaje e Instalación Instalación del dispositivo con el cable enrutado detrás Instalación del dispositivo con el cable frente a de la superficie de montaje la superficie de montaje NOTA: Este documento proporciona dos métodos diferentes para Coloque la plantilla de cartón (G) en la superficie de montaje y □...
  • Page 8 Montaje e Instalación (continuación) Instalación de la luminaria en una superficie con Conectando los cables anclajes de plástico ADVERTENCIA: Los contactos del cable conector (C) tienen Si la instalación requiere los anclas de plástico (F), coloque la plantilla de bordes filosos para atravesar el cable principal de bajo voltaje. No □...
  • Page 9: Especificaciones Técnicas

    Especificaciones técnicas Up t ESPECIFICACIONES Rango del sensor de movimiento Hasta 16,5 pies (varía con la temperatura ambiente) Ángulo de detección del sensor 90° Fuente de alimentación AC 12V Altura de instalación Idealmente, de 0,4 a 0,2 m (1,31 pies a 0,65 pies) por encima del suelo. Batería no reemplazable Batería recargable de iones de litio de 3,7 V, 800 mA, 2,96 Wh Tiempo de carga...
  • Page 10: Solución De Problemas

    Solución de Problemas Problem Possible Cause Solution □ □ Verifique el tomacorriente y asegúrese que no esté apagado el interruptor o circuito GFCI. El accesorio no No hay corriente. □ □ Siga los cables desde el accesorio y asegúrese que esté en buen estado bien conectado al enciende.
  • Page 11: Fcc Warning

    FCC Warning Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
