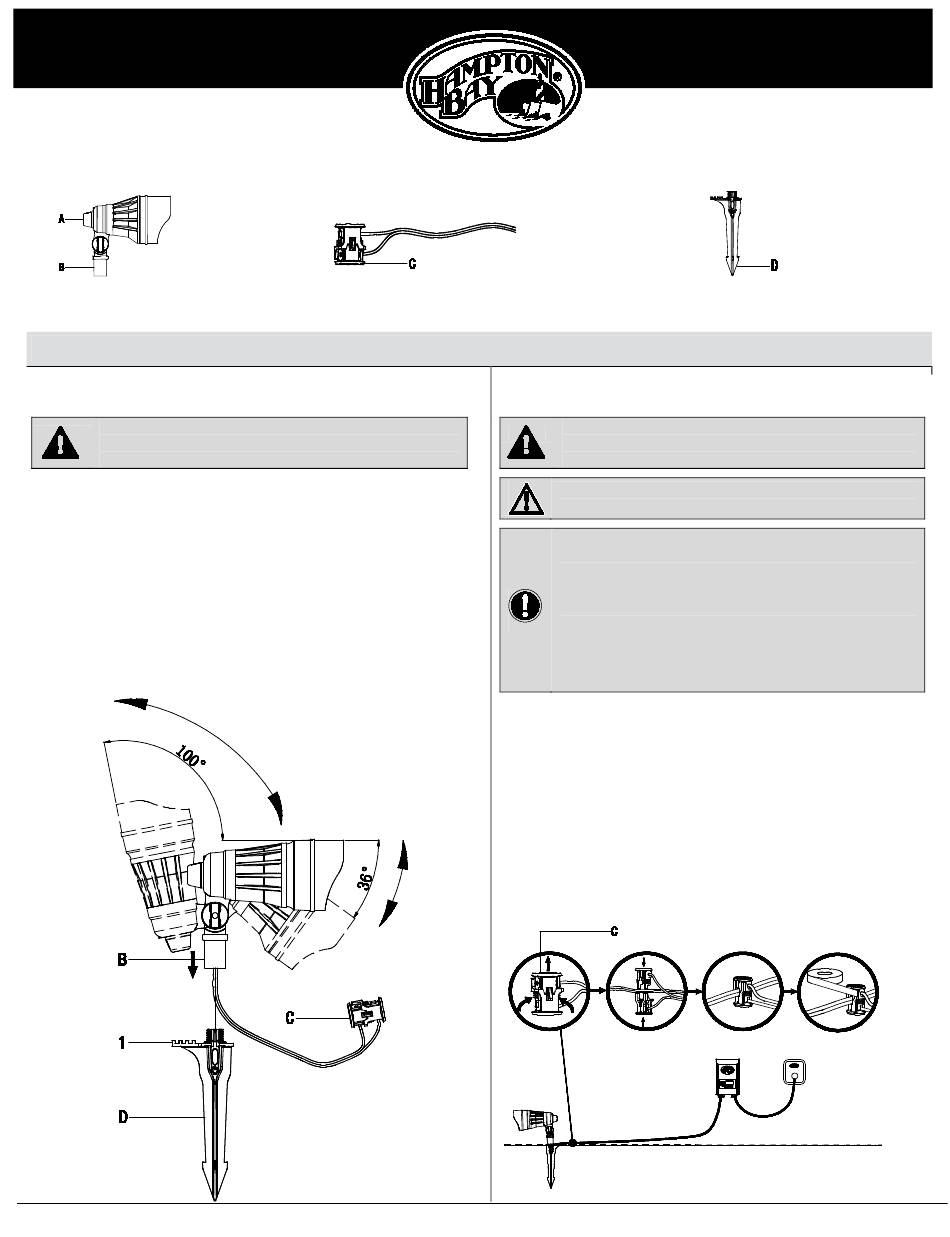

PACKAGE CONTENTS
A – Knob x1
B – Lamp Body x1
Assembly and Installation
1
Attaching and installing the light
WARNING: Never push the fixture into the ground by the lamp
body (B) or use a hammer to insert the ground stake (D) into the
ground.
Insert the fixture wire on the wire connector (C) into the groove located
on the top of the ground stake (D).
Screw the lamp body (B) onto the top of the ground stake (D). Ensure
the fixture wire on the wire connector (C) stays in the center of the
groove of the ground stake (D) to avoid damage to the fixture wire.
Prepare a hole in the installation location. Use a tool such as a
screwdriver (not included) to prepare the installation hole to ensure the
hole is not larger than the ground stake (D).
Install the fixture in the ground by pushing on the foot step (1) on the
ground stake (D). Do not push on the lamp body (B).
The lamp body (B) can rotate up and down 136 degrees.
C – Wire Connector x1
(with 12 in. wire attached to lamp body)
D – Ground Stake (6.693 in.) x1
2
Connecting the wires
WARNING: The wire connector (C) contacts have sharp edges for
piercing the main low voltage cable. To avoid injury, do not touch
the metal contacts.
CAUTION: The wire from low voltage power unit should be 12-16
AWG type underground low Energy Circuit Cable.
IMPORTANT:
Protect the wiring by routing it in close proximity to the light
fitting, or next to a building structure such as a house or a
deck.
The landscape wire and connector can also be hidden under
stone or buried under grass at a maximum depth of 6 in.
(15.24 cm).
Do not install the fixture within 10 ft. of a pool, spa, or fountain.
Do not submerge the fixture in water.
Place the wire connector (C) on opposite sides of the low voltage
cable (not included) from the transformer (not included) where
the fixture will be located.
Align and fit the main low voltage cable vertically to the slot of
the wire connector (C).
Press the wire connector (C) together until it is locked around the
main low voltage cable. The pre-set prongs will pierce the cable
insulation and establish contact with the electrical wire inside.
Once the wire connector (C) is in place, it is recommended to
wrap it with electrical tape (not included).
After all fixtures are installed, turn on the transformer.
1
Item #1003 453 321(US)
Model #IWH1501L-3
Item #1001 485 918(Canada)
Model #IWH1501L-3
Use and Care Guide
LED CCT LOW VOLTAGE
FLOOD LIGHT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IWH1501L-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HAMPTON BAY IWH1501L-3

  • Page 1 Item #1003 453 321(US) Model #IWH1501L-3 Item #1001 485 918(Canada) Model #IWH1501L-3 Use and Care Guide LED CCT LOW VOLTAGE FLOOD LIGHT PACKAGE CONTENTS A – Knob x1 C – Wire Connector x1 D – Ground Stake (6.693 in.) x1 B –...
  • Page 2: Troubleshooting

    Assembly and Installation (continued) Adjusting the color temperature of the light Choose your favorite correlated color temperature (CCT) from three options: 2700k warm white, 3000k soft white, or 4000k bright white. □ Rotate the knob (A) clockwise or counter clockwise to make your selection. □...
  • Page 3: Cable Selection

    Cable Selection 12 VOLT TAP Cable Length Total Fixture Wattage 0-50 feet 51-100 feet 101-150 feet 0-60 Watts 16 AWG 16 AWG 14 AWG 61-120 Watts 16 AWG 14 AWG 12 AWG 121-180 Watts 14 AWG 12 AWG Not Recommended 181-240 Watts 14 AWG 12 AWG...
  • Page 4: Assemblage Et Installation

    Article #1003 453 321(US) Modèle # IWH1501L-3 Article #1001 485 918(Canada) Modèle # IWH1501L-3 Guide d'utilisation et d'entretien DEL CCT BASSE TENSION ÉCLAIRAGE DIFFUSANT CONTENU DE L'EMBALLAGE A – Bouton x1 C –Connecteur de Fil x1 D –Piquet de Terre (17 cm(6,693 po)) x1 B –Corps de la Lampe x1...
  • Page 5: Entretien Et Nettoyage

    Assemblage et Installation (suite) Réglage de la température de couleur de la lumière □ Choisissez votre température de couleur corrélée (CCT) parmi trois options: blanc chaud à 2700k, blanc doux à 3000k ou blanc brillant à 4000k. □ Tournez le bouton (A) dans le horaire ou inverse pour faire votre choix. REMARQUE: Le réglage d'usine pour la température de couleur corrélée (CCT) est le blanc doux à...
  • Page 6 Cette garantie ne s'applique pas à la finition de toute partie du produit, telle que la surface et/ou les intempéries, cela étant considéré comme une usure normale. Le fabricant ne garantit pas et décline expressément toute garantie, expresse ou implicite, d'adéquation à un usage particulier, autre que la garantie ci-incluse. Le fabricant décline expressément toute responsabilité...
