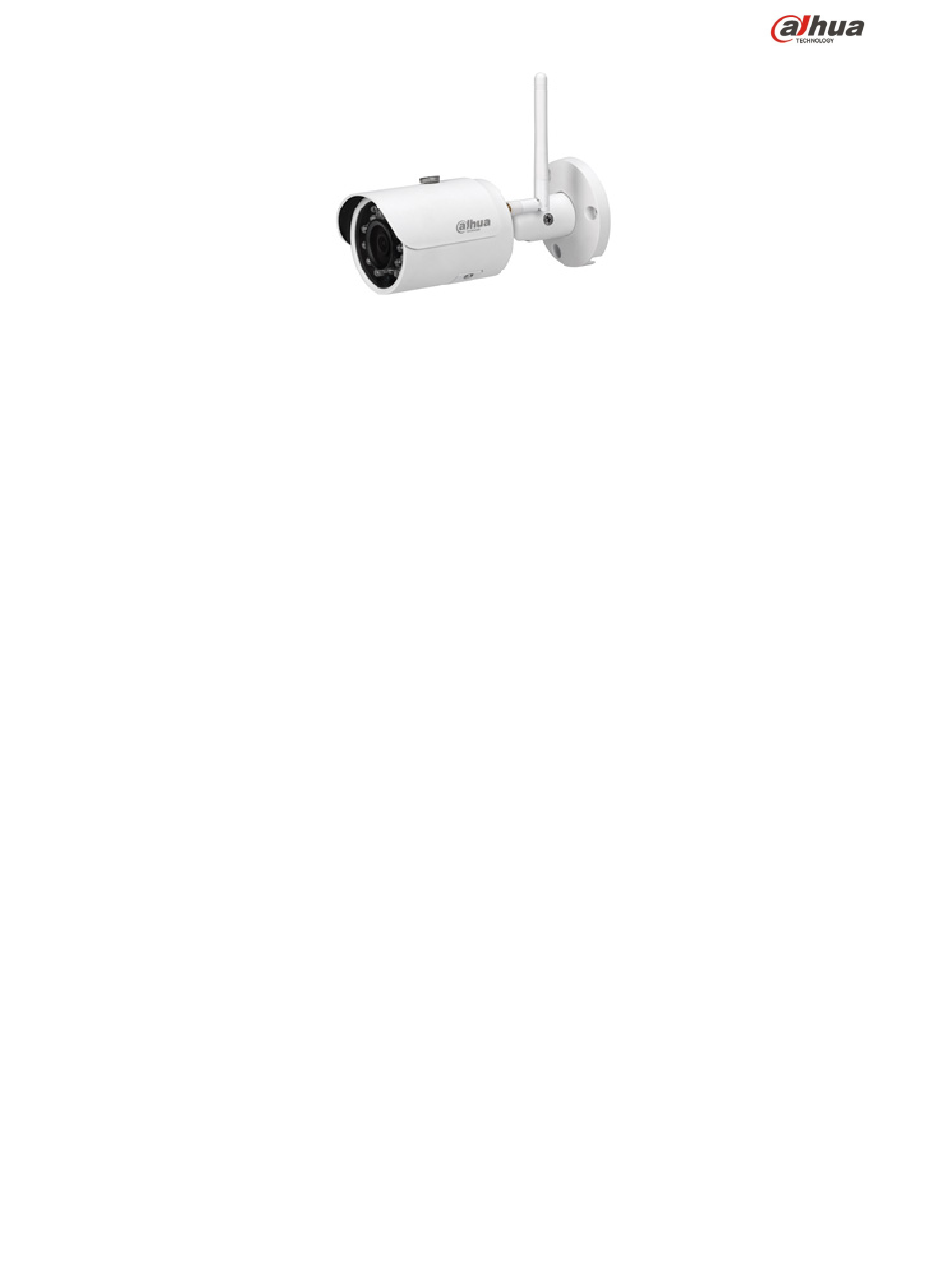

- Page 1 IR Megapixel WiFi Fixed Mini-Bullet Camera DH-IPC-HFW11A0SN-W, DH-IPC-HFW13A0SN-W Quick Start Guide Version 1.0.1 Dahua Technology USA Inc.
-
Page 2: Table Of Contents
Table of Contents Welcome .......................... 1 Important Safeguards and Warnings ..............1 Electrical safety ....................1 Environmental Precautions ................. 2 Operation and Daily Maintenance ..............3 Warnings ......................3 FCC Information ....................4 ... -
Page 3: Welcome
1 Welcome This manual offers reference material and general information about the basic operation, maintenance, and troubleshooting of the Dahua Multi-Sensor Panoramic Camera. Read, follow, and retain the following safety instructions. Heed all warning on the unit and in the operating instructions before operating the unit. -
Page 4: Environmental Precautions
If the unit is damaged and requires service, unplug the unit from the main AC power supply and from the PoE supply and refer to qualified service personnel. Damage may include, but is not limited to: The power supply cord or plug is damaged. ... -
Page 5: Operation And Daily Maintenance
Operation and Daily Maintenance Do not touch the heat dissipation component of the unit. This part of the unit is hot and may cause a burn. Do not open or dismantle the device; there are no components that a user can fix or replace. Opening the unit may cause water leakage or expose components to direct light. -
Page 6: Fcc Information
1.3 Legal Notices Copyright This user guide is ©2016, Dahua Technology Company, LTD. This user guide is the intellectual property of Dahua Technology Company, LTD and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly. -
Page 7: Unpacking
2 Unpacking This equipment should be unpacked and handled with care. If an item appears to have sustained damage during shipping, notify the shipper immediately. Verify that all the parts listed below are included. If an item is missing, contact customer support or your local representative. -
Page 8: Camera Configuration
3 Camera Configuration Use the following sections to identify the camera components and status indicators. 3.1 Camera and Cables The following image depicts the main components of the camera: Figure 3-1 Description Network port Power port Wi-Fi camera with sunshield... -
Page 9: Camera Control And Indicators
3.2 Camera Control and Indicators Figure 3-2 Description Reset/ Wi-Fi Protected Setup (WPS) button Indicator Light 1 Lower Cover Micro SD Card Slot Indicator Light 2 Waterproof Ring Wi-Fi Antenna Locking Screw... -
Page 10: Status Indicators
3.3 Status Indicators Indicator State Status Red Light Camera booting. Slow Blinking Network connection failure or network disconnected. Quick Blinking Device malfunction, boot failure, or Alarm or SD card malfunction. Green Light Wi-Fi connection successful, camera operating normally. Slow Blinking Boot successful, awaiting Wi-Fi configuration, enter Smart Configuration status. -
Page 11: Wi-Fi Configuration
4 Wi-Fi Configuration Dahua offers the Easy4IP mobile application to assist with identifying a Wi-Fi enabled camera and associating the camera with a security system network. 1. Supply power to the camera. 2. Connect your smart phone to the security system’s Wi-Fi network. 3. - Page 12 8. Type the Wi-Fi network password and tap Next. The app accesses the Wi-Fi network and adds the camera. This process can take up to 60 seconds. 9. To switch the camera between a wired or a wireless configuration: a. Press and hold the Reset button on the bottom of the camera for eight seconds. b.
-
Page 13: Device Installation
5 Device Installation This section details installing the camera to a wall or ceiling. Note that the wall or ceiling must be capable of supporting a minimum of three times the weight of the camera and a bracket (if used). DO NOT connect the camera to the power supply during installation. - Page 14 11. Adjust the monitoring direction of the camera. Loosen the set screw along the shaft of the camera, then position the camera by tilting, twisting, and rotating the camera. 12. Tighten the set screw.
- Page 15 Dahua Technology USA Inc. 23 Hubble, Irvine, CA 92618 Tel: (949) 679-7777 Fax: (949) 679-5760 Email: sales.usa@global.dahuatech.com Rev 001.001 © 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice.
