- Page 1 NETWORK CAMERA User Manual PNM-9000QB/ SLA-T1080FA/SLA-T2480A/T2480VA/T4680A/T4680VA SCL-150...
- Page 2 Network Camera User Manual Copyright ©2020 Co., Ltd. All rights reserved. Hanwha Techwin Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
- Page 3 15. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” and rated from 12 Vdc, min.1.6 A / PoE , 0.42 A. (PNM-9000QB) The lightning flash with arrowhead symbol, within an equilateral triangle, is 16.
- Page 4 overview Class construction Please read the following recommended safety precautions carefully. An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a ~ Do not place this apparatus on an uneven surface. protective earthing connection. ~ Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.
-
Page 5: Table Of Contents
Recommended PC Specifications Password setting Recommended Micro SD/SDHC/SDXC Login Memory Card Specifications Camera Web Viewer Setup NAS recommended specs What’s Included (PNM-9000QB) What’s Included (Lens module -Optional) At a Glance APPENDIX Troubleshooting INSTALLATION & CONNECTION Installation Inserting/Removing a Micro SD card... -
Page 6: Recommended Pc Specifications
overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ Recommended capacity : 200GB or higher is recommended. ~ RAM : 8G or higher ~ For this camera, you are recommended to use a NAS with the following manufacturer’s specs. ~ Supported OS : MS Windows 8.1, 10, Mac OS X 10.13 Recommended products : QNAP NAS, Synology NAS ~ Recommended browser: Google Chrome... -
Page 7: What's Included (Pnm-9000Qb)
WHAT’S INCLUDED (LENS MODULE -OPTIONAL) Please check if your camera and accessories are all included in the product package. This is a lens module separately sold that is mounted to PNM-9000QB. (As for each sales country, accessories are not the same.) Please check if your camera and accessories are all included in the product package. - Page 8 overview Model Name Appearance Item Name Quantity Description Model Name Appearance Item Name Quantity Description Lens Module Lens Module Quick Guide Quick Guide (Optional) (Optional) Tapping Screw Used for installation on the wall or ceiling SLA-T2480VA Lens module bracket Use this for lens module installation Cable tie Use this for organizing the cable SLA-T2480A...
- Page 9 Model Name Appearance Item Name Quantity Description Model Name Appearance Item Name Quantity Description Lens Module Lens Module Quick Guide Quick Guide (Optional) (Optional) Tapping Screw Used for installation on the wall or ceiling SLA-T4680VA Lens module bracket Use this for lens module installation Cable tie Use this for organizing the cable SLA-T4680A...
-
Page 10: At A Glance

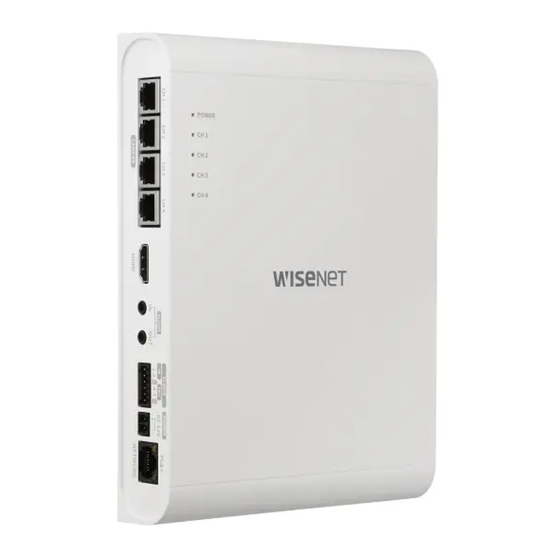

overview AT A GLANCE Side of the main unit Front of the main unit Item Description Connection terminal of lens This terminal is connected to the lens module through the cable to connect the lens module module. HDMI port By connecting an HDMI cable, you can watch a live feed on the monitor. AUDIO IN Used to connect to a microphone. - Page 11 Appearance of lens module <SLA-T1080FA> <SLA-T2480A> <SLA-T2480VA> <SLA-T4680VA> Item Description Lens Module This lens module is used to shoot video. Main unit connection This terminal is connected to the main unit through the cable to connect the lens module. terminal <SLA-T4680A>...
-
Page 12: Installation & Connection
installation & connection INSTALLATION 2. Use four screws provided to join the installation bracket to the main unit. Precautions before installation Ensure you read out the following instructions before installing the camera: ~ Organize the cable separately in order to prevent excessive burden on the lens module while the camera is installed (within 1m from the lens module ). - Page 13 Install lens module (SLA-T1080FA) Install lens module (SLA-T2480A/SLA-T4680A) 1. Drill a hole which the lens is passed through at the location where you want to 1. Use two screws provided or remove protective film to use the double- install it. sided tape on the bottom side of the lens module bracket to install the lens module bracket.
- Page 14 installation & connection Install lens module (SLA-T2480VA/SLA-T4680VA) Installing the lens module in the main unit Connect the lens module cable to the [CAMERA] port on the side of the main unit. 1. Make a hole for the lens module at the spot where you want to install it. Connect the lens module and turn it on.
- Page 15 Connect lens module cable to lens module Adjust the length of the cable for connecting the lens module The length of the cable for connecting the main unit and lens module can be adjusted. Please follow the 1. Unscrew the back cover by turning it counterclockwise. steps in the correct order to adjust the length of the cable for connection: Be sure to remove the back cover first and assemble/disassemble the RJ45 1.
-
Page 16: Inserting/Removing A Micro Sd Card
installation & connection INSERTING/REMOVING A MICRO SD CARD Removing a Micro SD card Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot. Disconnect the power cable from the camera before inserting the Micro SD card. When it rains or the humidity is high, insertion or ejection of a Micro SD card is not recommended. -
Page 17: Connecting With Other Device
CONNECTING WITH OTHER DEVICE Network Cable Specification Item Contents Remark Connector RJ45 (10/100/1000BASE-T) To operate with 1000BASE-T, a cable of Ethernet 10/100/1000Base-T Category 6 or higher should be used for the Giga hub. Cable Category 6 Max Distance 100 m DC Resistance ≤... - Page 18 installation & connection Connecting to Audio Input/Output Connecting to the I/O port box Connect the Alarm I/O cable to the corresponding port of the port box. Speaker Microphone ~ ALARM-IN : Used to connect the alarm input sensor or external day/night sensor. ~ ALARM-OUT : Used to connect the alarm output signal.
- Page 19 To connect the alarm out If devices (e.g., flashing light and siren) that exceed the voltage and current specifications are connected by using the open collector method, it may cause malfunction. Refer to the alarm out connection diagram below when connecting devices that exceed the voltage and current specifications.
-
Page 20: Network Connection And Setup
network connection and setup You can set up the network settings according to your network configurations. CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1. -
Page 21: Using Device Manager
If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Technical Guides>-<Online Tool> menu at Hanwha Techwin website ex) 192.168.1.2~254, 192.168.0.2~254, (http://www.hanwha-security.com). -
Page 22: Manually Registering Camera
~ Example of the Dynamic IP environment configure the IP. PNM-9000QB - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager. -
Page 23: Port Range Forward (Port Mapping) Setup
PORT RANGE FORWARD (PORT MAPPING) SETUP Setting up Port Range Forward for several network cameras ~ You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page. If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the ~ A user can change each port using the camera setting screen. -
Page 24: Connecting To The Camera From A Shared Local Pc
network connection and setup CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC 1. Run device manager. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera. Access to the camera can also be gained by typing the camera’s IP address in the address bar of the Internet browser. -
Page 25: Connecting To The Camera
web viewer CONNECTING TO THE CAMERA Connecting via Bonjour 1. Run the client or operating system in support of the Bonjour protocol. Normally, you would 2. Click the camera name for search. In the Mac operating system, click the camera name searched from the Bonjour tab of Safari. 1. -
Page 26: Password Setting
web viewer PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and system over the network. -
Page 27: Troubleshooting
appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION ~ Verify the settings in the following sequence: When an Windows 10 user accesses <Motion detection> of <Analytics> is ~ This is what happens when microphone driver has been set to Realtek driver. the web viewer through Chrome set to <Enable>, but no notification A. - Page 28 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.
