- Page 1 NETWORK CAMERA User Manual XNF-9013RV...
- Page 2 Network Camera User Manual Copyright ©2022 Co., Ltd. All rights reserved. Hanwha Techwin Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
- Page 3 overview IMPORTANT SAFETY INSTRUCTIONS 23. This device has been verified using STP cable. The use of appropriate GND grounding and STP cable is recommended to effectively protect your product and property from transient voltage, thunderstroke, communication interruption. 1. Read these instructions. 2.
- Page 4 overview Class construction Please read the following recommended safety precautions carefully. y Do not place this apparatus on an uneven surface. An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a protective earthing connection. y Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.
-
Page 5: Table Of Contents
CONTENTS OVERVIEW WEB VIEWER Important Safety Instructions Connecting to the Camera Recommended PC Specifications Password setting Recommended Micro SD/SDHC/SDXC Login Memory Card Specifications Camera Web Viewer Setup NAS recommended specs Video output What’s Included Optional Accessories for Installation At a Glance APPENDIX Troubleshooting INSTALLATION &... -
Page 6: Overview
overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS • CPU : Intel(R) Core(TM) i7 3.4 GHz or higher • Recommended capacity : 200GB or higher is recommended. • RAM : 8G or higher • For this camera, you are recommended to use a NAS with the following manufacturer’s specs. Recommended products : QNAP NAS, Synology NAS •... -
Page 7: What's Included
WHAT’S INCLUDED Please check if your camera and accessories are all included in the product package. (As for each sales country, accessories are not the same.) Appearance Item Name Quantity Description Appearance Item Name Quantity Description Audio/Alarm/Power cable Used for audio, alarm, DC 12V power supply Camera Cap Installer Used to connect the RJ45 network cable... -
Page 8: Optional Accessories For Installation
overview OPTIONAL ACCESSORIES FOR INSTALLATION AT A GLANCE You can purchase appropriate optional accessories available. Appearance Skin Cover Model name Hanging Mount SBP-300LMW (Parapet Mount) SBP-156LMW (Parapet Mount) SBP-300CMW (Ceiling Mount) SBP-156CMW (Ceiling Mount) SBP-300WMW (Wall Mount) SBP-300WMW1 (Wall Mount) XNF-9013RV SBC-160BF SBP-167HMW... - Page 9 Inside Item Description IR LED These infrared LED’s are controlled by the illumination sensor. Fisheye lens This lens has 360˚ vision and it can record video panoramically. Illumination Sensor Detects incoming light to control the IR LED. Micro SD card slot Compartment for the Micro SD card.
-
Page 10: Installation & Connection
installation & connection INSTALLATION 2. Using the provided Torx L wrench, turn the 2 screws that secure the camera body counterclockwise to release the mount plate. You don’t have to completely remove the screws. This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed. - Page 11 Removing a Micro SD card Installing the camera on the ceiling or a wall Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD 1. Attach the installation template on the desired surface and drill holes for screws and cables. card from the slot.
- Page 12 installation & connection [Installing the network cable] [Installing the Audio/Alarm/Power cables] 4. Pull off the extruded parts of the cable bushing to be used. 7. Mount the cable bushing of the provided audio/alarm/power cables to the camera body. 5. Use the cap installer to route the network cable through the cable bushing. Cap Installer 6.
- Page 13 9. Connect the network cable and alarm/power, audio jack to the camera module port. 11. Assemble the top cover. TR20 If the cover is not fixed tightly, you may encounter a problem with waterproofing. (IP66) 10. Adjust the lens to the desired direction with reference to “Adjusting the monitoring direction for the camera”...

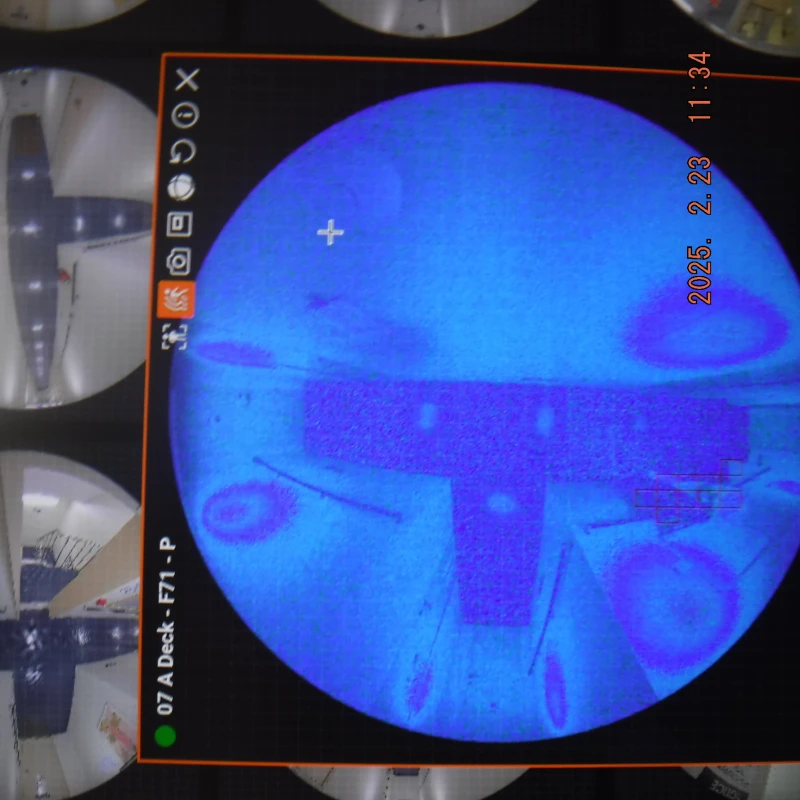

- Page 14 installation & connection Adjusting the monitoring direction for the camera Installation precautions when using the IR Manual mode • This mode is recommended when the luminance from each direction is different when monitoring under low luminance. • Since the position of the IR LED is fixed, if you rotate the camera lens, only the monitoring video of the camera will rotate but not the irradiation direction of the IR LED.
- Page 15 CONNECTING WITH OTHER DEVICE PoE / PoE+ mode This product supports two modes: PoE and PoE+. The default mode is PoE+. Based on the individual power consumption, the maximum IR support range may vary. Please use it by SOFT AP selecting the mode after checking the specifications.
- Page 16 installation & connection Connecting WiFi Connecting to Audio Input/Output Camera Setup 1. Connect OTG adapter (5-pin) and WiFi dongle to the micro USB port. Speaker Smartphone Setup 1. Install the Wisenet Installation application. 2. Select the camera SSID after turning on the WiFi. Microphone 3.
- Page 17 Connecting to the I/O port box In the case you access the web viewer and select an external microphone as the audio input sources in <Video & Audio> - Connect the Alarm I/O cable to the corresponding port of the port box. <Audio setup>, the following specifications are recommended: Frequency range: 40-16,000 Hz Impedance: 1,500 Ω...
- Page 18 installation & connection To connect to an external sensor To use as an Alarm IN: Connect one of the [ALARM I/O] port and the other terminal to the [GND] port. Alarm In Wiring Diagram(example) Alarm cable External connection Sensor ALARM #1 ALARM #2 <If ALARM I/O 1 is set as an input terminal>...
-
Page 19: Network Connection And Setup
network connection and setup CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE You can set up the network settings according to your network configurations. MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1. -
Page 20: Using Device Manager
If using a Broadband Router • IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Support>-<Online Tool> menu at Hanwha Techwin website (http://www. ex) 192.168.1.2~254, 192.168.0.2~254, hanwha-security.com). -
Page 21: Manually Registering Camera
AUTOMATICALLY CONFIGURING IP Configuring Dynamic IP Receive IP address from DHCP 1. Click the camera from the list that you want to automatically • Example of the Dynamic IP environment configure the IP. XNF-9013RV - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. -
Page 22: Port Range Forward (Port Mapping) Setup
network connection and setup PORT RANGE FORWARD (PORT MAPPING) SETUP Setting up Port Range Forward for several network cameras • You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page. If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the •... -
Page 23: Connecting To The Camera From A Shared Local Pc
CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC 1. Run device manager. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera. Access to the camera can also be gained by typing the camera’s IP address in the address bar of the Internet browser. -
Page 24: Connecting To The Camera
web viewer CONNECTING TO THE CAMERA Connecting via Bonjour 1. Run the client or operating system in support of the Bonjour protocol. Normally, you would 2. Click the camera name for search. 1. Launch the Internet browser. In the Mac operating system, click the camera name searched from the Bonjour tab of Safari. - The login window is displayed. -
Page 25: Password Setting
PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the Setup ( 1. Click the [ ] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and For a new password with 8 to 9 digits, you must use at least 3 of system over the network. -
Page 26: Troubleshooting
appendix appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION When an Windows 10 user accesses y If the transmission method is set to multicast, check whether there is a router that supports No image appears. y This is what happens when microphone driver has been set to Realtek driver. the web viewer through Chrome multicast in the LAN the camera is connected to. - Page 27 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.
