  • Page 2 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp ASRock Incorporation e-mail: info@asrock.com.tw...

  • Page 3: Table Of Contents

    Chapter 1 Introduction Package Contents Specifications Motherboard Layout I/O Panel Block Diagram 802.11ax Wi-Fi 6E Module and ASRock WiFi 2.4/5/6 GHz Antennas Chapter 2 Installation Installing the CPU Installing the CPU Fan and Heatsink Installing Memory Modules (DIMM) Connecting the Front Panel Header...
  • Page 4 2.14 M.2 SSD Module Installation Guide (M2_1) 2.15 M.2 SSD Module Installation Guide (M2_2) 2.16 M.2 SSD Module Installation Guide (M2_3) 2.17 Change Screen Brightness for eDP in Windows®...

  • Page 5: Chapter 1 Introduction

    ASRock’s website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.

  • Page 6: Specifications

    • Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* • Max. capacity of system memory: 128GB • Supports Intel® Extreme Memory Profile (XMP) 3.0 * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) Expansion CPU: Slot • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*...
  • Page 7 B760M Steel Legend WiFi • 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz • 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max.
  • Page 8 Rear Panel • 2 x Antenna Ports • 1 x PS/2 Mouse/Keyboard Port • 1 x HDMI Port • 1 x DisplayPort 1.4 • 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) • 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) • 4 x USB 3.2 Gen1 Ports • 2 x USB 2.0 Ports • 1 x RJ-45 LAN Port...
  • Page 9 • ErP/EuP ready (ErP/EuP ready power supply is required) * For detailed product information, please visit our website: http://www.asrock.com Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools.

  • Page 10: Motherboard Layout

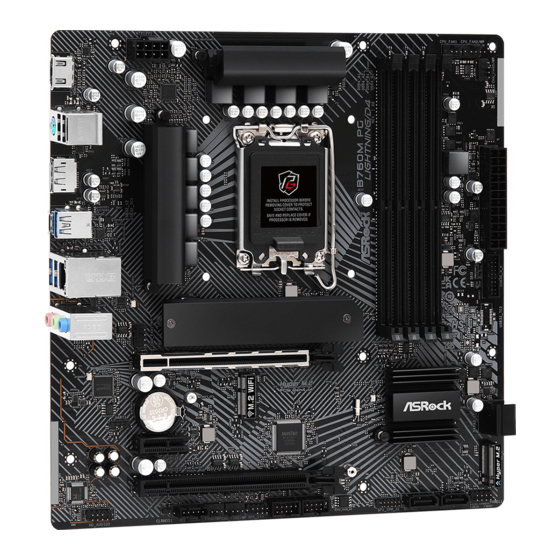

    1.3 Motherboard Layout Top Side View...
  • Page 11 B760M Steel Legend WiFi Back Side View...
  • Page 12 No. Description ATX 12V Power Connector (ATX12V1) ATX 12V Power Connector (ATX12V2) 2 x 288-pin DDR5 DIMM Slots (DDR5_A1, DDR5_B1) 2 x 288-pin DDR5 DIMM Slots (DDR5_A2, DDR5_B2) CPU Fan Connector (CPU_FAN1) CPU/Water Pump Fan Connector (CPU_FAN2/WP) Post Status Checker (PSC) Addressable LED Header (ADDR_LED2) Addressable LED Header (ADDR_LED3) ATX Power Connector (ATXPWR1)

  • Page 13: I/O Panel

    B760M Steel Legend WiFi 1.4 I/O Panel No. Description No. Description Antenna Ports USB 3.2 Gen2 Type-A Port (USB32_3) USB 2.0 Ports (USB_12) USB 3.2 Gen2 Type-C Port (USB32_TC1) 2.5G LAN RJ-45 Port* USB 3.2 Gen1 Ports (USB32_12) Line In (Light Blue)**...

  • Page 14: Block Diagram

    1.5 Block Diagram...

  • Page 15: 802.11Ax Wi-Fi 6E Module And Asrock Wifi 2.4/5/6 Ghz Antennas

    B760M Steel Legend WiFi 1.6 802.11ax Wi-Fi 6E Module and ASRock WiFi 2.4/5/6 GHz Antennas 802.11ax Wi-Fi 6E + BT Module This motherboard comes with an exclusive 802.11 a/b/g/n/ac/ax Wi-Fi 6E + BT module that offers support for 802.11 a/b/g/n/ac/ax Wi-Fi 6E connectivity standards and Bluetooth.
  • Page 16 WiFi Antennas Installation Guide Step 1 Prepare the WiFi 2.4/5/6 GHz Antennas that come with the package. Step 2 Connect the two WiFi 2.4/5/6 GHz Antennas to the antenna connectors. Turn the antenna clockwise until it is securely connected. Step 3 Set the WiFi 2.4/5/6 GHz Antenna as shown in the illustration.

  • Page 17: Chapter 2 Installation

    B760M Steel Legend WiFi Chapter 2 Installation This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

  • Page 18: Installing The Cpu

    2.1 Installing the CPU 1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
  • Page 19 B760M Steel Legend WiFi Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

  • Page 20: Installing The Cpu Fan And Heatsink

    2.2 Installing the CPU Fan and Heatsink...

  • Page 21: Installing Memory Modules (Dimm)

    B760M Steel Legend WiFi 2.3 Installing Memory Modules (DIMM) This motherboard provides four 288-pin DDR5 (Double Data Rate 5) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR5 DIMM pairs.

  • Page 23: Connecting The Front Panel Header

    B760M Steel Legend WiFi 2.4 Connecting the Front Panel Header Front Panel Wires System Panel Header Power SW (-) RESET SW (+) Power SW (+) RESET SW (-) Power LED (-) HDD LED (-) Power LED (+) HDD LED (+)

  • Page 24: Installing The Motherboard

    2.5 Installing the Motherboard...

  • Page 25: Installing Sata Drives

    B760M Steel Legend WiFi 2.6 Installing SATA Drives Optical Drive SATA Drive SATA Data Cable...
  • Page 26 SATA Power Connector SATA Data Connector...

  • Page 27: Installing A Graphics Card

    B760M Steel Legend WiFi 2.7 Installing a Graphics Card CLICK!
  • Page 28 Expansion Slots (PCIe Slots) There are 2 PCI Express slots on the motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 29: Connecting Peripheral Devices

    B760M Steel Legend WiFi 2.8 Connecting Peripheral Devices...

  • Page 30: Connecting The Power Connectors

    2.9 Connecting the Power Connectors...

  • Page 31: Power On

    B760M Steel Legend WiFi 2.10 Power On...

  • Page 32: Jumpers Setup

    2.11 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. Clear CMOS Jumper (CLRMOS1) (see p.6, No. 25) CLRMOS1 allows you to clear the data in CMOS.

  • Page 33: Onboard Headers And Connectors

    B760M Steel Legend WiFi 2.12 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.
  • Page 34 Chassis Intrusion and Speaker Header (7-pin SPK_CI1) (see p.6, No. 17) Please connect the chassis intrusion and the chassis speaker to this header. SPK_CI1 SPEAKER DUMMY DUMMY SIGNAL DUMMY Serial ATA3 Connectors Right Angle: (SATA3_0) (see p.6, No. 14) (Upper) (SATA3_1) (see p.6, No.
  • Page 35 B760M Steel Legend WiFi USB 2.0 Headers (9-pin USB_3_4) (see p.6, No. 20) (9-pin USB_5_6) (see p.6, No. 19) There are two headers on this motherboard. Each USB 2.0 header can support two ports. USB_3_4 USB_PWR DUMMY USB_PWR USB_5_6 USB_PWR...
  • Page 36 Front Panel Type C USB 3.2 Gen2 Header (20-pin USB32_TC2) (see p.6, No. 12) There is one Front Panel Type C USB 3.2 Gen2 Header on this motherboard. This header is used for connecting a USB 3.2 Gen2 module for additional USB 3.2 Gen2 ports.
  • Page 37 B760M Steel Legend WiFi Chassis/Water Pump Fan Connectors (4-pin CHA_FAN1/WP) (see p.6, No. 22) (4-pin CHA_FAN2/WP) (see p.6, No. 21) (4-pin CHA_FAN3/WP) (see p.6, No. 13) This motherboard provides three 4-Pin water cooling chassis fan connectors. If you plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3.
  • Page 38 CPU Fan Connector (4-pin CPU_FAN1) (see p.6, No. 5) This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3. CPU_FAN1 +12V CPU_F AN_SPEED FAN_SPEED_CONTROL CPU/Water Pump Fan Connector (4-pin CPU_FAN2/WP) (see p.6, No.
  • Page 39 B760M Steel Legend WiFi ATX Power Connector (24-pin ATXPWR1) (see p.6, No. 10) This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13. ATXPWR1 ATX 12V Power Connectors (8-pin ATX12V1) (see p.6, No.
  • Page 40 SPI TPM Header (13-pin SPI_TPM_J1) (see p.6, No. 18) This connector supports SPI Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.
  • Page 41 B760M Steel Legend WiFi RGB LED Header (4-pin RGB_LED1) (see p.6, No. 23) This RGB header is used to connect RGB LED extension cable which allow users to choose from various LED lighting effects. Caution: Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
  • Page 42 Addressable LED Headers (3-pin ADDR_LED1) (see p.6, No. 24) (3-pin ADDR_LED2) (see p.6, No. 8) (3-pin ADDR_LED3) (see p.6, No. 9) These headers are used to connect Addressable LED extension cables which allow users to choose from various LED lighting effects. Caution: Never install the Addressable LED cable in the wrong orientation;...
  • Page 43 B760M Steel Legend WiFi 1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged. 2. Before installing or removing your RGB LED cable, please power off your system and unplug the power cord from the power supply. Failure to do so may cause dam- ages to motherboard components.
  • Page 44 eDP Signal Connector (40-pin EDP1) (see p.7, No. 27) This connector on the bottom side of the motherboard is for an LCD monitor that supports an internal embedded DisplayPort (eDP). *Please refer to page 52 for further instructions on how to adjust the brightness. SIGNAL LCD_BLT_VCC LCD_BLT_VCC...

  • Page 45: Post Status Checker

    B760M Steel Legend WiFi 2.13 Post Status Checker Post Status Checker (PSC) diagnoses the computer when users power on the machine. It emits a red light to indicate whether the CPU, memory, VGA or storage is dysfunctional. The lights go off if the four mentioned above are functioning normally.
  • Page 46 2.14 M.2 SSD Module Installation Guide (M2_1) The M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2 Socket (M2_1, Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode. Installing the M.2 SSD Module Step 1 Prepare a M.2 SSD module and the...
  • Page 47 B760M Steel Legend WiFi Step 3 Before installing a M.2 SSD module, please loosen the screws to remove the M.2 heatsink. *Please remove the protective films on the bottom side of the M.2 heatsink before you install a M.2 SSD module.
  • Page 48 Step 6 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module. NUT2 NUT1 Skip Step 6 if your M.2 SSD module is Type 2280. Step 7 Before securing the M.2 heatsink, make sure to align the notch on the SSD to the standoff on the...
  • Page 49 B760M Steel Legend WiFi Step 8 Tighten the screws with a screwdriver to secure the module (if your M.2 SSD module is Type 2280) and M.2 heatsink into place in the order shown. Tighten screw opposite the M.2 connector first (2), and then tighten the one next to the M.2...
  • Page 50 2.15 M.2 SSD Module Installation Guide (M2_2) The M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2 Socket (M2_2, Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode. Installing the M.2 SSD Module Step 1 Prepare a M.2 SSD module and the...
  • Page 51 B760M Steel Legend WiFi Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location B by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut.
  • Page 52 2.16 M.2 SSD Module Installation Guide (M2_3) The M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2 Socket (M2_3, Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode. Installing the M.2 SSD Module Step 1 Prepare a M.2 SSD module and the...
  • Page 53 B760M Steel Legend WiFi Step 3 Before installing a M.2 SSD module, please loosen the screws to remove the M.2 heatsink. *Please remove the protective films on the bottom side of the M.2 heatsink before you install a M.2 SSD module.
  • Page 54 Step 6 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might NUT2 NUT1 damage the module. Skip Step 6 if your M.2 SSD module is Type 2280. Step 7 Before securing the M.2 heatsink, make sure to align the notch on the SSD to the standoff on the...
  • Page 55 B760M Steel Legend WiFi Step 8 Tighten the screws with a screwdriver to secure the module (if your M.2 SSD module is Type 2280) and M.2 heatsink into place in the order shown. Tighten screw opposite the M.2 connector first (2), and then tighten the one next to the M.2 connector (3).
  • Page 56 2.17 Change Screen Brightness for eDP in Windows® This section explains how to change screen brightness in Windows® when you use an eDP panel. The following is a setup example for Windows® 11. Setup procedures may vary from different operating systems. Setup Guide Step 1 Right click on desktop.
  • Page 57 B760M Steel Legend WiFi Step 3 You might also see another check box displayed: Help improve battery by optimizing the content shown and brightness. Select the check box to turn on the content adaptive brightness control if needed.
  • Page 58 In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 59 INTEL END USER SOFTWARE LICENSE AGREEMENT IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING. LICENSE. Licensee has a license under Intel’s copyrights to reproduce Intel’s Software only in its unmodified and binary form, (with the accompanying documentation, the “Software”) for Licensee’s personal use only, and not commercial use, in connection with Intel-based products for which the Software has been provided, subject to the following conditions: (a) Licensee may not disclose, distribute or transfer any part of the Software, and You...
  • Page 60 U.S. GOVERNMENT RESTRICTED RIGHTS. The Software is a commercial item (as defined in 48 C.F.R. 2.101) consisting of commercial computer software and commercial computer software documentation (as those terms are used in 48 C.F.R. 12.212), consistent with 48 C.F.R. 12.212 and 48 C.F.R 227.7202-1 through 227.7202-4. You will not provide the Software to the U.S.
  • Page 61 If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply)
  • Page 62 ASRock follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASRock product is in line with global environmental regulations. In addition, ASRock disclose the relevant information based on regulation requirements.
  • Page 63 Operations in the 5.15-5.35GHz band are restricted to indoor usage only. Radio transmit power per transceiver type Function Frequency Maximum Output Power (EIRP) 2400-2483.5 MHz 18.5 + / -1.5 dbm 5150-5250 MHz 21.5 + / -1.5 dbm 18.5 + / -1.5 dbm (no TPC) 5250-5350 MHz 21.5 + / -1.5 dbm (TPC) WiFi...
