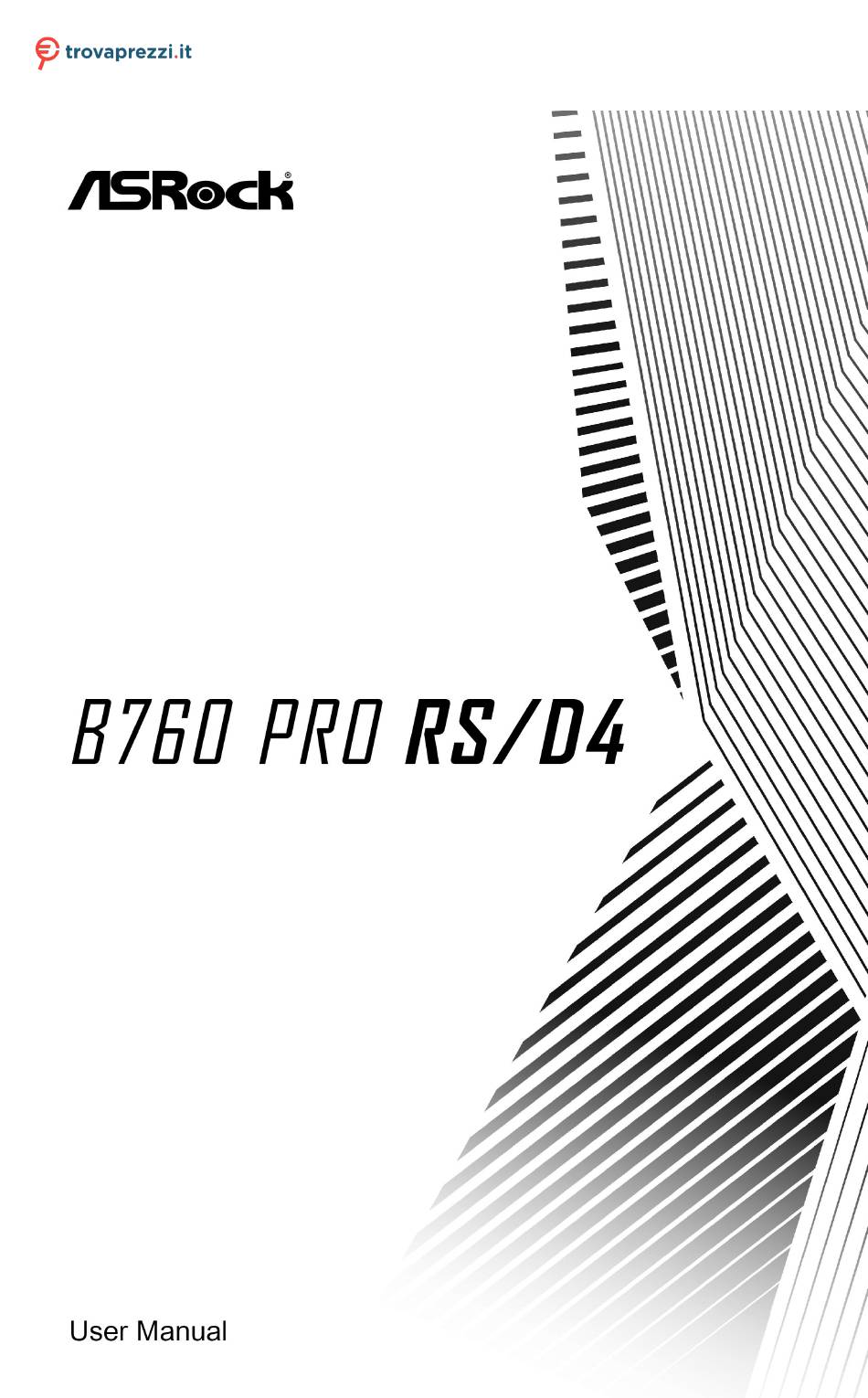

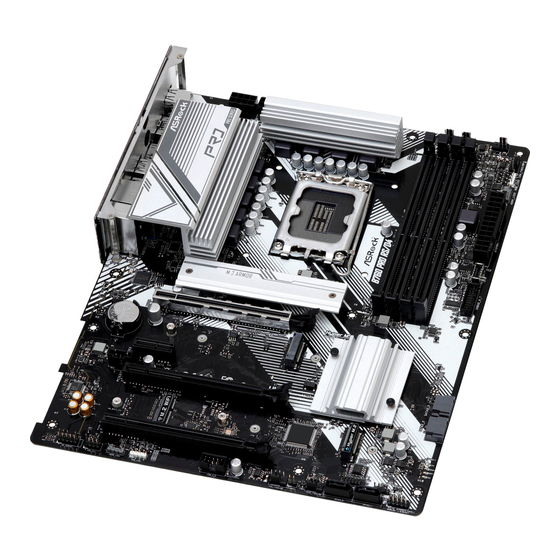

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per AsRock B760 Pro RS/ o cerca il tuo prodotto tra le migliori offerte di Schede Madri...
- Page 2 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp...
-
Page 3: Table Of Contents
Contents Chapter 1 Introduction Package Contents Specifications Motherboard Layout I/O Panel Block Diagram Chapter 2 Installation Installing the CPU Installing the CPU Fan and Heatsink Installing Memory Modules (DIMM) Connecting the Front Panel Header Installing the Motherboard Installing SATA Drives Installing a Graphics Card Connecting Peripheral Devices Connecting the Power Connectors... - Page 4 2.15 M.2 SSD Module Installation Guide (M2_1) 2.16 M.2 SSD Module Installation Guide (M2_2 and M2_3)
-
Page 5: Chapter 1 Introduction
If you require technical support related to this mother- board, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com. -
Page 6: Specifications
• Supports ECC UDIMM memory modules (operate in non- ECC mode) • Max. capacity of system memory: 128GB • Supports Intel® Extreme Memory Profile (XMP) 2.0 * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) Expansion CPU: Slot • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*... - Page 7 B760 Pro RS/D4 Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. • Intel® X Graphics Architecture (Gen 12) • 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max.
- Page 8 • 2 x USB 2.0 Ports • 1 x RJ-45 LAN Port • HD Audio Jacks: Line in / Front Speaker / Microphone Storage CPU: • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: • 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*...
- Page 9 • ErP/EuP ready (ErP/EuP ready power supply is required) tions * For detailed product information, please visit our website: http://www.asrock.com Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools.
-
Page 10: Motherboard Layout
1.3 Motherboard Layout CPU_FAN1 CPU_FAN2/WP CHA_FAN5/WP CHA_FAN3/WP USB 2.0 ATX12V2 ATX12V1 T: USB_1 B: USB_2 USB 3.2 Gen1 T:USB32_1 B: USB32_TC1 USB 3.2 Gen1 T: USB32_2 B: USB32_3 USB 3.2 Gen1 Top: T: USB32_4 RJ-45 B: USB32_5 CHA_FAN1/WP PCIE1 CMOS Battery Intel B760... - Page 11 B760 Pro RS/D4 No. Description 8 pin 12V Power Connector (ATX12V1) 4 pin 12V Power Connector (ATX12V2) 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1) CPU Fan Connector (CPU_FAN1) 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2) CPU/Water Pump Fan Connector (CPU_FAN2/WP)
-
Page 12: I/O Panel
1.4 I/O Panel No. Description No. Description 2.5G LAN RJ-45 Port* USB 3.2 Gen1 Type-A Port (USB32_1) Line In (Light Blue)** USB 3.2 Gen1 Type-C Port (USB32_TC1) Front Speaker (Lime)** HDMI Port Microphone (Pink)** DisplayPort 1.4 USB 3.2 Gen1 Ports (USB32_45) USB 2.0 Ports (USB_12) USB 3.2 Gen1 Ports (USB32_23) * There are two LEDs on each LAN port. -
Page 13: Block Diagram
B760 Pro RS/D4 1.5 Block Diagram... -
Page 14: Chapter 2 Installation
Chapter 2 Installation This is an ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings. -
Page 15: Installing The Cpu
B760 Pro RS/D4 2.1 Installing the CPU 1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. - Page 16 Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.
-
Page 17: Installing The Cpu Fan And Heatsink
B760 Pro RS/D4 2.2 Installing the CPU Fan and Heatsink... -
Page 18: Installing Memory Modules (Dimm)
2.3 Installing Memory Modules (DIMM) This motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs. 2. - Page 19 B760 Pro RS/D4...
-
Page 20: Connecting The Front Panel Header
2.4 Connecting the Front Panel Header Front Panel Wires System Panel Header Power SW (-) RESET SW (+) Power SW (+) RESET SW (-) Power LED (-) HDD LED (-) Power LED (+) HDD LED (+) PANEL1... -
Page 21: Installing The Motherboard
B760 Pro RS/D4 2.5 Installing the Motherboard... -
Page 22: Installing Sata Drives
2.6 Installing SATA Drives Optical Drive SATA Drive SATA Data Cable... - Page 23 B760 Pro RS/D4 SATA Power Connector SATA Data Connector...
-
Page 24: Installing A Graphics Card
2.7 Installing a Graphics Card CLICK! - Page 25 B760 Pro RS/D4 Expansion Slots (PCIe Slots) There are 4 PCI Express slots on the motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.
-
Page 26: Connecting Peripheral Devices
2.8 Connecting Peripheral Devices... -
Page 27: Connecting The Power Connectors
B760 Pro RS/D4 2.9 Connecting the Power Connectors... -
Page 28: Power On
2.10 Power On... -
Page 29: Jumpers Setup
B760 Pro RS/D4 2.11 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. Clear CMOS Jumper (CLRMOS1) (see p.6, No. -
Page 30: Onboard Headers And Connectors
2.12 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header (9-pin PANEL1) (see p.6, No. - Page 31 B760 Pro RS/D4 Chassis Intrusion and Speaker Header (7-pin SPK_CI1) (see p.6, No. 27) Please connect the chassis intrusion and the chassis speaker to this header. SPK_CI1 SPEAKER DUMMY DUMMY SIGNAL DUMMY...
- Page 32 Serial ATA3 Connectors Vertical: (SATA3_0) (see p.6, No. 20) (SATA3_1) (see p.6, No. 19) Right Angle: (SATA3_2) (see p.6, No. 15) (SATA3_3) (see p.6, No. 14) These four SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate. SATA3_0 SATA3_1...
- Page 33 B760 Pro RS/D4 USB 2.0 Header (9-pin USB_3_4) (see p.6, No. 24) There is one header on this motherboard. This USB 2.0 header can support two ports. USB_3_4 USB_PWR DUMMY USB_PWR...
- Page 34 USB 3.2 Gen1 Header (19-pin USB32_6_7) (see p.6, No. 13) There is one header on this motherboard. This USB 3.2 Gen1 header can support two ports. USB32_6_7 Vbus Vbus Vbus IntA_PB_SSRX- IntA_PA_SSRX- IntA_PB_SSRX+ IntA_PA_SSRX+ IntA_PB_SSTX- IntA_PA_SSTX- IntA_PB_SSTX+ IntA_PA_SSTX+ IntA_PB_D- IntA_PA_D- IntA_PB_D+ IntA_PA_D+ Dummy...
- Page 35 B760 Pro RS/D4 Front Panel Type C USB 3.2 Gen2 Header (20-pin USB32_TC2) (see p.6, No. 12) There is one Front Panel Type C USB 3.2 Gen2 Header on this motherboard. This header is used for connecting a USB 3.2 Gen2 module for additional USB 3.2 Gen2 ports.
- Page 36 Front Panel Audio Header (9-pin HD_AUDIO1) (see p.6, No. 28) This header is for connecting audio devices to the front audio panel. HD_AUDIO1 PRESENCE# MIC_RET OUT_RET OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L High Definition Audio supports Jack Sensing, but the panel wire on the chassis must sup- port HDA to function correctly.
- Page 37 B760 Pro RS/D4 Chassis/Water Pump Fan Connectors (4-pin CHA_FAN1/WP) (see p.6, No. 30) (4-pin CHA_FAN2/WP) (see p.6, No. 23) (4-pin CHA_FAN3/WP) (see p.6, No. 8) (4-pin CHA_FAN4/WP) (see p.6, No. 21) (4-pin CHA_FAN5/WP) (see p.6, No. 7) This motherboard provides five 4-Pin water cooling chassis fan connectors. If you plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3.
- Page 38 CPU Fan Connector (4-pin CPU_FAN1) (see p.6, No. 4) This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3. CPU_FAN1 +12V CPU_F AN_SPEED FAN_SPEED_CONTROL CPU/Water Pump Fan Connector (4-pin CPU_FAN2/WP) (see p.6, No.
- Page 39 B760 Pro RS/D4 ATX Power Connector (24-pin ATXPWR1) (see p.6, No. 11) This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13. ATXPWR1...
- Page 40 ATX 12V Power Connector (8-pin ATX12V1) (see p.6, No. 1) This motherboard provides a 8-pin ATX 12V power connector. To use a 4-pin ATX power supply, please plug it along Pin 1 and Pin 5. *Warning: Please make sure that the power cable connected is for the CPU and not the graphics card.
- Page 41 B760 Pro RS/D4 ATX 12V Power Connector (4-pin ATX12V2) (see p.6, No. 2) Please connect an ATX 12V power supply to this connector. *The power supply plug fits into this connector in only one orientation. *Connecting an ATX 12V 4-pin cable to ATX12V2 is optional.
- Page 42 SPI TPM Header (13-pin SPI_TPM_J1) (see p.6, No. 17) This connector supports SPI Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity. SPI_TPM_J1 SPI_DQ3 SPI_PWR...
- Page 43 B760 Pro RS/D4 Thunderbolt AIC Connector (5-pin TB1) (see p.6, No. 29) Please connect a Thunderbolt™ add-in card (AIC) to the Thunderbolt AIC connector via the GPIO cable. *Please install the Thunderbolt™ AIC card to PCIE3 (default slot).
- Page 44 RGB LED Headers (4-pin RGB_LED1) (see p.6, No. 25) (4-pin RGB_LED2) (see p.6, No. 9) These headers are used to connect RGB LED extension cables which allow users to choose from various LED lighting effects. Caution: Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
- Page 45 B760 Pro RS/D4 Addressable LED Headers (3-pin ADDR_LED1) (see p.6, No. 26) (3-pin ADDR_LED2) (see p.6, No. 10) These headers are used to connect Addressable LED extension cables which allow users to choose from various LED lighting effects. Caution: Never install the Addressable LED cable in the wrong orientation; otherwise, the cable may be damaged.
- Page 46 1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged. 2. Before installing or removing your RGB LED cable, please power off your system and unplug the power cord from the power supply. Failure to do so may cause damages to motherboard components.
-
Page 47: Post Status Checker
B760 Pro RS/D4 2.13 Post Status Checker Post Status Checker (PSC) diagnoses the computer when users power on the machine. It emits a red light to indicate whether the CPU, memory, VGA or storage is dysfunctional. The lights go off if the four mentioned above are function- ing normally. -
Page 48: Wifi/Bt Pcie Wifi Module And Intel® Cnvi (Integrated Wifi/Bt) Installation Guide
2.14 M.2 WiFi/BT PCIe WiFi Module and Intel® CNVi (Integrated WiFi/BT) Installation Guide The M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module and Intel®... - Page 49 B760 Pro RS/D4 Step 3 Gently insert the WiFi/BT PCIe WiFi module or Intel® CNVi (Integrated WiFi/BT) into the M.2 slot. Please be aware that the module only fits in one orientation. Step 4 Tighten the screw with a screwdriver to secure the module into place.
- Page 50 2.15 M.2 SSD Module Installation Guide (M2_1) The M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2 Socket (M2_1, Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode. Installing the M.2 SSD Module Step 1 Prepare a M.2 SSD module and the...
- Page 51 B760 Pro RS/D4 Step 3 Before installing a M.2 SSD module, please loosen the screws to remove the M.2 heatsink. *Please remove the protective films on the bottom side of the M.2 heatsink before you install a M.2 SSD module.
- Page 52 Step 6 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module. NUT2 NUT1 Skip Step 6 if your M.2 SSD module is Type 2280. Step 7 Before securing the M.2 heatsink, make sure to align the notch on the SSD to the standoff on the...
- Page 53 B760 Pro RS/D4 Step 8 Tighten the screws with a screwdriver to secure the module (if your M.2 SSD module is Type 2280) and M.2 heatsink into place in the order shown. Tighten screw opposite the M.2 connector first (2), and then tighten the one next to the M.2...
- Page 54 2.16 M.2 SSD Module Installation Guide (M2_2 and M2_3) The M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (M2_2, Key M) supports type 2260/2280 PCIe Gen4x2 (32 Gb/ s) mode.
- Page 55 B760 Pro RS/D4 Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location B by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut.
- Page 56 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
- Page 57 INTEL END USER SOFTWARE LICENSE AGREEMENT IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING. LICENSE. Licensee has a license under Intel’s copyrights to reproduce Intel’s Software only in its unmodified and binary form, (with the accompanying documentation, the “Software”) for Licensee’s personal use only, and not commercial use, in connection with Intel-based products for which the Software has been provided, subject to the following conditions: (a) Licensee may not disclose, distribute or transfer any part of the Software, and You agree...
- Page 58 U.S. GOVERNMENT RESTRICTED RIGHTS. The Software is a commercial item (as defined in 48 C.F.R. 2.101) consisting of commercial computer software and commercial computer software documentation (as those terms are used in 48 C.F.R. 12.212), consistent with 48 C.F.R. 12.212 and 48 C.F.R 227.7202-1 through 227.7202-4. You will not provide the Software to the U.S.
- Page 59 ASRock follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASRock product is in line with global environmental regulations. In addition, ASRock disclose the relevant information based on regulation requirements.
Need help?
Do you have a question about the B760 Pro RS/D4 and is the answer not in the manual?
Questions and answers
на мат плату ASROCK B760 Pro RS / D4 поключил HDMI, но монитор его почему то не видит, а только с видеокарты, можно ли как то решить эту проблему?
To resolve the issue of the ASRock B760 Pro RS/D4 motherboard not detecting HDMI input while only recognizing the graphics card, follow these steps:
1. Check HDMI Connection: Ensure the HDMI cable is properly connected to the correct HDMI port (on the motherboard or the graphics card, depending on your setup).
2. Update BIOS: If you recently updated the BIOS, clear the CMOS to reset system parameters:
- Turn off the computer and unplug the power cord.
- Use a jumper cap to short the pins on the "CLRMOS1" jumper for 3 seconds (refer to the manual for its location).
- Remove the jumper cap after clearing the CMOS and restart your system.
3. Verify Display Output Setting: Check the BIOS settings to ensure that the display output is set to the desired source (integrated graphics or dedicated graphics card).
4. Driver Installation: Confirm that the latest drivers for your graphics card and motherboard are installed.
5. Chassis Fan Connection: If using multiple graphics cards, connect a chassis fan to the motherboard’s chassis fan connector (CHA_FAN1~5/WP) to ensure proper cooling and functionality.
If the issue persists, test the HDMI cable and monitor with another system to rule out hardware failure.
This answer is automatically generated
