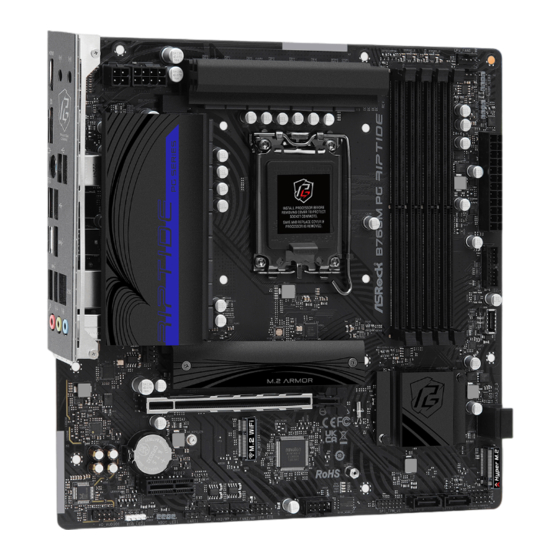

ASROCK B760M PG RIPTIDE User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for ASROCK B760M PG RIPTIDE

Summary of Contents for ASROCK B760M PG RIPTIDE

  • Page 2 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp ASRock Incorporation e-mail: info@asrock.com.tw...

  • Page 3: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Specifications Motherboard Layout I/O Panel Block Diagram Chapter 2 Installation Installing the CPU Installing the CPU Fan and Heatsink Installing Memory Modules (DIMM) Connecting the Front Panel Header Installing the Motherboard Installing SATA Drives Installing a Graphics Card Connecting Peripheral Devices Connecting the Power Connectors...
  • Page 4 2.15 M.2 SSD Module Installation Guide (M2_1) 2.16 M.2 SSD Module Installation Guide (M2_2)

  • Page 5: Chapter 1 Introduction

    ASRock’s website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.

  • Page 6: Specifications

    • Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* • Max. capacity of system memory: 128GB • Supports Intel® Extreme Memory Profile (XMP) 3.0 * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) Expansion CPU: • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*...
  • Page 7 B760M PG Riptide • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz • 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Audio • Nahimic Audio • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s • Dragon RTL8125BG...
  • Page 8 * Supports Intel® Volume Management Device (VMD) * Supports NVMe SSD as boot disks • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA RAID storage devices Connector • 1 x SPI TPM Header • 1 x Chassis Intrusion and Speaker Header • 1 x RGB LED Header* • 3 x Addressable LED Headers** • 1 x CPU Fan Connector (4-pin)***...
  • Page 9 B760M PG Riptide * For detailed product information, please visit our website: http://www.asrock.com Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system’s stability, or even cause damage to the components and devices of your system.

  • Page 10: Motherboard Layout

    1.3 Motherboard Layout...
  • Page 11 B760M PG Riptide No. Description ATX 12V Power Connector (ATX12V2) ATX 12V Power Connector (ATX12V1) 2 x 288-pin DDR5 DIMM Slots (DDR5_A1, DDR5_B1) 2 x 288-pin DDR5 DIMM Slots (DDR5_A2, DDR5_B2) CPU Fan Connector (CPU_FAN1) CPU/Water Pump Fan Connector (CPU_FAN2/WP)

  • Page 12: I/O Panel

    1.4 I/O Panel No. Description No. Description USB 2.0 Ports (USB_12) USB 3.2 Gen1 Type-A Port (USB3_TA1) 2.5G LAN RJ-45 Port* USB 3.2 Gen1 Type-C Port (USB3_TC1) Line In (Light Blue)** USB 2.0 Ports (USB_3_4) Front Speaker (Lime)** PS/2 Mouse/Keyboard Port Microphone (Pink)** DisplayPort 1.4 USB 3.2 Gen1 Type-A Ports (USB3_3_4) 12...

  • Page 13: Block Diagram

    B760M PG Riptide 1.5 Block Diagram...

  • Page 14: Chapter 2 Installation

    Chapter 2 Installation This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

  • Page 15: Installing The Cpu

    B760M PG Riptide 2.1 Installing the CPU 1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket.
  • Page 16 Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

  • Page 17: Installing The Cpu Fan And Heatsink

    B760M PG Riptide 2.2 Installing the CPU Fan and Heatsink...

  • Page 18: Installing Memory Modules (Dimm)

    2.3 Installing Memory Modules (DIMM) This motherboard provides four 288-pin DDR5 (Double Data Rate 5) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR5 DIMM pairs. 2.
  • Page 19 B760M PG Riptide...

  • Page 20: Connecting The Front Panel Header

    2.4 Connecting the Front Panel Header Front Panel Wires System Panel Header Power SW (-) RESET SW (+) Power SW (+) RESET SW (-) Power LED (-) HDD LED (-) Power LED (+) HDD LED (+) PANEL1...

  • Page 21: Installing The Motherboard

    B760M PG Riptide 2.5 Installing the Motherboard...

  • Page 22: Installing Sata Drives

    2.6 Installing SATA Drives Optical Drive SATA Drive SATA Data Cable...
  • Page 23 B760M PG Riptide SATA Power Connector SATA Data Connector...

  • Page 24: Installing A Graphics Card

    2.7 Installing a Graphics Card CLICK!
  • Page 25 B760M PG Riptide Expansion Slots (PCIe Slots) There are 2 PCI Express slots on the motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 26: Connecting Peripheral Devices

    2.8 Connecting Peripheral Devices...

  • Page 27: Connecting The Power Connectors

    B760M PG Riptide 2.9 Connecting the Power Connectors...

  • Page 28: Power On

    2.10 Power On...

  • Page 29: Jumpers Setup

    B760M PG Riptide 2.11 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. Clear CMOS Jumper (CLRMOS1) (see p.6, No.

  • Page 30: Onboard Headers And Connectors

    2.12 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header (9-pin PANEL1) (see p.6, No.
  • Page 31 B760M PG Riptide Chassis Intrusion and Speaker Header (7-pin SPK_CI1) (see p.6, No. 19) Please connect the chassis intrusion and the chassis speaker to this header. SPK_CI1 SPEAKER DUMMY DUMMY SIGNAL DUMMY Serial ATA3 Connectors Vertical: (SATA3_0) (see p.6, No. 15) (SATA3_1) (see p.6, No.
  • Page 32 USB 2.0 Header (9-pin USB_5_6) (see p.6, No. 18) There is one header on this motherboard. This USB 2.0 header can support two ports. USB_5_6 USB_PWR DUMMY USB_PWR USB 3.2 Gen1 Header (19-pin USB3_5_6) (see p.6, No. 10) There is one header on this motherboard. This USB 3.2 Gen1 header can support two ports.
  • Page 33 B760M PG Riptide Front Panel Type C USB 3.2 Gen1 Header (20-pin F_USB3_TC_1) (see p.6, No. 11) There is one Front Panel Type C USB 3.2 Gen1 Header on this motherboard. This header is used for connecting a USB 3.2 Gen1 module for additional USB 3.2 Gen1 ports.
  • Page 34 Chassis/Water Pump Fan Connectors (4-pin CHA_FAN1/WP) (see p.6, No. 26) (4-pin CHA_FAN2/WP) (see p.6, No. 20) (4-pin CHA_FAN3/WP) (see p.6, No. 21) This motherboard provides three 4-Pin water cooling chassis fan connectors. If you plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3. CHA_FAN1/WP FAN_VOLTAGE CHA_FAN_SPEED...
  • Page 35 B760M PG Riptide CPU Fan Connector (4-pin CPU_FAN1) (see p.6, No. 5) This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3. CPU_FAN1 +12V CPU_F...
  • Page 36 ATX Power Connector (24-pin ATXPWR1) (see p.6, No. 9) This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13. ATXPWR1 ATX 12V Power Connector (8-pin ATX12V1) (see p.6, No. 2) This motherboard provides a 8-pin ATX 12V power connector.
  • Page 37 B760M PG Riptide ATX 12V Power Connector (4-pin ATX12V2) (see p.6, No. 1) Please connect an ATX 12V power supply to this connector. *The power supply plug fits into this connector in only one orientation. *Connecting an ATX 12V 4-pin cable to ATX12V2 is optional.
  • Page 38 RGB LED Header (4-pin RGB_LED1) (see p.6, No. 24) This RGB header is used to connect RGB LED extension cable which allow users to choose from various LED lighting effects. Caution: Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
  • Page 39 B760M PG Riptide Addressable LED Headers (3-pin ADDR_LED1) (see p.6, No. 23) (3-pin ADDR_LED2) (see p.6, No. 8) (3-pin ADDR_LED3) (see p.6, No. 7) These headers are used to connect Addressable LED extension cables which allow users to choose from various LED lighting effects.
  • Page 40 1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged. 2. Before installing or removing your RGB LED cable, please power off your system and unplug the power cord from the power supply. Failure to do so may cause dam- ages to motherboard components.

  • Page 41: Post Status Checker

    B760M PG Riptide 2.13 Post Status Checker Post Status Checker (PSC) diagnoses the computer when users power on the machine. It emits a red light to indicate whether the CPU, memory, VGA or storage is dysfunctional. The lights go off if the four mentioned above are functioning normally.

  • Page 42: Wifi/Bt Pcie Wifi Module And Intel® Cnvi (Integrated Wifi/Bt) Installation Guide

    2.14 M.2 WiFi/BT PCIe WiFi Module and Intel® CNVi (Integrated WiFi/BT) Installation Guide The M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module and Intel®...
  • Page 43 B760M PG Riptide Step 3 Gently insert the WiFi/BT PCIe WiFi module or Intel® CNVi (Integrated WiFi/BT) into the M.2 slot. Please be aware that the module only fits in one orientation. Step 4 Tighten the screw with a screwdriver to secure the module into place.
  • Page 44 2.15 M.2 SSD Module Installation Guide (M2_1) The M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2 Socket (M2_1, Key M) supports type 2280 PCIe Gen4x4 (64 Gb/s) mode. Installing the M.2 SSD Module Step 1 Prepare a M.2 SSD module and the...
  • Page 45 B760M PG Riptide Step 3 Before installing a M.2 SSD module, please loosen the screws to remove the M.2 heatsink. *Please remove the protective films on the bottom side of the M.2 heatsink before you install a M.2 SSD module.
  • Page 46 Step 5 Before securing the M.2 heatsink, make sure to align the notch on the SSD to the standoff on the motherboard; otherwise, the SSD module may be damaged. Correct Installation: The SSD's PCB is in proper place, and the M.2 heatsink can be screwed in. Incorrect Installation: The SSD's PCB sits between M.2 heatsink and standoff.
  • Page 47 B760M PG Riptide Step 6 Tighten the screws with a screwdriver to secure the module and M.2 heatsink into place in the order shown. Tighten screw opposite the M.2 connector first (2), and then tighten the one next to the M.2 connector (3).
  • Page 48 2.16 M.2 SSD Module Installation Guide (M2_2) The M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2 Socket (M2_2, Key M) supports type 2280 PCIe Gen4x4 (64 Gb/s) mode Installing the M.2 SSD Module Step 1 Prepare a M.2 SSD module and the...
  • Page 49 B760M PG Riptide Step 3 Align and gently insert the M.2 SSD module into the M.2 slot. Please be aware that the M.2 SSD module only fits in one orientation. Step 4 Tighten the screw with a screwdriver to secure the module into place.
  • Page 50 In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 51 INTEL END USER SOFTWARE LICENSE AGREEMENT IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING. LICENSE. Licensee has a license under Intel’s copyrights to reproduce Intel’s Software only in its unmodified and binary form, (with the accompanying documentation, the “Software”) for Licensee’s personal use only, and not commercial use, in connection with Intel-based products for which the Software has been provided, subject to the following conditions: (a) Licensee may not disclose, distribute or transfer any part of the Software, and You...
  • Page 52 U.S. GOVERNMENT RESTRICTED RIGHTS. The Software is a commercial item (as defined in 48 C.F.R. 2.101) consisting of commercial computer software and commercial computer software documentation (as those terms are used in 48 C.F.R. 12.212), consistent with 48 C.F.R. 12.212 and 48 C.F.R 227.7202-1 through 227.7202-4. You will not provide the Software to the U.S.
  • Page 53 ASRock follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASRock product is in line with global environmental regulations. In addition, ASRock disclose the relevant information based on regulation requirements.
