  • Page 2 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp...

  • Page 3: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Specications Motherboard Layout I/O Panel Block Diagram Chapter 2 Installation Installing the CPU Installing the CPU Fan and Heatsink Installing Memory Modules (DIMM) Connecting the Front Panel Header Installing the Motherboard Installing SATA Drives Installing a Graphics Card Connecting Peripheral Devices Connecting the Power Connectors...
  • Page 4 2.15 M.2 SSD Module Installation Guide (M2_1) 2.16 M.2 SSD Module Installation Guide (M2_2 and M2_3) 2.17 Change Screen Brightness for eDP in Windows®...

  • Page 5: Chapter 1 Introduction

    If you require technical support related to this mother- board, please visit our website for specic information about the model you are using. You may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.

  • Page 6: SpeciCations

    • Supports DDR5 non-ECC, un-buered memory up to 6800+(OC)* • Max. capacity of system memory: 128GB • Supports Intel® Extreme Memory Prole (XMP) 3.0 * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) Expansion CPU: Slot • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*...
  • Page 7 B760 Pro RS Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. • Intel® X Graphics Architecture (Gen 12) • 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz • 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and...
  • Page 8 • 4 x USB 3.2 Gen1 Ports • 2 x USB 2.0 Ports • 1 x RJ-45 LAN Port • HD Audio Jacks: Line in / Front Speaker / Microphone Storage CPU: • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: • 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280...
  • Page 9 • ErP/EuP ready (ErP/EuP ready power supply is required) * For detailed product information, please visit our website: http://www.asrock.com Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools.

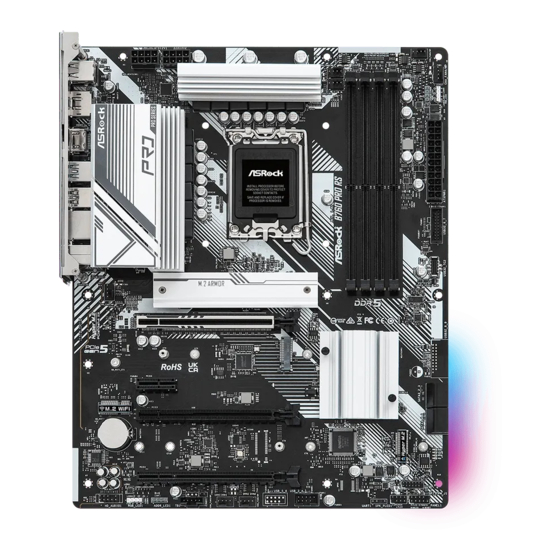

  • Page 10: Motherboard Layout

    1.3 Motherboard Layout Top Side View CHA_FAN5/WP CHA_FAN4/WP CPU_FAN2/WP USB 2.0 ATX12V1 ATX12V2 T: USB_1 B: USB_2 CPU_FAN1 USB 3.2 Gen2 T:USB32_1 B: USB32_TC1 USB 3.2 Gen1 T: USB32_2 B: USB32_3 USB 3.2 Gen1 Top: T: USB32_4 RJ-45 B: USB32_5 CHA_FAN1/WP PCIE1 M2_WIFI_CT1...
  • Page 11 B760 Pro RS Back Side View...
  • Page 12 No. Description ATX 12V Power Connector (ATX12V1) ATX 12V Power Connector (ATX12V2) CPU Fan Connector (CPU_FAN1) CPU/Water Pump Fan Connector (CPU_FAN2/WP) 2 x 288-pin DDR5 DIMM Slots (DDR5_A1, DDR5_B1) 2 x 288-pin DDR5 DIMM Slots (DDR5_A2, DDR5_B2) Chassis/Water Pump Fan Connector (CHA_FAN5/WP) Chassis/Water Pump Fan Connector (CHA_FAN4/WP) RGB LED Header (RGB_LED2) Addressable LED Header (ADDR_LED2)

  • Page 13: I/O Panel

    B760 Pro RS 1.4 I/O Panel No. Description No. Description 2.5G LAN RJ-45 Port* USB 3.2 Gen2 Type-A Port (USB32_1) Line In (Light Blue)** USB 3.2 Gen2 Type-C Port (USB32_TC1) Front Speaker (Lime)** HDMI Port Microphone (Pink)** DisplayPort 1.4 USB 3.2 Gen1 Ports (USB32_45) USB 2.0 Ports (USB_12)

  • Page 14: Block Diagram

    1.5 Block Diagram...

  • Page 15: Chapter 2 Installation

    B760 Pro RS Chapter 2 Installation is is an ATX form factor motherboard. Before you install the motherboard, study the conguration of your chassis to ensure that the motherboard ts into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

  • Page 16: Installing The Cpu

    2.1 Installing the CPU 1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found.
  • Page 17 B760 Pro RS Please save and replace the cover if the processor is removed. e cover must be placed if you wish to return the motherboard for aer service.

  • Page 18: Installing The Cpu Fan And Heatsink

    2.2 Installing the CPU Fan and Heatsink...

  • Page 19: Installing Memory Modules (Dimm)

    B760 Pro RS 2.3 Installing Memory Modules (DIMM) is motherboard provides four 288-pin DDR5 (Double Data Rate 5) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel conguration, you always need to install identical (the same brand, speed, size and chip-type) DDR5 DIMM pairs.

  • Page 21: Connecting The Front Panel Header

    B760 Pro RS 2.4 Connecting the Front Panel Header 3$1(/ Front Panel Wires System Panel Header Power SW (-) RESET SW (+) Power SW (+) RESET SW (-) Power LED (-) HDD LED (-) Power LED (+) HDD LED (+)

  • Page 22: Installing The Motherboard

    2.5 Installing the Motherboard...

  • Page 23: Installing Sata Drives

    B760 Pro RS 2.6 Installing SATA Drives Optical Drive SATA Drive SATA Data Cable...
  • Page 24 SATA Power Connector SATA Data Connector...

  • Page 25: Installing A Graphics Card

    B760 Pro RS 2.7 Installing a Graphics Card CLICK!
  • Page 26 Expansion Slots (PCIe Slots) ere are 4 PCI Express slots on the motherboard. Before installing an expansion card, please make sure that the power supply is switched o or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 27: Connecting Peripheral Devices

    B760 Pro RS 2.8 Connecting Peripheral Devices...

  • Page 28: Connecting The Power Connectors

    2.9 Connecting the Power Connectors $7;3:5 $7;9...

  • Page 29: Power On

    B760 Pro RS 2.10 Power On...

  • Page 30: Jumpers Setup

    2.11 Jumpers Setup e illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. Clear CMOS Jumper (CLRMOS1) (see p.6, No. 23) CLRMOS1 allows you to clear the data in CMOS.

  • Page 31: Onboard Headers And Connectors

    B760 Pro RS 2.12 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.
  • Page 32 Power LED and Speaker Header (7-pin SPK_PLED1) (see p.6, No. 19) Please connect the chassis power LED and the chassis speaker to this header. SPK_PLED1 SPEAKER DUMMY DUMMY PLED+ PLED+ PLED-...
  • Page 33 B760 Pro RS Serial ATA3 Connectors Right Angle: (SATA3_0) (see p.6, No. 15)(Upper) (SATA3_1) (see p.6, No. 15)(Lower) (SATA3_2) (see p.6, No. 14)(Upper) (SATA3_3) (see p.6, No. 14)(Lower) ese four SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate.
  • Page 34 USB 2.0 Header (9-pin USB_3_4) (see p.6, No. 20) ere is one header on this motherboard. is USB 2.0 header can support two ports. USB_3_4 USB_PWR DUMMY USB_PWR...
  • Page 35 B760 Pro RS USB 3.2 Gen1 Header (19-pin USB32_6_7) (see p.6, No. 12) ere is one header on this motherboard. is USB 3.2 Gen1 header can support two ports. USB32_6_7 Vbus Vbus Vbus IntA_PB_SSRX- IntA_PA_SSRX- IntA_PB_SSRX+ IntA_PA_SSRX+ IntA_PB_SSTX- IntA_PA_SSTX- IntA_PB_SSTX+...
  • Page 36 Front Panel Type C USB 3.2 Gen2 Header (20-pin USB32_TC2) (see p.6, No. 13) ere is one Front Panel Type C USB 3.2 Gen2 Header on this motherboard. is header is used for connecting a USB 3.2 Gen2 module for additional USB 3.2 Gen2 ports.
  • Page 37 B760 Pro RS Front Panel Audio Header (9-pin HD_AUDIO1) (see p.6, No. 27) is header is for connecting audio devices to the front audio panel. HD_AUDIO1 PRESENCE# MIC_RET OUT_RET OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L High Denition Audio supports Jack Sensing, but the panel wire on the chassis must sup- port HDA to function correctly.
  • Page 38 Chassis/Water Pump Fan Connectors (4-pin CHA_FAN1/WP) (see p.6, No. 28) (4-pin CHA_FAN2/WP) (see p.6, No. 21) (4-pin CHA_FAN3/WP) (see p.6, No. 22) (4-pin CHA_FAN4/WP) (see p.6, No. 8) (4-pin CHA_FAN5/WP) (see p.6, No. 7) is motherboard provides ve 4-Pin water cooling chassis fan connectors. If you plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3.
  • Page 39 B760 Pro RS CPU Fan Connector (4-pin CPU_FAN1) (see p.6, No. 3) is motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3. CPU_FAN1 +12V CPU_F...
  • Page 40 ATX Power Connector (24-pin ATXPWR1) (see p.6, No. 11) is motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13. ATXPWR1...
  • Page 41 B760 Pro RS ATX 12V Power Connectors (8-pin ATX12V1) (see p.6, No. 1) (8-pin ATX12V2) (see p.6, No. 2) is motherboard provides two 8-pin ATX 12V power connectors. To use a 4-pin ATX power supply, please plug it along Pin 1 and Pin 5.
  • Page 42 SPI TPM Header (13-pin SPI_TPM_J1) (see p.6, No. 17) is connector supports SPI Trusted Platform Module (TPM) system, which can securely store keys, digital certicates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity. SPI_TPM_J1 SPI_DQ3 SPI_PWR...
  • Page 43 B760 Pro RS underbolt AIC Connector (5-pin TB1) (see p.6, No. 24) Please connect a underbolt™ add-in card (AIC) to the underbolt AIC connector via the GPIO cable. *Please install the underbolt™ AIC card to PCIE3 (default slot).
  • Page 44 RGB LED Headers (4-pin RGB_LED1) (see p.6, No. 26) (4-pin RGB_LED2) (see p.6, No. 9) ese headers are used to connect RGB LED extension cables which allow users to choose from various LED lighting eects. Caution: Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
  • Page 45 B760 Pro RS Addressable LED Headers (3-pin ADDR_LED1) (see p.6, No. 25) (3-pin ADDR_LED2) (see p.6, No. 10) ese headers are used to connect Addressable LED extension cables which allow users to choose from various LED lighting eects. Caution: Never install the Addressable LED cable in the wrong orientation; otherwise, the cable may be damaged.
  • Page 46 1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged. 2. Before installing or removing your RGB LED cable, please power o your system and unplug the power cord from the power supply. Failure to do so may cause damages to motherboard components.
  • Page 47 B760 Pro RS eDP Signal Connector (40-pin EDP1) (see p.7, No. 29) is connector on the bottom side of the motherboard is for an LCD monitor that supports an internal embedded DisplayPort (eDP). *Please refer to page 53 for further instructions on how to adjust the brightness.

  • Page 48: Post Status Checker

    2.13 Post Status Checker Post Status Checker (PSC) diagnoses the computer when users power on the machine. It emits a red light to indicate whether the CPU, memory, VGA or storage is dysfunctional. e lights go o if the four mentioned above are function- ing normally.

  • Page 49: Wifi/Bt Pcie Wifi Module And Intel® Cnvi (Integrated Wifi/Bt) Installation Guide

    B760 Pro RS 2.14 M.2 WiFi/BT PCIe WiFi Module and Intel® CNVi (Integrated WiFi/BT) Installation Guide e M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. e M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module and Intel®...
  • Page 50 Step 3 Gently insert the WiFi/BT PCIe WiFi module or Intel® CNVi (Integrated WiFi/BT) into the M.2 slot. Please be aware that the module only ts in one orientation. Step 4 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.
  • Page 51 B760 Pro RS 2.15 M.2 SSD Module Installation Guide (M2_1) e M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. e Hyper M.2 Socket (M2_1, Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode.
  • Page 52 Step 3 Before installing a M.2 SSD module, please loosen the screws to remove the M.2 heatsink. *Please remove the protective lms on the bottom side of the M.2 heatsink before you install a M.2 SSD module. Step 4 Peel o the yellow protective lm on the nut A.
  • Page 53 B760 Pro RS Step 6 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module. NUT2 NUT1 Skip Step 6 if your M.2 SSD module is Type 2280.
  • Page 54 M.2 connector (3). *Please do not overtighten the screw as this might damage the module and M.2 heatsink. For the latest updates of M.2 SSD module support list, please visit our website for details: http://www.asrock.com...
  • Page 55 B760 Pro RS 2.16 M.2 SSD Module Installation Guide (M2_2 and M2_3) e M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. e M.2 Socket (M2_2, Key M) supports type 2260/2280 PCIe Gen4x2 (32 Gb/ s) mode.
  • Page 56 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw NUT2 NUT1 as this might damage the module. For the latest updates of M.2 SSD module support list, please visit our website for details: http://www.asrock.com...
  • Page 57 B760 Pro RS 2.17 Change Screen Brightness for eDP in Windows® is section explains how to change screen brightness in Windows® when you use an eDP panel. e following is a setup example for Windows® 11. Setup procedures may vary from dierent operating systems.
  • Page 58 Step 3 You might also see another check box displayed: Help improve battery by optimizing the content shown and brightness. Select the check box to turn on the content adaptive brightness control if needed.
  • Page 59 (including damages for loss of prots, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 60 INTEL END USER SOFTWARE LICENSE AGREEMENT IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING. LICENSE. Licensee has a license under Intel’s copyrights to reproduce Intel’s Soware only in its unmodied and binary form, (with the accompanying documentation, the “Soware”) for Licensee’s personal use only, and not commercial use, in connection with Intel-based products for which the Soware has been provided, subject to the following conditions: (a) Licensee may not disclose, distribute or transfer any part of the Soware, and You agree...
  • Page 61 U.S. GOVERNMENT RESTRICTED RIGHTS. e Soware is a commercial item (as dened in 48 C.F.R. 2.101) consisting of commercial computer soware and commercial computer soware documentation (as those terms are used in 48 C.F.R. 12.212), consistent with 48 C.F.R. 12.212 and 48 C.F.R 227.7202-1 through 227.7202-4. You will not provide the Soware to the U.S.
  • Page 62 ASRock follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASRock product is in line with global environmental regulations. In addition, ASRock disclose the relevant information based on regulation requirements.
