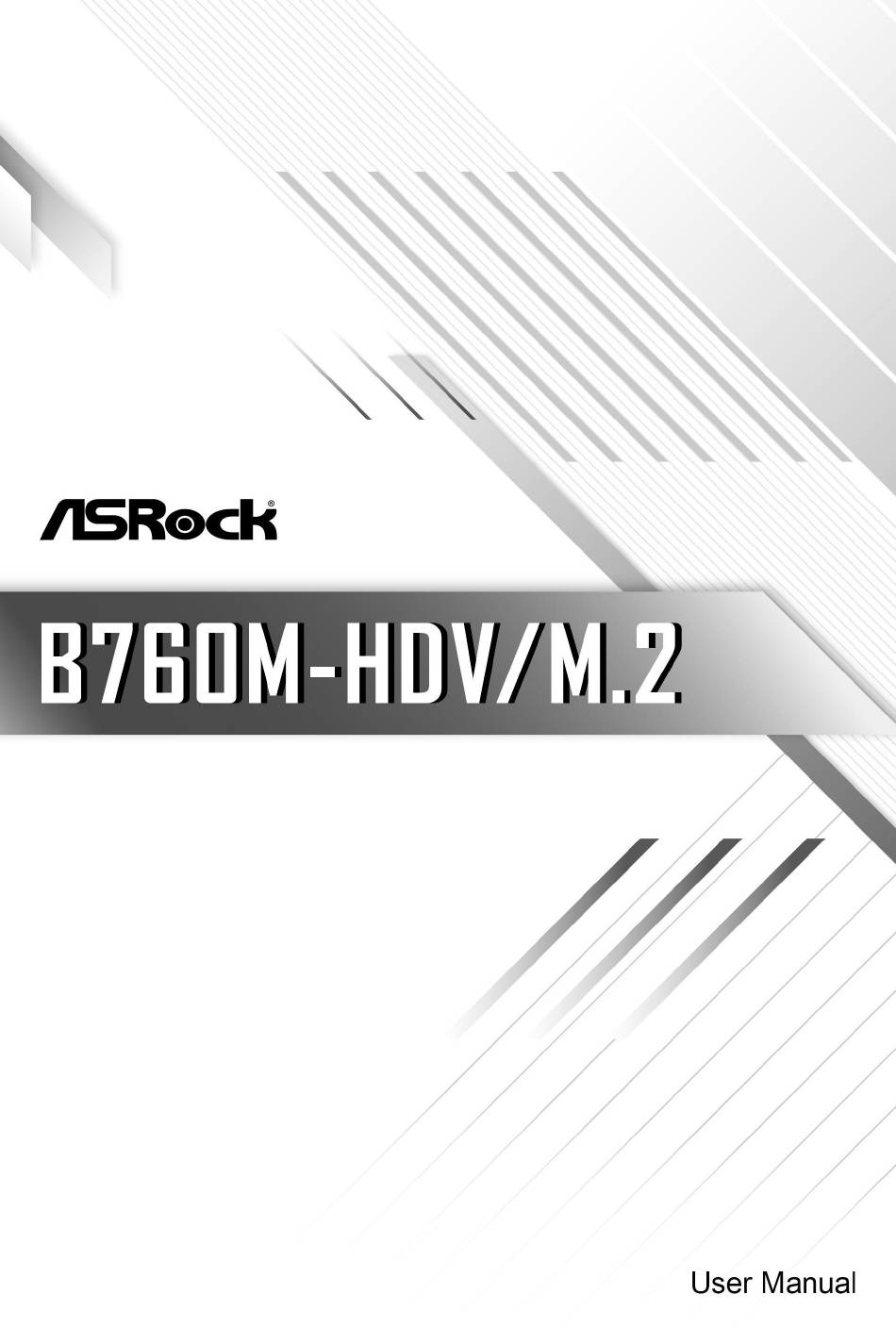

ASROCK B760M-HDV/M.2 User Manual
  1. Manuals
  2. Brands
  3. ASROCK Manuals
  4. Motherboard
  5. B760M-HDV/M.2
  6. User manual
ASROCK B760M-HDV/M.2 User Manual

ASROCK B760M-HDV/M.2 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B760M-HDV/M.2 and is the answer not in the manual?

Questions and answers

Related Manuals for ASROCK B760M-HDV/M.2

Summary of Contents for ASROCK B760M-HDV/M.2

  • Page 2 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp ASRock Incorporation e-mail: info@asrock.com.tw...

  • Page 3: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Specifications Motherboard Layout I/O Panel Block Diagram Chapter 2 Installation Installing the CPU Installing the CPU Fan and Heatsink Installing Memory Modules (DIMM) Connecting the Front Panel Header Installing the I/O Panel Shield Installing the Motherboard Installing SATA Drives Installing a Graphics Card Connecting Peripheral Devices...

  • Page 5: Chapter 1 Introduction

    ASRock’s website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.

  • Page 6: Specifications

    1DPC 2R Up to 6800+ MHz (OC), 5200 MHz Natively. • Max. capacity of system memory: 96GB • Supports Intel® Extreme Memory Profile (XMP) 3.0 * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) Expansion...
  • Page 7 B760M-HDV/M.2 • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz • 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec) • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s...
  • Page 8 • AMI UEFI Legal BIOS with GUI support Feature • Microsoft® Windows® 10 64-bit / 11 64-bit Certifica- • FCC, CE tions • ErP/EuP ready (ErP/EuP ready power supply is required) * For detailed product information, please visit our website: http://www.asrock.com...
  • Page 9 B760M-HDV/M.2 Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system’s stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense.

  • Page 10: Motherboard Layout

    1.3 Motherboard Layout CHA_FAN1/WP CPU_FAN1 ATX12V1 USB 2.0 T :USB_1 B:USB_2 USB 3.2 Gen1 T :USB32_1 B:USB32_TC1 USB 3.2 Gen1 Top: T :USB32_2 RJ-45 B:USB32_3 RoHS PCIE1 Intel CMOS B760 Battery PCIE2 BIOS SPI_TPM_J1 SUPER SPK_CI1 PCIE3 AUDIO CODEC USB_3_4 USB_5_6 PANEL1 CHA_FAN2/WP...
  • Page 11 B760M-HDV/M.2 No. Description ATX 12V Power Connector (ATX12V1) CPU/Water Pump Fan Connector (CPU_FAN2/WP) CPU Fan Connector (CPU_FAN1) 2 x 288-pin DDR5 DIMM Slots (DDR5_A1, DDR5_B1) Chassis/Water Pump Fan Connector (CHA_FAN1/WP) Addressable LED Header (ADDR_LED2) Addressable LED Header (ADDR_LED3) ATX Power Connector (ATXPWR1) USB 3.2 Gen1 Header (USB32_4_5)

  • Page 12: I/O Panel

    1.4 I/O Panel No. Description No. Description USB 3.2 Gen1 Type-A Port (USB32_1) USB 3.2 Gen1 Type-A Ports (USB32_23) 2.5G LAN RJ-45 Port USB 3.2 Gen1 Type-C Port (USB32_TC1) (Dragon RTL8125BG)* USB 2.0 Ports (USB_12) Line In (Light Blue)** D-Sub Port Front Speaker (Lime)** 10 HDMI Port Microphone (Pink)**...

  • Page 13: Block Diagram

    B760M-HDV/M.2 1.5 Block Diagram...

  • Page 14: Chapter 2 Installation

    Chapter 2 Installation This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

  • Page 15: Installing The Cpu

    B760M-HDV/M.2 2.1 Installing the CPU 1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket.
  • Page 16 Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

  • Page 17: Installing The Cpu Fan And Heatsink

    B760M-HDV/M.2 2.2 Installing the CPU Fan and Heatsink...

  • Page 18: Installing Memory Modules (Dimm)

    2.3 Installing Memory Modules (DIMM) This motherboard provides two 288-pin DDR5 (Double Data Rate 5) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR5 DIMM pairs. 2.
  • Page 19 B760M-HDV/M.2...

  • Page 20: Connecting The Front Panel Header

    2.4 Connecting the Front Panel Header Front Panel Wires System Panel Header Power SW (-) RESET SW (+) Power SW (+) RESET SW (-) Power LED (-) HDD LED (-) Power LED (+) HDD LED (+) PANEL1...

  • Page 21: Installing The I/O Panel Shield

    B760M-HDV/M.2 2.5 Installing the I/O Panel Shield...

  • Page 22: Installing The Motherboard

    2.6 Installing the Motherboard RoHS...

  • Page 23: Installing Sata Drives

    B760M-HDV/M.2 2.7 Installing SATA Drives Optical Drive SATA Drive SATA Data Cable...
  • Page 24 SATA Power Connector SATA Data Connector...

  • Page 25: Installing A Graphics Card

    B760M-HDV/M.2 2.8 Installing a Graphics Card CLICK!
  • Page 26 Expansion Slots (PCIe Slots) There are 3 PCI Express slots on the motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 27: Connecting Peripheral Devices

    B760M-HDV/M.2 2.9 Connecting Peripheral Devices...

  • Page 28: Connecting The Power Connectors

    2.10 Connecting the Power Connectors...

  • Page 29: Power On

    B760M-HDV/M.2 2.11 Power On...

  • Page 30: Jumpers Setup

    2.12 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. Clear CMOS Jumper (CLRMOS1) (see p.6, No. 21) CLRMOS1 allows you to clear the data in CMOS.

  • Page 31: Onboard Headers And Connectors

    B760M-HDV/M.2 2.13 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors   will cause permanent damage to the motherboard. System Panel Header (9-pin PANEL1) (see p.6, No.
  • Page 32 Chassis Intrusion and Speaker Header (7-pin SPK_CI1) (see p.6, No. 14) Please connect the chassis intrusion and the chassis speaker to this header. SPK_CI1 SPEAKER DUMMY DUMMY SIGNAL RoHS DUMMY Serial ATA3 Connectors Vertical: (SATA3_0) (see p.6, No. 10) (SATA3_1) (see p.6, No. 11) Right Angle: (SATA3_2) (see p.6, No.
  • Page 33 B760M-HDV/M.2 USB 2.0 Headers (9-pin USB_3_4) (see p.6, No. 18) (9-pin USB_5_6) (see p.6, No. 17) There are two headers on this motherboard. Each USB 2.0 header can support two ports. USB_3_4 USB_PWR DUMMY USB_PWR USB_5_6 RoHS USB_PWR DUMMY USB_PWR USB 3.2 Gen1 Header...
  • Page 34 Front Panel Audio Header (9-pin HD_AUDIO1) (see p.6, No. 22) This header is for connecting audio devices to the front audio panel. HD_AUDIO1 PRESENCE# MIC_RET OUT_RET OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L RoHS High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly.
  • Page 35 B760M-HDV/M.2 CPU Fan Connector (4-pin CPU_FAN1) (see p.6, No. 3) This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3. CPU_FAN1 +12V CPU_FAN_SPEED FAN_SPEED_CONTROL RoHS CPU/Water Pump Fan Connector (4-pin CPU_FAN2/WP) (see p.6, No.
  • Page 36 ATX Power Connector (24-pin ATXPWR1) (see p.6, No. 8) This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13. ATXPWR1 RoHS ATX 12V Power Connector (8-pin ATX12V1) (see p.6, No. 1) This motherboard provides a 8-pin ATX 12V power connector.
  • Page 37 B760M-HDV/M.2 SPI TPM Header (13-pin SPI_TPM_J1) (see p.6, No. 13) This connector supports SPI Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.
  • Page 38 RGB LED Header (4-pin RGB_LED1) (see p.6, No. 16) This RGB header is used to connect RGB LED extension cable which allow users to choose from various LED lighting effects. Caution: Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
  • Page 39 B760M-HDV/M.2 Addressable LED Headers (3-pin ADDR_LED1) (see p.6, No. 19) (3-pin ADDR_LED2) (see p.6, No. 6) (3-pin ADDR_LED3) (see p.6, No. 7) These headers are used to connect Addressable LED extension cables which allow users to choose from various LED lighting effects.
  • Page 40 1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged. 2. Before installing or removing your RGB LED cable, please power off your system and unplug the power cord from the power supply. Failure to do so may cause dam- ages to motherboard components.

  • Page 41: Wifi/Bt Pcie Wifi Module Installation Guide

    B760M-HDV/M.2 2.14 M.2 WiFi/BT PCIe WiFi Module Installation Guide The M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module. * The M.2 socket does not support SATA M.2 SSDs.
  • Page 42 Step 3 Gently insert the WiFi/BT PCIe WiFi module into the M.2 slot. Please be aware that the module only fits in one orientation. Step 4 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.
  • Page 43 B760M-HDV/M.2 2.15 M.2 SSD Module Installation Guide (M2_1) The M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2 Socket (M2_1, Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode.
  • Page 44 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module. NUT2 NUT1 For the latest updates of M.2 SSD module support list, please visit our website for details: http://www.asrock.com...
  • Page 45 B760M-HDV/M.2 2.16 M.2 SSD Module Installation Guide (M2_2) The M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Socket (M2_2, Key M) supports type 2280 PCIe Gen3x4 (32 Gb/s) modes.
  • Page 46 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw NUT2 NUT1 as this might damage the module. For the latest updates of M.2 SSD module support list, please visit our website for details: http://www.asrock.com...
  • Page 47 In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 48 INTEL END USER SOFTWARE LICENSE AGREEMENT IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING. LICENSE. Licensee has a license under Intel’s copyrights to reproduce Intel’s Software only in its unmodified and binary form, (with the accompanying documentation, the “Software”) for Licensee’s personal use only, and not commercial use, in connection with Intel-based products for which the Software has been provided, subject to the following conditions: (a) Licensee may not disclose, distribute or transfer any part of the Software, and You...
  • Page 49 U.S. GOVERNMENT RESTRICTED RIGHTS. The Software is a commercial item (as defined in 48 C.F.R. 2.101) consisting of commercial computer software and commercial computer software documentation (as those terms are used in 48 C.F.R. 12.212), consistent with 48 C.F.R. 12.212 and 48 C.F.R 227.7202-1 through 227.7202-4. You will not provide the Software to the U.S.
  • Page 50 ASRock follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASRock product is in line with global environmental regulations. In addition, ASRock disclose the relevant information based on regulation requirements.
