Summary of Contents for TGC TRTB53ST-G

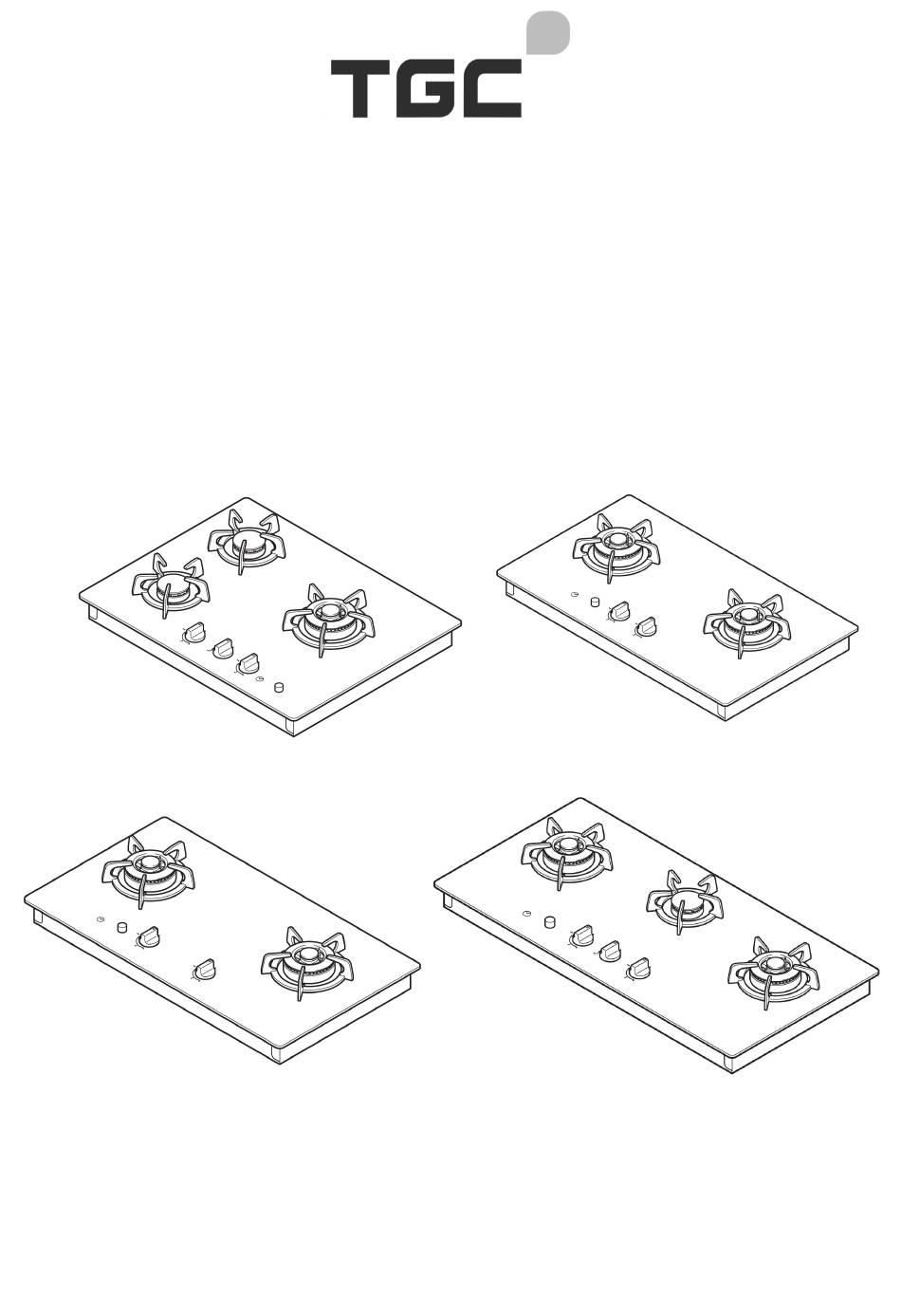

  • Page 1   強化玻璃面嵌入式煮食爐 Toughened Glass Top Built-in Hob 型號 TRTB53ST-G TRTB62ST-G TRTB72ST-G TRTB83ST-G Model TRTB831ST-G 使用說明書 User Manual TRTB62ST‐G  TRTB53ST‐G  TRTB72ST‐G  TRTB83ST‐G  TRTB831ST‐G  香港煤氣適用 For Hong Kong Town Gas...
  • Page 2  ...
  • Page 3: Table Of Contents

      目錄 重要安全指示 …………………………………………………………………. 第 頁 產品介紹 ……………………………………………………………………….. 第 頁 安裝指示 ……………………………………………………………………….. 第 頁 操作指示 ……………………………………………………………………..… 第 頁 更換電池 ……………………………………………………………………..… 第 頁 保養 ……………………………………………………………………………… 第 頁 故障處理 ……………………………………………………………………..… 第 頁 技術規格 ……………………………………………………………………..… 第 頁 注意! 根據香港氣體安全條例,任何氣體裝置工程,包括爐具和接駁喉管的安裝, 必須由註冊氣體裝置技工執行,而該技工已於相關的氣體工程類別註冊及受 聘於註冊氣體工程承辦商。...
  • Page 4: 重要安全指示

      重要安全指示 以下指示對氣體爐具的安全操作十分重要,請詳細閱讀。如有查詢 ,請致電煤氣公司 24 小 時客戶服務熱線 2880 6988。 安裝 1. 使用認可印有機電工程署批准標記 (例如: 機電工程署批准 EMSD APPROVAL GTXXXX) 的氣體接駁喉管 連接爐具或使用機電工程署接納的其他恰當方法。 2. 安裝附有的氣體穩壓器(Rinnai C002D-04000-2),並確定壓力設定為 1 千帕。 3. 爐具周圍和下方不可放置可燃物品,如紙張及塑膠等,與可燃物料距離須保留 150 毫米以上。 4. 爐具須安裝在空氣流通之房間內。 使用 1. 當懷疑洩漏氣體時,將窗戶打開,以及關閉煤氣錶閥。切勿操作任何電器或電掣開關。切勿在現場使用 任何電話。在現場以外的地方,致電煤氣公司24小時緊急事故熱線 2880 6999。 2. 請參照說明書內指引正確使用爐具。 3. 該爐具只供家用,切勿用於商業用途。 4.
  • Page 5   重要安全指示 21. 烹調時,請儘量蓋上鍋具。而鍋具的手柄亦應轉向適當位置,避免受熱或碰撞。 22. 請勿在爐具附近使用噴霧產品。 23. 使用後,應將所有開關按鈕設於關閉位置 。 “ ” ● 24. 如滾瀉食物及汁液,應在爐具冷卻後儘快作出妥善清潔。 25. 如出現異常聲響,應先關火。待爐具完全冷卻後,檢查及放好爐頭蓋和爐頭身,並重新點火。若問題持 續,聯絡煤氣公司進行檢查。 26. 爐具面板是採用強化玻璃製造,較一般玻璃安全,但還須注意以下事項,以避免玻璃面板爆裂: 切勿使用過大的器皿煮食,例如烤板。  切勿以硬物撞擊或將重物放置於玻璃面板上。  切勿放置煮食器皿在玻璃面板上。  保養 1. 定期檢查氣體喉管狀況,確保沒有紐結或裂縫,若發現損壞,請聯絡煤氣公司更換喉管。 2. 待爐具完全冷卻後,才可進行清潔。 3. 進行清潔時,應穿上保護手套避免割傷。 4. 清洗爐頭蓋和爐頭身後,用乾布完全抹乾,爐頭火孔不可留有水份,以免影響燃燒。 5. 使用前和使用後,注意爐頭的狀況和清潔。以下不正常狀況會產生燃燒不良,進而引致爐具損壞。請 確保採取相應措施,糾正有關問題。 不正常情況 處理措施 爐頭蓋和爐頭身變形 聯絡煤氣公司維修。...
  • Page 6: 產品介紹

      產品介紹 爐具是專為香港各式煮食需要而設計,備有 4 小時間預校熄火功能,快易點火系統和旋鈕式火力控制,煮食 更方便。 雙環爐頭火力特強, 兼備獨立芯火, 適合講究鑊氣的中式烹調;採用優質強化玻璃面板, 密封式爐頭 設計,美觀大方,清潔容易。 產品備有熄火安全裝置和防高溫保護裝置, 如爐火意外熄滅或因爐頭阻塞而引至不正常燃燒,會自動關閉氣 閥,又有 3 小時自動熄火安全裝置,確保安全。 部件名稱 中爐架 芯火爐頭蓋 中爐頭蓋 爐架 中爐頭身 外環爐頭蓋 爐頭身 控制旋鈕 底盤 強化玻璃面板 時間掣 TRTB53ST-G 芯火爐頭蓋 爐架 外環爐頭蓋 爐頭身 時間掣 控制旋鈕 強化玻璃面板 底盤 TRTB62ST-G/TRTB72ST-G...
  • Page 7   產品介紹 芯火爐頭蓋 爐架 外環爐頭蓋 中爐架 爐頭身 中爐頭蓋 中爐頭身 時間掣 控制旋鈕 強化玻璃面板 底盤 TRTB83ST-G/TRTB831ST-G 安全及點火裝置 大爐頭 中爐頭 點火電極 熄火安全感應器 點火電極 熄火安全感應器...
  • Page 8: 安裝指示

    請將所有包裝物料 (包括膠袋、紙板及固定釘) 放置於兒童不能觸及的地方,以免造成危險。  不應將易燃物料、噴霧及壓縮容器放置在氣體爐具下方的櫥櫃內。  氣體爐具須安裝在空氣流通之房間內。  氣體爐具須放置在穩固平坦的櫃面上,請依照下圖所示的開孔尺寸及位置。  氣體爐具應與周圍可燃燒物品保留距離 150 毫米以上。  若在氣體爐具下安裝其它器具 (例如 : 洗碗碟機、 洗衣機) , 請在氣體爐具下方保留最少 10 毫米距離。  若下方器具的安裝指引要求不同間距,應採用較大者。 氣體爐具下方如設有會產生氣流的器具 (例如 : 焗爐、 乾衣機) , 必須加裝隔層板並以矽膠密封所有縫  隙,避免氣流影響氣體爐具運作。 氣體爐具上方須保留 650 毫米空間,如上方安裝抽油煙機,並要求不同間距,應採用較大者 。  櫃面開孔尺寸 TRTB53ST-G...
  • Page 9   安裝指示 TRTB62ST-G TRTB72ST-G TRTB83ST-G/TRTB831ST-G...
  • Page 10   安裝指示 安裝程序   小心:爐具面板為玻璃物料 !   為避免玻璃爆裂時的危險情況,不可加重或撞擊玻璃。  不可刮花玻璃底部,這樣將會導致使用時破裂。  1. 連接底盤和玻璃面板底部的電線接頭。   2. 將玻璃面板孔對準面板固定碟。 膠墊 注意不要將電線被玻璃面板與底盤擠壓  注意電線不可接近爐頭  面板固定碟 3. 玻璃面板裝妥後,拆除面板固定碟上的螺絲 。 螺絲 面板 固定碟 4. 將爐碟的開孔對準點火電極及熄火安全感應器 螺絲 爐碟 面板 使用螺絲上緊爐碟 。 固定碟 5. 裝上時間掣及控制旋鈕 時間掣  ...
  • Page 11   安裝指示 6. 放置爐頭身 大爐頭 中爐頭   中爐頭身 爐頭身 定位槽 大爐頭 定位針 將爐頭身底部的定位槽對準爐碟的定位針。  定位針 定位槽 爐頭身放置時請勿傾斜。  中爐頭 (TRTB53ST-G/TRTB83ST-G/TRTB831ST-G) 將爐頭身底部的定位針對準爐頭座的定位槽。  爐頭身放置時請勿傾斜。  7. 放置爐頭蓋 將爐頭蓋放置在爐頭身上,不可傾斜。  爐頭蓋的定位針須插入爐頭身的定位糟。  中爐頭蓋 外環爐頭蓋 芯火爐頭蓋 外環爐頭蓋 定位針 中爐頭蓋 定位針 芯火爐頭蓋 定位針 定位槽...
  • Page 12: 操作指示

    最大 最大 控制旋鈕位置 最大 最小 最小 最小 最小 爐火狀況 外環火 大 中 熄滅 熄滅 芯火 大 中 大 小 中爐頭 (TRTB53ST-G/TRTB83ST-G/TRTB831ST-G) 熄火 熄火     控制旋鈕位置 最大 最大     爐火狀況 大 小 熄火 將控制旋鈕轉動至關閉位置 。 “ ” ● 注意:熄火時有機會因殘留在爐頭內的氣體瞬間燃燒而出現響聲,此屬正常現象。...
  • Page 13   操作指示 時間掣功能 時間掣功能只適用於左爐頭(TRTB53ST-G 則為右爐頭)。 時間設定步驟 點燃氣體爐頭 按下並以逆時針方向轉動控制旋鈕點燃爐頭。   按下時間掣,顯示器會顯示“ 0:00 ”,計時模式便啟動。     時間模式設定   咇 如在 15 秒內沒有操作,顯示器會熄滅,計時模式會被取消。 咇   (如電池電量低,“ Lo ” 將會顯示,請更換電池。) 轉動時間掣設定時間。   時間掣設定 設定時間熄火,最少 1 分鐘,最多為 4 小時。 時間設定: 1 至 60 分鐘: 1 分鐘時段...
  • Page 14: 更換電池

    兩枚新鹼性電池的使用壽命約 7 個月。  內附電池的壽命可能會因爐具的庫存時間而受影響。  前面 前面 1.5 伏特 D 型鹼性 1.5 伏特 D 型鹼性 電池 x2 電池 x2 TRTB62ST-G TRTB53ST-G 前面 前面 1.5 伏特 D 型鹼性 1.5 伏特 D 型鹼性 電池 x2 電池 x2 TRTB72ST-G TRTB83ST-G TRTB831ST-G 保養...
  • Page 15: 故障處理

      故障處理 有些故障是可以由使用者處理,但如採取以下補救措施後仍無效,請致電煤氣公司客戶服務熱線 2880 6988。 故障 原因 處理方法 點火電極濕了。 以乾布抹乾點火電極。 1. 沒有點火 點火電極有污穢。 清理點火電極。 電池已耗盡。 更換電池。 電池電極方向錯誤。 重新放好電池。 仍未開啟煤氣錶閥及/或爐具供氣 完全開啟煤氣錶閥及/或爐具供氣閥。 2. 沒有火焰 閥。 錫紙阻塞爐頭。 拿去錫紙。 點火電極有污穢。 清理點火電極。 未按盡轉動控制旋鈕和轉動至最大 按盡控制旋鈕及逆時針方向轉動至最大火位置 3. 不能保持爐火 火位置。 。 熄火安全感應器有污穢。 清理熄火安全感應器。 用小火時被風吹熄。 等待1分鐘,重新點火。 4. 使用中熄火 煮食溢出物阻塞爐頭,引致不正常 待爐具冷卻後,清潔和抹乾爐頭蓋和爐頭身,...
  • Page 16 故障代碼 蜂鳴器 顯示器 爐頭 描述 原因 處理方法 備注 咇 X 5 次 左(時間掣) 防高溫保護裝置 溫度過高 等待 1 分鐘,然後重新 TRTB53ST-G 為右 啟動 啟動 右 TRTB53ST-G 為前 中 TRTB53ST-G 為後 TRTB62/72ST-G 不 適用 中途熄火 咇 X 3 次 左(時間掣) 打不著火 TRTB53ST-G 為右...
  • Page 17: 技術規格

      技術規格 TRTB83ST-G 型號 TRTB53ST-G TRTB62ST-G TRTB72ST-G TRTB831ST-G 氣體種類 香港煤氣 供氣壓力(千帕) 穩壓器出口壓力(千帕) 氣體入口接駁 ½吋英制陽螺紋 玻璃厚度(毫米) 高(至檯面) 高(至爐面) 整體尺寸 (毫米) 高(至爐架) 闊 深 總 10.6 額定熱負荷(千瓦) 大爐頭 5.0 x 2 5.0 x 2 5.0 x 2 中爐頭 2.8 x 2 重量(千克) 點火裝置...
  • Page 18  ...
  • Page 19   Contents Important Safety Instructions………………………………. P. Product Descriptions……...………………………………… P. Installation Instructions…………………………………...… P. Operation Instructions………………………………………. P. Change Battery……………………………………………… P. Maintenance…………………………………………………. P. Troubleshooting……………………………………………... P. Technical Specifications……………………………………. Attention! According to the Gas Safety Ordinance of Hong Kong, any gas installation works including the installation of appliances and connection tubing, must be undertaken by registered gas installers who are registered for that appropriate classes and be employed by registered gas contractors.
  • Page 20: Important Safety Instructions

      Important Safety Instructions The following instructions are very important to safe operation of gas appliance. Please read through them carefully. Please contact Towngas 24-hour Customer Service Hotline on 2880 6988 for enquiry and services. Installation 機電工程署批准 1. Use approved gas tubing bearing EMSD approval marking (such as: EMSD APPROVAL GTXXXX) or other appropriate methods accepted by EMSD.
  • Page 21   Important Safety Instructions 21. Always use pots with covers and make sure that the handles of the pots are correctly positioned to avoid heating and collision of handles. 22. Do not use sprays near the appliance. 23. All control knobs should be turned to off position after use.
  • Page 22: Product Descriptions

    Pan Support Mid Burner Body Outer Ring Burner Cap Burner body Control Knob Base Tray Toughened Glass Top Timer Knob TRTB53ST-G Simmer Burner Cap Pan Support Outer Ring Burner Cap Burner Body Timer Knob Control Knob Toughened Glass Top Base Tray...
  • Page 23   Product Descriptions Simmer Burner Cap Pan Support Outer Ring Burner Cap Mid Pan Support Burner Body Mid Burner Cap Mid Burner Body Timer Knob Control Knob Toughened Glass Top Base Tray TRTB83ST-G/TRTB831ST-G Safety & Ignition Devices Large Burner Mid Burner Spark Electrode Flame Failure Safety Sensor Spark Electrode...
  • Page 24: Installation Instructions

    This prevents air-flow affecting the gas appliance operation.  Reserve a distance of not less than 650mm above the gas appliance. If range-hood is installed above and requires different distance, adopt the larger value. Bench Top Cut-out Dimensions TRTB53ST-G...
  • Page 25   Installation Instructions TRTB62ST-G TRTB72ST-G TRTB83ST-G/TRTB831ST-G...
  • Page 26   Installation Instructions Installation Procedures     Caution: The material of top plate of this appliance is Glass!  In order to avoid dangerous situation arising from breakage of glass, DO NOT apply heavy weight or strong impact on glass top plate. ...
  • Page 27 Guide Pin cover discs. Guide Pin Guide Slot  Place the burner bodies without tilting. Mid Burner (TRTB53ST-G/TRTB83ST-G/TRTB831ST-G)  Align bottom guide pins of mid burner bodies with guide slots of burner base.  Place the burner body without tilting.
  • Page 28: Operation Instructions

          Flame Condition Outer Burner Flame Large Medium Simmer Burner Flame Large Medium Large Small Mid Burner (TRTB53ST-G/TRTB83ST-G/TRTB831ST-G)     Knob Position MAX. MAX.     Flame Condition Large Small Turning off Flame Turn the control knob to the off position “...
  • Page 29   Operation Instructions Timer Function: The timer function is applicable for the left burner only (Right burner for TRTB53ST-G). Timer Setting Procedure 1. Ignition of gas burner Press and turn control knob anti-clockwise to ignite burner.   “ 0:00 ”is shown on display when timer knob is pressed. Timer mode is 2.
  • Page 30: Change Battery

    Life of accessory batteries may be affected by storage period of appliance. Front Front 1.5V D size 1.5V D size alkaline battery x 2 alkaline battery x 2 TRTB62ST-G TRTB53ST-G Front Front 1.5V D size 1.5V D size alkaline battery x 2 alkaline battery x 2 TRTB72ST-G...
  • Page 31: Troubleshooting

      Troubleshooting Some malfunctions can be handled by user. But if the following remedial actions are not effective, please call Towngas Customer Service Hotline at 2880 6988 . Fault Cause Remedy 1. No ignition Spark electrode is wet. Dry the spark electrode with dry cloth. Spark electrode has dirt.
  • Page 32 Burner Description Cause Remedy Remarks Sound Left Pi x 5 times Overheat Overheat Operate again after Right for TRTB53ST-G (with timer) protection waiting for 1 minute device is activated Right Front for TRTB53ST-G Rear for TRTB53ST-G NA for TRTB62/72ST-G Left...
  • Page 33: Technical Specifications

      Technical Specifications TRTB83ST-G Model TRTB53ST-G TRTB62ST-G TRTB72ST-G TRTB831ST-G Gas Type Hong Kong Town Gas Gas Supply Pressure 1.5 kPa Governor Outlet Pressure 1.0 kPa ½ B.S.P (Male) Gas Inlet Connection Toughened Glass Thickness (mm) Height (To Bench Top) Height (To...
  • Page 34  ...
  • Page 35  ...
  • Page 36 12/2021...
