R
Assembly Instructions

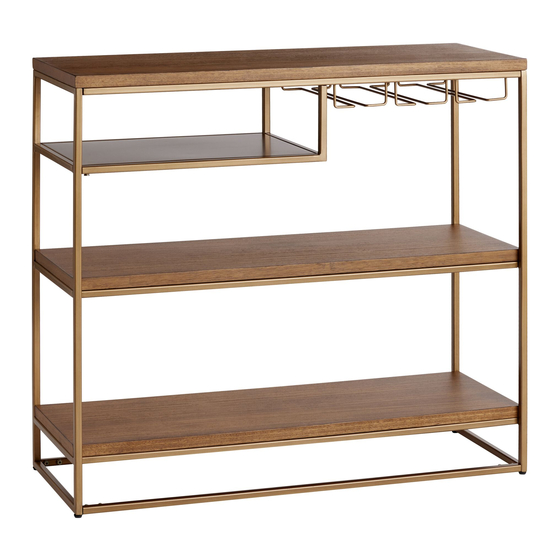

Caspian Open Bar Console
SKU - 618188
THANK YOU FOR YOUR PURCHASE. IF YOU HAVE ANY QUESTIONS
PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT
THE NEAREST WORLD MARKET STORE
IF YOU ARE NOT NEAR A STORE PLEASE CALL OUR CUSTOMER SERVICE CALL
CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
All products sold at World Market are not for commercial use and are intended for residential use only.
Page 1
2022.09.07
Advertisement
Table of Contents
Related Manuals for World Market Caspian 618188
Summary of Contents for World Market Caspian 618188
- Page 1 IF YOU ARE NOT NEAR A STORE PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE. All products sold at World Market are not for commercial use and are intended for residential use only. Page 1...
-
Page 2: Component List
Component List Q.TY LABEL PICTURE DESCRIPTION Top Frame Middle Frame Shelf Frame Left Leg Frame Right Leg Frame Bottom Rail Wine Glass Rack Page 2... -
Page 3: Hardware List
Hardware List Q.TY LABEL PICTURE DESCRIPTION Y Head Allen Bolt M6 x 13 mm Allen Bolt M6 x 15 mm Lock Washer Ø6 x 10.5 x 1 mm Flat Washer Ø6 x 13 x 1 mm Anti Tip-kit Tool List LABEL PICTURE DESCRIPTION... -
Page 4: Assembly Preparation
Do not assemble on flooring or carpet. Assemble on a clean non-marring surface (packing foam). Save all packaging until finished. In case of missing parts, please contact your nearest World Market store or call our customer service call center at call 1-877-967-5362. Page 4... -
Page 5: Assembly Steps
Assembly Steps Step 1 (H-4) Flat Washer x 2 (H-2) Allen Bolt x 2 (T-1) Allen key (H-3) Lock Washer x 2 Front Place Top Frame (A) down on a padded, non-marring surface as shown. Position and secure Top Frame (A) to Middle Frame (B) using Allen Bolts (H-2), Lock Washers (H-3) and Flat Washers (H-4), stacking the hardware in the order as shown. - Page 6 Step 3 (H-2) Allen Bolt x 6 (H-4) Flat Washer x 6 (H-3) Lock Washer x 6 (T-1) Allen key Front Using a second person to assist you, attach both Shelf Frames (C) to Left Leg Frame (D-1) using Allen Bolts (H-2), Lock Washers (H-3) and Flat Washers (H-4) stacking the hardware in the order as shown.
- Page 7 Step 5 (H-4) Flat Washer x 9 (H-1) Y Head Allen Bolt x 2 (H-2) Allen Bolt x 9 (T-1) Allen key (H-3) Lock Washer x 9 Front Note: A second person should hold the Bottom Rail (E) while performing this assembly step. Attach Right Leg Frame (D-2) to Assembly from step 4 using Y Head Allen Bolts (H-1) for the Bottom Rail (E), Allen Bolts (H-2), Lock Washers (H-3) and Flat Washers (H-4) for all other connection points, stacking the hardware in the order as shown.
- Page 8 Step 7 ADJUSTABLE LEVELER NOTE: Levelers can be used for adjustment if needed. Front Ensure that all bolts have been fully tightened. Assembly is now complete and ready for use. NOTE: Levelers can be adjusted for additional stability if needed. Page 8...
-
Page 9: Care And Maintenance
Do not write on furniture without a padded barrier to protect the surface. Do not place furniture outside. For indoor use only. All products sold at World Market are not for commercial use and are intended for residential use only. - Page 10 Anti-Tip Measures Warning - Children may be injured by tipping of furniture and the use of the Anti-Tip Kit is highly recommended. This Anti-Tip Kit is only a deterrent It is not a substitute for proper adult supervision. Manufacturer and retailer assumes no liability for improper installation or excess loads placed on screws, brackets, or straps.
- Page 11 Customer Service Call Center, Toll Free at 877-967-5362. For valid warranty claims, World Market will repair or replace the product, or offer a full or partial credit, in the sole discretion of World Market. This LIMITED ONE-YEAR WARRANTY gives you specific legal rights and you may also have other rights which vary from state to state.
