Assembly Instructions

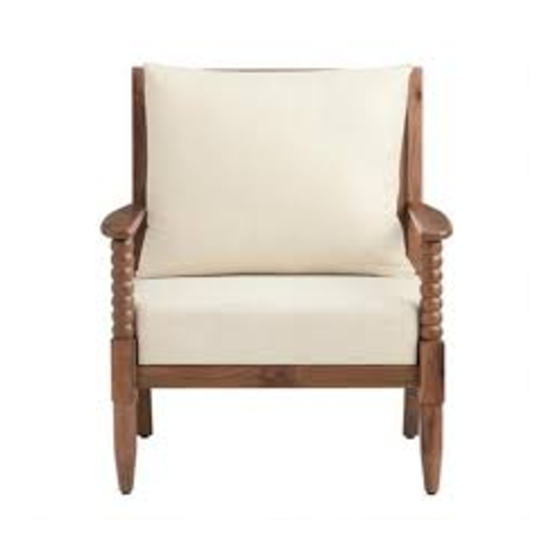

Charlee Bobbin Wood Chair
SKU- 618952
THANK YOU FOR YOUR PURCHASE. IF YOU HAVE ANY QUESTIONS PERTAINING TO
THE ASSEMBLY OF THIS CHAIR, PLEASE CONTACT THE NEAREST WORLD MARKET
STORE. IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL
CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
ALL PRODUCTS SOLD AT WORLD MARKET
ARE NOT FOR COMMERCIAL USE AND ARE
INTENDED FOR RESIDENTIAL USE ONLY.
2022-07-26
Page 1
Advertisement
Table of Contents
Related Manuals for World Market Charlee Bobbin 618952
Summary of Contents for World Market Charlee Bobbin 618952
- Page 1 SKU- 618952 THANK YOU FOR YOUR PURCHASE. IF YOU HAVE ANY QUESTIONS PERTAINING TO THE ASSEMBLY OF THIS CHAIR, PLEASE CONTACT THE NEAREST WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
- Page 2 Component List IMAGE LABLE DESCRIPTION Right Leg Frame Left Leg Frame Seat Backrest Back Cushion Hardware List IMAGE LABLE DESCRIPTION Long Allen bolt M6 x 40mm Short Allen bolt M6 x 30mm Lock washer M8 x 12 mm Flat washer M8 x 15 mm Wooden cap + 1 extra...
- Page 3 Assembly Preparation Before Beginning: Unpack all hardware bags and components to ensure you have all parts Read instructions, cover to cover Have 2 adults on hand for assembly Do not assemble on flooring or carpet Assemble on a clean non-marring surface (packing foam) Save all packaging until finished In case of missing parts, please contact your nearest World Market store or call our customer service call center at call 1-877-967-5362.
- Page 4 Assembly steps Step 1 Hardware Use - IMPORTANT: Make sure to use the correct Allen 1-(H-1)-4x Bolt size for this step. This Step calls for H-1 Long 2-(H-3)-4x Allen Bolts. 3- (H-4)- 4x FRONT Lay the Right Leg Frame (A) down onto it side on a padded, non-marring surface as shown. Take Seat (C) and align it with Right Leg Frame (A) so that the labels "A-A"...
- Page 5 Step 3 Hardware Use - 1-(H-1)-4x 2-(H-2)-2x 3-(H-3)-4x 4-(H-4)-4x FRONT Using a second person to assist you, carefully place the Left Leg Frame (B) down into position, making sure that it aligns with the corresponding labels "C-C" and "D-D" along both the Seat (C) and Backrest (D) assemblies as shown.
- Page 6 Do not write on furniture without a padded barrier to protect the surface. Do not place furniture outside. For in door use only. All products sold at World Market are not for commercial use and are intended for residential use only Dust and pick-up spills using a clean, non-colored, lint-free dry cloth.
- Page 7 Page 7...
