Assembly Instructions

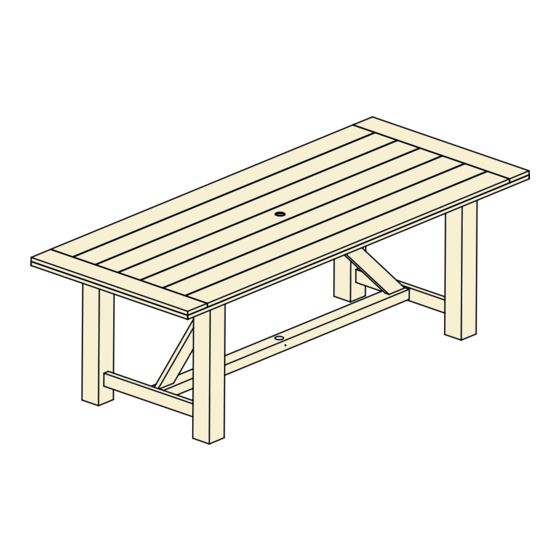

Netanya A-frame Dining Table
SKU–619711
THANK YOU FOR PURCHASE. IF YOU HAVE ANY QUESTIONS
PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT
THE NEAREST WORLD MARKET STORE.
IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL
CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
All products sold at World Market are not for commercial use and are
intended for residential use only.
2022.07.19
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for World Market Netanya 619711
Summary of Contents for World Market Netanya 619711
- Page 1 THE NEAREST WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE. All products sold at World Market are not for commercial use and are intended for residential use only. 2022.07.19...
-
Page 2: Component List
Component List LABEL PICTURE DESCRIPTION Table Top Left Leg Right Leg Side Stretcher Stretcher Diagonal Bar Support Umbrella Wooden Cap Page 2... -
Page 3: Hardware List
Hardware List Allen Bolt M6 x 45mm Short Allen Screw M6 x 45mm Long Allen Screw M6 x 80mm Flat Washer Flat Spring Washer Hexagonal Nut Open Wrench Allen Key Allen Key 55/80 Umbrella Post Lock H-10 Page 3... -
Page 4: Assembly Preparation
Assembly Preparation Before Beginning: Unpack all hardware bags and components to ensur e you have all parts. Read instructions, cover to cover. Have 2 adults on hand for assembly. Do not assemble on flooring or carpet. Assemble on a clean non-marring surface (packing foam). Save all packaging until finished. - Page 5 NOTE: It is strongly recommended that two adults are on hand for the assembly of this product. Step 1 (H-4) Flat Washer (M8) x 4 (H-5) Spring Washer (M8) x 4 (H-6) Hexagonal Nut (M8) x 4 (H-7) Open Wrench x 1 Using a second person to assist you, lay Table Top (A) upside down onto a padded, non-marring surface.
- Page 6 Step 3 (H-1) Allen Bolt (M6 x 45mm) x 2 (H-8) Allen Key x 1 Insert dowels of Stretcher (E) into Side Stretcher (D) as shown. Secure Stretcher (E) using Allen Bolt (H-1). Secure but do not fully tighten Allen Bolt (H-1) using Allen Key (H-8). Step 4 (H-2) Short Allen Screw (M6 x 45) x 2...
- Page 7 Step 5 (H-4) Flat Washer (M8) x 4 (H-5) Spring Washer (M8) x 4 (H-6) Hexagonal Nut (M8) x 4 (H-7) Open Wrench X 1 (H-3) Short Allen Screw (M6 x 60mm) x 2 (H-8) Allen Key x 1 Using a second person to assist you, insert Side Stretcher (D) into the other corresponding Left Leg (B), Right Leg (C) as shown, and also make sure the hanger bolts on Left Leg (B), Right Leg (C) fit through the pre-drilled corner holes on Table Top (A).
- Page 8 Step 7 (H-10) Umbrella Post Lock (M8) x 1 H-10 When using table with umbrella, take out Umbrella Wooden Cap (G) and insert Umbrella post all the way to stretcher hole. Secure Umbrella Post through bottom lock (H-10) provided and firmly tight counterclockwise. Page 8...
-
Page 9: Care And Maintenance
Do not write on furniture without a padded barrier to protect the surface. Do not place furniture out side. For indoor use only. All products sold at World Market are not for commercial use and are intended for residential use only. - Page 10 Customer Service Call Center, Toll Free at 877-967-5362. For valid warranty claims, World Market will repair or replace the product, or offer a full or par al credit, in the sole discre on of World Market. This LIMITED ONE-YEAR WARRANTY gives you specific legal rights and you may also have other rights which vary from state to state.
