Assembly Instructions

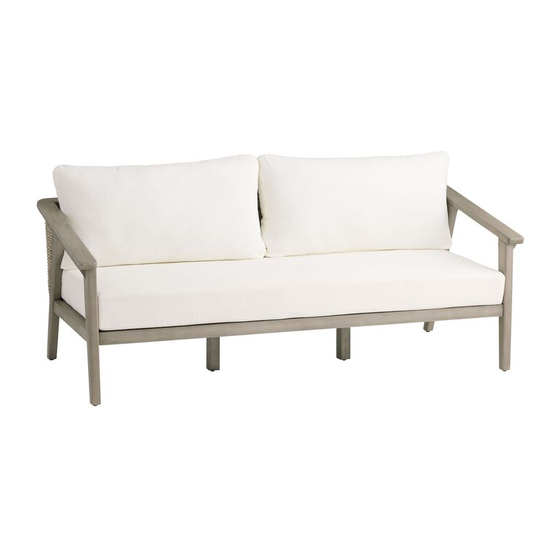

San Marino Slope Arm Bench
SKU–619715
THANK YOU FOR PURCHASE. IF YOU HAVE ANY QUESTIONS
PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT
THE NEAREST WORLD MARKET STORE.
IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL
CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
All products sold at World Market are not for commercial use and are
intended for residential use only.
2023.02.07
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for World Market 619715
Summary of Contents for World Market 619715
- Page 1 THE NEAREST WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE. All products sold at World Market are not for commercial use and are intended for residential use only. 2023.02.07...
-
Page 2: Component List
Component List LABEL PICTURE DESCRIPTION Seat Frame Right Leg Frame Left Leg Frame Backrest Weave Frame Armrest Frame Support Leg Seat Cushion Back Cushion Page 2... -
Page 3: Hardware List
Hardware List Short Allen Bolt M6 x 30mm Long Allen Bolt M6 x 45mm Short Allen Screw M6 x 30mm Long Allen Screw M6 x 45mm Flat Washer M6 x 16mm Spring Washer M6 x 1.5mm Page 3... -
Page 4: Assembly Preparation
Assembly Preparation Before Beginning: Unpack all hardware bags and components to ensure you have all parts. Read instructions, cover to cover. Have 2 adults on hand for assembly. Do not assemble on flooring or carpet. Assemble on a clean non-marring surface (packing foam). Save all packaging until finished. - Page 5 NOTE: It is strongly recommended that two adults are on hand for the assembly of this product. Step 1 (H-2) Long Allen Bolt (M6 x 45mm) x 5 (H-7) Allen Key x 1 FRONT Using a second person to assist you, place Right Leg Frame (B) on its side on a padded, non-marring surface.
- Page 6 Step 3 (H-4) Long Allen Screw (M6 x 45mm) x 4 (H-7) Allen Key x 1 FRONT Align the Support Leg (F) to the Seat Frame (A) as shown. Secure Support Leg (F) to Seat Frame (A) using Long Allen Screws (H-4). Engage screws but do not fully tighten them using Allen Key (H-7). Step 4 (H-3) Short Allen Screw (M6 x 30mm) x 4...
- Page 7 Step 5 (H-1) Short Allen Bolt (M6 x 30mm) x 6 (H-5) Flat Washer (M6 x 16mm) x 6 (H-6) Spring Washer (M6 x 1.5mm) x 6 (H-7) Allen Key x 1 Align Armrest Frame (E) to Right Leg Frame (B) and Left Leg Frame (C) as shown. Secure Armrest Frame (D) to Right Leg Frame (B) and Left Leg Frame (C) using Short Allen Bolts (H-1) and Flat Washers (H-5) and Spring Washers (H-6), stacking the hardware in the order as shown.
- Page 8 Step 7 NOTE: Levelers can be used for additional adjustment if needed. Place Seat Cushion (G) onto Seat Frame assembly as shown, making sure the cushion sits flush along the back of the frame assembly. Next, place Pillow (H) against the back assembly. Using a second person to assist you, place the completed assembly into the desired location and then finalize any leveling adjustments using the adjustable levelers as shown.
-
Page 9: Care And Maintenance
Store furniture or use an appropriate furniture cover during cold or inclement weather. • All products sold at World Market are not for commercial use and are intended for residential use only. Dust and pick-up spills using a clean, non-colored, lint-free cloth. - Page 10 Customer Service Call Center, Toll Free at 877-967-5362. For valid warranty claims, World Market will repair or replace the product, or offer a ffull or partl credit, in the sole di scre of World Market. This LIMITED ONE-YEAR WARRANTY gives you specific legal rights and you may also have other rights which vary from state to state.
