Danfoss EKE 1A Installation Manual page 10

Danfoss MMIGRS2 display

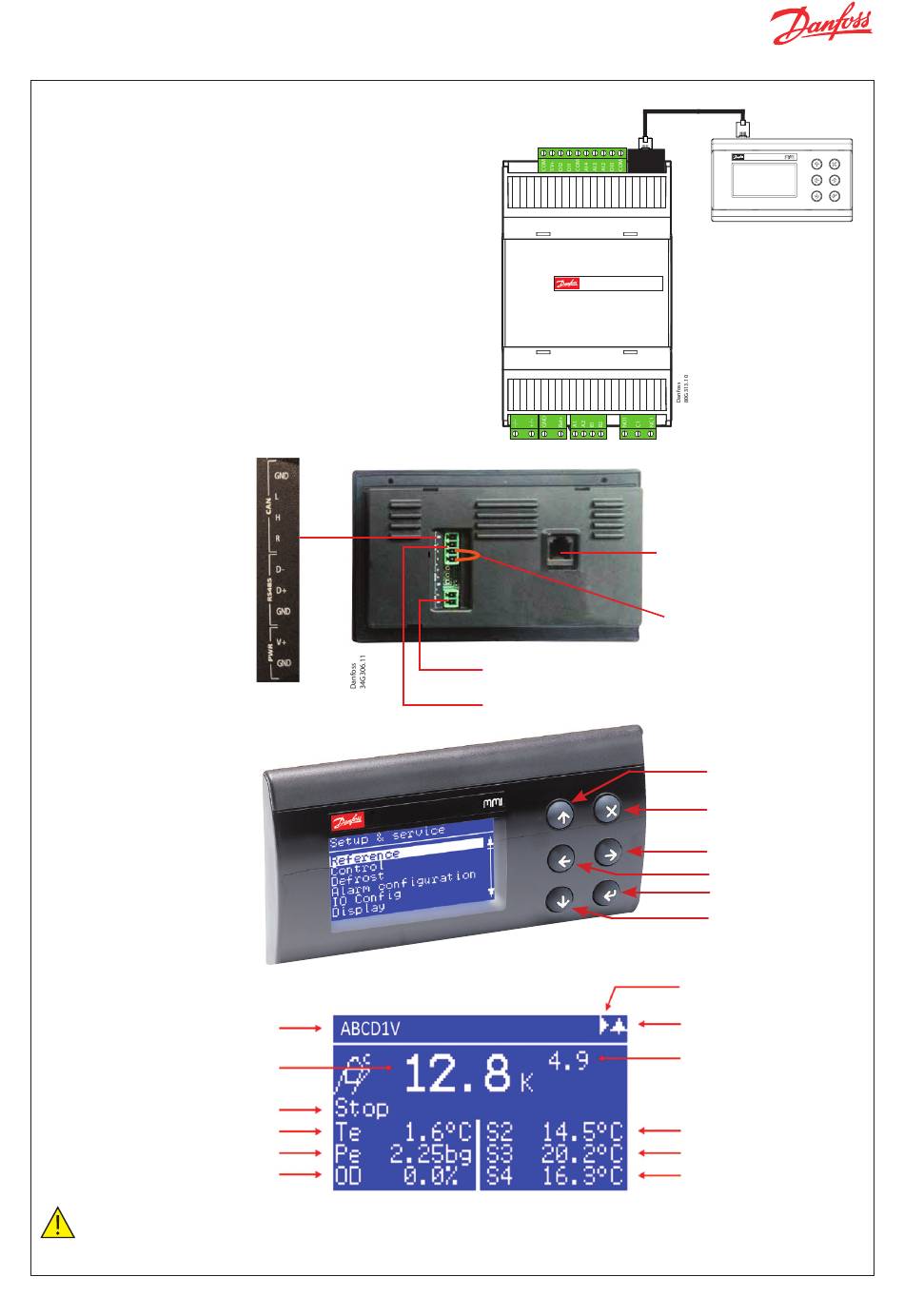

Connecting external MMIGRS2 display
MMIGRS2 display can be used to set up EKE 1A. The
display can be used not only for setting up the necessary
parameters, but also as an external display during
operation to show important parameters, e.g. degree of
opening of valve, superheat, etc.
Important note:
• Max. distance between controller and display is
3 m over CAN RJ.
• CANbus requires termination in both ends of the cable
by a 120 Ohm resistor to ensure reliable communication.
• External power for MMIGRS2 is not needed while using
CAN RJ connector.
MMIGRS2 (Back view)
MMIGRS2 (Front view)
Controller name
(Project name)
Primary readout
Operating status
Evap. temperature
Evap. pressure
Valve OD
Note: Setup and service menu requires login with the default password 100 ( daily use),
200 (service use) or 300 (commissioning use). Long press Enter key to access login menu.
© Danfoss | Climate Solutions | 2023.10
Superheat controller
Superheat controller
EKE 1A - 080G5300
For cable >3 metre (only EKE 1C)
2-way screen connector for power supply
4-way screen connector for CANbus network
Homescreen
ACCCBI080G0075
CAN RJ
CAN RJ CAN RJ
MMIGRS2
For cable <3 metre
RJ CAN connector
Termination Jumper
between R and H
Up
Cancel
Next
Previous
Enter
Down
Navigation help
Alarm indicator
Reference
point
S3 - S4
media
temperature
AN232086439413en-000705 | 10
