TECHNICAL DATA
& SERVICE MANUAL

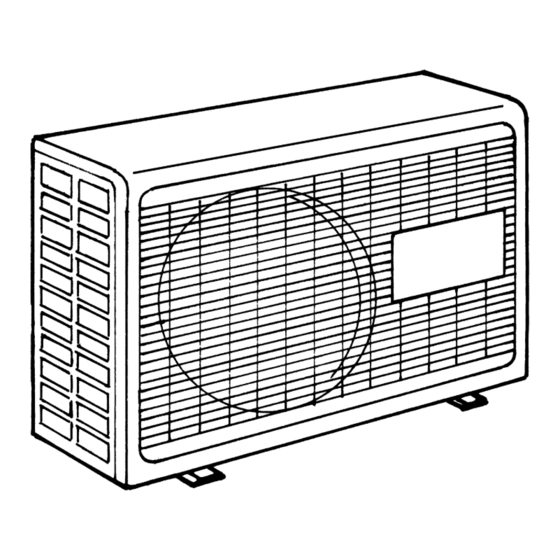

OUTDOOR UNIT: GRV180R5TA-
SPLIT SYSTEM AIR CONDITIONER
Model No.
GRV180R5TA-
GRV220R5TA-
All manuals and user guides at all-guides.com
GRV220R5TA-
Product Code No.
387107064
387107065
0.8180.265.0
05/2002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GRV180R5TA Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Technibel GRV180R5TA Series

  • Page 1 All manuals and user guides at all-guides.com TECHNICAL DATA & SERVICE MANUAL OUTDOOR UNIT: GRV180R5TA- GRV220R5TA- SPLIT SYSTEM AIR CONDITIONER Model No. Product Code No. GRV180R5TA- 387107064 GRV220R5TA- 387107065 0.8180.265.0 05/2002...
  • Page 2 All manuals and user guides at all-guides.com IMPORTANT! • Ground the unit following local electrical codes. • The Yellow/Green wire cannot be used for any connection Please read before installation different from the ground connection. • Connect all wiring tightly. Loose wiring may cause overheating This air conditioning system meets strict safety and operating at connection points and a possible fire hazard.
  • Page 3: Table Of Contents

    All manuals and user guides at all-guides.com Table of Contents Page 1. OPERATING RANGE 2. SPECIFICATIONS 2-1 Unit specifications 2-2 Major Component specifications 2-3 Other Component specifications 3. DIMENSIONAL DATA 4. REFRIGERANT FLOW DIAGRAM 5. PERFORMANCE DATA 5-1 Performance Charts 5-2 Cooling Capacity 5-3 Heating Capacity 6.
  • Page 4: Operating Range

    All manuals and user guides at all-guides.com 1. OPERATING RANGE Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp. Maximum 32°C D.B. / 23°C W.B. 43°C D.B. Cooling Minimum 19°C D.B. / 14°C W.B. 19°C D.B. Maximum 27°C D.B. 24°C D.B. / 18°C W.B. Heating Minimum -8°C D.B.
  • Page 5: Specifications

    All manuals and user guides at all-guides.com 2. SPECIFICATIONS 2-1 Unit Specifications GRV180R5TA- 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Heating Performance * MCAV180R5VA- 4,80 6,60 Capacity 16381 22524 BTU/h Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Heating...
  • Page 6 All manuals and user guides at all-guides.com GRV220R5TA- 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Heating Performance * MCAV220R5VA- 5,85 7,00 Capacity BTU/h 19964 23888 Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Heating Electrical Rating 198 ~ 264 Available voltage range Running amperes...
  • Page 7: Major Component Specifications

    All manuals and user guides at all-guides.com 2-2 Major Component Specifications Outdoor Unit: GRV180R5TA- Compressor Rotary (Hermetic) Type 80807045C C-2RN170H5W Compressor model Nominal output 1700 FV68S…800 Compressor oil…Amount C-R: 1,353 Coil resistance (Ambient temp. 25°C) Ω C-S: 3,422 Safety devices Type Internal protector External protector...
  • Page 8 All manuals and user guides at all-guides.com Outdoor Unit: GRV220R5TA- Compressor Rotary (Hermetic) Type 80242335 C-RN190H5B Compressor model Nominal output 1900 FV68S…2100 Compressor oil…Amount C-R: 0,921 Coil resistance (Ambient temp. 25°C) Ω Ω C-S: 2,843 Safety devices Type Internal protector External protector Overload relay MRA38075-3158 / MRA8967-9200...
  • Page 9: Other Component Specifications

    All manuals and user guides at all-guides.com 2-3 Other Component Specifications GRV180R5TA- STF-01AJ504D1 (Coil) STF-0201Z (Valve) 4-way Valve (20S) AC 220/240 V, 50 Hz, 6W Coil rating 1425 ± 7% Coil resistance Ω (at 20°C) GRV220R5TA- STF-01AJ504D1 (Coil) STF-0201Z (Valve) 4-way Valve (20S) Coil rating AC 220/240 V, 50 Hz, 6W...
  • Page 10: Dimensional Data

    All manuals and user guides at all-guides.com 3. DIMENSIONAL DATA GRV180R5TA- Outdoor Unit: Air intake 4 – ø12 holes Air discharge Wide tube service valve ø12.7 (1/2") Narrow tube service valve ø6.35 (1/4") Unit : mm...
  • Page 11 All manuals and user guides at all-guides.com GRV220R5TA- Outdoor Unit: Air intake Air discharge Wide tube service valve ø15.88 (5/8") Narrow tube service valve ø6.35 (1/4") 6 – ø3.1 holes Check port ø6.35 (1/4") Unit : mm...
  • Page 12: Refrigerant Flow Diagram

    All manuals and user guides at all-guides.com 4. REFRIGERANT FLOW DIAGRAM Indoor Unit: Outdoor Unit: GRV180R5TA- Indoor Unit: Outdoor Unit: GRV220R5TA-...
  • Page 13: Performance Data

    All manuals and user guides at all-guides.com 5. PERFORMANCE DATA 5-1 Performance charts GRV180R5TA- n Cooling Characteristics n Heating Characteristics Indoor inlet air Indoor inlet air D.B. (°C) D.B. (°C) Outdoor inlet D.B. temp. (°C) Outdoor inlet air D.B. temp. (°C) 0,60 2,80 Indoor inlet air...
  • Page 14 All manuals and user guides at all-guides.com GRV220R5TA- n Cooling Characteristics n Heating Characteristics Indoor inlet air Indoor inlet air D.B. (°C) D.B. (°C) Outdoor inlet D.B. temp. (°C) Outdoor inlet air D.B. temp. (°C) 0,60 2,80 Indoor inlet air Indoor inlet air D.B.
  • Page 15: Cooling Capacity

    All manuals and user guides at all-guides.com 5-2 Cooling Capacity GRV180R5TA- OUTDOOR UNIT: MCAV180R5VA- INDOOR UNIT: 220 - 240V ~ 50Hz RATING CAPACITY 4,80 kW moisture removal 2,3 l/h COMP. POWER INPUT 2,044 kW max comp input 2,494 kW AIR FLOW RATE 760 m³/h EVAPORATOR CONDENSER...
  • Page 16 All manuals and user guides at all-guides.com GRV220R5TA- OUTDOOR UNIT: MCAV220R5VA- INDOOR UNIT: 220 - 240V ~ 50Hz RATING CAPACITY 5,85 kW moisture removal 3,3 l/h COMP. POWER INPUT 2,205 kW max comp input 2,755 kW AIR FLOW RATE 830 m³/h EVAPORATOR CONDENSER ENT.TEMP.
  • Page 17: Heating Capacity

    All manuals and user guides at all-guides.com 5-3 Heating Capacity –8 –5 Outdoor temperature (°C D.B.) NOTE … Point of Rating condition Black dot in the chart indicate the following rating condition. Indoor : 20°C D.B. Outdoor : 7°C D.B. / 6°C W.B. 2) Above characteristics indicate instantaneous operation, which does not take into consideration defrost operation.
  • Page 18: Electrical Data

    All manuals and user guides at all-guides.com 6. ELECTRICAL DATA 6-1 Electrical characteristics OUTDOOR UNIT: GRV180R5TA- COOLING Indoor Unit Outdoor unit Complete Unit Fan Motor Fan Motor Compressor performance at 230V 1-Phase 50 Hz Rating conditions Running Amps. 0,37 0,40 9,23 10,0 Power input...
  • Page 19 All manuals and user guides at all-guides.com OUTDOOR UNIT: GRV220R5TA- COOLING Indoor Unit Outdoor unit Complete Unit Fan Motor Fan Motor Compressor performance at 230V 1-Phase 50 Hz Rating conditions Running Amps. 0,39 0,55 10,6 Power input 0,075 0,120 2,205 2,400 Full load conditions Running Amps.
  • Page 20: Electric Wiring Diagram

    All manuals and user guides at all-guides.com GRV180R5TA- 6-2 Electric Wiring Diagram OUTDOOR UNIT: GRV220R5TA- OUTDOOR UNIT:...
  • Page 21: System Wiring Diagram

    All manuals and user guides at all-guides.com 6-3 System Wiring Diagram...
  • Page 22 All manuals and user guides at all-guides.com R.D. 28 Reyrieux BP 131 - 01601 Trévoux CEDEX France Tél. 04.74.00.92.92 - Fax 04.74.00.42.00 R.C.S. Bourg-en-Bresse B 759 200 728...
