TECHNICAL DATA
& SERVICE MANUAL
OUTDOOR UNIT: GRV180C5TA-
SPLIT SYSTEM AIR CONDITIONER
Model No.
GRV180C5TA-
GRV180C5TAB-
GRV180L5TA-
GRV180L5TAB-
GRV180C5TAB-
GRV180L5TA-
GRV180L5TAB-
GRV220C5TA-
Product Code No.
387107059
387107068
387107060
387107069
0.8180.268.1
Model No.
GRV220C5TA-
09/2004
Product Code No.
387107062

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GRV180C5TA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Technibel GRV180C5TA Series

Summary of Contents for Technibel GRV180C5TA Series

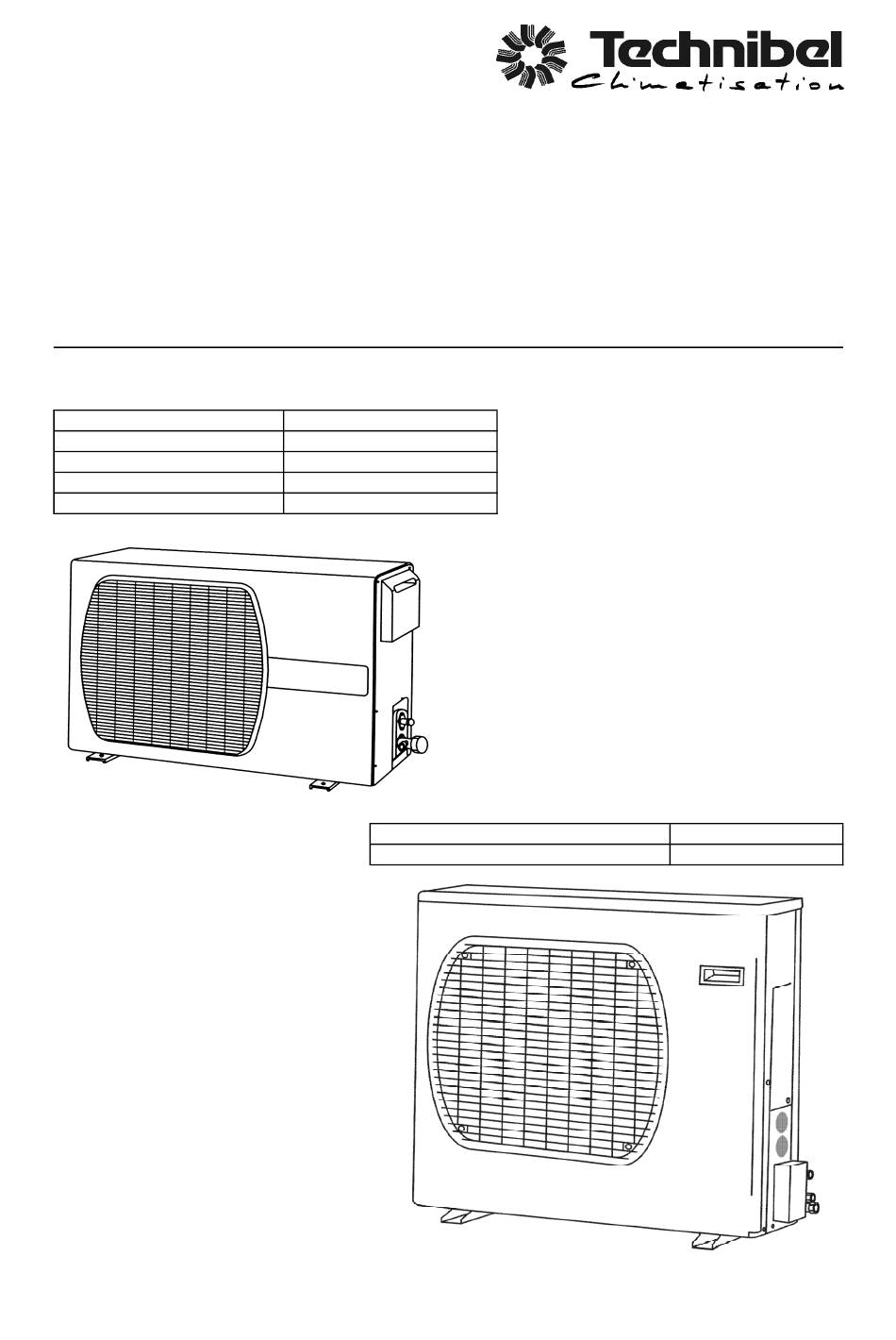

  • Page 1 TECHNICAL DATA & SERVICE MANUAL OUTDOOR UNIT: GRV180C5TA- GRV180C5TAB- GRV180L5TA- GRV180L5TAB- GRV220C5TA- SPLIT SYSTEM AIR CONDITIONER Model No. Product Code No. GRV180C5TA- 387107059 GRV180C5TAB- 387107068 GRV180L5TA- 387107060 GRV180L5TAB- 387107069 Model No. Product Code No. GRV220C5TA- 387107062 0.8180.268.1 09/2004...
  • Page 2 • Ground the unit following local electrical codes. IMPORTANT! • The Yellow/Green wire cannot be used for any connection Please read before installation different from the ground connection. • Connect all wiring tightly. Loose wiring may cause overheating This air conditioning system meets strict safety and operating at connection points and a possible fire hazard.

  • Page 3: Table Of Contents

    Table of Contents Page 1. OPERATING RANGE 2. SPECIFICATIONS 2-1 Unit specifications 2-2 Major Component specifications 2-3 Other Component specifications 3. DIMENSIONAL DATA 4. REFRIGERANT FLOW DIAGRAM 5. PERFORMANCE DATA 5-1 Performance Charts 5-2 Cooling Capacity 6. ELECTRICAL DATA 6-1 Electrical characteristics 6-2 Electric Wiring Diagram 6-3 System Wiring Diagram...

  • Page 4: Operating Range

    1. OPERATING RANGE Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp. Maximum 32°C D.B. / 23°C W.B. 43°C D.B. Cooling Minimum 19°C D.B. / 14°C W.B. (*)19°C D.B. (*) SCL MODEL : -15°C D.B.

  • Page 5: Specifications

    2. SPECIFICATIONS 2-1 Unit Specifications GRV180C5TA- 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Performance * MCAV180C5VA- 5,00 Capacity 17063 BTU/h Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Electrical Rating 198 ~ 264 Available voltage range 10,00 Running amperes Power input...
  • Page 6 GRV180C5TAB- 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Performance * MCAV180C5VA- 5,00 Capacity 17063 BTU/h Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Electrical Rating 198 ~ 264 Available voltage range 10,50 Running amperes Power input 2250 Power factor C.O.P.
  • Page 7 GRV180L5TA- 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Performance * MCAV180C5VA- 5,00 Capacity BTU/h 17063 Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Electrical Rating 198 ~ 264 Available voltage range 10,00 Running amperes 2200 Power input Power factor C.O.P.
  • Page 8 GRV180L5TAB- 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Performance * MCAV180C5VA- 5,00 Capacity BTU/h 17063 Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Electrical Rating 198 ~ 264 Available voltage range 10,50 Running amperes 2250 Power input Power factor C.O.P.
  • Page 9 GRV220C5TA- 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Performance * MCAV220C5VA- 5,90 Capacity BTU/h 20134 Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Electrical Rating 198 ~ 264 Available voltage range 13,00 Running amperes 2750 Power input Power factor C.O.P.

  • Page 10: Major Component Specifications

    2-2 Major Component Specifications Outdoor Unit: GRV180C5TA- Compressor Rotary (Hermetic) Type 80807045B C-2RN170H5W Compressor model 1700 Nominal output Compressor oil…Amount FV68S…800 Ω C-R: 1,353 Coil resistance (Ambient temp. 25°C) C-S: 3,422 Internal protector Safety devices Type Overload relay Operating Temp. Open °C Automatic opening Automatic reclosining...
  • Page 11 Outdoor Unit: GRV180C5TAB- Compressor Rotary (Hermetic) Type 4JS350EAA( JSM671 - 48 ) Compressor model 1700 Nominal output Compressor oil…Amount RB68A or FREOL ALPHA68M 700 Ω C-R: 0,957 Coil resistance (Ambient temp. 20°C) Ω C-S: 3,617 Internal protector Safety devices Type Automatic opening Operating Temp.
  • Page 12 Outdoor Unit: GRV180L5TA- Compressor Rotary (Hermetic) Type 80807045B C-2RN170H5W Compressor model 1700 Nominal output Compressor oil…Amount FV68S…800 Ω C-R: 1,353 Coil resistance (Ambient temp. 25°C) Ω C-S: 3,422 Internal protector Safety devices Type Overload relay Operating Temp. Open °C Automatic opening Automatic reclosining Close °C...
  • Page 13 Outdoor Unit: GRV180L5TAB- Johnson Control Controller PCB Compressor Rotary (Hermetic) Type Compressor model 4JS350EAA( JSM671 - 48 ) 1700 Nominal output RB68A or FREOL ALPHA68M 700 Compressor oil…Amount Ω C-R: 0,957 Coil resistance (Ambient temp. 20°C) Ω C-S: 3,617 Safety devices Type Internal protector Overload relay...
  • Page 14 Outdoor Unit: GRV220C5TA- Compressor Rotary (Hermetic) Type 80244035 C-RN220H5A Compressor model 2200 Nominal output Compressor oil…Amount FV68S…1350 Ω C-R: 0,777 Coil resistance (Ambient temp. 25°C) Ω C-S: 2,408 Internal protector External protector Safety devices Type OL-D24 Overload relay Operating Temp. Open °C Automatic opening 150 ±...

  • Page 15: Other Component Specifications

    2-3 Other Component Specifications Outdoor Unit: GRV180C5TA- GRV180C5TAB- GRV180L5TA- GRV180L5TAB- Power Relay G7L-2A-TUB Type Coil Rating AC 200-240 V ~ 50/60 Hz 21 ± 15% Coil resistance (at 23°C) kΩ AC 220 V , 25 A Contact Rating Pressure Transducer ( *Johnson Control) P35 AC Type Range...
  • Page 16 Outdoor Unit: GRV220C5TA- Thermostat (Fan Speed Control 23S) YTB-S383 Type Switching Temp. °C high 28.5 ± 1 °C HIGH 31 ± 1 Magnetic Contactor (MG) HE-20FT31B or CLK-20J-S20A Type Coil Rating AC 220-240 V ~ 50 HAC 220-240 V ~ 50 Hz Ω...

  • Page 17: Dimensional Data

    3. DIMENSIONAL DATA GRV180C5TA- Outdoor Unit: GRV180C5TAB- GRV180L5TA- GRV180L5TAB- Air intake 4 – ø12 holes Air discharge Wide tube service valve ø12.7 (1/2") Narrow tube service valve ø6.35 (1/4") Unit : mm...
  • Page 18 GRV220C5TA- Outdoor Unit: Air intake Air discharge Wide tube service valve ø15.88 (5/8") Narrow tube service valve ø6.35 (1/4") 6 – ø3.1 holes Check port ø6.35 (1/4") Unit : mm...

  • Page 19: Refrigerant Flow Diagram

    4. REFRIGERANT FLOW DIAGRAM Indoor Unit: Outdoor Unit: GRV180C5TA- Indoor Unit: Outdoor Unit: GRV180C5TAB-...
  • Page 20 Indoor Unit: Outdoor Unit: GRV180L5TA- Indoor Unit: Outdoor Unit: GRV180L5TAB-...
  • Page 21 Indoor Unit: Outdoor Unit: GRV220C5TA-...

  • Page 22: Performance Data

    5. PERFORMANCE DATA 5-1 Performance charts GRV180C5TA- Cooling Characteristics Indoor inlet air D.B. (°C) Outdoor inlet air D.B. temp. (°C) 0,60 Indoor inlet air D.B. (°C) 0,50 0,40 0,30 0,20 0,10 0,00 Outdoor inlet air D.B. (°C) Overload prevention operates to protect the air conditioner when outdoor ambient temperature reaches extremely high values in heating mode.
  • Page 23 GRV180C5TAB- Cooling Characteristics Indoor inlet air D.B. (°C) Outdoor inlet air D.B. temp. (°C) 0,60 Indoor inlet air D.B. (°C) 0,50 0,40 0,30 0,20 0,10 0,00 Outdoor inlet air D.B. (°C) Overload prevention operates to protect the air conditioner when outdoor ambient temperature reaches extremely high values in heating mode.
  • Page 24 GRV180L5TA- Cooling Characteristics Indoor inlet air D.B. (°C) Outdoor inlet air D.B. temp. (°C) Indoor inlet air D.B. (°C) 0,60 0,50 0,40 0,30 0,20 0,10 0,00 Outdoor inlet air D.B. (°C) Overload prevention operates to protect the air conditioner when outdoor ambient temperature reaches extremely high values in heating mode.
  • Page 25 GRV180L5TAB- Cooling Characteristics Indoor inlet air D.B. (°C) Outdoor inlet air D.B. temp. (°C) Indoor inlet air D.B. (°C) 0,60 0,50 0,40 0,30 0,20 0,10 0,00 Outdoor inlet air D.B. (°C) Overload prevention operates to protect the air conditioner when outdoor ambient temperature reaches extremely high values in heating mode.
  • Page 26 GRV220C5TA- Cooling Characteristics Indoor inlet air D.B. (°C) Outdoor inlet air D.B. temp. (°C) Indoor inlet air D.B. (°C) 0,60 0,50 0,40 0,30 0,20 0,10 0,00 Outdoor inlet air D.B. (°C) Overload prevention operates to protect the air conditioner when outdoor ambient temperature reaches extremely high values in heating mode.

  • Page 27: Cooling Capacity

    5-2 Cooling Capacity GRV180C5TA- OUTDOOR UNIT: MCAV180C5VA- INDOOR UNIT: 220 - 240V ~ 50Hz RATING CAPACITY 5,00 kW moisture removal 2,3 l/h COMP. POWER INPUT 2,044 kW max comp input 2,494 kW AIR FLOW RATE 760 m³/h CONDENSER EVAPORATOR ENT.TEMP. °C OUTDOOR AMBIENT TEMP.
  • Page 28 GRV180C5TAB- OUTDOOR UNIT: MCAV180C5VA- INDOOR UNIT: 220 - 240V ~ 50Hz RATING CAPACITY 5,00 kW moisture removal 2,3 l/h COMP. POWER INPUT 2,097 kW max comp input 2,497 kW AIR FLOW RATE 760 m³/h EVAPORATOR CONDENSER ENT.TEMP. °C OUTDOOR AMBIENT TEMP. °C W.B.
  • Page 29 GRV180L5TA- OUTDOOR UNIT: MCAV180C5VA- INDOOR UNIT: 220 - 240V ~ 50Hz RATING CAPACITY 5,00 kW moisture removal 2,3 l/h COMP. POWER INPUT 2,043 kW max comp input 2,493 kW AIR FLOW RATE 760 m³/h EVAPORATOR CONDENSER ENT.TEMP. °C OUTDOOR AMBIENT TEMP. °C W.B.
  • Page 30 GRV180L5TAB- OUTDOOR UNIT: MCAV180C5VA- INDOOR UNIT: 220 - 240V ~ 50Hz RATING CAPACITY 5,00 kW moisture removal 2,3 l/h COMP. POWER INPUT 2,097 kW max comp input 2,497 kW AIR FLOW RATE 760 m³/h EVAPORATOR CONDENSER ENT.TEMP. °C OUTDOOR AMBIENT TEMP. °C W.B.
  • Page 31 GRV220C5TA- OUTDOOR UNIT: MCAV220C5VA- INDOOR UNIT: 220 - 240V ~ 50Hz RATING CAPACITY 5,90 kW moisture removal 3,3 l/h COMP. POWER INPUT 2,551 kW max comp input 3,101 kW AIR FLOW RATE 830 m³/h CONDENSER EVAPORATOR ENT.TEMP. °C OUTDOOR AMBIENT TEMP. °C W.B.

  • Page 32: Electrical Data

    6. ELECTRICAL DATA 6-1 Electrical characteristics OUTDOOR UNIT: GRV180C5TA- COOLING Indoor Unit Outdoor unit Complete Unit Fan Motor Fan Motor Compressor performance at 230V 1-Phase 50 Hz Rating conditions Running Amps. 0,37 0,40 9,23 10,0 Power input 0,070 0,086 2,044 2,200 Full load conditions Running Amps.
  • Page 33 OUTDOOR UNIT: GRV180C5TAB- COOLING Indoor Unit Outdoor unit Complete Unit Fan Motor Fan Motor Compressor performance at 230V 1-Phase 50 Hz Rating conditions Running Amps. 0,37 0,44 10,5 Power input 0,070 0,083 2,097 2,250 Full load conditions Running Amps. 0,37 0,44 11,2 12,0...
  • Page 34 OUTDOOR UNIT: GRV180L5TA- COOLING Indoor Unit Outdoor unit Complete Unit Fan Motor Fan Motor Compressor performance at 230V 1-Phase 50 Hz Rating conditions Running Amps. 0,37 0,41 10,0 Power input 0,070 0,087 2,043 2,200 Full load conditions Running Amps. 0,37 0,41 11,2 12,0...
  • Page 35 OUTDOOR UNIT: GRV180L5TAB- COOLING Indoor Unit Outdoor unit Complete Unit Fan Motor Fan Motor Compressor performance at 230V 1-Phase 50 Hz Rating conditions Running Amps. 0,37 0,44 10,5 Power input 0,070 0,083 2,097 2,250 Full load conditions Running Amps. 0,37 0,44 11,2 12,0...
  • Page 36 OUTDOOR UNIT: GRV220C5TA- COOLING Indoor Unit Outdoor unit Complete Unit Fan Motor Fan Motor Compressor performance at 230V 1-Phase 50 Hz Rating conditions Running Amps. 0,39 0,55 12,1 13,0 Power input 0,075 0,124 2,551 2,750 Full load conditions Running Amps. 0,39 0,55 14,1...

  • Page 37: Electric Wiring Diagram

    GRV180C5TA- 6-2 Electric Wiring Diagram GRV180C5TAB- OUTDOOR UNIT: GRV180L5TA- OUTDOOR UNIT:...
  • Page 38 GRV220C5TA- OUTDOOR UNIT:...

  • Page 39: System Wiring Diagram

    6-3 System Wiring Diagram...
  • Page 40 R.D. 28 Reyrieux BP 131 - 01601 Trévoux CEDEX France Tél. 04.74.00.92.92 - Fax 04.74.00.42.00 R.C.S. Bourg-en-Bresse B 759 200 728...
