Technibel GRV227M3C5 Technical Data & Service Manual

Multi-split system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

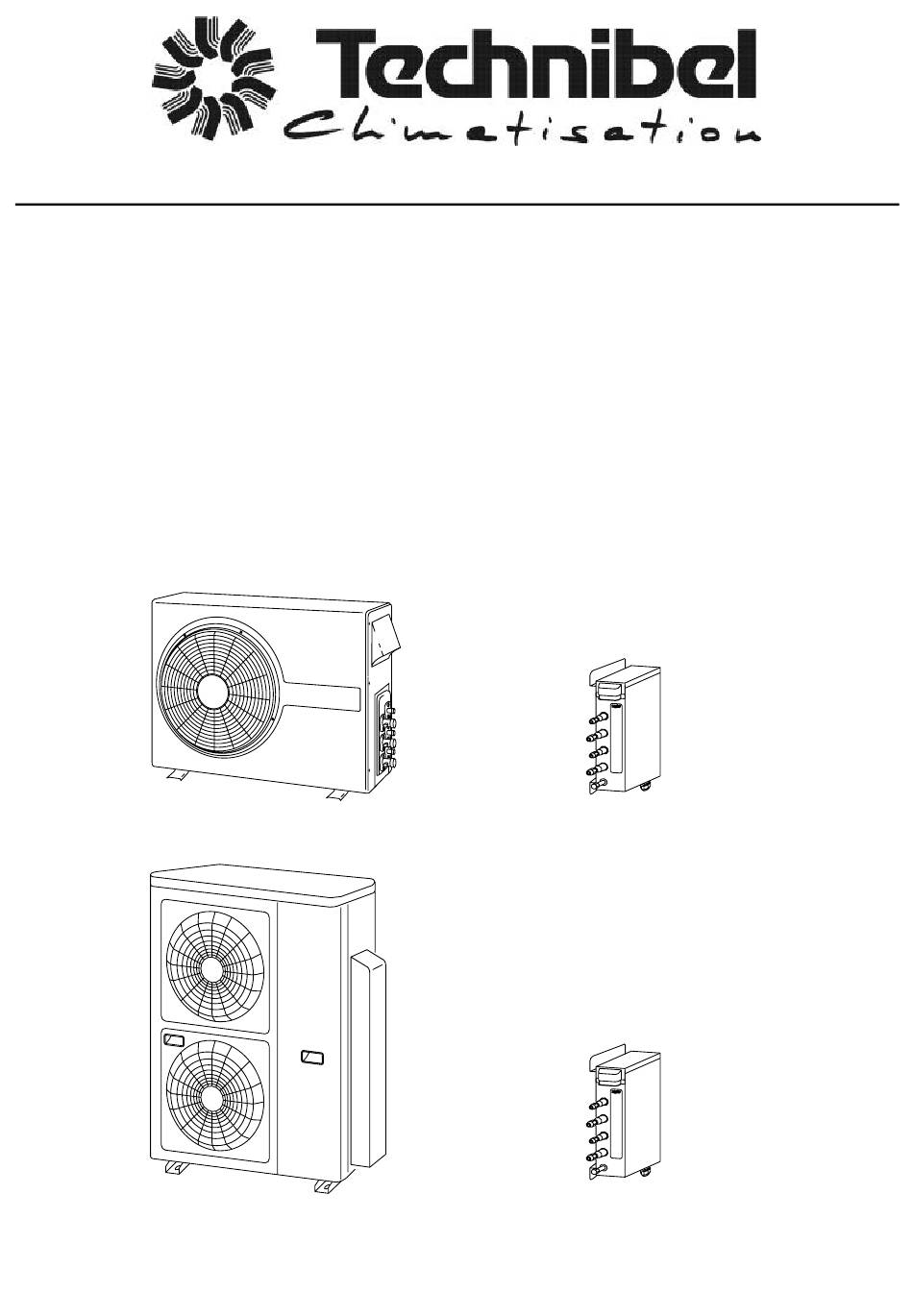

TECHNICAL DATA & SERVICE MANUAL
Outdoor Unit
Dual System Kit
GRV227M3C5
DKR5555C
GRV340M3C5
DKR8585C
MULTI-SPLIT SYSTEM AIR CONDITIONER
OUTDOOR UNIT
DUAL SYSTEM KIT
08180132.1
01/2003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GRV227M3C5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Technibel GRV227M3C5

Summary of Contents for Technibel GRV227M3C5

  • Page 1 TECHNICAL DATA & SERVICE MANUAL Outdoor Unit Dual System Kit GRV227M3C5 DKR5555C GRV340M3C5 DKR8585C MULTI-SPLIT SYSTEM AIR CONDITIONER OUTDOOR UNIT DUAL SYSTEM KIT 08180132.1 01/2003...
  • Page 2 Important! When Transporting Be careful when picking up and moving the indoor and Please Read Before Starting outdoor units. Get a partner to help, and bend your knees when lifting to reduce strain on your back. Sharp This air conditioning system meets strict safety and edges or thin aluminum fins on the air conditioner can operating standards.

  • Page 3: Table Of Contents

    Table of Contents Page UNIT COMBINATION 1.1 PERATING RANGE SPECIFICATIONS 2-1 Unit Specification 2-2 Major Component Specifications 2-3 Other Component Specifications DIMENSIONAL DATA REFRIGERANT FLOW DIAGRAM ELECTRICAL DATA 5-1 Electrical Characteristic 5-2 Electric Wiring Diagrams / System Wiring Diagram FUNCTION TROUBLESHOOTING 7-1 Check before and after troubleshooting 7-2 Air Conditioner Does not operate...

  • Page 4: Unit Combination

    43°C D.B. Cooling Minimum 19°C D.B. / 14°C W.B. 19°C D.B. 2. SPECIFICATIONS 2-1. Unit Specifications Outdoor Unit GRV227M3C5 Symbol of indoor unit : SEE INSTALLATION INSTRUCTION OUTDOOR UNIT Power Source 220 – 240 V ~ 50 Hz Cooling Max.Capacity BTU/h...
  • Page 5 Outdoor Unit GRV227M3C5 with DKR5555C Option) Symbol of indoor unit SEE OUTDOOR UNIT INSTALLATION INSTRUCTION Power Source 220 – 240 V ~ 50 Hz Cooling Max.Capacity BTU/h 20000 Indoor unit(s) A + B C1 + C2 A + B + C1 + C2 Capacity 2.85...
  • Page 6 Outdoor Unit GRV340M3C5 Symbol of indoor unit SEE OUTDOOR UNIT INSTALLATION INSTRUCTION Power Source 220 – 240 V ~ 50 Hz Cooling Max.Capacity 9.80 BTU/h 33800 Indoor unit(s) A + B A + B + C Capacity 5.50 BTU/h 19000 15000 33800 Voltage rating...
  • Page 7 Outdoor Unit GRV340M3C5 with DKR8585C (Option) Symbol of indoor unit SEE OUTDOOR UNIT INSTALLATION INSTRUCTION Power Source 220 – 240 V ~ 50 Hz Cooling Max.Capacity 10.5 BTU/h 36,200 Indoor unit(s) A + B C1 + C2 A + B + C1 + C2 Capacity 5.50 5.00...

  • Page 8: Major Component Specifications

    2-2. Major Component Specifications Outdoor Unit GRV227M3C5 Symbol of indoor unit SEE OUTDOOR UNIT INSTALLATION INSTRUCTION Type Rotary (Hermetic) Model name ... Q'ty C-RN80H5A ... 2 (CM1,CM2) Compressor Code No. 80228245-G Nominal output Compressor oil 470 x 2 Ω Coil resistance (Ambient temp. 25°C) C –...
  • Page 9 Outdoor Unit GRV340M3C5 Symbol of indoor unit SEE OUTDOOR UNIT INSTALLATION INSTRUCTION Type Rotary (Hermetic) Rotary (Hermetic) Model name ... Q'ty C – 2RN170H5W... 1 (CM1) C – 2RN150H5W ... 1 (CM2) Compressor Code No. 80807045E 80805045C Nominal output 1700 1500 Compressor oil Ω...

  • Page 10: Other Component Specifications

    °C high → LOW 24°C – 0.5 low → HIGH 26°C ± 1.5 (SAP – CMR3448E only) Timer (T) (UNTIL 31/12/2002 MODEL GRV227M3C5 H3Y-2 Rating AC 220V, 50/60Hz Operating time 3 minutes PCB Timer (FROM 01/01/2003 MODEL GRV227M3C5 PCB TIMER...

  • Page 11: Dimensional Data

    3. DIMENSIONAL DATA Outdoor Unit GRV227M3C5 Air intake Air discharge 4 – ø12 Holes Narrow tube service valve : ø6.35 (1/4") Wide tube service valve : ø9.52 (3/8") Narrow tube service valve : ø6.35 (1/4") Wide tube service valve : ø9.52 (3/8") Narrow tube service valve : ø6.35 (1/4")
  • Page 12 Outdoor Unit GRV340M3C5 110 130 Air intake Air discharge Narrow tube service valve : ø6.35 (1/4") Wide tube service valve : ø9.52 (3/8") Narrow tube service valve : ø6.35 (1/4") Wide tube service valve : ø9.52 (3/8") Narrow tube service valve : ø6.35 (1/4") Wide tube service valve : ø12.7 (1/2") Unit : mm...
  • Page 13 Dual System Kit DKR5555C Narrow tube service valve Unit C1 : ø6.35 (1/4") Wide tube service valve Unit C1 : ø9.52 (3/8") Narrow tube service valve Unit C2 : ø6.35 (1/4") Wide tube service valve Unit C2 : ø9.52 (3/8") Charge port UNTIL 31/12/2002 ø6.35 (1/4") Narrow tube service valve...
  • Page 14 Dual System Kit DKR8585C Narrow tube service valve Unit C1 : ø6.35 (1/4") Wide tube service valve Unit C1 : ø9.52 (3/8") Narrow tube service valve Unit C2 : ø6.35 (1/4") Wide tube service valve Unit C2 : ø9.52 (3/8") Charge port (UNTIL 31/12/2002) ø6.35 (1/4") Narrow tube service valve...

  • Page 15: Refrigerant Flow Diagram

    SAP-MC2247G5 3 Indoor Unit's Combination 3 Indoor Unit's Combination Wide tube Outdoor Unit O.D. Wide tube ø9.52mm Indoor Unit A O.D. (3/8 ") ø9.52mm (3/8 ") Indoor Unit C Compressor 2 Compressor 1 Accumulator Accumulator Indoor Unit B Narrow tube Narrow tube O.D.
  • Page 16 SAP-MC3447G5 3 Indoor Unit's Combination 3 Indoor Unit's Combination Wide tube Outdoor Unit O.D. Wide tube ø9.52mm Indoor Unit A O.D. (3/8 ") ø12.7mm (1/2 ") Indoor Unit C Compressor 2 Compressor 1 Accumulator Accumulator Indoor Unit B Narrow tube O.D.
  • Page 17 SAP-MC2247G5 ATK-P244G5 4 Indoor Unit's Combination with Dual Syatem Kit 4 Indoor Unit's Combination with Dual System Kit Wide tube Wide tube O.D. Outdoor Unit Dual System Kit O.D. ø9.52mm ø9.52mm Indoor Unit A Indoor Unit C1 (3/8 ") (3/8 ") Compressor 2 Compressor 1 Accumulator...
  • Page 18 SAP-MC3447G5 ATK-P344G5 4 Indoor Unit's Combination with Dual Syatem Kit 4 Indoor Unit's Combination with Dual System Kit Wide tube Wide tube O.D. Outdoor Unit Dual System Kit O.D. ø9.52mm ø9.52mm Indoor Unit A Indoor Unit C1 (3/8 ") (3/8 ") Compressor 2 Compressor 1 Accumulator...

  • Page 19: Electrical Data

    5-1. Electrical Characteristics NOTE The values in the table below indicate the sum of indoor units which are in running condition. Outdoor Unit GRV227M3C5 230V Single phase 50 Hz 3 - Units 4 - Units Number of indoor unit (A + B + C) (A + B + C1 + C2) Running amp.

  • Page 20: Electric Wiring Diagrams / System Wiring Diagram

    5-2. ELECTRIC WIRING DIAGRAM / SYSTEM WIRING DIAGRAM GRV227M3C5 ( UNTIL 31/12/2003 ) GRV340M3C5 ( FROM 31/12/2003 )
  • Page 21 ELECTRIC WIRING DIAGRAM GRV340M3C5...
  • Page 22 DKR5555C ( UNTIL 31/12/2002 ) Outdoor Unit Outdoor Unit DKR5555C ( FROM 01/01/2003 )
  • Page 23 DKR8585C ( UNTIL 31/12/2003) Outdoor Unit DKR8585C ( FROM 01/01/2003 ) Outdoor Unit...
  • Page 24 SYSTEM WIRING DIAGRAM GRV227M3C5 WITH 3 INDOOR UNIT POWER SUPPLY 220 - 240 V~ 50 Hz INDOOR UNIT TP 7P TP 8P OUTDOOR UNIT...
  • Page 25 SYSTEM WIRING DIAGRAM GRV227M3C5 WITH 4 INDOOR UNIT POWER SUPPLY 220 - 240 V~ 50 Hz INDOOR UNIT TP 7P TP 8P OUTDOOR UNIT DUAL KIT...
  • Page 26 Power supply SYSTEM WIRING DIAGRAM 220 – 240 V ~50Hz GRV340M3C5 WITH 3 INDOOR UNIT Terminal 3P Disconnect swith (Field supply) Unit A Terminal 8P Unit B Terminal 5 P Unit C Indoor unit Outdoor unit Earth (ground) SYSTEM WIRING DIAGRAM GRV340M3C5 WITH 4 INDOOR UNIT...

  • Page 27: Function

    ● In order to save compressor power, solenoid valve C (SVC), which is used as a bypass valve, opens only when either of indoor unit A or B is operating while it closes when both indoor unit A and B are operating. NOTE Model GRV227M3C5 is not provided with solenoid valve C (SVC). (Simultaneously) Indoor...

  • Page 28: Troubleshooting

    7. TROUBLESHOOTING 7-1. Check before and after troubleshooting. WARNING Hazardous voltage can cause ELECTRIC SHOCK or DEATH. Disconnect power or turn off circuit breaker before you start checking or servicing. 7-1-1. Check power supply wiring. ● Check that power supply wires are correctly connected to terminals No. 1 and No. 2 on the 3P terminal plate in the outdoor unit.

  • Page 29: Air Conditioner Does Not Operate

    7-2. Air conditioner does not operate. 7-2-1. Circuit breaker trips (or fuse blows). A. When the circuit breaker is set to ON, it is tripped soon. (Resetting is not possible.) ● There is a possibility of ground fault. ● Check insulation resistance. If resistance value is 1MΩ...

  • Page 30: Some Parts Of Air Conditioner Does Not Operate

    7-2-2. Neither indoor nor outdoor unit runs. Power is not supplied. Circuit breaker Reset breaker. is tripped. Check power supply. • Power is being supplied to the outdoor unit. Wait for recovery or contact power Power failure company. 7-2-3. Only outdoor unit does not run. Check power relay in outdoor unit.
  • Page 31 7-3-2. Only compressor does not run. Check compressor motor • Overload relay is working. capacitor. (C2,C3 or C3,C4) (OLR 1 to 4) Measure resistance of • Temperature of compressor is compressor motor winding. abnormally high. CE refrigerant gas Refrigerant gas shortage. Rotor may be locked up.

  • Page 32: Air Conditioner Operates, But Abnormalities Are Observed

    7-4. Air conditioner operates, but abnormalities are observed. 7-4-1. Indoor unit operates, but there is no cooling. Check solenoid valve in outdoor unit. Measure coil resistance of solenoid valve (SVA , SVB) 7-4-2. Poor cooling. Check position of remote control unit. •...

  • Page 33: Special Precautions When Servicing The Unit

    8. SPECIAL PRECAUTIONS WHEN SERVICING THE UNIT Models : GRV227M3C5, GRV340M3C5 IMPORTANT! For your personal safety, be sure to read and understand the following precautions before servicing. WARNING Injuries can occur from burns or inhalation of toxic gas if servicing is performed while refrigerant remains in the refrigeration circuit.

  • Page 34: Refrigerant Recovery

    Confirm that all connections are valve correctly made. NOTE In order to withstand negative suction pressure  GRV227M3C5  Vacuum pump during evacuation, the manifold valve should be Fig.9-2 equipped with a Hi / Lo compound gauge with a cmHg.

  • Page 35: Refrigerant Charging

    8-5-3. Open Purge air from the hose. Do this by opening the Hex wrench charging cylinder valve, then slightly loosening the connection to the narrow tube service valve. Wait  GRV227M3C5  a few moments, then retighten the connection. Fig.9-4...

  • Page 36: Reattaching Green Connectors For Operation

    8-5-4. With a hex wrench, open the service valve little by little to let liquid refrigerant enter the circuit. (Figs.9-4 and 9-5) NOTE Disconnect switch (Field supply) ● Write down the gradation levels on the charging Terminal plate cylinder before and after the charging. This allows Power Supply you to calculate the charging volume.

  • Page 37: Characteristics Of New Refrigerant R407C

    9. REFRIGERANT R407C : SPECIAL PRECAUTIONS WHEN SERVICING UNIT 9-1. Characteristics of new refrigerant R407C 9-1-1. What is new refrigerant R407C R407C is a new refrigerant that contains three types of non-azeotropy-type mixed refrigerant which does not adversely affect the Earth's ozone layer. Its refrigeration capacity and energy efficiency are about the same level as the conventional refrigerant R22 9-1-2.

  • Page 38: Tools Specially For R407C

    9-3. Tools specifically for R407C ● For servicing, use the following tools for R407C Tool Distinction Tool Name • Gauge manifold • Charging hose • Gas leak detector • Refrigerant cylinder • Charging cylinder Tools specifically for R407C • Refrigerant recovery unit •...

  • Page 39: In Case Of Compressor Malfunction

    9-5. In case of compressor malfunction ● Should the compressor malfunction, be sure to replace compressor as quickly as CAUTION possible. ● Use only the tools indicated exclusively for R407C. ➞ See "10-3. Tools specifically for R407C". 10-5-1.Procedure for replacing compressor (1) Recovering refrigerant •...
  • Page 40 (5) Recharging Valve • Be sure to charge the specified amount of refrigerant in liquid state using the service port of wide tube service valve. The proper amount is listed on the unit's nameplate. When the entire amount cannot be charged all at once, charge gradually while operating the unit in Cooling Operation.

  • Page 41: In Case Refrigerant Is Leaking

    9-6. In case refrigerant is leaking ● Never attempt to charge additional refrigerant when refrigerant has been leaking CAUTION from the unit. Follow the procedure described below to locate points of leaks and carry out repairs, then recharge the refrigerant. (1) Detecting Leaks •...
  • Page 42 (6) Recharging Valve • Be sure to charge the specified amount of refrigerant in liquid state using the service port of wide tube service valve. The proper amount is listed on the unit's nameplate. When the entire amount cannot be charged all at once, charge gradually while operating the unit in Cooling Operation.

  • Page 43: Charging Additional Refrigerant

    9-7. Charging additional refrigerant 9-7-1.When tubes are extended • Observe the proper amount of refrigerant as stated in this service manual or the installation manual that came with the indoor unit. Charge additional refrigerant in liquid state. ● Never charge additional refrigerant if refrigerant is leaking from the unit. Follow CAUTION instructions given in "10-6.

  • Page 44: Arrangement Of Electrical Components

    10.ARRANGEMENT OF ELECTRICAL COMPONENTS OUTDOOR UNIT : GRV227M3C5 Electric Parts ( UNTIL 31/12/2002 ) Compressor motor capacitor (C3) Compressor motor capacitor (C2) Fan motor capacitor (C1) Overload relay (OLR3) Overload relay (OLR1) Timer (T) Relay (R2) Power relay (PR2) Power relay (PR1)
  • Page 45 Outdoor Unit GRV340M3C5 Terminal Plate Terminal Plate (8P) (To Indoor Unit A and B) Terminal Plate (5P) (To either Indoor Unit C or Dual System Kit) Terminal Plate (3P) (To Power supply) Electric Parts Compressor Motor Capacitor (C3) Compressor Motor Capacitor (C4) Timer (T) 35µF 40µF...
  • Page 46 DKR5555C ( UNTIL 31/12/2002 ) Dual System Kit DKR8585C ( UNTIL 31/12/2003 ) Terminal Plate Terminal Plate 3 (4P) (To Indoor Unit C2) Terminal Plate 2 (4P) (To Indoor Unit C1) Terminal Plate 1 (5P) (To Outdoor Unit) Electric Parts PCB Ass'y Solenoid coil (SVC 1) Solenoid coil (SVC 2)

  • Page 47: Checking Electrical Components

    11. CHECKING ELECTRICAL COMPONENTS 11-1. Measurement of Insulation Ground wire Resistance Clip ● The insulation is in good condition if the resistance exceeds 1MΩ. Probe 11-1-1. Power Supply Wires Insulation Fig.12-1 tester Clamp the ground wire of the power supply wires with the lead clip of the insulation resistance tester and Terminal plate measure the resistance by placing a probe on either of...

  • Page 48: Checking Motor Capacitor

    11-2. Checking Motor Capacitor Remove the lead wires from the capacitor terminals, and then place a probe on the capacitor terminals as shown in Fig.12-5. Observe the deflection of the pointer, setting the resistance measuring range of the Multimeter multimeter to the maximum value. The capacitor is “good”...
