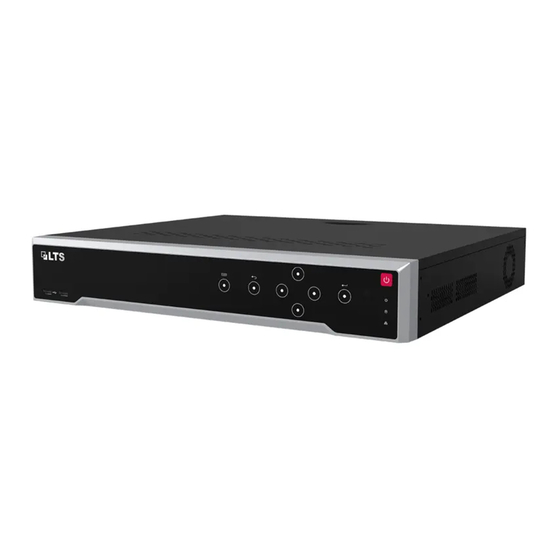

LTN86/89 Series Network Video Recorder
User Manual

Advertisement

Table of Contents
loading

Related Manuals for LTS LTN86 Series

Summary of Contents for LTS LTN86 Series

  • Page 1 LTN86/89 Series Network Video Recorder User Manual...
  • Page 2 Network Video Recorder User Manual Legal Information About this Manual The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.
  • Page 3 Network Video Recorder User Manual TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER PREVAILS.
  • Page 4 Network Video Recorder User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 Network Video Recorder User Manual 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
  • Page 6 Network Video Recorder User Manual Applicable Model This manual is applicable to the following models. Table 1-1 Applicable Model Series Model LTN8608-P8 LTN8608-P8N LTN86 Series (2 HDD slots) LTN8616-P16 LTN8616-P16N LTN8916 LTN8916H LTN8916H-P16 LTN8916-N LTN8916-P16 LTN8916-P16N LTN8932 LTN8932-8 LTN8932H LTN8932H-P16...
  • Page 7 Network Video Recorder User Manual Safety Instruction ● Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. ● In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region.
  • Page 8 Network Video Recorder User Manual Preventive and Cautionary Tips Before connecting and operating your device, please be advised of the following tips: ● The device is designed for indoor use only. Install it in a well-ventilated, dust-free environment without liquids. ●...
  • Page 9 Network Video Recorder User Manual Content Convention In order to simplify description, please read the following conventions. ● Recorder or device mainly refers to video recorder. ● IP device mainly refers to network camera (IP camera), IP dome (speed dome), DVS (Digital Video Server), or NVS (Network Video Server).
  • Page 10 Network Video Recorder User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, Caution could result in equipment damage, data loss, performance...

  • Page 11: Table Of Contents

    1.4.5 Add Network Camera via Customized Protocol ............15 1.5 Connect to Platform ......................16 1.5.1 Configure ISUP ......................16 1.5.2 Configure LTS Connect ..................... 18 1.5.3 Configure OTAP ......................19 Chapter 2 Camera Settings ....................... 20 2.1 Configure OSD ........................20 2.2 Configure Image Parameters ....................
  • Page 12 Network Video Recorder User Manual 2.10 Upgrade IP Cameras ......................25 Chapter 3 Live View ........................27 3.1 Start Live View ........................27 3.1.1 Configure Live View Settings ................... 28 3.1.2 Configure Live View Layout..................29 3.1.3 Switch Main/Auxiliary Port ..................31 3.2 Digital Zoom.........................
  • Page 13 Network Video Recorder User Manual 4.2.2 Play Normal Video ....................48 4.2.3 Play Smart Searched Video ..................49 4.2.4 Play Custom Searched Files ..................50 4.2.5 Play Tag Files ......................50 4.2.6 Play by Sub-periods ....................51 4.2.7 Play External Files ..................... 52 4.3 Playback Operations ......................
  • Page 14 Network Video Recorder User Manual 6.2.7 Region Entrance Detection ..................67 6.2.8 Region Exiting Detection ..................69 6.2.9 Vehicle Detection ..................... 70 6.2.10 Multi-Target-Type Detection ................. 70 6.2.11 Object Thrown from Building ................71 6.2.12 Loitering Detection ....................72 6.2.13 People Gathering Detection .................. 74 6.2.14 Fast Moving Detection ...................
  • Page 15 Network Video Recorder User Manual 7.1.2 Add an Alarm Device ....................91 7.1.3 Add Network Audio Device ..................92 7.2 Configure the Linkage Action and Arming Schedule ............93 7.3 Configure OSD ........................94 7.4 Configure Audio Parameters ....................95 7.5 Search the IoT Record ......................
  • Page 16 Network Video Recorder User Manual 11.2.1 Create a Disk Array ....................116 11.2.2 Rebuild an Array ....................119 Chapter 12 Hot Spare Device Backup ..................122 12.1 Set Working Device ......................122 12.2 Set Hot Spare Device ....................... 123 12.3 Manage Hot Spare System ....................123 Chapter 13 Network Settings ....................
  • Page 17 15.4.1 Reset Password by GUID ..................150 15.4.2 Reset Password by Security Questions ............... 151 15.4.3 Reset Password by Reserved Email ..............151 15.4.4 Reset Password by LTS Connect ................152 Chapter 16 System Management .................... 153 16.1 Configure Device ......................153 16.2 Configure Time ........................
  • Page 18 Network Video Recorder User Manual 16.9.2 Search & Export Log Files ..................165 16.9.3 Upload Logs to the Server ..................166 16.9.4 One-Way Authentication ..................167 16.9.5 Two-Way Authentication ..................167 16.10 Restore Default Settings ....................168 16.11 Schedule Reboot......................169 16.12 Security Management ....................
  • Page 19 Network Video Recorder User Manual cameras? ........................178 17.2.11 Why does my video recorder make a beeping sound after booting? ....178 17.2.12 Why is there no recorded video after the motion detection is set? ....178 17.2.13 Why is the video sound quality not good? ............179 xviii...

  • Page 20: Chapter 1 Basic Operation

    Network Video Recorder User Manual Chapter 1 Basic Operation 1.1 Activate Your Device 1.1.1 Default User and IP Address ● Default administrator account: admin. ● Default IPv4 address: 192.168.1.64. 1.1.2 Activate via Local Menu For the first-time access, you have to set an admin password to activate your device. No operation is allowed before activation.

  • Page 21: Activate Via Platinum Ip Portal

    ● There are methods to reset your password when you forget. You have to configure at least one password resetting method after activation. ● For LTS Connect configuration, refer to Configure LTS Connect for details. 1.1.3 Activate via PLATINUM IP PORTAL PLATINUM IP PORTAL software is used for detecting the online device, activating the device, and resetting its password.

  • Page 22: Activate Via Client Software

    Network Video Recorder User Manual Figure 1-2 Activate via PLATINUM IP PORTAL 4. Create and input the new password in the password field, and confirm the password. Note We highly recommend you to create a strong password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 23 Network Video Recorder User Manual Figure 1-3 Control Panel 2. Click Device Management to enter the Device Management interface, as shown below.
  • Page 24 Network Video Recorder User Manual Figure 1-4 Device Management Interface 3. Check the recorder status from the device list, and select an inactive recorder. 4. Click Activate to pop up the Activation interface. 5. Create a password and input the password in the password field, and confirm the password. Note We highly recommend you to create a strong password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower...

  • Page 25: Activate Via Web Browser

    Network Video Recorder User Manual Figure 1-5 Activation 6. Click OK to start activation. 7. Click Modify Netinfo to pop up the Network Parameter Modification interface, as shown below. Figure 1-6 Modify Network Parameters 8. Change the recorder IP address to the same subnet with your computer. Modify the IP address manually.Check Enable DHCP.

  • Page 26: Configure Tcp/Ip

    Network Video Recorder User Manual supported resolutions include 1024 × 768 and above. Steps 1. Enter the IP address in web browser, and then press Enter. The default IP address is 192.168.1.64. Figure 1-7 Web Browser Activation 2. Set the password for the admin user account. Note We highly recommend you to create a strong password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower...
  • Page 27 Network Video Recorder User Manual Figure 1-8 TCP/IP Settings 2. Select Working Mode as Net-Fault Tolerance or Multi-Address Mode. Net-Fault Tolerance The two NIC cards use the same IP address, and you can select the main NIC to LAN1 or LAN2. In this way, in case of one NIC card failure, the device will automatically enable another standby NIC card so as to ensure the normal running of the system.

  • Page 28: Configure Hdd

    Network Video Recorder User Manual 1.3 Configure HDD Ensure the video recorder storage media is well. You can install at least one HDD and initialize it, or create a RAID and initialize it. 1.4 Add Network Camera Before you can get live video or record the video files, you must add the network cameras to the connection list of the device.

  • Page 29: Add Automatically Searched Online Network Camera

    Network Video Recorder User Manual 1.4.1 Add Automatically Searched Online Network Camera Steps 1. Click on the main menu. 2. Click Number of Unadded Online Device at the bottom. 3. Select the automatically searched online network cameras. 4. Click Add to add the camera which has the same login password with the video recorder. Figure 1-10 Add Automatically Searched Online Network Camera Note If the network camera to add has not been activated, you can activate it in the network camera...

  • Page 30: Add Network Camera Through Poe

    For details, refer to Import Network Camera Certificate. Note The enhanced SDK service is only available when you use Default/LTS protocol. 8. Optional: Click Search to search other network cameras. 9. Optional: Click Continue to Add to add other network cameras.
  • Page 31 Network Video Recorder User Manual the PoE interface supports the Plug-and-Play function. Add PoE Camera Steps 1. Go to Camera → Camera → PoE Settings. 2. Enable or disable long network cable mode by selecting Long Distance or Short Distance. Long Distance Long-distance (100 to 300 meters) network transmissions via PoE interface.
  • Page 32 Network Video Recorder User Manual Figure 1-12 Add PoE Camera 3. Click Apply. 4. Connect PoE cameras to device PoE ports with network cables. 5. Go to Camera → Camera → IP Camera to view camera image and information. Add Non-PoE Network Camera You can disable the PoE interface by selecting the manual while the current channel can be used as a normal channel and the parameters can also be edited.

  • Page 33: Add Solar-Powered Camera Through Otap Protocol

    Network Video Recorder User Manual Figure 1-13 Edit Network Camera 3. Select Adding Method as Manual. Plug-and-Play The camera is physically connected to the PoE interface. Its parameters cannot be edited. You can go to System → Network → TCP/IP to change IP address of PoE port. Manual Add IP camera without physical connection via network.

  • Page 34: Add Network Camera Via Customized Protocol

    Network Video Recorder User Manual Figure 1-14 Set OTAP Parameters 3. Optional: Enable Auto Add IP Camera. Auto Add IP Camera After the device OTAP parameters are configured, the newly signed network cameras (through OTAP protocol) can be automatically added to your device. 4.

  • Page 35: Connect To Platform

    Network Video Recorder User Manual protocols to add them. The system provides 8 customized protocols. Steps 1. Click on the main menu. 2. Go to More Settings → Protocol. Note 3. Set protocol parameters. Type The network camera adopting custom protocol must support getting stream through standard RTSP.
  • Page 36 Network Video Recorder User Manual third-party platform can realize functions like live view, playback, two-way audio, PTZ control, etc. Steps 1. Go to System → Network → Advanced → Platform Access. Figure 1-15 ISUP Settings 2. Select Access Type as ISUP. 3.

  • Page 37: Configure Lts Connect

    ● The verification code is empty by default. It must contain 6 to 12 letters or numbers, and it is case sensitive. ● Check Time Sync, and the device will sync time with LTS Connect instead of NTP server. 3. Optional: Configure following parameters.

  • Page 38: Configure Otap

    1.5.3 Configure OTAP OTAP (Open Thing Access Protocol) is an unified integrated standard and push-pull mode of Default/LTS protocol in the public network and private network. After OTAP is enabled, other applications may be able to remotely view videos through this protocol.

  • Page 39: Chapter 2 Camera Settings

    Network Video Recorder User Manual Chapter 2 Camera Settings 2.1 Configure OSD You can configure the OSD (On-screen Display) for the camera, including date/time, camera name, etc. Steps 1. Go to Camera → Display. 2. Select a camera as your desire. 3.

  • Page 40: Configure Image Parameters

    Network Video Recorder User Manual 2.2 Configure Image Parameters You can customize image parameters, including day/night switch, backlight, contrast, and saturation in Camera → Display. Image Settings Customize the image parameters including brightness, contrast, and saturation. Exposure Set the camera exposure time (1/10000 to 1 sec). A larger exposure value results in a brighter image.

  • Page 41: Configure Ip Camera Time Sync

    Network Video Recorder User Manual Figure 2-2 Privacy Mask Settings Note ● Up to 4 privacy masks zones can be configured and the size of each area can be adjusted. ● You can clear the configured privacy mask zones on the window by clicking the corresponding clear zone 1 to 4 icons on the right of the window, or click Clear All to clear all zones.

  • Page 42: Configure Camera Microphone Settings

    Network Video Recorder User Manual 2. Position the cursor on the window of the IP camera and click 3. Check Enable IP Camera Time Sync. 4. Click OK. 5. Optional: All IPC channels can be enabled/disabled with shortcuts. 1) Go to Maintenance → System Service → More Settings. 2) Click Time Sync Configuration, select Enable IPC Time Sync or Disable IPC Time Sync to enable/disable scheduled time sync for all IPC/IoT channels.

  • Page 43: Configure Solar-Powered Camera Parameters

    Network Video Recorder User Manual 2.6 Configure Solar-Powered Camera Parameters After a solar-powered camera is added to your device, you can configure its parameters through web browser. Before You Start Ensure a solar-powered camera is added to your device. Steps 1.

  • Page 44: Save Camera Vca Data

    Figure 2-4 Upgrade IP Cameras 2. Select a method to upgrade your camera. Online Upgrade Click Online Upgrade, and click Check for Updates or Quick Upgrade to upgrade your cameras. Note Your device shall be properly connected to LTS Connect.
  • Page 45 Network Video Recorder User Manual Local Upgrade Inserted a USB flash drive that contains the firmware to your device. Click Local Upgrade, and select the camera and firmware file for upgrade. The IP camera will automatically restart after it is upgraded. 3.

  • Page 46: Chapter 3 Live View

    Network Video Recorder User Manual Chapter 3 Live View Live view displays the video image getting from each camera in real time. 3.1 Start Live View Click on the main menu bar. ● Select a window and double click a camera from the channel list to play the live image of the camera.

  • Page 47: Configure Live View Settings

    Network Video Recorder User Manual Figure 3-1 Shortcut Menu Note If exception occurs, error information will be displayed on the screen. Click to edit the parameters of different channel(s). 3.1.1 Configure Live View Settings Live View settings can be customized. You can configure the output interface, dwell time for screen to be shown, mute or turning on the audio, the screen number for each channel, etc.

  • Page 48: Configure Live View Layout

    Network Video Recorder User Manual Dwell Time The time in seconds to wait between switching of cameras when using auto-switch in Live View. Enable Audio Output Enable/disable audio output for the selected video output. Volume Adjust the Live View volume, playback and two-way audio for the selected output interface. Event Output Select the output to show event video.
  • Page 49 Network Video Recorder User Manual Figure 3-3 Configure Live View Layout 6. Select multiple windows and click to joint the windows. The selected windows must be in rectangle area. 7. Click Save. The successfully configured layout is displayed in the list. 8.

  • Page 50: Switch Main/Auxiliary Port

    Network Video Recorder User Manual 6. Optional: Click to start live view for all channels, or click to stop all live view channels. 3.1.3 Switch Main/Auxiliary Port Only the image displaying at the main port can enter main menu and achieve device operation. You can click in Live View mode, or go to System →...

  • Page 51: Fisheye View

    Network Video Recorder User Manual 3.3 Fisheye View The device supports the fisheye camera expansion in Live View or playback mode. Before You Start ● The fisheye expansion view feature is supported only by certain models. ● The connected camera must support the fisheye view. Steps 1.

  • Page 52: Configure Channel-Zero Encoding

    Network Video Recorder User Manual 2. Zoom in/out the image. – Zoom in: Click on the desired position in the video image and drag a rectangle area in the lower right direction to zoom in. – Zoom out: Drag a rectangle area in the upper left direction to move the position to the center and enable the rectangle area to zoom out.
  • Page 53 Network Video Recorder User Manual bandwidth requirement and improve image fluency. Steps Note This function is only available for certain models. 1. Go to Smart Analysis → Smart Encoding → Virtual Stream → Transcoded Live View. Figure 3-6 Transcoded Live View 2.

  • Page 54: Ptz Control

    Network Video Recorder User Manual 3.7 PTZ Control 3.7.1 Configure PTZ Parameters Follow these procedures to set the PTZ parameters. The PTZ parameters configuration must be done before you can control the PTZ camera. Steps 1. Click on the quick settings toolbar of the PTZ camera. 2.

  • Page 55: Call A Preset

    Network Video Recorder User Manual 2. Click directional buttons to wheel the camera to a location. 3. Adjust the zoom, focus and iris status. 4. Click in the lower right corner of Live View to set the preset. Figure 3-8 Set Preset 5.
  • Page 56 Network Video Recorder User Manual moving on to the next key point. The key points are correspond to the presets. Steps 1. Click on the quick settings toolbar of the PTZ camera's live view. 2. Click Patrol to configure patrol. Figure 3-12 Patrol Configuration 3.

  • Page 57: Call A Patrol

    Network Video Recorder User Manual Figure 3-14 Key Point Configuration 1) Configure key point parameters. Preset Determines the order the PTZ will follow while cycling through the patrol. Speed Defines the speed the PTZ will move from one key point to the next. Duration Refers to the duration to stay at the corresponding key point.

  • Page 58: Set A Pattern

    Network Video Recorder User Manual Figure 3-15 Patrol Configuration 3. Select a patrol. 4. Click Call to start the patrol. 5. Optional: Click Stop to stop the patrol. 3.7.6 Set a Pattern Patterns can be set by recording the movement of the PTZ. You can call the pattern to make the PTZ move according to the predefined path.

  • Page 59: Call A Pattern

    Network Video Recorder User Manual 3.7.7 Call a Pattern Follow the procedure to move the PTZ camera according to the predefined patterns. Steps 1. Click on the quick settings toolbar of the PTZ camera's live view. 2. Click Pattern to configure pattern. Figure 3-17 Pattern Configuration 3.

  • Page 60: One-Touch Park

    (park time). Before You Start Before operating this function, make sure the connected camera supports linear scan and is in Default/LTS protocol. Steps 1. Click on the quick settings toolbar of the PTZ camera's live view.

  • Page 61: Chapter 4 Recording And Playback

    Network Video Recorder User Manual Chapter 4 Recording and Playback 4.1 Recording 4.1.1 Configure Recording Parameters Configure Video Parameters Go to Camera → Video Parameters. Main Stream Main stream refers to the primary stream that affects data recorded to the hard disk drive and will directly determine your recording quality and image size.
  • Page 62 Network Video Recorder User Manual Sub-Stream Sub-stream is a second code that runs alongside the main stream. It allows you to reduce the outgoing internet bandwidth without sacrificing your direct recording quality. Sub-stream is often exclusively used by apps to view live video. Users with limited internet speeds may benefit most from this setting.

  • Page 63: Enable H.265 Stream Access

    Network Video Recorder User Manual Expired Time The expired time is period for a recorded file to be kept in the HDD. When the deadline is reached, the file will be deleted. If you set the expired time to 0, the file will not be deleted. The actual keeping time for the file should be determined by the capacity of the HDD.
  • Page 64 Network Video Recorder User Manual schedule. Before You Start ● Ensure you have installed the HDDs to the device or added the network disks before storing the video files, pictures and log files. ● Before enabling Motion, Alarm, M | A (motion or alarm), M & A (motion and alarm), and Event triggered recording and capture, you must configure the motion detection settings, alarm input settings and other events as well.

  • Page 65: Configure Holiday Recording

    Network Video Recorder User Manual Figure 4-2 Record Schedule Note ● You can repeat the above steps to set schedule recording or capture for each day in the week. ● Continuous recording is applied to each day by default. 6. Optional: Copy the recording schedule to other camera(s). 1) Click Copy to.

  • Page 66: Playback

    Network Video Recorder User Manual 4. Check Enable. Figure 4-3 Edit Holiday Settings 5. Set Holiday Name, Mode, Start Date, and End Date. 6. Click OK. 7. Set the schedule for holiday recording. Refer to Configure Recording Schedule for details. 4.2 Playback 4.2.1 Instant Playback Instant playback enables the device to play the recorded video files recorded in the last five...

  • Page 67: Play Normal Video

    Network Video Recorder User Manual Figure 4-4 Playback 4.2.2 Play Normal Video Go to Playback, select date and camera(s). is the window division shortcut for grouping cameras and playing videos. You can also select camera(s) from the list to achieve simultaneous playback of multiple camera(s). Position the cursor on playback window, and use the toolbar at the bottom to perform playback operations.

  • Page 68: Play Smart Searched Video

    Network Video Recorder User Manual Figure 4-5 Play Normal Video 4.2.3 Play Smart Searched Video In smart playback mode, the device can analyze videos that containing motion, line, or intrusion detection information, and mark them in red. Go to Playback, click Smart, and then click motion detection ( ), line crossing detection ( ), or intrusion detection ( ) in the toolbar at the bottom to play the video as your desire.

  • Page 69: Play Custom Searched Files

    Network Video Recorder User Manual 4.2.4 Play Custom Searched Files You can play video by customized search conditions. Steps 1. Go to Playback. 2. Select camera(s) from the list. 3. Click Custom Search at the lower-left corner. 4. Select a search method. For example, Search by Appearance. 5.

  • Page 70: Play By Sub-Periods

    Network Video Recorder User Manual Play Tag Files Steps 1. Go to Playback. 2. Click Custom Search at the lower-left corner. 3. Click Search by Tag. 4. Set search conditions, including time and tag keyword. 5. Click Start Search. The search result list displays 1 channel. 6.

  • Page 71: Play External Files

    Network Video Recorder User Manual 4.2.7 Play External Files You can play files from external storage devices. Before You Start Connect the storage device with the video files to your device. Steps 1. Go to Playback. 2. Click at the lower-left corner. 3.

  • Page 72: Thumbnails View

    Network Video Recorder User Manual Figure 4-7 Transcoded Playback 2. Select a channel. 3. Turn on Enable Playback Compression. 4. Click Basic Settings to set the basic parameters, including resolution, bitrate, frame rate, etc. Note The transcoded stream resolution should not be higher than the original stream resolution. 5.
  • Page 73 Network Video Recorder User Manual Figure 4-8 Thumbnails View You can click a thumbnail to enter the full-screen playback.

  • Page 74: Chapter 5 Picture Capture

    Network Video Recorder User Manual Chapter 5 Picture Capture Note This chapter is only available for certain models. 5.1 Configure Parameters The picture refers to the live picture captured in continuous or event recording. You can edit picture parameters in Storage → Schedule → Capture → Advanced. Resolution Set the picture resolution.
  • Page 75 Network Video Recorder User Manual plan as its capture priority during holidays. Before You Start Ensure you have installed HDDs, or added network disks for storage. Steps 1. Go to System → Holiday. 2. Select a holiday item from the list and click 3.

  • Page 76: Chapter 6 Event

    Network Video Recorder User Manual Chapter 6 Event 6.1 Normal Event Alarm 6.1.1 Configure Motion Detection Alarms Motion detection enables the device to detect the moving objects in the monitored area and trigger alarms. Steps 1. Go to System → Event → Normal Event → Motion Detection. 2.

  • Page 77: Configure Video Tampering Alarms

    Network Video Recorder User Manual 5. Set linkage actions. Refer to Configure Linkage Actions. 6.1.3 Configure Video Tampering Alarms Video tampering detection triggered an alarm when the camera lens is covered and takes alarm response action(s). Steps 1. Go to System → Event → Normal Event → Video Tampering. 2.

  • Page 78: Flashing Light Alarm Output

    Network Video Recorder User Manual 2. Optional: Enable the event hint to display it in the live view window. 1) Check Enable Event Hint. 2) Click to select the exception type(s) to take the event hint. Figure 6-1 Event Hint Settings 3.

  • Page 79: Audio Alarm Output

    Network Video Recorder User Manual 3. Set Flashing Duration and Flashing Frequency. Flashing Duration The time period the flashing lasts when one alarm happens. Flashing Frequency The flashing speed of the light. 4. Set arming schedule. 5. Click Save. 6.1.7 Audio Alarm Output After configuring audio alarm output, the camera speaker can be activated when an event is triggered.

  • Page 80: Vca Event Alarm

    Network Video Recorder User Manual Note The combined alarm arming schedule and linkage action are the same as the selected event(s). Figure 6-3 Combined Alarm 6.2 VCA Event Alarm The device supports receiving VCA detections sent by connected IP cameras. Enable and configure VCA detection on the IP camera settings interface first.

  • Page 81: Temperature Screening

    Network Video Recorder User Manual 6.2.1 Temperature Screening After specified thermography cameras are connected, the device can display temperature measurement results, and notify you with audio alert when normal or abnormal temperature is detected. Before You Start Ensure your thermography camera supports this function, and it is properly configured. Steps 1.

  • Page 82: Hard Hat Detection

    Network Video Recorder User Manual Note The template list is for reference only. It cannot be deleted or edited. 3. Edit Event Description according to your camera and the template list. Event Type The event type shall be the same as your camera event. Event Description The event description can be customized.

  • Page 83: Line Crossing Detection

    Network Video Recorder User Manual Figure 6-4 Face Capture 3. Select a camera to configure. 4. Check Enable Face Capture. 5. Optional: Check Save VCA Picture to save the captured pictures of face detection. 6. Set the detection sensitivity. Note Sensitivity range: [1-5].
  • Page 84 Network Video Recorder User Manual Figure 6-5 Line Crossing Detection 4. Check Enable Line Crossing Detection. 5. Optional: Check Save VCA Picture to save the captured pictures of line crossing detection. 6. Set the line crossing detection rules and detection areas. 1) Select an arming area.

  • Page 85: Intrusion Detection

    Network Video Recorder User Manual 2) Draw an area in preview window. 3) Click Stop Drawing. 8. Optional: Select Detection Target as Human or Vehicle to discard alarms which are not triggered by human body or vehicle. 9. Set the arming schedule. Refer to Configure Arming Schedule. 10.

  • Page 86: Region Entrance Detection

    Network Video Recorder User Manual Sensitivity Sensitivity is the object size which is able to trigger an alarm. The higher the sensitivity is, the more easily the detection alarm will be triggered. 3) Click Draw Area. 4) Draw a quadrilateral in the preview window. 7.
  • Page 87 Network Video Recorder User Manual Figure 6-7 Region Entrance Detection 4. Check Enable Region Entrance Detection. 5. Optional: Check Save VCA Picture to save the captured pictures of region entrance detection pictures. 6. Set detection rules and detection areas. 1) Select Arming Region. Note Up to 4 regions are selectable.

  • Page 88: Region Exiting Detection

    Network Video Recorder User Manual 6.2.8 Region Exiting Detection Region exiting detection detects objects that exit from a predefined virtual region. Steps 1. Go to Smart Analysis → Smart Event Settings → Perimeter Protection. 2. Select a camera. 3. Click Region Exiting. Figure 6-8 Region Exiting Detection 4.

  • Page 89: Vehicle Detection

    Network Video Recorder User Manual 6.2.9 Vehicle Detection Vehicle detection, available in the road traffic monitoring, is tend to detect the passed vehicle on the road, and capture its license plate at the same time. Steps 1. Go to Smart Analysis → Smart Event Settings → Vehicle Detection. 2.

  • Page 90: Object Thrown From Building

    Network Video Recorder User Manual 6.2.11 Object Thrown from Building This function can identify the event of throwing objects from building and identify the real target. Before You Start Ensure your camera supports this function. Steps 1. Go to Configuration → VCA → Object Thrown from Building via web browser. 2.

  • Page 91: Loitering Detection

    Network Video Recorder User Manual 9. Click Linkage Method. Refer to Configure Linkage Actions. 10. Configure Shield Region. 1) Click Shield Region. 2) Draw the region. Note 1. If there are parts of the screen (either within or outside the detection area) that do not need to be detected (such as an area where the light jumps from time to time or leaves often drift by and trigger false alarms, etc.), you can draw it as a shield region.
  • Page 92 Network Video Recorder User Manual Figure 6-9 Loitering Detection 4. Check Enable Loitering Detection. 5. Optional: Check Save VCA Picture to save the captured loitering detection pictures. 6. Set loitering detection parameters. 1) Select Arming Area. Note Up to 4 areas are selectable. 2) Set Time Threshold.

  • Page 93: People Gathering Detection

    Network Video Recorder User Manual 6.2.13 People Gathering Detection People gathering detection is used to detect whether the density of human bodies within a specified area exceeds the set value and trigger alarm for linked actions. Steps 1. Go to Smart Analysis → Smart Event Settings → Other Events. 2.

  • Page 94: Fast Moving Detection

    Network Video Recorder User Manual 7. Set the arming schedule. Refer to Configure Arming Schedule. 8. Set the linkage actions. Refer to Configure Linkage Actions. 9. Click Apply. 6.2.14 Fast Moving Detection Fast moving detection is used to detect suspicious running and chasing, over-speed, and fast moving.

  • Page 95: Parking Detection

    Network Video Recorder User Manual detection alarm will be triggered. 7. Set the arming schedule. Refer to Configure Arming Schedule. 8. Set the linkage actions. Refer to Configure Linkage Actions. 9. Click Apply. 6.2.15 Parking Detection Parking detection is used to detect parking violation in the area, applicable in expressway and one- way street.

  • Page 96: Unattended Baggage Detection

    Network Video Recorder User Manual Time Threshold The time of a vehicle staying in the region. If the value is 10, an alarm will be triggered after the vehicle has stayed in the region for 10 s. Range: [5-20]. 3) Set Sensitivity. Sensitivity Similarity of the background image to the object.

  • Page 97: Object Removal Detection

    Network Video Recorder User Manual 6. Set the detection rules and detection areas. 1) Select Arming Area. Note Up to 4 areas are selectable. 2) Drag the sliders to set Time Threshold and Sensitivity. Time Threshold The time of the objects left in the region. If the value is 10, an alarm will be triggered after the object is left and stayed in the region for 10 s.
  • Page 98 Network Video Recorder User Manual Figure 6-14 Object Removal Detection 4. Check Enable Object Removable Detection. 5. Optional: Check Save VCA Picture to save the captured object removable detection pictures. 6. Follow these steps to set the detection rules and detection areas. 1) Select Arming Area.

  • Page 99: Audio Exception Detection

    Network Video Recorder User Manual 6.2.18 Audio Exception Detection Audio exception detection detects abnormal sounds in the scene, such as a sudden increase/decrease in sound intensity. Steps 1. Go to Smart Analysis → Smart Event Settings → Other Events. 2. Select a camera. 3.

  • Page 100: Defocus Detection

    Network Video Recorder User Manual Detects a steep sound drop in the scene. Detection sensitivity [1-100]. 6. Set the arming schedule. Refer to Configure Arming Schedule. 7. Set the linkage actions. Refer to Configure Linkage Actions. 8. Click Apply. 6.2.19 Defocus Detection Image blur caused by lens defocus can be detected.

  • Page 101: Sudden Scene Change Detection

    Network Video Recorder User Manual 6.2.20 Sudden Scene Change Detection Scene change detection detects the change of the video security environment affected by external factors, such as the intentional rotation of the camera. Steps 1. Go to Smart Analysis → Smart Event Settings → Other Events. 2.

  • Page 102: Thermal Camera Detection

    Network Video Recorder User Manual The heat energy dissipated by a person or any other warm blooded creature such as dogs, cats, etc., can be detected. Steps 1. Go to Smart Analysis → Smart Event Settings → Other Events. 2. Select a camera. 3.

  • Page 103: Queue Management

    Network Video Recorder User Manual 2. Select a thermal camera. 3. Optional: Check Save VCA Picture to save the captured pictures of detection. 4. Select an event detection (Temperature Measurement Alarm, etc.). 5. Set the arming schedule. Refer to Configure Arming Schedule. 6.

  • Page 104: Configure Arming Schedule

    Network Video Recorder User Manual 3. Click to set alarm configuration. 1) Select IP Camera(s) and IoT channel(s), and complete access control event display settings. Display Pop-Up Enable this function, the pop-up including person type information, body temperature and mask-wearing status (optional) will be displayed once the alarm is triggered. Mask Not Wearing Event Temperature units including Celsius degree and Fahrenheit degree of the detected target are available.

  • Page 105: Configure Linkage Actions

    Network Video Recorder User Manual Figure 6-19 Set Arming Schedule 4. You can click Copy to copy the current day arming schedule settings to other day(s). 5. Click Apply to save the settings. 6.5 Configure Linkage Actions Alarm linkage actions will be activated when an alarm or exception occurs. 6.5.1 Configure Auto-Switch Full Screen Monitoring When an alarm is triggered, the local monitor displays in full screen the video image from the alarming channel configured for full screen monitoring.

  • Page 106: Configure Buzzer

    Network Video Recorder User Manual Steps 1. Go to System → Live View → General. 2. Set the event output and dwell time. Event Output Select the output to show the event video. Full Screen Monitoring Dwell Time Set the time in seconds to show the alarm event screen. If alarms are triggered simultaneously in several channels, their full-screen images will be switched at an interval of 10 seconds (default dwell time).

  • Page 107: Configure Audio Alert

    Network Video Recorder User Manual detected. Steps 1. Go to System → Network → Advanced → Email. 2. Set the email parameters. 3. Click Apply. 4. Go to the Linkage Action interface of the alarm detection (e.g., motion detection, video tampering, face detection, etc.).

  • Page 108: Configure Audio And Light Alarm Linkage

    Network Video Recorder User Manual Note If the device has 8 alarm outputs, the Ctrl 12V power is controled by alarm output 9. Connect positive pole to A of Ctrl 12V, and connect negative pole to B of Ctrl 12V. The power will be turned on when the alarm output is triggered.

  • Page 109: Chapter 7 Iot

    Network Video Recorder User Manual Chapter 7 IoT IoT (Internet of Things) feature allows you to build connections between your video recorder and IoT devices, including access control and alarm devices. Video recorder will receive alarms from connected IoT devices. You can configure linkage actions like triggering recording and full screen monitoring, when IoT alarm occurs.

  • Page 110: Add An Alarm Device

    Network Video Recorder User Manual Note All IoT channels can be enabled/disabled with shortcuts. 1. Go to Maintenance → System Service → More Settings. Click Time Sync Configuration, select Enable IoT Time Sync or Disable IoT Time Sync to enable/disable scheduled time sync for all IoT channels. Figure 7-2 IoT Time Sync This function is only available for the admin user.

  • Page 111: Add Network Audio Device

    Network Video Recorder User Manual Figure 7-3 Alarm Device 3. Set alarm host device parameters. 4. Optional: Check Enable IoT Time Sync as your desire. 1) Go to Maintenance → System Service → More Settings. 2) Click Time Sync Configuration, select Enable or Disable to enable/disable scheduled time sync for all IoT channels.

  • Page 112: Configure The Linkage Action And Arming Schedule

    Network Video Recorder User Manual Note If the network audio device has linked a network camera, after the audio device is deleted, the recorder will store audio of the linked network camera itself. 7.2 Configure the Linkage Action and Arming Schedule Configure the linkage actions and arming schedule for access control or alarm devices.

  • Page 113: Configure Osd

    Network Video Recorder User Manual 7.3 Configure OSD You can display alarm information received from IoT devices on live view image. Steps 1. Click of an added IoT device. 2. Check OSD Display on Event Configuration interface. 3. Select Trigger Channel. 4.

  • Page 114: Configure Audio Parameters

    Network Video Recorder User Manual 7.4 Configure Audio Parameters After an network audio device is added, you can configure its parameters, including output volume, sampling rate, DNR (digital noise reduction) level, etc. Before You Start Ensure you an audio device is added to your recorder, and the network connection is valid. Steps 1.
  • Page 115 Network Video Recorder User Manual – Alarm device: Go to Business Application → IoT → Alarm → Search Data. Figure 7-7 Search Event Record (Access Control) Figure 7-8 Search Event Record (Alarm Device) 2. Specify search conditions. Note Name/Card No.: When card swiping event occurs, the access control device will upload card name and card No.

  • Page 116: Iot Video/Picture

    Network Video Recorder User Manual Figure 7-9 Search Result (Access Control) Figure 7-10 Search Result (Alarm Device) 7.6 IoT Video/Picture Configure the event recording or capturing schedule for the selected trigger channel, the channel will automatically record videos or capture pictures when IoT alarm occurs. 7.6.1 Configure the Event Recording/Capturing The video recorder can record videos or capture pictures when an IoT alarm occurs.
  • Page 117 Network Video Recorder User Manual Figure 7-11 Trigger Channel 5. Click Apply. 6. Configure the event recording or capturing schedule. Here we take the example of configuring event recording to describe the steps. 1) Go to Storage → Schedule → Record. 2) Select Camera No.

  • Page 118: Search Iot Video

    Network Video Recorder User Manual Figure 7-12 Event Recording Result When an alarm occurs, the selected trigger channel will start event recording. 7.6.2 Search IoT Video Search IoT event triggered videos. Steps 1. Go to File Management → Video → Search by Event.
  • Page 119 Network Video Recorder User Manual Figure 7-13 Search Event Video 2. Set search conditions. Camera Select it as the selected trigger channels in IoT linkage action configuration. Event Type Select the desired IoT event. 3. Click Start Search.

  • Page 120: Chapter 8 Smart Report

    Network Video Recorder User Manual Chapter 8 Smart Report 8.1 People Counting People counting calculates the number of people entering or leaving a certain configured area and creates daily/weekly/monthly/annual reports for analysis. Steps 1. Go to Smart Analysis → Smart Report → Counting. 2.
  • Page 121 Network Video Recorder User Manual Figure 8-2 Heat Map 5. Click Counting. Note As shown in the figure above, red color block (255, 0, 0) indicates the most trafficked area, and blue color block (0, 0, 255) indicates the less-popular area. The results will be displayed in graphics marked in different colors.

  • Page 122: Chapter 9 Self-Learning

    Network Video Recorder User Manual Chapter 9 Self-Learning After your camera has enabled self-learning, the camera will learn the false alarm examples in the self-learning library. When the amount of false alarm examples in the self-learning library is large enough, the false alarms would be significantly reduced. Note ●...

  • Page 123: Delete False Alarm Pictures In Self-Learning Library

    Network Video Recorder User Manual 4. Optional: Go to Smart Analysis → AI Training → Self-Learning Library to view or delete false alarm examples. 9.2 Delete False Alarm Pictures in Self-Learning Library You can view or delete false alarm pictures in the self-learning library. Steps 1.

  • Page 124: Chapter 10 File Management

    Network Video Recorder User Manual Chapter 10 File Management 10.1 Search Files Specify detailed conditions to search videos and pictures. Steps 1. Go to File Management → Video, or File Management → Picture. 2. Select a search method. For example, Search by Appearance, or Search by Event. 3.

  • Page 125: Quick Backup

    Network Video Recorder User Manual 10.3 Quick Backup All the videos can be backed up with a shortcut. Steps 1. Go to File Management → Video. 2. Search video(s) by setting different conditions (appearance, event or tag). 3. Click Quick Backup. Figure 10-1 Quick Backup 10.4 Smart Search 10.4.1 Face Picture Search...

  • Page 126: Human Search

    Network Video Recorder User Manual 6. Click Channel to select a channel as your desire. It will display search results for the selected channel. What to do next Refer to View Searching Result. Search by Appearance Search face picture by appearance. Steps 1.

  • Page 127: Vehicle Search

    Network Video Recorder User Manual Note ● You can click to view export progress. ● You can click to return to search interface. 10.4.3 Vehicle Search You can search and view the matched vehicle pictures. Steps 1. Go to File Management → Smart Search → Vehicle. 2.

  • Page 128: Chapter 11 Storage

    Network Video Recorder User Manual Chapter 11 Storage 11.1 Storage Device Management 11.1.1 Manage Local HDD Configure HDD Group Multiple HDDs can be managed in groups. Video from specified channels can be recorded onto a particular HDD group through HDD settings. Steps 1.
  • Page 129 Network Video Recorder User Manual Figure 11-2 Local HDD Settings 7. Select a group number for the HDD. 8. Click OK. Note Regroup the cameras for HDD if the HDD group number is changed. 9. Go to Storage → Storage Mode. 10.

  • Page 130: Add A Network Disk

    Network Video Recorder User Manual Steps 1. Go to Storage → Storage Device. 2. Click of desired HDD. 3. Select HDD Property. HDD supports both read and write. Read-only Files in read-only HDD will not be overwritten. Redundant Save the videos and pictures not only in the R/W HDD but also in the redundant HDD. It effectively enhances the data safety and reliability.

  • Page 131: Configure Cloud Storage

    Network Video Recorder User Manual Figure 11-3 Add NetHDD 3. Select NetHDD type. 4. Enter NetHDD IP address and click Search to search the available NetHDD. 5. Select the desired NetHDD. 6. Click OK. 7. The added NetHDD will be displayed in the HDD list. Select the newly added NetHDD and click Init.

  • Page 132: Manage Esata

    Network Video Recorder User Manual Steps 1. Go to Configuration → Storage → Storage Management → Cloud Storage. Figure 11-4 Cloud Storage 2. Check Enable Cloud Storage. 3. Set cloud storage server parameters. Note There are multiple pools in a cloud storage server. A pool is like an HDD, it is used for store files. Each pool has an ID, hence you have to get the pool ID from storage server.
  • Page 133 Network Video Recorder User Manual 2. Select eSATA Usage as Export or Record/Capture. Export Use the eSATA for backup. Record/Capture Use the eSATA for record/capture. Refer to the following steps for operating instructions. Figure 11-5 eSATA Mode What to do next If eSATA usage is set as Record/Capture, enter the storage device interface to edit its property or initialize it.

  • Page 134: Dynamically Adjust Recording Writing Buffer

    Network Video Recorder User Manual Figure 11-6 Configure eSATA for Auto Backup 11.1.5 Dynamically Adjust Recording Writing Buffer Dynamically adjust recording writing buffer allows the device to adjust buffer memory dynamically when bit rate exceeds limit. Steps 1. Go to Storage → Advanced. 2.

  • Page 135: Disk Array

    Network Video Recorder User Manual Figure 11-7 Dynamically Adjust Recording Writing Buffer Note This function will result in higher memory use. Restart the device after you enable/disable the function. 11.2 Disk Array A disk array is a data storage virtualization technology that combines multiple physical disk drives into a single logical unit.
  • Page 136 Network Video Recorder User Manual touch configuration and manual configuration. One-Touch Creation One-touch configuration creates the disk array. By default, the array type created by one-touch configuration is RAID 5. Before You Start Install at least 3 HDDs. If more than 10 HDDs are installed, 2 arrays will be created. To maintain reliability and stability running of the HDDs, it is recommended to use of enterprise-level HDDs of the same model and capacity.
  • Page 137 Network Video Recorder User Manual Figure 11-8 Create Array 6. Enter Array Name. 7. Select RAID Level as required. 8. Select the physical disks to constitute the array. Table 11-1 The Required Number of HDDs RAID Level The Required Number of HDDs RAID 0 At least 2 HDDs.

  • Page 138: Rebuild An Array

    Network Video Recorder User Manual 11.2.2 Rebuild an Array The array status includes Functional, Degraded, and Offline. To ensure the high security and reliability of the data stored in an array, take immediate and proper maintenance of the arrays according its status. Functional No disk loss in the array.
  • Page 139 Network Video Recorder User Manual Figure 11-11 Array List Manually Rebuild an Array If no hot spare disks are configured, rebuild a degraded array manually. Before You Start At least one available physical disk must exist to rebuild an array. Steps 1.
  • Page 140 Network Video Recorder User Manual Figure 11-12 Rebuild Array 3. Select the available physical disk. 4. Click OK. 5. Click OK on the pop up message box "Do not unplug the physical disk when it is under rebuilding."...

  • Page 141: Chapter 12 Hot Spare Device Backup

    Network Video Recorder User Manual Chapter 12 Hot Spare Device Backup Video recorders can form an N+M hot spare system. The system consists of several working video recorders and at least one hot spare video recorder. When a working video recorder fails, the hot spare video recorder would switch into operation, which increases the reliability of the system.

  • Page 142: Set Hot Spare Device

    Network Video Recorder User Manual Note Repeat the above steps to set other working devices. 12.2 Set Hot Spare Device Hot spare device will take over working device tasks when working device fails. Steps 1. Go to System → Hot Spare. 2.
  • Page 143 Network Video Recorder User Manual Figure 12-4 Add Working Device 2. Click Add in Working Device Settings to add working devices to the hot spare system. After refreshing the interface, you can view the working status of working devices from the hot spare device interface.
  • Page 144 Network Video Recorder User Manual Working Status Description device. The work device is recovered. 3. Click Add in Hot Spare Device Settings to add hot spare devices to the hot spare system. 4. Optional: Click Delete to delete working devices or hot spare devices as your desire.

  • Page 145: Chapter 13 Network Settings

    Network Video Recorder User Manual Chapter 13 Network Settings 13.1 Configure DDNS You can set Dynamic DNS service for network access. Different DDNS modes are available: DynDNS, PeanutHull, and NO-IP. Before You Start You must register the DynDNS, PeanutHull, or NO-IP services with your ISP before configuring DDNS settings.

  • Page 146: Configure Snmp

    Network Video Recorder User Manual Contact your Internet service provider for details about PPPoE service. 13.3 Configure SNMP You can configure SNMP (SNMP v2 and SNMP v3) settings to get device status and parameter information via web browser. SNMP v3 adds cryptographic security to SNMP v2, and provides security with authentication and privacy.
  • Page 147 Network Video Recorder User Manual Figure 13-2 SNMP Settings 2. Enable SNMP v2 or SNMP v3 as your desire. 3. Set related parameters. 4. Set SNMP Port. 5. Click Save.

  • Page 148: Configure Email

    Network Video Recorder User Manual 13.4 Configure Email The system can be configured to send an e-mail notification to all designated users when a specified event occurs such as when an alarm or motion event is detected, or the administrator password is changed, etc.

  • Page 149: Configure Port Mapping (Nat)

    Network Video Recorder User Manual 3. Optional: Enable the alternate SMTP, and configure the required parameters for alternate SMTP. When the preferred SMTP is invalid, the device will use alternate SMTP to send emails. 4. Optional: Click Test to send a test email. 5.

  • Page 150: Configure Port

    Network Video Recorder User Manual Note ● You can use the default port No., or change it according to actual requirements. ● External Port indicates the port No. for port mapping in the router. ● The value of the RTSP port No. should be 554 or between 1024 and 65535, while the value of the other ports should be between 1 and 65535 and the value must be different from each other.
  • Page 151 Network Video Recorder User Manual Figure 13-5 Port Settings 2. Configure port settings as needed. Alarm Host IP/Port With a remote alarm host configured, the device will send the alarm event or exception message to the host when an alarm is triggered. The remote alarm host must have the client management system (CMS) software installed.

  • Page 152: Configure Onvif

    Network Video Recorder User Manual recommended to use an IP address ranging from 239.252.0.0 to 239.255.255.255. When adding a device to the CMS software, the multicast address must be the same as that of the device. RTSP Port RTSP (Real Time Streaming Protocol) is a network control protocol designed to control streaming media servers.

  • Page 153: Chapter 14 Pos Configuration

    Network Video Recorder User Manual Chapter 14 POS Configuration The device can be connected to a POS machine/server, and receive a transaction message to overlay on the image during Live View or playback, as well as trigger a POS event alarm. 14.1 Configure POS Connection Steps 1.
  • Page 154 Network Video Recorder User Manual Figure 14-2 Universal Protocol Settings EPSON The fixed start and end line tag are used for EPSON protocol. The fixed start and end line tag are used for AVE protocol. Serial port and virtual serial port connection types are supported.
  • Page 155 Network Video Recorder User Manual machine must be unique. Set the Allowed Remote IP Address of the device sending the POS message. USB-to-RS-232 Connection Configure the USB-to-RS-232 convertor port parameters, including the port serial number, baud rate, data bit, stop bit, parity, and flow ctrl. Figure 14-3 USB-to-RS-232 Settings RS-232 Connection Connect the device and the POS machine via RS-232.

  • Page 156: Configure Pos Text Overlay

    Network Video Recorder User Manual Figure 14-4 Sniff Settings 14.2 Configure POS Text Overlay Steps 1. Go to System → POS. 2. Click Channel Linkage and Display.

  • Page 157: Configure Pos Alarm

    Network Video Recorder User Manual Figure 14-5 Overlay Character Settings 3. Select linked channel to overlay the POS characters. 4. Set the characters overlay for the enabled POS. ● Character encoding format: currently the Latin-1 format is available ● Overlay mode of the characters to display in scrolling or page mod ●...
  • Page 158 Network Video Recorder User Manual Figure 14-6 Set Trigger Cameras of POS 5. Select the normal linkage actions. 6. Select one or more alarm output(s) to trigger. 7. Select one or more channels to record or become full-screen monitoring when a POS alarm is triggered.

  • Page 159: Chapter 15 User Management And Security

    Network Video Recorder User Manual Chapter 15 User Management and Security 15.1 Manage User Accounts The Administrator user name is admin and the password is set when you start the device for the first time. The Administrator has the permission to add and delete users and configure user parameters.

  • Page 160: Edit The Admin User

    Network Video Recorder User Manual 5. Click OK. In the User Management interface, the added new user is displayed on the list. 15.1.2 Edit the Admin User For the admin user account, you can modify your password and unlock pattern. Steps 1.

  • Page 161: Edit An Operator/Guest User

    Network Video Recorder User Manual 6. Check Export of GUID File to export the GUID file for the admin user account. Note When the admin password is changed, export the new GUID to the connected USB flash drive in the Import/Export interface for the future password resetting. 7.

  • Page 162: Manage User Permissions

    Network Video Recorder User Manual 15.2 Manage User Permissions 15.2.1 Set User Permissions For an added user, you can assign the different permissions, including local and remote operation of the device. Steps 1. Go to System → User. 2. Select a user from the list, and then click to enter the permission settings interface.
  • Page 163 Network Video Recorder User Manual Searching and viewing logs and system information of device. Local Parameters Settings Configuring parameters, restoring factory default parameters, and importing/exporting configuration files. Local Camera Management Adding, deleting, and editing of IP cameras. Local Advanced Operation Operating HDD management (initializing HDD, setting HDD property), upgrading system firmware, clearing I/O alarm output.

  • Page 164: Set Live View Permission On Lock Screen

    Network Video Recorder User Manual Remotely viewing live video of the selected camera(s). Local Manual Operation Locally starting/stopping manual recording and alarm output of the selected camera(s). Remote Manual Operation Remotely starting/stopping manual recording and alarm output of the selected camera(s). Local Playback Locally playing back recorded files of the selected camera(s).

  • Page 165: Set Double Verification Permission For Non-Admin Users

    Network Video Recorder User Manual Figure 15-4 Set Live View Permissions on Lock Screen 4. Set the permissions. Select the camera (s) to allow live view when the current user account is in logout status. 5. Click OK. 15.2.3 Set Double Verification Permission for Non-admin Users After double verification is enabled in the channel, a non-admin user must be verified by an authorized user to get the permission.

  • Page 166: Configure Password Security

    Network Video Recorder User Manual Figure 15-5 Set Double Verification User 2. Check Enable Double Verification. 3. Set double verification user. The double verification is different from the system user. You can add up to 8 double verification users. 1) Click Add to add a double verification user. 2) Enter the admin password.

  • Page 167: Configure Security Questions

    Network Video Recorder User Manual Figure 15-6 Export GUID File 5. Click Export in Export GUID File. 6. Enter the admin password. 7. Save the GUID file to a directory as your desire. 15.3.2 Configure Security Questions The security questions can help you to reset password when you forget your password, or encounter security issues.

  • Page 168: Configure Reserved Email

    Network Video Recorder User Manual Figure 15-7 Configure Security Questions 3. Click OK. 15.3.3 Configure Reserved Email The reserved email will help you to reset password when you forget your password. Steps 1. Check Reserved E-mail when you are activating the device, or click Modify when you are editing the admin user account.

  • Page 169: Reset Password

    Network Video Recorder User Manual Figure 15-8 Configure Reserved Email 3. Click OK. 15.4 Reset Password When you forget the admin password, you can reset the password by importing the GUID file, answering security questions, or entering verification code from your reserved email. 15.4.1 Reset Password by GUID You can reset password by GUID via web browser.

  • Page 170: Reset Password By Security Questions

    5. Obtain the verification code. There are two ways to get the verification code. – Use LTS Connect app to scan the QR code. – Send the QR code to email server. 1. Insert a USB flash drive to your device.

  • Page 171: Reset Password By Lts Connect

    2. On the password reset type interface, select Verify by LTS Connect. 3. Log in to LTS Connect app with the account that has bound with your device. 4. Use LTS Connect to scan the QR code. Thereafter, you will have a verification code from LTS Connect.

  • Page 172: Chapter 16 System Management

    Network Video Recorder User Manual Chapter 16 System Management 16.1 Configure Device Steps 1. Go to System → General. 2. Configure the following settings. Language The default language used is English. Output Standard Set the output standard to NTSC or PAL, which must be the same as the video input standard. Resolution Configure video output resolution.

  • Page 173: Manual Time Synchronization

    Network Video Recorder User Manual 16.2.1 Manual Time Synchronization Steps 1. Go to System → General. 2. Configure the date and time. 3. Click Apply to save the settings. 16.2.2 NTP Synchronization Connection to a network time protocol (NTP) server can be configured on your device to ensure the system’s date and time accuracy.

  • Page 174: Audio Management

    Network Video Recorder User Manual 4. Set the DST Bias. Set the time (30/60/90/120 minutes) offset from the standard time. 5. Click Apply to save the settings. 16.3 Audio Management The audio files are used for alarm linkage. You can import and manage audio files in System → Audio Management. Note Before importing audio files, prepare a backup device with the audio files in it.

  • Page 175: Network Detection

    Network Video Recorder User Manual 16.5 Network Detection 16.5.1 Network Traffic Monitoring Network traffic monitoring is the process of reviewing, analyzing and managing network traffic for any abnormality or process that can affect network performance, availability and/or security. Steps 1. Go to Maintenance → Network → Traffic. 2.

  • Page 176: Export Network Packet

    Network Video Recorder User Manual 4. Click Test. Figure 16-3 Test Network Delay and Packet Loss 16.5.3 Export Network Packet After the recorder accessing network, you can use USB flash drive to export network packet. Before You Start Prepare a USB flash drive to export network packet. Steps 1.

  • Page 177: Storage Device Maintenance

    Network Video Recorder User Manual Figure 16-5 Network Resource Statistics 2. View the bandwidth statistics, including IP Camera, Remote Live View, Remote Play, Net Total Idle, etc. 3. Optional: Click Refresh to obtain the latest data. 16.6 Storage Device Maintenance 16.6.1 Bad Sector Detection Steps 1.

  • Page 178: Detection

    Network Video Recorder User Manual Note ● You can pause/resume or cancel the detection. ● After testing has been completed, you can click Error information to see the detailed damage information. 16.6.2 S.M.A.R.T. Detection HDD detection functions such as the adopting of the S.M.A.R.T. and the Bad Sector Detection techniques.

  • Page 179: Hdd Health Detection

    Network Video Recorder User Manual The related information of the S.M.A.R.T. is shown, and you can check the HDD status. 16.6.3 HDD Health Detection You can view the health status of a 4 TB to 8 TB Seagate HDD that generated after October 1, 2017.

  • Page 180: Repair Database

    Network Video Recorder User Manual Figure 16-9 HDD Clone 2. Check the HDD to clone. The capacity of the selected HDD must match the capacity of the clone destination. 3. Click Clone. 4. Click Yes on the pop up message box to create the clone. 16.6.5 Repair Database Repairing database will rebuild all databases.

  • Page 181: Upgrade Device

    Network Video Recorder User Manual Figure 16-10 Repair Database 16.7 Upgrade Device Your device firmware can be upgraded with a local backup device or remote FTP server. 16.7.1 Upgrade by Local Backup Device Before You Start Connect your device to a local storage device that contains the firmware update file. Steps 1.

  • Page 182: Upgrade By Lts Connect

    LTS Connect. If an upgrade firmware is available, the device will notify you when you log in. You can also manually check for the latest firmware. Before You Start Ensure the device has successfully connected to LTS Connect, and it requires to install at least one read-write HDD for firmware downloading. Steps 1.

  • Page 183: Log Management

    Network Video Recorder User Manual contain the file. Steps 1. Go to Maintenance → Import/Export. Figure 16-13 Import/Export Configuration File 2. Export or import the device configuration files. – Click Export to export configuration files to the selected local backup device. –...

  • Page 184: Search & Export Log Files

    Network Video Recorder User Manual Figure 16-14 Log Storage 2. Set Log Storage Mode. System Default Each disk will allocate a certain space to store logs. Old logs will be overwritten when the space is full. Custom You can set Log Storage Period or allocate Log Disk for log storage. When logs exceed the period, the historical logs cannot be searched.

  • Page 185: Upload Logs To The Server

    Network Video Recorder User Manual Figure 16-16 Log Search Results Note Up to 2,000 log files can be displayed each time. 5. Related Operation: Click or double-click it to view detailed information. Click it to view the related video file. Export/Export ALL Click it to export all the system logs to the storage device.

  • Page 186: One-Way Authentication

    Network Video Recorder User Manual 3. Set Upload Time, Server IP Address, and Port. 4. Optional: Click Test to test if parameters are valid. 5. Click Apply. 16.9.4 One-Way Authentication You can install a CA certificate (from the server) to your device to authorize the server via web browser.

  • Page 187: Restore Default Settings

    Network Video Recorder User Manual communication security. Two-way authentication can be configured via web browser. Before You Start ● Download the CA certificate from the server. ● Ensure log server parameters are valid. Steps 1. Go to Configuration → Network → Advanced Settings → Log Server Configuration. Figure 16-19 Two-Way Authentication 2.

  • Page 188: Schedule Reboot

    Network Video Recorder User Manual Figure 16-20 Restore Default Settings 2. Select the restore type from the following three options. Restore Defaults Restore all parameters, except the network (including IP address, subnet mask, gateway, MTU, NIC working mode, default route, server port, etc.) and user account parameters, to the factory default settings.

  • Page 189: Ip/Mac Address Filter

    Network Video Recorder User Manual permission to connect other devices via ONVIF protocol. Steps 1. Go to Maintenance → System Service → ONVIF. 2. Check Enable ONVIF to enable the ONVIF access management. Note ONVIF protocol is disabled by default. 3.

  • Page 190: Rtsp Authentication

    Network Video Recorder User Manual Figure 16-21 Address Filter 2. Check Enable. 3. Select Restriction Mode. Choose to filter by IP address or MAC Address. 4. Select Restriction Type. The device mechanism will allow or forbid specific IP/MAC address to get access to your device.

  • Page 191: Rtsp Digest Algorithm

    Network Video Recorder User Manual 16.12.4 RTSP Digest Algorithm RTSP digest algorithm is based on RTSP protocol, it is an algorithm for digest authentication of the user authentication. You can configure RTSP digest algorithm via web browser. Go to Configuration → System → Security → Authentication via web browser to select the required RTSP digest algorithm type.

  • Page 192: Picture Url Digest Authentication

    Network Video Recorder User Manual of the user authentication. You can configure HTTP/web digest algorithm via web browser. Go to Configuration → System → Security → Authentication via web browser to select the required digest algorithm type. 16.12.8 Picture URL Digest Authentication When using HTTP protocol to download the pictures which are uploaded by SDK, picture URL digest authentication controls whether the picture download process requires digest authentication or not.

  • Page 193: Chapter 17 Appendix

    Network Video Recorder User Manual Chapter 17 Appendix 17.1 Glossary Dual-Stream Dual-stream is a technology used to record high resolution video locally while transmitting a lower resolution stream over the network. The two streams are generated by the DVR, with the main stream having a maximum resolution of 1080P and the sub-stream having a maximum resolution of CIF.

  • Page 194: Frequently Asked Questions

    Network Video Recorder User Manual Acronym for Network Time Protocol. A protocol designed to synchronize the clocks of computers over a network. NTSC Acronym for National Television System Committee. NTSC is an analog television standard used in such countries as the United States and Japan. Each frame of an NTSC signal contains 525 scan lines at 60Hz.

  • Page 195: Why Is The Video Recorder Notifying The Stream Type Is Not Supported

    Network Video Recorder User Manual max. bitrate shall be less than 2048 Kbps), then delete the channel and add it back again. 17.2.2 Why is the video recorder notifying the stream type is not supported? Reason The camera encoding format mismatches with the video recorder. Solution If the camera is using H.265/MJPEG for encoding, but video recorder does not support H.265/MJPEG, change the camera encoding format to the same as video recorder.

  • Page 196: Why Is The Timeline At Playback Not Constant

    Network Video Recorder User Manual video? Solution Check if the encoding type at live view toolbar is H.265. 17.2.6 Why is the timeline at playback not constant? Reason 1. When the video recorder is using event recording, it only records video when event occurs. Hence the video may not be continuous.

  • Page 197: Why Is The Video Recorder Notifying Ip Conflict

    Network Video Recorder User Manual Solution When adding camera, click Custom Add to add camera. 17.2.9 Why is the video recorder notifying IP conflict? Reason The video recorder uses the same IP address as other devices. Solution Change the IP address of video recorder. Ensure it is not the same as other devices. 17.2.10 Why is image getting stuck when playing back by single or multi- channel cameras? Reason...
  • Page 198 Network Video Recorder User Manual set? Reason 1. The recording schedule is incorrect. 2. The motion detection event setting is incorrect. 3. HDD exception. Solution 1. The recording schedule is setup correctly by following the steps listed in Configuring Record/Capture Schedule. 2.
  • Page 199 UD33769N...

This manual is also suitable for:

Ltn89 seriesLtn8932-p16nLtn8916-p16nLtn8616-p16nLtn8608-p8nLtn8964-8 ... Show all

Table of Contents
