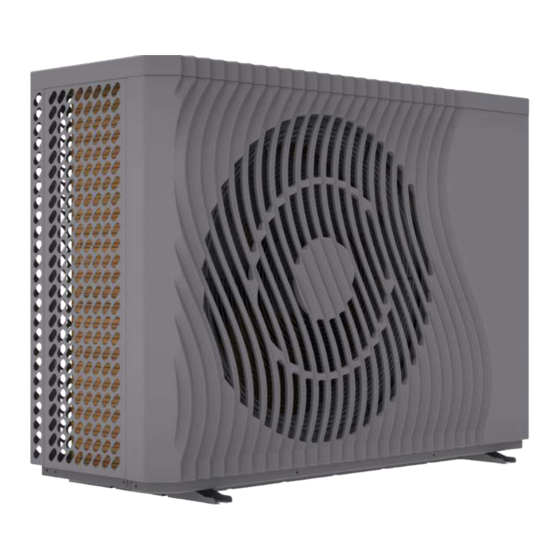

USER AND INSTALLATION MANUAL
AQUAPURA 14HT (INVERTER P 6-16)
AQUAPURA 8HT (INVERTER P 3-10)
Revision:6
Versão 2
1
Date: 11/07/2023
USER AND INSTALLATION MANUAL
Aquapura HT
Directives:
2014/35/UE
2014/30/UE
Regulation nº 814/2013
Regulation nº 812/2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUAPURA 14HT and is the answer not in the manual?

Questions and answers

Summary of Contents for Energie AQUAPURA 14HT

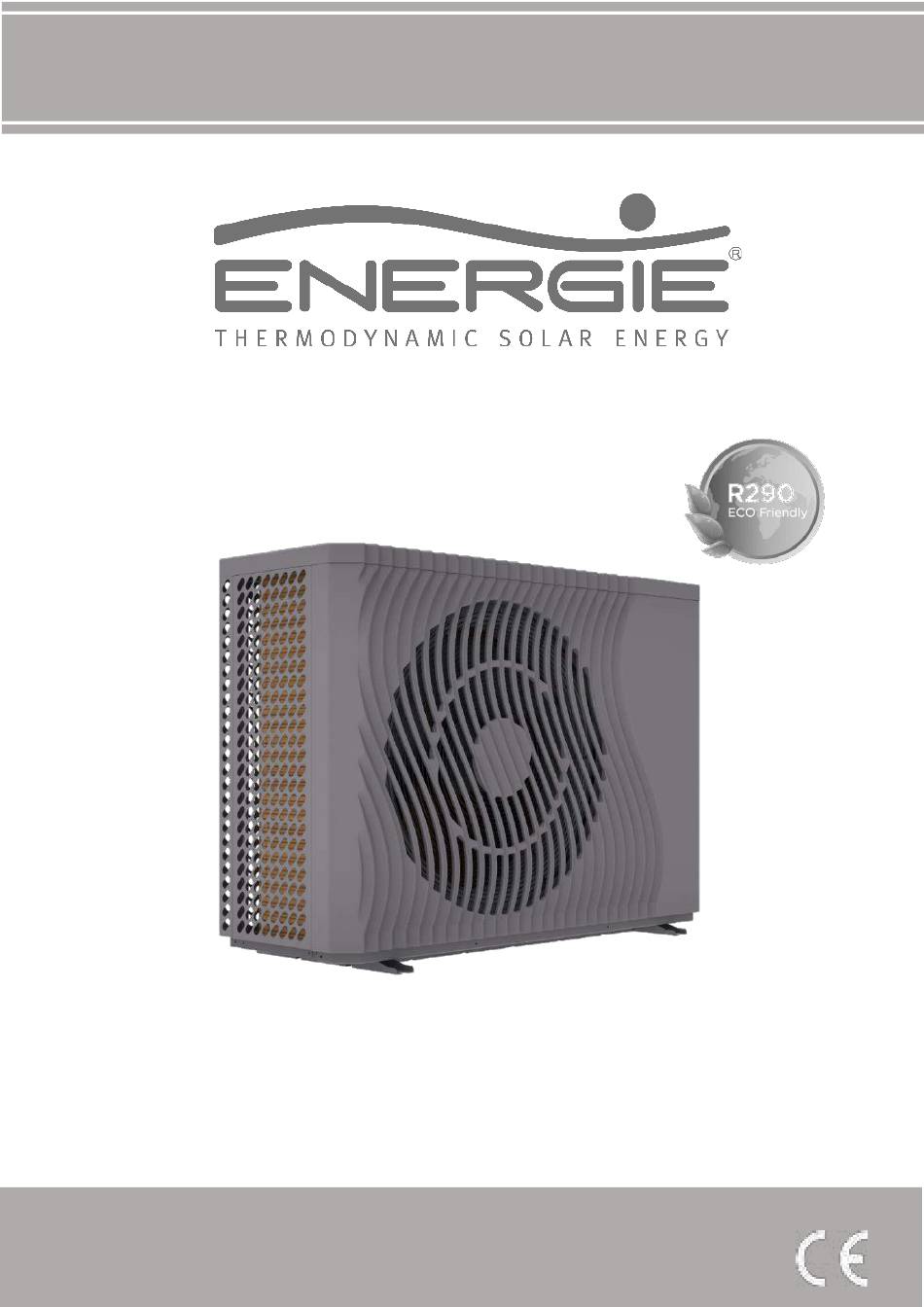

  • Page 1 USER AND INSTALLATION MANUAL USER AND INSTALLATION MANUAL Aquapura HT AQUAPURA 14HT (INVERTER P 6-16) AQUAPURA 8HT (INVERTER P 3-10) Directives: Revision:6 2014/35/UE Versão 2 2014/30/UE Date: 11/07/2023 Regulation nº 814/2013 Regulation nº 812/2013...
  • Page 2 USER AND INSTALLATION MANUAL Esteemed Client, We would like to thank you for your choice when you acquired an equipment for sanitary water heating. AQUAPURA INVERTER HT14 aero-thermal system will surely meet all your expectations and provide many years of comfort with maximum power saving. Our organization dedicates much time, energy and economic resources in order to develop innovations that will promote power saving in our products.
  • Page 3: Table Of Contents

    TRANSPORT ........................... 8 PRINCIPLE OF OPERATION ....................9 UNIT OVERVIEW ........................9 UNIT DIMENSIONS ......................10 7.1. Aquapura 8HT........................10 7.2. Aquapura 14HT ........................ 11 ..............................11 PERFORMANCE ........................12 AQUAPURA 8HT ......................14 AQUAPURA 14HT ......................15 ETCHNICA INFO ........................12 INSTALLATION .........................
  • Page 4 USER AND INSTALLATION MANUAL 12.3 Operation mode switch ....................26 12.4 Setting target temperature ..................26 12.5 Setting interface display and function ................ 27 12.6 Time setting ......................... 28 12.6.1 System time setting ....................28 12.6.2 Mute timer setting ....................29 12.6.3 Power timer setting ....................
  • Page 5: Info

    USER AND INSTALLATION MANUAL 1 INFO This manual is intended as an aid to qualified service personnel for proper installation, operation and maintenance of the Heat Pump. Read this manual carefully before attempting to install or operate the Heat Pump. Failure to follow these instructions may cause a fault of the Heat Pump, resulting in electrical shock, scald injury and/or property damage.
  • Page 6: Danger Info

    USER AND INSTALLATION MANUAL 2.1 Danger Info INSTALLATION: Description The heat pump must be installed by qualified personals, to avoid improper installation which can lead to water leakage, electrical shock or fire. Please make sure that the unit and power connection have good earthing, otherwise DANGER may cause electrical shock.
  • Page 7: Warnning Info

    USER AND INSTALLATION MANUAL Warnning Info INSTALLATION: Description The unit CANNOT be installed near the flammable gas. Once there is any leakage of the gas, fire can occur. Make sure that the basement of the heat pump is strong enough, to avoid any decline or fall down of the unit.
  • Page 8: Transport

    USER AND INSTALLATION MANUAL • Carefully read and follow the instructions of the manuals supplied with the equipment; • Do the installation in accordance with the standards and requirements given by the manufacturer; • Do the initial startup of the equipment and check all control points: •...
  • Page 9: Principle Of Operation

    USER AND INSTALLATION MANUAL Description The unit has been tested and inspected prior to shipment from the manufacturer for quality assurance. Carefully inspect the equipment components upon receipt to ensure that the equipment has not been damaged in transit. WARNNING Confirm that all ordered parts have been received as specified and that unit type, size, and voltage are correct.
  • Page 10: Unit Dimensions

    USER AND INSTALLATION MANUAL 7 UNIT DIMENSIONS 7.1 Aquapura 8HT Dimension 1167 (mm) (Inlet Water) (Outlet Water) Dimension 1” 1” (Inches)
  • Page 11: Aquapura 14Ht

    USER AND INSTALLATION MANUAL 7.2 Aquapura 14HT Dimension 1287 (mm) (Inlet Water) (Outlet Water) Dimension 1” 1” (Inches) All the units are represented in millimeters INFO...
  • Page 12: Etchnica Info

    USER AND INSTALLATION MANUAL 8 TECHNICAL INFO Aquapura 8HT (Inverter P3-10) Powe supply 240V~/50Hz Refrigerant / Charge / Kg R290 / 0,500 / 0,0015 Heating Heating capacity range (min/ max) 3,0 ~ 10,3 Electrical power range 0,71 ~ 2,9 Rated thermal power supplied ¹ Rated electrical power consumption¹...
  • Page 13 USER AND INSTALLATION MANUAL Aquapura 14HT Aquapura 14HT-T Powe supply 240V~/50Hz 400V~/3P+N/50Hz Refrigerant / Charge/CO2 Eq. / Kg/ton R290 / 0,850/0,0025 Heating Heating capacity range (min/ max) 6,18~ 15,75 6,18~ 15,75 Electrical power range 1,45 ~ 4,67 1,45 ~ 4,67 Rated thermal power supplied ¹...
  • Page 14: Performance

    USER AND INSTALLATION MANUAL 9 PERFORMANCE AQUAPURA 8HT Heating Capacity Ambient temperature °C Water temperature (inlet/outlet) 30°C/35°C 7,00 6,00 5,00 4,00 3,00 2,00 1,00 0,00 Ambient temperature °C Water temperature (inlet/outlet) 30°C/35°C...
  • Page 15: Aquapura 14Ht

    USER AND INSTALLATION MANUAL AQUAPURA 14HT Heating capacity Ambient Temperature °C Average climate (DB/WB) 7°C/6°C; Water temperature (inlet/outlet) 30°C/35°C Ambient Temperature °C Average climate (DB/WB) 7°C/6°C; Water temperature (inlet/outlet) 30°C/35°C...
  • Page 16: Installation

    USER AND INSTALLATION MANUAL 10 INSTALLATION 10.1 Installation place Before starting any installation procedure, check that the base of the place where the equipment will be placed is perfectly level. This prevents the compressor lubricating oil from working outside the indicated levels. Look for a place with an even, safe and resistant floor, preferably in concrete, taking into account the weight of the machine.
  • Page 17: Hydraulic Installation

    USER AND INSTALLATION MANUAL 10.3 Hydraulic installation Take the following points into account when executing the hydraulic circuit: • Reduce as much as possible the number of bends in the pipes to reduce pressure drops in the installation; • Ensure system fittings, dowels, water pumps and valves are designed for full flow through the facility.
  • Page 18: Circuit Water Quality

    USER AND INSTALLATION MANUAL 10.5 Circuit water quality The composition and quality of the water in the system has a direct effect on the performance of the entire system and the lifetime of the heat pump. For the initial charging and backfill of the system, usually normal tap water with a pH value of 7- 8 can be used as long as the water is not highly corrosive (chloride content >...
  • Page 19: Temperature Probes Info

    USER AND INSTALLATION MANUAL 10.7 Temperature probes info 11 ELECTRICAL REQUIREMENTS 11.1 Main specifications Description • The installation of the electrical network must be carried out in accordance with local regulations in force and by a qualified professional. • The installer must not make any kind of electrical changes to WARNNING the equipment.
  • Page 20: Electrical Main Spcifications/ Protection Devices

    USER AND INSTALLATION MANUAL To make the electrical connection, open the side panel and connect the general power cable in the indicated places. Description • The equipment must be earthed in accordance with the relevant regulations. • The manufacturer is not responsible for any damage caused by the equipment's lack of earth connection or by an anomaly in WARNNING the electrical supply.
  • Page 21: Connection Terminals - Inputs

    USER AND INSTALLATION MANUAL Description WARNING The cable screen must be connected directly to the equipment ground connection. 11.4 Connection terminals - Inputs Descrição The digital inputs mentioned are dry contacts (voltage free). Do not connect (220/240V~) to the terminals, otherwise it may cause irreversible damage to the controller and loss of warranty.
  • Page 22: Digital Input Configuration

    USER AND INSTALLATION MANUAL 485A+/485B- Description By default, the digital inputs are inactive To activate the digital inputs, contact a specialized technician or configure WARNNING them according to the indicated procedure. ATTENTION: Use shielded cable in the connections of the digital inputs, in this way we protect the digital inputs against noise coming from the WARNNING compressor.
  • Page 23: Connections Terminals - Outputs

    USER AND INSTALLATION MANUAL 11.6 Connections terminals – Outputs *Note: The position of these terminals may vary with different models. Please check your electric scheme Descrição Terminal V1 - Permanent phase Connection terminal for 3-way valve. Voltage polarized output V2 – Phase (230V~) when the DHW function is active.
  • Page 24: Main Controller

    USER AND INSTALLATION MANUAL • In exterior walls; • Near the radiators, convectors, windows, etc.; • Behind or near the doors Description The room thermostat contact must be free of tension. Connecting a tension on this contact will cause destruction of the controller. WARNNING 13 MAIN CONTROLLER --- USER INTERFACE 13.1 User interface description...
  • Page 25: Unlock Screen

    USER AND INSTALLATION MANUAL shown; otherwise, this icon is not shown. On and off. Click this key to switch ON or OFF. Blue represents ON, while white represents OFF Temperature setting. Click this key to set the target temperature. Is outlet water temperature. Is target temperature.
  • Page 26: Operation Mode Switch

    USER AND INSTALLATION MANUAL 13.3 Operation mode switch There are five modes can be selected after sliding the mode icon. Operation mode Description “Hot water” Domestic hot water mode “Heating” Heating mode “Cooling” Cooling mode “Hot water + Heating” Domestic hot water + Heating mode “Hot water + Cooling”...
  • Page 27: Setting Interface Display And Function

    USER AND INSTALLATION MANUAL Take hot water + heating mode for example: (1) Tapping ①, the wire controller back to main interface; (2) Sliding ②, the target temperature can be adjusted in the clockwise or counter clock wise direction; (3) Tapping ③ the target temperature can be saved. 13.5 Setting interface display and function Swipe from right to left on the main interface to enter the function setting interface, and swipe from left to right on the function setting interface to return to the main interface.
  • Page 28: Time Setting

    USER AND INSTALLATION MANUAL 13.6 Time setting Num. Description System time setting Mute timer Power ON/OFF timer. 13.6.1 System time setting When entering the page of system time setting, the system time will be initialized to the time at the moment when the system time setting button is pressed, and you can adjust the time by sliding up and down.
  • Page 29: Mute Timer Setting

    USER AND INSTALLATION MANUAL 13.6.2 Mute timer setting Num. Descrição Whether enable the mute timer ON/ OFF function key color: Enable - Blue ON / Disable: Gray OFF The mute timer ON/ OFF setting point. Select from 00:00 to 23:59 The status of mute timer: key color: Enable - Blue ON / Disable: Gray OFF 13.6.3 Power timer setting...
  • Page 30: Color Display Calibration

    USER AND INSTALLATION MANUAL This curve function records the water inlet temperature, water outlet temperature, tank water temperature and ambient temperature; Temperature data is collected and saved every five minutes. Timekeeping is made from the latest data saving, if the power is disrupted when the time is less than five minutes, the data during such period will not be saved;...
  • Page 31: Status Interface Display

    USER AND INSTALLATION MANUAL In heating operating mode, tap the “Electric Heating” icon to activate/deactivate the backup resistor (blue resistor icon active/ gray resistor icon deactivates) Note: Resistance is not an integral part of the equipment. Its installation will have to be done separately.
  • Page 32: Fault List

    USER AND INSTALLATION MANUAL 13.11 Fault list Click the alarm icon on the main interface to access the following interface: Num. Descrição Fault code Fault description and date/ time Clear all fault records; Number of pages with fault records. 14 MAIN CONTROLLER –INSTALLER INTERFACE To access the user interface, click on the “Parameter”...
  • Page 33: Installer Parameters

    USER AND INSTALLATION MANUAL “ICON” Description Client Parameters Installer parameters Defrosting Force defrost cycle (AT) Compensation Ambient temperature compensation Status of the main outputs of the equipment (compressor, fan, State etc.) About Software version 14.1 Installer parameters Description State / configuration H05 –...
  • Page 34 USER AND INSTALLATION MANUAL D17 – Coil Temp. of Exit Defrosting 13° C D19 – Max. Defrosting Time 8 min D24 – Defrosting Heating Source in Heating Circuit Heating/DHW Mode R01 – DWH Target Temp. 60°C R02 – Heating Target Temp. 45°C R03 –...
  • Page 35: Compensation Curve - Outdoor Temperature Vs Setpoint

    USER AND INSTALLATION MANUAL 14.2 Compensation curve - Outdoor temperature Vs setpoint When activating the compensation function for outdoor temperature Vs flow water temperature for the central heating circuit, take into account that the setpoint will be adjusted as a function of the temperature defined in the graph.
  • Page 36: Info Of Software Version

    USER AND INSTALLATION MANUAL 14.4 Info of software version 15 ALARM 15.1 Alarm – Electronic control fault table Fault Protect/fault Reason Elimination methods display Standby Normal boot The temp. Sensor is broken Inlet Temp Sensor Fault Check or change the temp. Sensor or short circuit The temp.
  • Page 37 USER AND INSTALLATION MANUAL over 150 for a long time The temp. Sensor is broken Room Temp Sensor Fault Check or change the temp. Sensor or short circuit Communication failure Check the wire connection between Communication Fault between wire controller and remote wire controller and main board mainboard Speed control module and...
  • Page 38: Alarm - Frequency Conversion Board Fault Table

    USER AND INSTALLATION MANUAL Fan Motor2 Overload Check whether the fan motor running E203 The fan motor is overload Protection normally Inlet Water Temp Sensor The temp. Sensor is broken P013 Check or change the temp. Sensor Fault of Air-Conditioning or short circuit Outlet Water Temp Sensor The temp.
  • Page 39: Troubleshooting

    USER AND INSTALLATION MANUAL Communication Fault DSP and Inverter board Check the communication connection (DSP) communication failure Frequency conversion board Communication Fault and main board Check the communication connection (Inverter Board) communication failure Check and adjust the current IPM Overheat Stop The IPM module is overheat measurement Compressor Overcurrent...
  • Page 40 USER AND INSTALLATION MANUAL 1) Lack of refrigerant; 1) Check for the gas leakage and 2) Bad insulation on water pipe; recharge the refrigerant; Heat pump capacity is low, 3) Low heat exchange rate on air side 2) Make good insulation on water pipe; compressor do not stop exchanger;...
  • Page 41: Appendix 1 - Hydraulic Schemes

    USER AND INSTALLATION MANUAL 17 APPENDIX 1 – HYDRAULIC SCHEMES Description • This drawing just shows the core parts and main principle of the application, there are many parts can be installed such as water pressure meters, water temperature meter, drainage etc. •...
  • Page 42 USER AND INSTALLATION MANUAL We recommend installing an inertia tank of between 50 and 80 liters in the return line.
  • Page 43: Central Heating And Cooling With Buffer Tank

    USER AND INSTALLATION MANUAL 17.3 Central Heating and Cooling with buffer tank Description The heat pump does not control the pump “P1”, its control must be carried out separately. ATTENTION 17.4 Central Heating and Cooling with buffer tank + DHW Description The heat pump does not control the pump “P1”, its control must be carried out separately...
  • Page 44: Central Heating And Cooling + Dhw

    USER AND INSTALLATION MANUAL The DHW temperature probe is provided with system. The temperature probe is located inside the installation kit 17.5 Central Heating and Cooling + DHW We recommend installing an inertia tank of between 50 and 80 liters in the return line.
  • Page 45: Domestic Hot Water

    USER AND INSTALLATION MANUAL 17.6 Domestic hot water Description The DHW temperature probe (TT) is provided with system. The temperature probe is located inside the installation kit ATTENTION 18 WARRANTY This warranty covers all defects to the confirmed materials, excluding the payment of any type of personal damage indemnity caused directly or indirectly by the materials.
  • Page 46 USER AND INSTALLATION MANUAL The warranty ceases to be effective when the apparatus is no longer connected, used or assembled in accordance with manufacturer instructions, or if there has been any form of intervention by unauthorized technicians, has the appearance of modifications and/or if the series number appears to have been removed or erased.
