Assembly and user manual

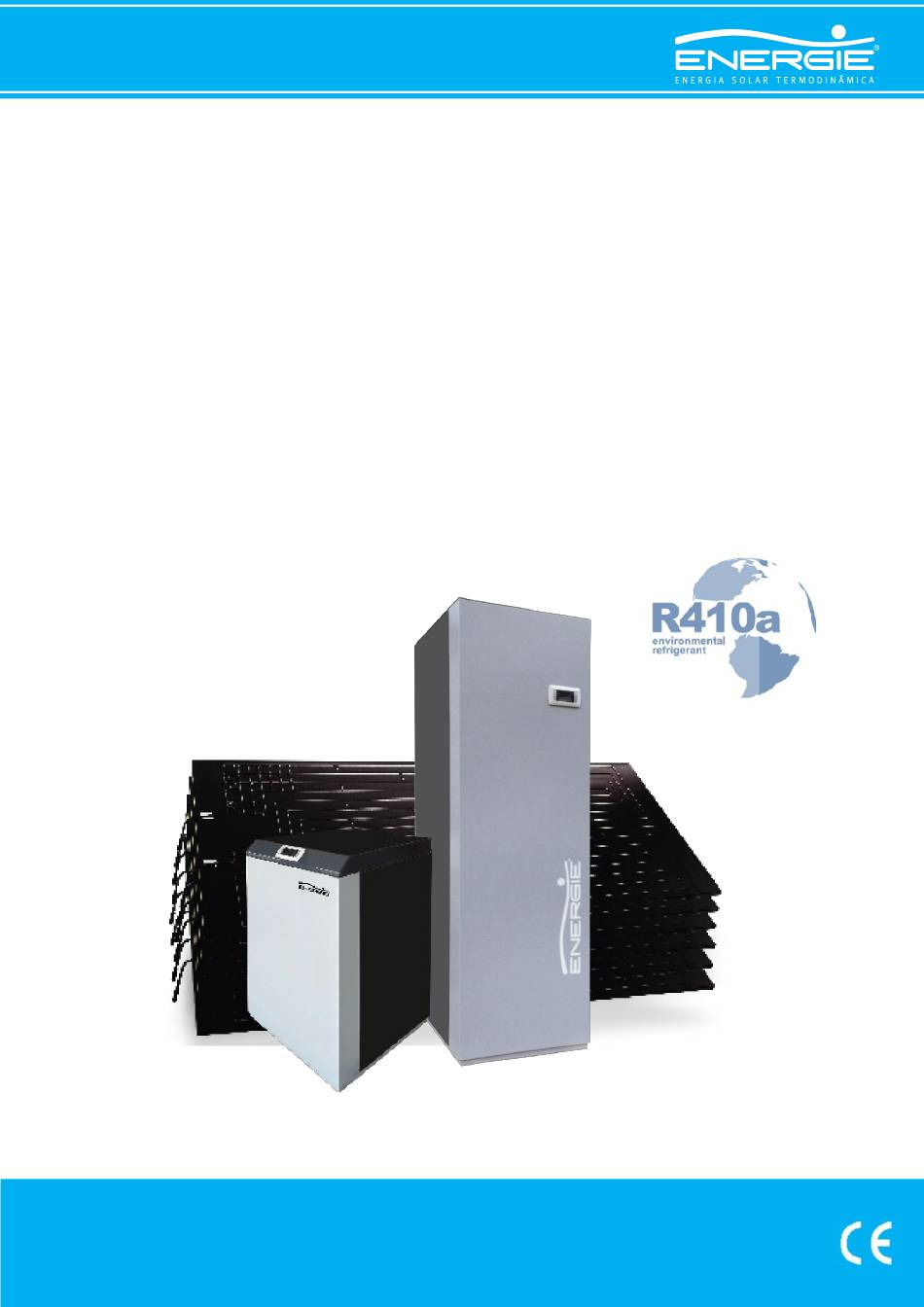

Thermodynamic Solar System
Solar Block ULTRA (CH)
Solar Block ULTRA PLUS (CH+DHW)
CENTRAL HEATING/
Review: 2
Version: 0
www.energie.pt
Date: 04/03/2021
DOMESTIC HOT WATER
Directives:
2014/35/UE
2014/30/UE
According European Certification
EN 60335-1
EN 60335-2-21
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Solar Block ULTRA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Energie Solar Block ULTRA

  • Page 1 Assembly and user manual Thermodynamic Solar System Solar Block ULTRA (CH) Solar Block ULTRA PLUS (CH+DHW) CENTRAL HEATING/ DOMESTIC HOT WATER According European Certification Directives: Review: 2 EN 60335-1 Version: 0 2014/35/UE www.energie.pt EN 60335-2-21 Date: 04/03/2021 2014/30/UE...
  • Page 2 ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA Directivas 2006/95/CE www.energie.pt...
  • Page 3: Table Of Contents

    6.2. Thermodynamic Solar Panel ....................14 6.2.1. Panel orientation ......................... 14 6.2.2. Panel Inclination ........................14 6.2.3. Distance ..........................15 6.2.4. Unevenness ......................... 15 6.2.5. Standard Gap of the Panels ....................16 6.2.6. Direction of the panels ......................16 www.energie.pt...
  • Page 4 ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA 6.2.7. Solar panels layout ......................17 6.2.8. Fixation ..........................18 6.3. Thermodynamic Block ......................21 6.3.1. Installation site ........................21 6.3.2. Dimensions .......................... 21 6.3.3. Connections SB ULTRA and SB ULTRA PLUS ................ 22 6.3.4.
  • Page 5: Introduction

    SOLAR BLOCK ULTRA 1. INTRODUCTION Esteemed Client, Thank you and congratulations for buying an ENERGIE product, the upshot of several years of experience in the sector. We have built products based on specific studies, top quality materials and highly advanced technologies.
  • Page 6: Installer's Liability

    Any transport complaint must be submitted at the act of delivery. If you are in any doubt, get in touch with ENERGIE to obtain information about how to lodge a complaint with the haulage company.
  • Page 7: Embalagem Packaging

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA 3.3. Embalagem Packaging The Thermodynamic Block is packed in a bottomless cardboard box and is secured to a treated pinewood pallet using plastic tape. The thermodynamic solar panels are packed in cardboard boxes unless otherwise provided for.
  • Page 8: Preparation Of Installation Site

    It is incumbent upon the installer to comply with all the requirements demanded by ENERGIE and adapt the method for securing the panels in line with the site.
  • Page 9: Thermodynamic Solar Block

    SOLAR BLOCK ULTRA 4. THERMODYNAMIC SOLAR BLOCK 4.1. Operation ENERGIE Thermodynamic Solar Blocks ULTRA are items of equipment intended for climatization: atmosphere, industrial applications etc. The thermodynamic panel is placed on the exterior and it ensures the capturing of energy as regards: •...
  • Page 10: Technical Specifications

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA 5. TECHNICAL SPECIFICATIONS 5.1. Solar Block 6 ULTRA Unid. Description Description Model SB 6 ULTRA SB 6 ULTRA PLUS Heating range 3,5 – 10,2 Heating capacity Max. heating capacity 10,2 Nominal heating capacity...
  • Page 11: Solar Block 12 Ultra/ Ultra Plus

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA 5.2. Solar block 12 ULTRA/ ULTRA PLUS Unid. Descrição Descrição Model BS12 ULTRA BS12 ULTRA PLUS Heating range 5 - 19 Heating capacity Max. heating capacity 18,7 Nominal heating 10,3 capacity Heating capacity...
  • Page 12: Solar Block 16 Ultra/ Ultra Plus

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA 5.3. Solar Block 16 ULTRA/ ULTRA PLUS Unid. Descrição Descrição Model BS16 ULTRA BS16 ULTRA PLUS Heating range 8-26 Heating capacity Max. heating capacity 26,8 Nominal heating 16,2 capacity Heating capacity Nominal power...
  • Page 13: Solar Block 32 Ultra

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA 5.4. Solar Block 32 ULTRA Unid. Descrição Model BS 32 ULTRA Heating range 18,5 – 48,2 Heating capacity Max. heating capacity 48,2 Nominal heating capacity 39,6 Heating capacity Nominal power consuption 4,91 Main power...
  • Page 14: Instalation

    • EVD display 6.2. Thermodynamic Solar Panel 6.2.1. Panel orientation ENERGIE panels must preferably be oriented in a southerly direction, but they may also have an orientation towards Northeast and Northwest. 6.2.2. Panel Inclination The inclination angle of the sun rays with regard to the horizontal varies in accordance with the seasons of the year.
  • Page 15: Distance

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA However, you may install the panels with another inclination in certain situations. 6.2.3. Distance The maximum distance between the panels and the Thermodynamic Block depends on certain factors such as the equipment model, the no. of curves, the piping diameter etc.
  • Page 16: Standard Gap Of The Panels

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA 6.2.5. Standard Gap of the Panels The position of the panels and the choice of the sides of the connections must be carried out so as to limit the length of the piping and simplify the connections.
  • Page 17: Solar Panels Layout

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA Right panel A – Liquid line (input) B – Vapor line (output) A right-hand panel is installed on the left-hand side (front view). To this end, it has connections on right- hand side.
  • Page 18: Fixation

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA In the event of some other positioning of the panels, you must contact our Technical Department. 6.2.8. Fixation The affixation of panels depends on the installation site and the method and type of affixation is the installer’s decision.
  • Page 19 ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA If the panels are subject to adverse atmospheric conditions as, strong gusts of windn, snow, etc. it is the responsibility of the installer to strengthen the panel affixation structure. 6.2.9. Liquid Distributor and Collector, placement and connection To ensure that the fluid reach the panels in homogeneous fashion, a liquid distributor must be installed.
  • Page 20 ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA Depending on the Thermodynamic Block model and the position of the panels, one or more aspiration collectors must be carried out. The aspiration which allows the collection of the refrigerant fluid in its gaseous state must regroup all the panel aspiration outlets (∅...
  • Page 21: Thermodynamic Block

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA 6.3. Thermodynamic Block 6.3.1. Installation site The choice of site where the Thermodynamic Block is placed is very important and must be carried out bearing mind a certain number of criteria such as: •...
  • Page 22: Connections Sb Ultra And Sb Ultra Plus

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA 6.3.3. Connections SB ULTRA and SB ULTRA PLUS The back of the Thermodynamic Block has the various connections in accordance with the designation set out below. www.energie.pt...
  • Page 23: Implementation Of Piping Connections (Welds)

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA BS ULTRA 6 BS ULTRA 12 BS ULTRA 16 BS ULTRA 32 Description Ø (inches) Ø (inches) Ø (inches) Ø (inches) Water outlet () 1” 1/4 Water inlet (AC) 1” 1/4 Inlet water (DHW)
  • Page 24: Inlet / Outlet Connection Of The Panels To The Solar Block

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA The most delicate welds and which require the greatest care are carried out at the panels. It is necessary to place a damp fabric strip which must envelop the “Thermoretractable Joint” so that it is duly protected from high temperatures caused by the blowlamp flame as shown in the figure below.
  • Page 25: Vacuum

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA 6.3.7. Vacuum Before loading the refrigerant fluid, it is essential to vacuum the installation. The vacuum is intended to remove all air and moisture from the circuit. The vacuum pump must be connected by means of pressure gauges to the suction line (rotolock valve ) and to the liquid line (access valve located after the expansion valve), in order to ensure that the vacuum is carried out throughout the entire refrigeration circuit.
  • Page 26: Ultra Plus Solar Block (Activate Dhw Backup Resistance)

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA 12 ULTRA / 16 ULTRA / Solar Block 6 ULTRA 32 ULTRA PLUS PLUS Recommended load (kg) Depending on the type of the installation, a supplementary refrigerant charge may be required. If required, the system shall be extra loaded through the liquid line (access valve located after the expansion valve) very slowly and with the compressor running.
  • Page 27: Hydraulic Connection

    9. HYDRAULIC CONNECTION The installation of the hydraulic system must be carried out by a competent professional, always respecting the indications supplied by ENERGIE. Upon the initial installation and before establishing any hydraulic connection of the heating circuit to the Thermodynamic Block, the whole hydraulic installation must be cleaned to remove any dirtiness, remains of material and similar impurities.
  • Page 28: Hydraulic Connection Bs Ultra - Central Heating

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA 9.1. Hydraulic connection BS ULTRA – Central Heating 9.2. Hydraulic connection BS ULTRA – DHW It is recommended to install a thermostatic mixing valve in the DHW circuit according to the following diagram...
  • Page 29: Hydraulic Connection Bs Ultra - Ch+Dhw

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA 9.3. Hydraulic connection BS ULTRA – CH+DHW www.energie.pt...
  • Page 30: Hydraulic Connection Bs Ultra Plus

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA 9.4. Hydraulic connection BS ULTRA PLUS It is recommended to install a thermostatic mixing valve in the DHW circuit according to the following diagram Water input DHW output Shut-off Valve Thermostatic Mixing Valve...
  • Page 31: Electrical Connections

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA 6.6. Electrical connections The electrical system must be installed by a professional who has preferably been qualified by ENERGIE. Furthermore, it must be ensured that there is enough electrical current for the system in question...
  • Page 32: Control Panel

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA 10. CONTROL PANEL The control terminal is installed on the front of the machine. The implemented control software guarantees an efficient equipment management and all the safety features of the machine. Through the terminal you can monitor the operation of the unit and set the operating parameters such as setpoint, time setting, etc.
  • Page 33 ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA Display description There are three main types of pages shown to the user: • Main page; • Menu page; • Viewing/parameter setting page. The lines on the main display are arranged as follows: Date, time and number of connected units, 2 Readings of major quantities and active orders;...
  • Page 34 ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA Main menu The parameters are grouped by access type, initially the user, then the installer and finally the Manufacturer. Each user sees only the parameters and menu options available for their respective access level;...
  • Page 35 ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA Unit state The unit status can be set from Menu A based on the applicable selection. 1. The selected options can be: • ON (unit operating under defined conditions); • OFF (unit on standby);...
  • Page 36 ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA • 2 step (C02). Time setting of equipment operating ranges. It is not necessary to program every day of the week, just program the first day and copy the schedule for the remaining days.
  • Page 37 ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA In the main menu (E.), entered alarms are displayed in chronological sequence. To check the active alarms, simply press the key and automatically enter the Error list. To scroll through the list of errors use the "up" and "down" keys.
  • Page 38: Alarm

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA 11. ALARM The active alarms on the device are signalled by the luminous indication on the key of the graphical interface. To access the alarm list press the Key . . If there is more than one active alarm, use keys to scroll the alarm list.
  • Page 39 ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA Circulating pump thermal Equipment on safe mode (OFF). Check that ALP02 Automatic system pump is not jammed or airtight. Equipment on safe mode (OFF). Check that ALP03 Flow switch Automatic the device is completely filled, without air bubbles and with the clean filter.
  • Page 40 ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA 11: Param. default 12: DC bus ripple 13: Data comms fault 14: Drive thermistor 15: Autotune fault 16: Drive disabled 17: Motor phase 18: Fan fault 19: Speed fault www.energie.pt...
  • Page 41: Guarantee

    ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA 12. GUARANTEE This warranty covers all defects to the confirmed materials, excluding the payment of any type of personal damage indemnity caused directly or indirectly by the materials. The periods indicated below start from the purchase date of the apparatus, 6 months at the latest from the leaving date from our storage warehouses.
  • Page 42 ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA • The warranty lapses if this certificate is incorrectly filled in, if it is violated or if it is returned after more than 15 days have passed since the purchase date of the apparatus.
  • Page 43 ASSEMBLY AND USER MANUAL SOLAR BLOCK ULTRA NOTE www.energie.pt...
