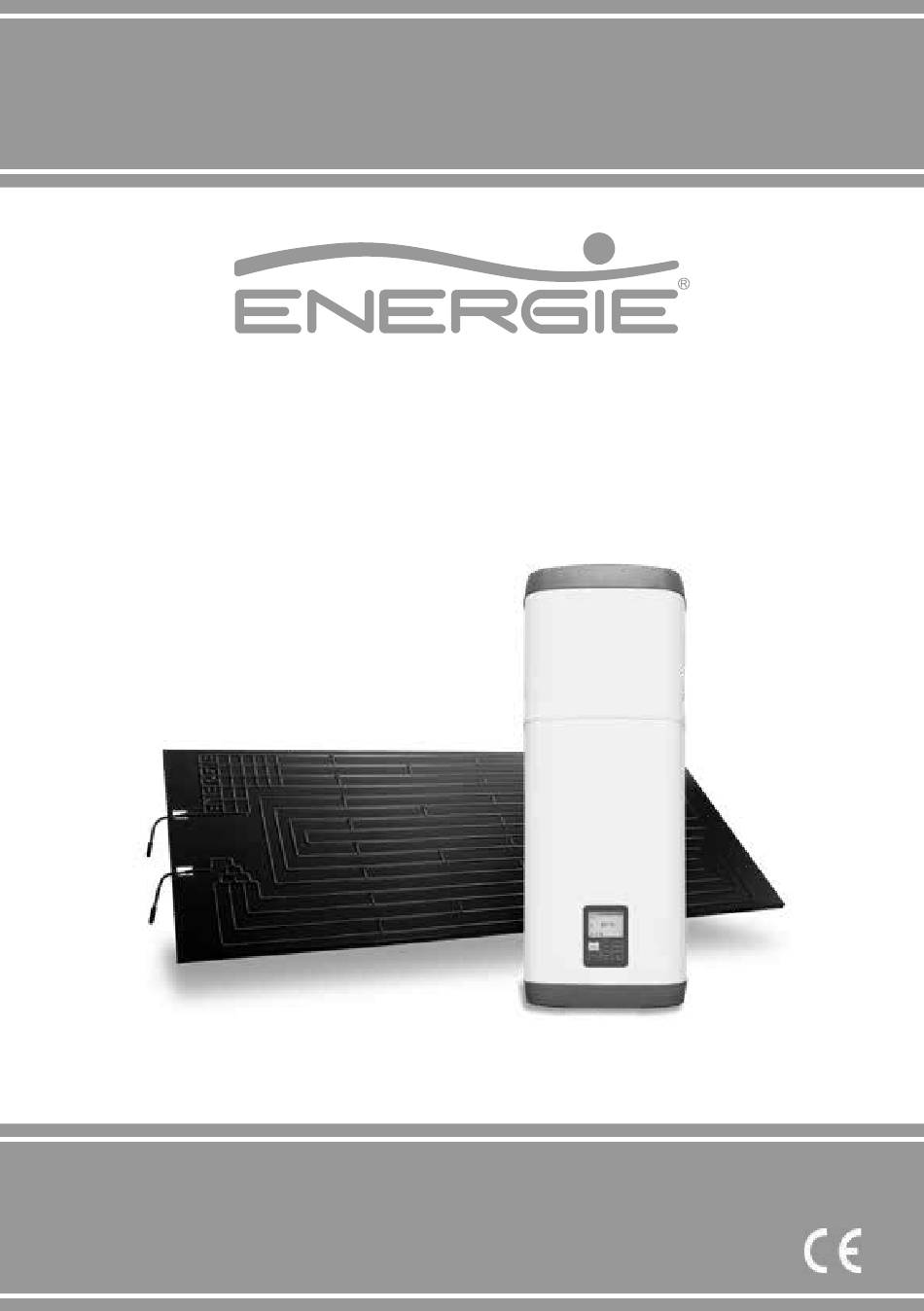

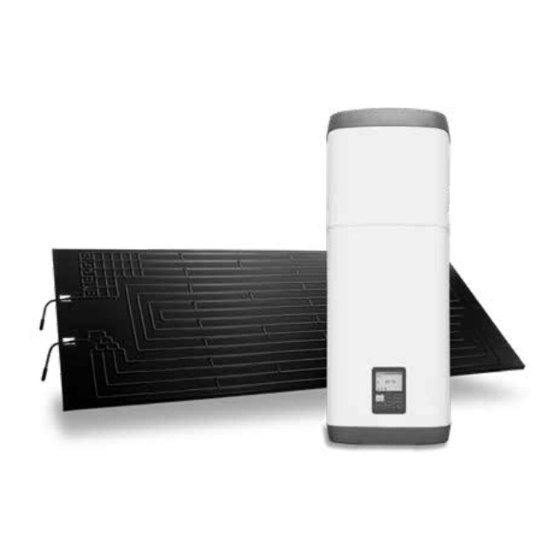

- Page 1 TECHNICAL MANUAL ECO100esm Revisão | Revision | Revisión Diretivas Certificação Europeia Versão | Version | Versión Directives European Certification Data | Date | Fecha 02/11/2020 Directivas Certificación Europea 2014/35/UE EN 60335-1 2014/30/UE EN 60335-2-21 EN 60335-2-40...
- Page 2 ECO100...
- Page 3 Technical Manual ECO100 Esteemed Client, We would like to thank you for your choice when you acquired an equipment for sanitary water heating. The thermodynamic solar system ECO100 will surely meet all your ex- pectations and provide many years of comfort with maximum power saving.
- Page 4 ECO100 Technical Manual...
-
Page 5: Table Of Contents
Technical Manual ECO100 Index 1.IMPORTANT..............................1.1. Symbols ................................1.2 Pre-installation Information ........................1.3 Safety information ............................2.SPECIFICATIONS............................2.1. Dimensions................................2.2.Components............................... 2.3. Running principle............................2.4. Technical Data..............................3.TRANSPORT ..............................4.INSTALLATION................................ 4.1. Safety Device..............................4.1.1. Pressure gauge of high/low pressure..................4.1.2. Safety Thermostat..........................4.1.3. -
Page 6: Important
ECO100 Technical Manual 1. IMPORTANT 1.1. Symbols Every process that the supplier believes to be conducive to harmful danger and/or material damage, will be signalled with a danger sign. For a better characterization of the danger, the symbol will be followed by one of these words: •... -
Page 7: Specifications
Technical Manual ECO100 • Make sure all hydraulic couplings are watertight before connecting the equipment to the power supply. Maintenance of the equipment: • Equipment maintenance should be carried out by customer service, except operations of general and continuous cleaning which could/should be carried out by the user; •... -
Page 8: Components
ECO100 Technical Manual 2.2. Components Top Cover (thermodynamic block) Safety thermostat Outer Casing (External Sheet) Ceramic resistance Polyurethane Insulation Magnesium Anode Enamelled Cylinder Display Hot water outlet Electrical resistance sheath Temperature Sensor Condenser Cold water inlet Solar Panel connections Electrical connections protection... -
Page 9: Running Principle
Technical Manual ECO100 2.3. Running principle 1. The cooling fluid (R134a) is compressed in the high efficient compressor, raising its pressure and tem- perature; 2. In the condenser (not in direct contact with the water), the heat energy in the cooling fluid is transmit- ted to the water in the water storage heater;... -
Page 10: Technical Data
ECO100 Technical Manual 2.4. Technical Data Unit. ECO100 Equipment type Thermodynamic Solar System for DHW Tank Rated Capacity Weight Empty Cylinder Material Enamelled Steel Outer Casing Metal Sheet Insulation High Density Polyurethane 50mm Corrosion Protection Yes (Magnesium Anode) Maximum Water Temperature Maximum Operating Pressure Pressure Test Heat Loss... -
Page 11: Installation
Technical Manual ECO100 The equipment must be transported in its original package to the place of installation. Check, before begin- ning transport of the external unit, if the path you will travel is unobstructed, in order to prevent collisions that could cause damage to the device. The packages contain the following information symbols: Fragile, handle with extreme caution Keep the package dry... -
Page 12: Expansion Vessel
ECO100 Technical Manual So the installer must tighten the joints (C) in the water inlet and outlet, be fore attaching the piping (D), as demonstrated in the following sequence: 4.1.5. Expansion Vessel* he expansion vessel is a device whose purpose is to compensate for the increase in water volume due to temperature rise. -
Page 13: Attachement Of Panel
Technical Manual ECO100 Adjust the hut in the back of the equipment so you can assure the minimum tilt of 1 degree backwards. 4.3. Attachment of Panel The nature of the site and the inclination angle where the panels are installed are important factors to take into account. - Page 14 ECO100 Technical Manual The profile should be attached to the base (e.g. rooftile) through a plastic bushing and a self-thread M6 bolt which have been supplied. The attachment of the panel to the L-shaped fastenings is done through M6 bolts and its females and washers.
-
Page 15: Refrigerant Connections
Technical Manual ECO100 4.4.Refrigerant Connections The cooling fluid couplings must be done by a qualified technician, with a profession- al certificate of qualifications for this purpose. WARNING The thermodynamic unit holds a pre-load of fluid R134a. The cooling fluid couplings must be thermally insulated in order to prevent burns and to ensure an optimal system performance. -
Page 16: Connections To The Thermodynamic Block
ECO100 Technical Manual d) Flange the pipe with the appropriate tool shaping a conic edge, make sure that there are no rough edges or imperfections and that the vertical of the walls is uniform. The cooling fluid couplings must be thermally insulated in order to prevent burns and to ensure an optimal system performance. -
Page 17: Load Of Nitrogen
Technical Manual ECO100 c) Flange the tube with the appropriate tool, forming the conical, taking care that it should not have burrs or imperfections and the length of the walls should be uniform. WARNING d) Tighten the tubes to the respective valves. It is recommended to use a thread sealant on all existing threaded connections. -
Page 18: Refrigerant Connections
ECO100 Technical Manual a) Create a vacuum with the vacuum pump plugged to the inlet of the 3-way pressure valve as depicted, keeping the valves completely shut until a vacuum of 50 Pa (0,5mbar); Shut Valves A – 2-Way Valve B –... -
Page 19: Electric Connections
Technical Manual ECO100 The Manufacturer is not responsible for damage related to not following these rec- ommendations / warnings. The water you use may contain impurities and/or substances damaging to the system and even harm- ful to your health. Make sure you use water with quality fitting for home consumption. The following table indicates some parameters according to which water must be subjected to chemical treatment. - Page 20 ECO100 Technical Manual Before undertaking any maintenance operation on the equipment, make sure it is not plugged to the power supply! WARNING If the power supply cable is damaged, it must be replaced by the manufacturer, by its custom- er service, or by staff with similar training. To replace the power cable, must the protection cover located under the equipment be re- moved.
-
Page 21: Electric Schemel
Technical Manual ECO100 4.6.1. Electric scheme Electric backup heater Solenoid Valve Water temperature probe Safety thermostat Solenoid Valve Phase High pressure switch Neutral Low pressure switch Earth / Ground Compressor... -
Page 22: Control And Programming
ECO100 Technical Manual 5. CONTROL AND PROGRAMMING 5.1. Control Panel The control panel of the Thermodynamic Solar system is simple and intuitive. It enables the configuration of several operating parameters according to the operating mode selected by the user. It comprises six command keys (ON / OFF / CANCEL, MENU, COMP ▲, E-HEATER ▼, DISINFECT and OK/ LOCK) that enable checking the running of the equipment, consult and change parameters. -
Page 23: Display
Technical Manual ECO100 5.3. Display Equipment in ECO operat- Active Timer ing mode Equipment in AUTO operat- Active Impressed Current Anode ing mode Equipment in BOOST oper- Compressor active and ating mode running Resistance is active and Contact TCC active running Timer active seven days a Compressor active... -
Page 24: Operating Modes
ECO100 Technical Manual 5.5.1. Operating Modes ECO the equipment runs only as a Thermodynamic System to heat the water in the storage water heater. Thus we could generate a greater efficiency, and savings for the user. NOTE: Every time the user feels it necessary, he/she may switch on the support resistance, using this mode, manually pressing the key (E-HEATER). -
Page 25: Start Up The System
Technical Manual ECO100 5.9. CRONO Function The CRONO function allows you to program the unit to operate only at the desired time. To set the ours of operation, perform the following procedures: 1. Enter the menu and access the parameter F03- Timer; 2. -
Page 26: Errors
ECO100 Technical Manual 7. ERRORS Symbols Description Problem / Checking • Damaged probe – Measure internal resistance of probe which Anomaly detected is approximately 10 KΩ at the temperature of 25 Er01 – S1 in probe 1 • Probe disconnected from controller – Check that the connec- tor is well attached to the electronic plate and/or the connec- Anomaly detected tion terminals are secure. -
Page 27: Probe Chart
Technical Manual ECO100 Values Code Type Description Min Max Default P01 - Setpoint Compressor 1 H01 - Gradient P01 P02 - Setpoint electric heater H02 - Gradient P02 P05 – Safety Temperature P06 - Setpoint Disinfect P08 – Minimum water temperature ON electrical Value = 16 °C backup Parameter = ON... -
Page 28: Troubleshooting
ECO100 Technical Manual 10. TROUBLESHOOTING PROBLEM POSSIBLE CAUSES HOW TO PROCEED Check the power supply. Power supply failure Check the corresponding circuit breaker. Failure in Check the integrity of the electronic board’s electronic Cable damaged or disconnected electric circuit. board Equipment is switched off Press the key ON/OFF. -
Page 29: System Maintenance
Technical Manual ECO100 PROBLEM POSSIBLE CAUSES HOW TO PROCEED Power con- Check that the piping is not damaged. Loss or obstruction in cooling circuit Employ equipment suitable for checking leaks sumption is in the circuit. abnormally high and Dire environmental conditions constant Support re- Thermostat failure... -
Page 30: Safety Thermostat
ECO100 Technical Manual The internal shielding of the tank will ensure an effective protection against corrosion contributing to a water quality within the parameters considered normal. However, the characteristics of the water change according to the installation. (See Chapter 4.4 and warranty) In your living area, the quality of the water can be aggressive to your equipment. - Page 31 NOTE: This sheet must be properly filled, signed and stamped by the installer / reseller and returned to ENERGIE EST, Lda., otherwise the warranty will not be validated. Send this installation sheet to warranty@energie.pt, writing the serial number of the equip- ment as subject.
- Page 32 Notas/Notes/Notas:...
- Page 33 Notas/Notes/Notas:...
- Page 34 Notas/Notes/Notas:...
- Page 36 Zona Industrial de Laúndos, Lote 48 + 351 252 600 239 Projeto co-financiado por: Project co-financed by: 4570-311 Laúndos - Póvoa de Varzim PORTUGAL E-mail energie@energie.pt N 41 27.215’ , W 8 43.669’ www.energie.pt Telefone + 351 252 600 230...
