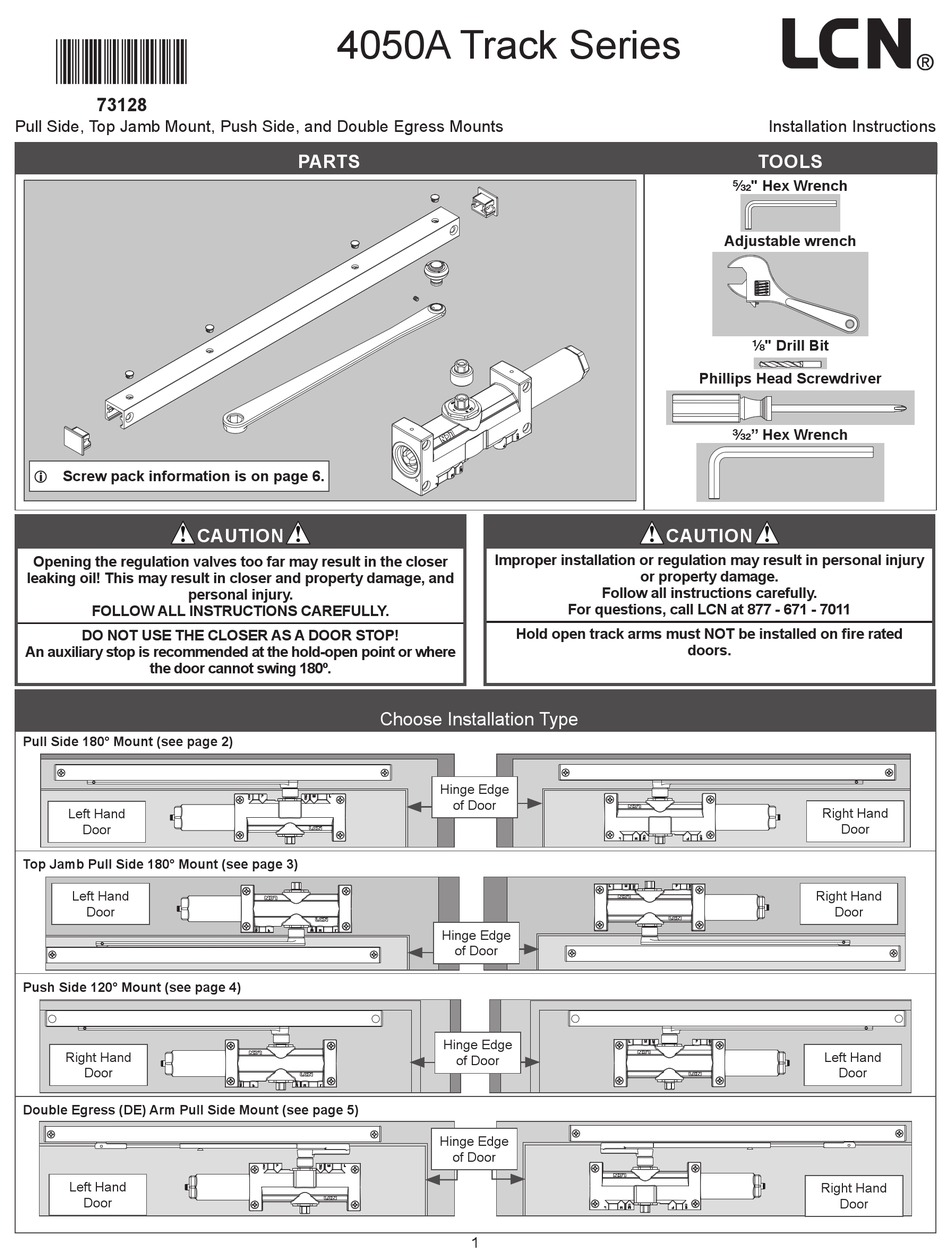

LCN 4050AT Installation Instructions Manual

*73128*
73128
Pull Side, Top Jamb Mount, Push Side, and Double Egress Mounts
L Screw pack information is on page 6.
Opening the regulation valves too far may result in the closer
leaking oil! This may result in closer and property damage, and
personal injury.
FOLLOW ALL INSTRUCTIONS CAREFULLY.
DO NOT USE THE CLOSER AS A DOOR STOP!
An auxiliary stop is recommended at the hold-open point or where
the door cannot swing 180º.
Pull Side 180° Mount (see page 2)
Left Hand
Door
Top Jamb Pull Side 180° Mount (see page 3)
Left Hand
Door
Push Side 120° Mount (see page 4)
Right Hand
Door
Double Egress (DE) Arm Pull Side Mount (see page 5)
Left Hand
Door
4050A Track Series
PARTS
CAUTION
Improper installation or regulation may result in personal injury
Hold open track arms must NOT be installed on fire rated
Choose Installation Type
Hinge Edge
of Door
Hinge Edge
of Door
Hinge Edge
of Door
Hinge Edge
of Door
1
B\cx" Hex Wrench
Adjustable wrench
Phillips Head Screwdriver
C\cx" Hex Wrench
CAUTION
or property damage.
Follow all instructions carefully.
For questions, call LCN at 877 - 671 - 7011
doors.
Installation Instructions
TOOLS
Z\," Drill Bit
Right Hand
Door
Right Hand
Door
Left Hand
Door
Right Hand
Door
