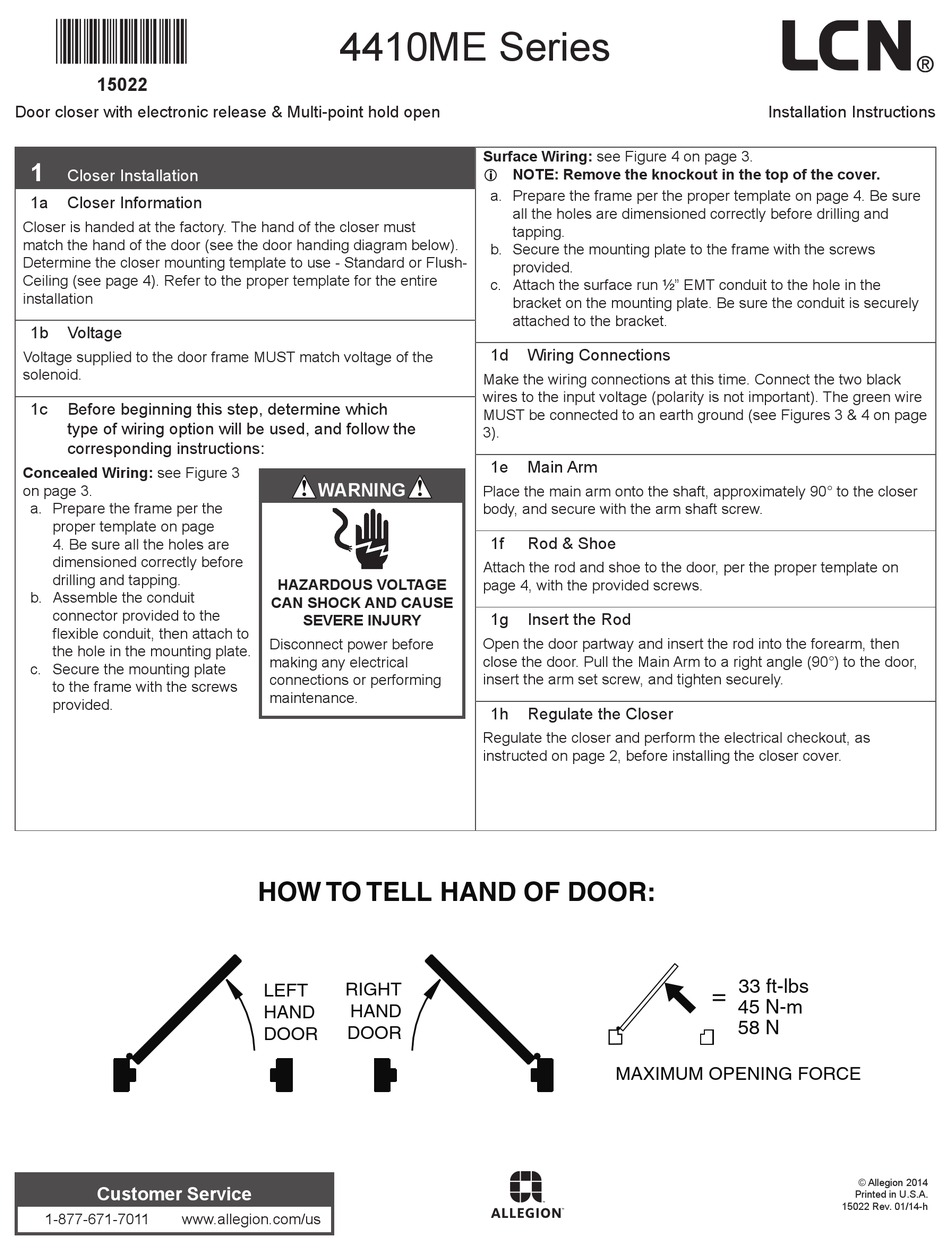

LCN 4410ME Series Manual

*15022*
15022

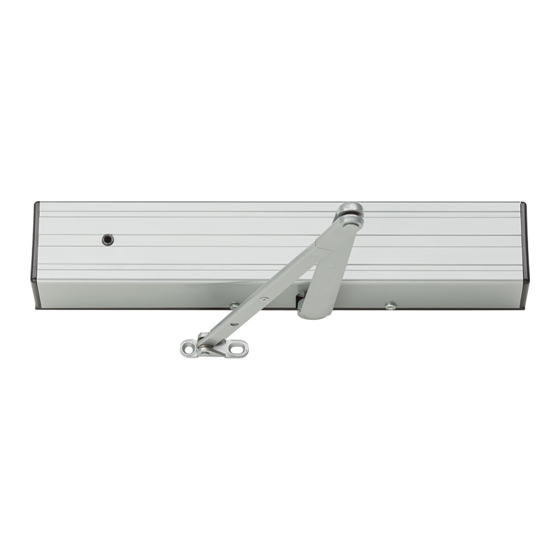

Door closer with electronic release & Multi-point hold open
1
Closer Installation
1a Closer Information
Closer is handed at the factory. The hand of the closer must
match the hand of the door (see the door handing diagram below).
Determine the closer mounting template to use - Standard or Flush-
Ceiling (see page 4). Refer to the proper template for the entire
installation
1b Voltage
Voltage supplied to the door frame MUST match voltage of the
solenoid.
1c Before beginning this step, determine which
type of wiring option will be used, and follow the
corresponding instructions:
Concealed Wiring: see Figure 3
on page 3.
a. Prepare the frame per the
proper template on page
4. Be sure all the holes are
dimensioned correctly before
drilling and tapping.
b. Assemble the conduit
connector provided to the
flexible conduit, then attach to
the hole in the mounting plate.
c. Secure the mounting plate
to the frame with the screws
provided.
Customer Service
1-877-671-7011 www.allegion.com/us
4410ME Series
!
WaRNiNg
HaZaRDOUS VOLTagE
CaN SHOCK aND CaUSE
SEVERE iNJURY
Disconnect power before
making any electrical
connections or performing
maintenance.
HOW TO TELL HAND OF DOOR:
RIGHT
LEFT
HAND
HAND
DOOR
DOOR
Surface Wiring: see Figure 4 on page 3.
L NOTE: Remove the knockout in the top of the cover.
a. Prepare the frame per the proper template on page 4. Be sure
all the holes are dimensioned correctly before drilling and
tapping.
b. Secure the mounting plate to the frame with the screws
provided.
c. Attach the surface run Z\x" EMT conduit to the hole in the
bracket on the mounting plate. Be sure the conduit is securely
attached to the bracket.
1d Wiring Connections
Make the wiring connections at this time. Connect the two black
wires to the input voltage (polarity is not important). The green wire
MUST be connected to an earth ground (see Figures 3 & 4 on page
3).
1e Main Arm
Place the main arm onto the shaft, approximately 90° to the closer
body, and secure with the arm shaft screw.
1f Rod & Shoe
Attach the rod and shoe to the door, per the proper template on
page 4, with the provided screws.
1g Insert the Rod
Open the door partway and insert the rod into the forearm, then
close the door. Pull the Main Arm to a right angle (90°) to the door,
insert the arm set screw, and tighten securely.
1h Regulate the Closer
Regulate the closer and perform the electrical checkout, as
instructed on page 2, before installing the closer cover.
MAXIMUM OPENING FORCE
Installation Instructions
33 ft-lbs
=
45 N-m
58 N
© Allegion 2014
Printed in U.S.A.
15022 Rev. 01/14-h
