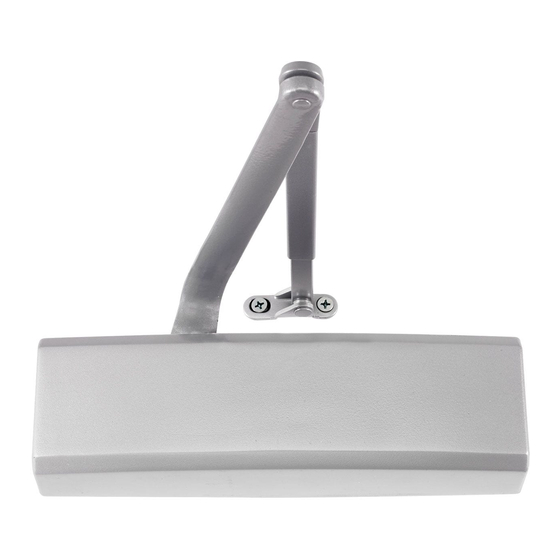

CUSH & Spring CUSH (SCUSH) Mount
L Screw pack information is on page 4.
Improper installation or regulation may result in personal injury or property damage.
Opening the regulation valves too far may result in the closer leaking oil! This may result in closer and property damage, and
CUSH (see page 2)
Right Hand
Door
Spring CUSH (SCUSH) (see page 3)
Right Hand
Door
Customer Service
1-877-671-7011
www.allegion.com/us
4050 Series
PARTS
SCUSH
CAUTION
Follow all instructions carefully.
For questions, call LCN at 877 - 671 - 7011
Hold open arms must not be installed on fire rated doors.
personal injury.
FOLLOW ALL INSTRUCTIONS CAREFULLY.
Choose Installation Type
Stop Edge
of Door
Stop Edge
of Door
1
1
Installation Instructions
TOOLS
C\cx" Hex Wrench
Adjustable wrench
Z\," Drill Bit
Phillips Head Screwdriver
B\cx" Hex Wrench
Hold Open wrench info on page 4.
Left Hand
Door
Left Hand
Door
71688 Rev. 01/16-b
© Allegion 2016
Printed in U.S.A.
