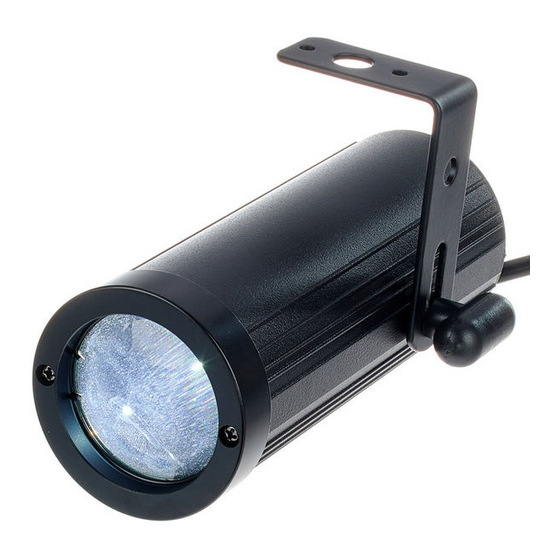

- Page 1 PinSpot LED 3W 6,5K PinSpot user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 08.07.2020, ID: 427154 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 13 Installation..............................14 Connections and controls........................17 Technical specifications........................19 Cleaning............................... 21 Changing the lens........................... 22 Protecting the environment......................23 PinSpot LED 3W 6,5K... -
Page 4: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. PinSpot... -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Symbols And Signal Words
General information 1.2 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. - Page 7 General information Warning signs Type of danger Warning – high-voltage. Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. PinSpot LED 3W 6,5K...
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual. - Page 9 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
- Page 10 Safety instructions DANGER! Electric shock caused by short-circuit Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician. WARNING! Eye damage caused by high light intensity Never look directly into the light source.
- Page 11 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specified in the chapter ‘Technical specifications’...
- Page 12 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
-
Page 13: Features
Features Features Powerful PinSpot LED spotlight. Special features of the device: 3 watt CREE XPE2 white light LED with 6.500 K Beam angle: 3° or 10° (lenses supplied) Adjustable mounting bracket Compact and lightweight design For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. -
Page 14: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 15 Installation NOTICE! Risk of overheating The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
- Page 16 Installation Always work from a stable platform whenever installing, moving or servicing the unit. In doing so, the area underneath the unit must be cordoned off. The safety cable must be threaded through the safety cable eyelet on the rear side. PinSpot...
-
Page 17: Connections And Controls
Connections and controls Connections and controls PinSpot LED 3W 6,5K... - Page 18 Connections and controls 1 Mounting bracket 2 Locking screw for the mounting bracket 3 Retaining ring for the lens 4 Lens PinSpot...
-
Page 19: Technical Specifications
Technical specifications Technical specifications Light source 3 W CREE XPE2 white light LED Light source properties Colour temperature 6500 K Colour rendering index 75 CRI Optical properties Beam angle 3° or 10° Luminous flux (1 m distance 35800 lm @ 3° beam angle) Power consumption Supply voltage 100 –... - Page 20 Technical specifications Ambient conditions Temperature range 0 °C…40 °C Relative humidity 50 %, non-condensing Further information Sound control DMX control Master/Slave PinSpot...
-
Page 21: Cleaning
Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device. -
Page 22: Changing The Lens
Changing the lens Changing the lens The spot light comes with a 3° and a 10° lens. This is how to change the lens: Turn the retaining ring of the lens counterclockwise and remove it. Remove the lens carefully. Insert the other lens carefully. Reinstall the retaining ring and turn it clockwise. -
Page 23: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 24 Notes PinSpot...
- Page 25 Notes PinSpot LED 3W 6,5K...
- Page 26 Notes PinSpot...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
