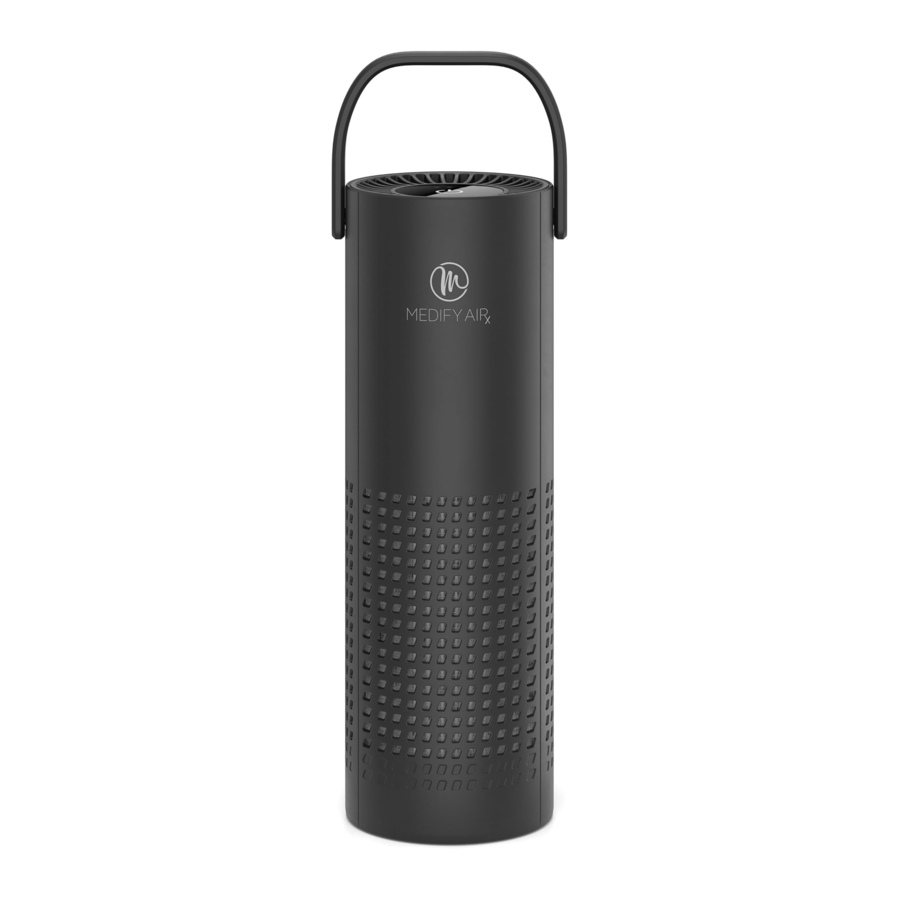

Medify Air MA-10 - Air Purifier Manual

WARNINGS AND PRECAUTIONS

caution Read this entire instruction manual before operation. Failure to adhere to the following warnings can cause harm to you or the unit.

Ensure the USB plug fits properly into the USB-C port when charging so that the lithium-ion battery can be recharged properly.
Improper usage may lead to product damage.
DO NOT place the air purifier near sources of heat.
DO NOT sit on or place anything on top of the air purifier.
DO NOT immerse the air purifier in water or liquids.
DO NOT use the air purifier in wet or humid environments.
DO NOT let children use the air purifier alone. Keep it away from pets
DO NOT place the air purifier in an unstable area.
DO NOT attempt to repair or disassemble. Doing so will void the warranty. The inside of this unit contains no user-serviceable parts.
When not in use, turn the air purifier off to prevent overheating.
DO NOT insert fingers or objects into the air outlet when it is on.
When using in an automobile, place the unit where it will not interfere with driving. DO NOT adjust settings while driving.
If the air purifier stops working or will not turn on, recharge the battery.
Replace the air filter every 6 months, the longest. This time may vary depending on air quality and frequency of use.

PRODUCT SPECIFICATIONS

Size:	8.07"x2.68"x2.68"
Power:	Input Voltage: DC 5V, 1A; Rated Power: 3.5 W
Fan Speeds:	3 Speeds: low, medium, and high
Battery Run Time*:	Approximately 9 to 20 hours
Charge Time:	Approximately 5 hours
Weight:	0.58 Ibs
Filter	Pre-filter & True HEPA 13 filter with activated carbon
Noise Level:	<46dB
Coverage Area:	Up to 8.21 sq. ft. ( per AHAM standard )

*Run time may vary depending on selected fan speed.

UNIQUE FEATURES & SPECIFICATIONS

GENUINE MEDIFY TRUE HEPA H13 FILTRATION SYSTEM

TRUE HEPA H13 FILTRATION
Removes up to 99.9% of airborne particles as small as 0.1 microns, such as allergens, pollen, dust, germs, pet dander, odor, mold spores, and smoke from air that passes through the filter.
CARBON ODOR FILTRATION
Reduces household odors and VOCs (volatile organic compounds)/ gases as shown by independent laboratory testing.
PRE-FILTER
Captures large particles.
3 Fan Speeds
Low, medium, and high speeds.
USB-Powered Rechargeable Lithium-lon Battery with Charging Cable
2-in-1 Handle Design (doubles as a stand)

PRODUCT DIAGRAM

The diagram below highlights all of the important features of this product.

PRODUCT DIAGRAM

Using the Stand/Handle

Attach the handle by slightly opening the handle arms and placing them into the handle slots on the sides of the air purifier.
The handle may be used as a stand by rotating the handle to the back of the unit.
Remove the handle by slightly opening the handle arms and pulling them away from the unit.

Operating the Air Purifier

Long press the power button for 3 seconds (the blue indicator light will come on)

1st press - Low Speed
2nd press - Medium Speed
3rd press - High Speed
Long press the power button for 3 seconds again (the blue indicator light is off, the unit turns off)

Charging the Battery

If the air purifier stops working or does not turn on, please charge the battery

Insert the USB-C charging cable into the USB-C port on the back of the air purifier and connect the charging cable to a laptop or other USB- compatible power outlet.
The indicator light next to the USB-C port will be red while charging. It will turn solid green when fully charged.
NOTE: Input power should be at least 5V, 1A. This unit is not compatible with USB PD3.0 quick chargers.

Cleaning the Unit

For optimal performance, replace the filter every 6 months. This time may vary depending on air quality and frequency of use. Replacement filters are available at www.Medifyair.com. Select Model No: MA-10 to purchase the correct filter for this air purifier.

Unscrew the bottom of the air purifier by turning the arrow on the cap to OPEN and remove the cap and filter.
Insert a new filter.
Place the cap properly on the bottom, then turn clockwise to close.
