Medify Air MA-CAR - True HEPA Air Purifier Manual

Important Notice

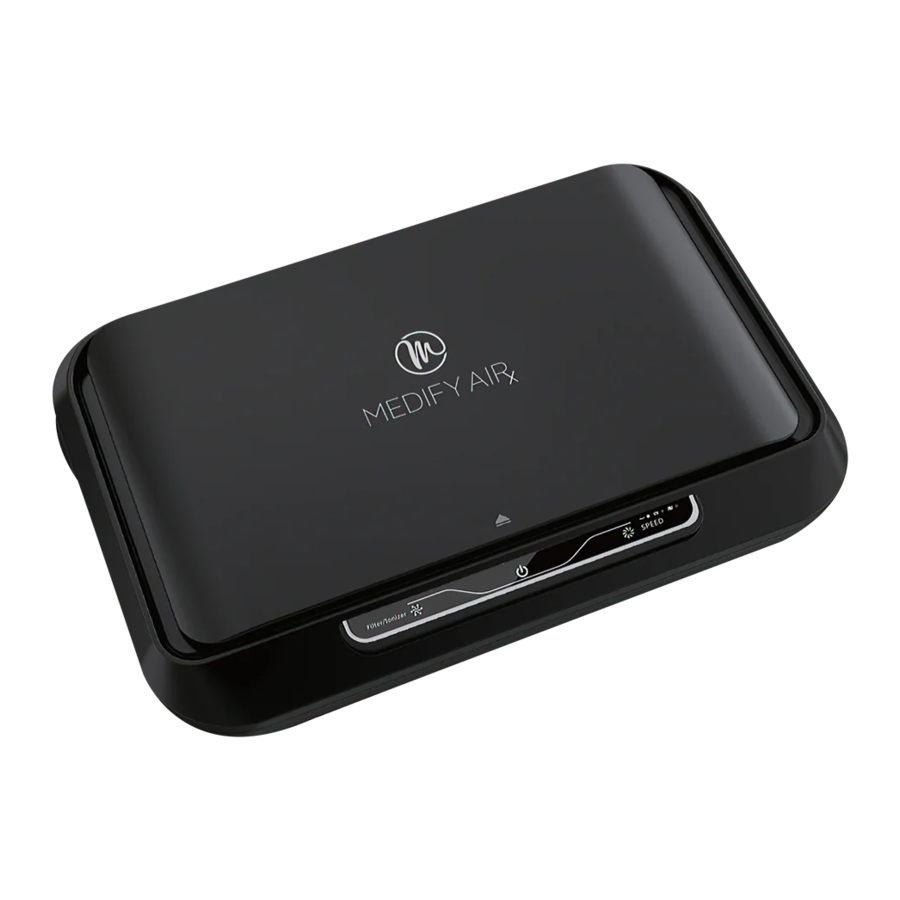

Product Introduction

Part List

1. Please install it according to instruction
2. Please use the parts in the box only for installing

Application

It can be installed in different locations per different cars, eg.

1. Under the front seat
2. Behind of the backing of the front seat
3. On the back seat

Install it behind the backing of seats

Install it behind the backing of seats per different cars

Please insert the strap through the two holders like in the below picture

Using Instructions

To install the filter

1. Please cut off the power before installing
2. Take off the polybag from the filter
3. Make sure the filter is in the right direction

Take off the cover as arrow shows

Take off the filter as arrow shows

Insert in the cover and press well

The direction of the filter

Attention
The purifier will not work if the cover has been taken off or not been covered well

Control Panel Operation

Touch key operation:

1. After power on, the button will flash and the machine is in standby state.
2. Touch the switch button and the machine will enter the working state at fan speed 1. Touch the fan icon lightly to adjust to the desired speed.
3. The negative ion function will be turned off by default when the machine is turned on. Touch the negative ion button, and the white light at the bottom will show the negative ion is on. The anion button shows filter life. When the filter expires, the red light at the bottom of the button flashes. After replacing the filter, long press the button for 3 seconds, which will turn off the red light, and reset the filter indicator.

Product Parameter

150 E Palmetto Park Road, Suite 301 Boca Raton, FL 33432
