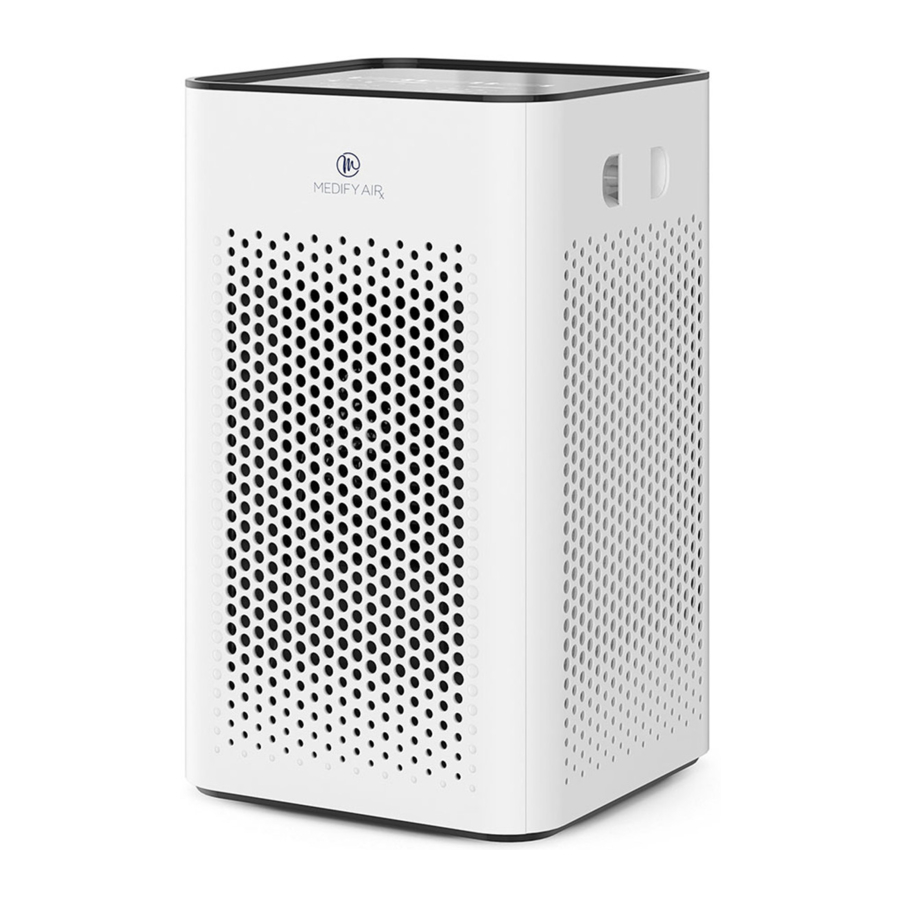

Medify Air MA-25 - True HEPA Portable Air Purifier Manual

IMPORTANT SAFETY INSTRUCTIONS

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:
IF THE POWER CORD OR UNIT DOES NOT WORK, CONTACT MEDIFY CUSTOMER SERVICE IMMEDIATELY.
READ ALL INSTRUCTIONS BEFORE USING.

TO REDUCE THE RISK OF ELECTRICAL SHOCK:

• Always unplug the air purifier from the electrical outlet immediately after using it and before cleaning or replacing filters.
• Keep the cord away from heated surfaces.
• Always place the air purifier on a firm, leveled surface.
• Always place the air purifier at least 12 inches away from walls and 3 feet from heat sources such as stoves, radiators, or heaters.
• DO NOT reach for an appliance that has fallen into water. Unplug it immediately.
• DO NOT place or store appliance where it can fall or be pulled into a tub or sink.
• DO NOT place in or drop into water or other liquid.
• Keep dry — DO NOT operate in wet or moist conditions.
• Check your air purifier cord and plug connections. Faulty wall outlet connections or loose plugs can cause the outlet or plug to overheat. Be sure the plug fits tightly in the outlet.

NOTE: This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.
DO NOT attempt to defeat this safety feature. To do so could result in an electrical shock hazard.

TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:

• Always unplug the air purifier when not in use.
• Do not operate the air purifier with a damaged cord or plug, or after the air purifier malfunctions, or has been dropped or damaged in any manner. Contact www.medifyair.com for examination, electrical or mechanical adjustment, or repair.
• Prohibited use beyond power. Can only use a 110v unit with a 110v power supply. You can break or ruin the circuit boards if you plug a 110v plug into a 220v power supply.
• This air purifier is not intended for use in bathroom, laundry areas, and similar moist indoor locations.
• Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners, or similar coverings.
• Do not route cord under furniture or appliances. Arrange the cord away from traffic areas where it can be tripped over.
• To disconnect the air purifier, first turn controls to the off position, then remove the plug from outlet.
• Do not tilt or move the air purifier while it is in operation. Shut it off and remove the plug from the outlet before moving it.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electrical shock or fire, or damage the air purifier.
• Do not block air intakes or exhaust in any manner. Do not use on any soft surface, like a bed, where openings may become blocked.
• Use this air purifier only for its intended use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electrical shock, or injury to persons.
• DO NOT use outdoors.
• This product is intended for household use only.

OVERVIEW

TECHNICAL DATA

• Voltage: 120V 60Hz
• Rated power: 30W
• Noise level: Min: 19.8dBA, Max: 49.3dBA
• Unit dimensions: 13.5"H x 8"W x 8"D
• Unit weight: 7.3 lbs
• EPA Est. No.:88959-CHN-1

STANDARD COVERAGE

1,000 sq. ft. every 60 minutes, 500 sq. ft. every 30 minutes, 250 sq. ft. every 15 minutes

FILTER PURIFICATION

To purchase genuine Medify replacement filters, visit www.medifyair.com.

1. PRE FILTER
   Removes hair, fibers, and large particles like dander.
2. TRUE HEPA H13 FILTER
   The high-efficiency H13 TRUE HEPA filter is tested to remove 99.9% of particles down to 0.1 microns. This HEPA filter easily catches pollen, dust mites, and other tiny airborne particles you can't see.
3. ACTIVATED CARBON FILTER
   Carbon filter remove odors, and smoke.

CONTROL PANEL

HOW TO USE

This air purifier is used to remove airborne particles from indoor air.

BEFORE TURNING THE UNIT ON

• Take the air purifier out of the box and remove the clear protective plastic bag and also remove clear bag from both filters.
• Place the air purifier on a firm, leveled surface and then plug the power cord into a standard AC outlet.

POWER BUTTON AND FAN SPEED SETTINGS

• To turn the air purifier on, press the power button.
• This air purifier has 3 fan speed settings: low (1), medium (2), and high (3). The higher the fan speed setting, the faster the air will be purified. o select or change fan speed, press the fan speed button until the desired setting is reached.

TIMER
Press the timerbutton until the desired timer setting is lit on the display. The timer button will cycle through the following settings: 1 hours, 2 hours, 4 hours, 8 hours and off. To cancel the timer at any time, press the timerbutton until all timer LEDs are off. The air purifier will run continuously when the timer function is off

DIMMER
Press the dimmer button to change the backlight to desired brightness, there are 4 brightness levels to change for all buttons' backlight LEDs. The green backlight will turn off for 1 second when the dimmer button has been pressed.

CHILD-LOCK BUTTON
Press the child-lock button and hold it down for 3 seconds and all functional buttons will be locked.
Press and hold down again the child-lock button for 3 seconds and all functional buttons will be unlocked.

FILTER REPLACEMENT

REPLACE FILTER LIGHT
The replace filter light illuminates when it is time to replace the rue HEPA H13 filter based on the air purifiers hours of use.

REPLACING THE TRUE HEPA H13 FILTER
For optimal performance, replace every 2,500 hours under normal usage conditions. Once the filter has been replaced, press and hold dimmer button for 3 seconds to reset the indicator.

1. Unplug the air purifier. Open the filter grille covers on the left and right of the unit by pushing the lock tabs on the top of the covers.

2. Take away the grilles from the unit.

3. Pull the tabs to remove the old filter.

4. Install a new genuine Medify replacement filter with the white tab facing out (tabs will be visible).

5. Align the tabs at the bottom of the grille covers with the unit. Gently push the grille covers until they snap back into place.

6. Plug the power cord into a standard AC outlet. Press and hold the dimmer button for 3 seconds to reset the indicator.


TROUBLESHOOTING

Medify Air
150 E. Palmetto Park Road, Suite 200
Boca Raton, Florida 33432

www.medifyair.com
info@medifyair.com
(888) 258-1008
Please visit our website for details on efficacy test data: medifyair.com/pages/reports
To purchase genuine Medify replacement True HEPA H13 filters, for model MA-25 visit www.medifyair.com.

This product earned the ENERGY STAR by meeting strict energy efficiency guidelines set by the US E A. US EPA does not endorse any manufacturer claims of healthier indoor air from the use of this product. The energy efficiency of this ENERGY S AR qualified model is measured based on a ratio between the model's CADR for dust and the electrical energy it consumes, or CADR/Watt.
