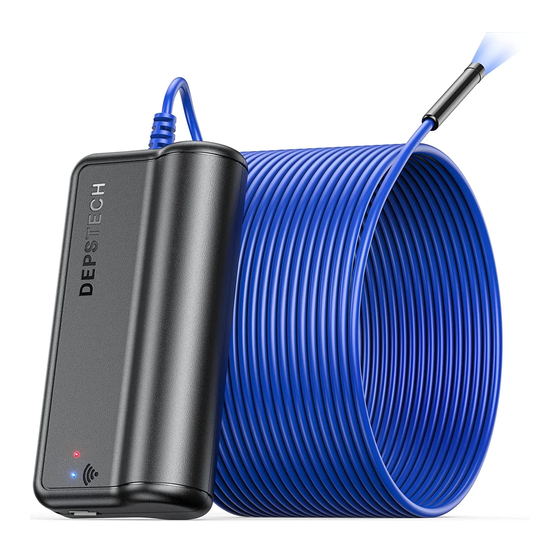

- Page 1 Hello User Manual for Depstech HD Inspection Camera ®...
- Page 2 Navigation on the Top - Click into You can Endoscope - Click into WiFi Endoscope - Roll and choose Model Number: WF020X/025/028 - Roll and Click Download Button E - User Manual for the ...
-
Page 3: Step 1- App Downloading
For iOS user (iOS 9+), search and download “DEPSTECH-View” app from APP Store. For Android user (Android 5.0+), search and download “DEPSTECH-View” from Google Play Store. For Windows user, we would recommend you download the advertisement-free “DEPSTECH-View” application via www.depstech.com Note: For the first usage, the application may require your permission to get access to the camera, album or WLAN/WiFi setting. -
Page 4: Step 2- Device Activation
Step 2- Device Activation “ON” Push the power button to to open your WF020X/ 025/ 028 inspection camera. Note: Once the power system standby, the red LED indicator will stay on. When the blue LED indicator flashed, means the WiFi module is ready to paired. - Page 5 Step 4- Start Your First Trial! “DEPSTECH-View” Open the application that you’ve downloaded to your smart devices previously, you can get the real-time image of the “DEPSTECH-View” inspection camera via immediately! Start your first trial of your brand new inspection camera! Note: The blue led indicator on the panel will stay on after entering the application.
-
Page 6: Charging Guide
Product Structure Introduction Charging Guide You can charge the endoscope with power adapter, power strip, DC 5V/1A power bank, PC or Laptop. Please connect the endoscope with the power source via the USB-A to Micro USB cable. Note: During the charging process, the green LED indicator will steady on. When the device was fully charged, the green LED indicator will turn off. -
Page 7: App Introduction
Accessories Installation Guide The three included accessories ( Side-mirror, hook and magnet) are all attached to the camera in the same way as illustrated above. APP Introduction Rotate Button: Click to rotate the image 90° Photo Shoot Button: Click to take a photo Record Button: Click to start/ end a video record Gallery Button: Click to check the photos/ videos Setting Button: Click to enter the setting... - Page 8 APP Introduction Resolution: Click to choose different resolution. WiFi Setting: Click to modify the WiFi SSID and Password. After setup please remember to click reset button. Channel Switch: Click if there are too many 2.4g& 5g wifi signal disturb nearby.
-
Page 9: Specification
Specification Model WF020X WF025 WF028 WF028 Dual Cam Sensor 2MP CMOS 5MP CMOS 2*2MP CMOS 2MP CMOS Maximum 1920*1080px 1920*1080px 2592*1944px 1920*1080px Resolution Viewing Angle 67°±3° 2*72°(144°) Main cam: 1.2-3.9 in Depth of View 1.96-11.8 in Side cam: 4/5~2.4 in Diameter 8.5mm... - Page 10 FAQ& Help Q1: How to connect WiFi endoscope to "DEPSTECH-View"? A1: 1. Make sure the device is fully charged, long press the power button or press the switch to turn on the device. The WiFi module will turn on about 15 seconds after turning on the device.
- Page 11 6. For iOS users (especially iOS 14), please enter the "Settings" interface of the phone, find and click “DEPSTECH-View”, then turn on the "Cellular Data" and "Native network"option, otherwise it may not be able to establish communication with the device.
- Page 12 SAFETY & MAINTENANCE INFO For your safety and better using experience, please read the instructions carefully before using. ※ Please remember to turn off the endoscope and place it in a dry environment after per use. You can use soft cotton cloth with little alcohol to keep the camera lens clear, which also does great help to capture the best image.
- Page 13 ※ FCC statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interface; 2) This device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
- Page 14 Shenzhen Deepsea Innovation Technology Co., Ltd. Room 1901-1902, Jinqizhigu Building, No.1 Tangling Road, Nanshan District, 518055, Shenzhen, CN...
