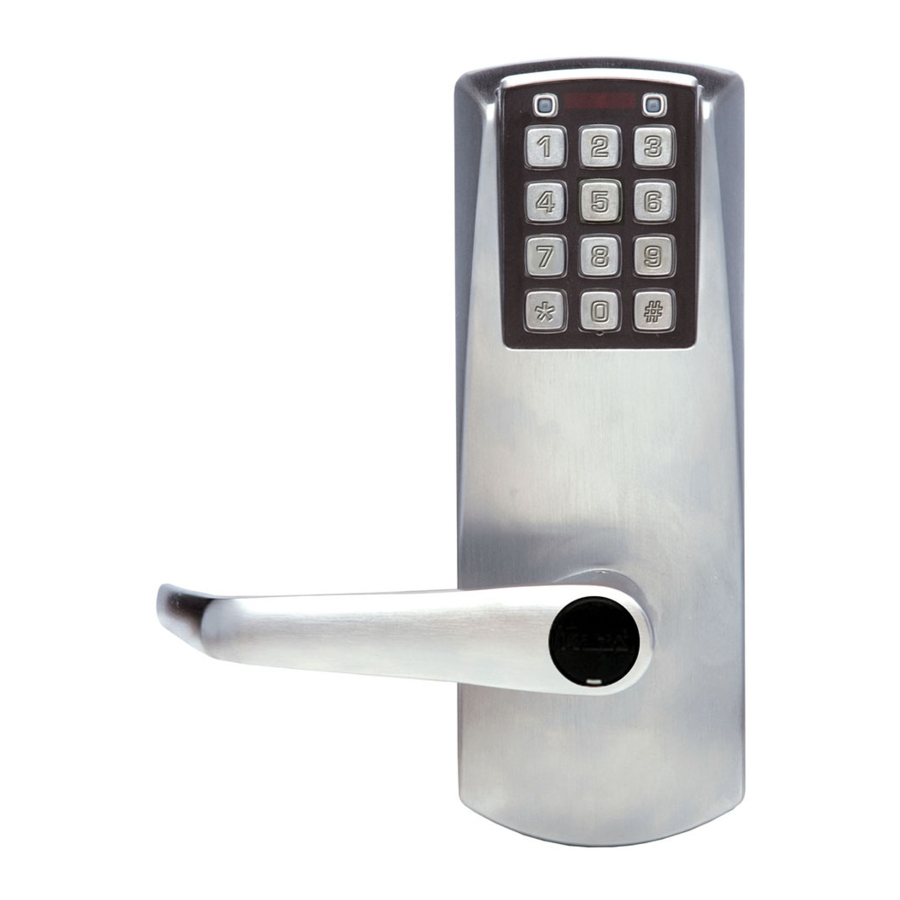

Kaba PowerPlex 2000 Series, E-PLEX 2000 Series - Lock Quick Reference Guide
Operation
E2000
Enter your valid PIN to Access the lock and/or to program the lock at its keypad.
PowerPlex 2000
This model is a self-powered lock. To access and/or program the lock, you must first generate power by depressing the front lock lever down at least once. This energizes the lock temporarily for a few seconds, enough time for you to enter your PIN and open the lock, or start to program the lock with a command sequence.
To begin, put lock in programming mode by pressing: #Master Code#
Summary of Pushbutton Programming Commands
| Name | Command | Description of Command |
| Add/Modify Users | 100 # NNN # UUUU {UUUU}# UUUU {UUUU}# | 'Add/Modify User Access Code' NNN = specific User ID location (001 to 099) (Combination length can be 4 to 8 digits, depending on access length LL setting) |
| 101 # NNN # UUUU {UUUU}# UUUU {UUUU}# | 'Add/Modify Manager Access Code' NNN = specific User ID location (001 to 099) (Combination length can be 4 to 8 digits, depending on access length LL setting) | |
| 102 # NNN # UUUU {UUUU}# UUUU {UUUU}# HH# | 'Add/Modify Service User Access Code' NNN = specific User ID location (001 to 099) (HH = 01 to 24 hours - duration time in hours; 00 = onetime entry; Combination length can be 4 to 8 digits, depending on access length LL setting) | |
| Delete Users | 200 # NNN# | Delete User Access Code' |
| 201 # NNN# | 'Delete Manager Access Code' | |
| 202 # NNN# | 'Delete Service User Access Code' | |
| 299 # | 'Delete all User Access Codes' (except Master and Manager) | |
| Configur | 000 # MMMMMMMM# MMMMMMMM# | 'Modify Master User Access Code (lock's activation)' (Always 8 digits) |
| 004 # TT# | 'Unlock time setup' (TT = 02 to 20 seconds) | |
| 005 # TT# | 'Passage Mode Timeout setup' (TT = 01 to 24 hours - duration time in hours; 00 = no time limit) Note: Not applicable to PowerPlex 2000 models | |
| 006 # TT# | 'Tamper time setup' (TT = 00 to 90 seconds) | |
| 007 # TT# | 'Tamper wrong try setup' (TT = 03 to 09) | |
| 008 # VV# | 'Buzzer volume control' (VV = 00 to 03; 00 = off; 01 = Low; 02 = Normal; 03 = High) | |
| 009 # LL# | 'Modify access length' (LL = 04 to 08 digits) | |
| 099 # | 'Reset to factory default values', except access code length. (Master, manager and access user are retained if already programmed.) | |
| Activate Users | 300 # NNN# | 'Activate User Access Code' |
| NNN = specific User ID location (001 to 099) | ||
| 301 # NNN# | 'Activate Manager Access Code' NNN = specific User ID location (001 to 099) | |
| 302 # NNN# | 'Activate Service User Access Code' NNN = specific User ID location (001 to 099) | |
| 398 # | 'Activate all User Codes' (except Master and Manager) | |
| 399 # P# | 'Activate / De-Activate Passage Mode' (P = 0 or 1; 0 = disable Passage Mode; 1 = enable Passage Mode) | |
| De-Activate Users | 400 # NNN# | 'De-Activate User Access Code' NNN = specific User ID location (001 to 099) |
| 401 # NNN# | 'De-Activate Manager Access Code' NNN = specific User ID location (001 to 099) | |
| 402 # NNN# | 'De-Activate Service User Access Code' NNN = specific User ID location (001 to 099) | |
| 498 # | 'De-Activate all User Codes' (except Master and Manager) | |
| 499 # L# | 'Activate / De-Activate Lockout Mode' (Master User is not affected by Lockout Mode) (L = 0 or 1; 0 = disable Lockout Mode; 1 = enable Lockout Mode) | |
| Diagnostic | 500 # 123456789*0# | 'Manual diagnostic' |
Visual Feedback Message Definitions
| Condition | Parameters | |||
| Green LED | Red LED | Duration | Rate | |
| Valid pushbutton pressed | ON | OFF | 1/10 sec | Once |
| Timeout expired | OFF | ON | 1 sec; A | Once |
| Valid access code keyed | ON | OFF | 1 sec | Once |
| Access granted | ON | OFF | 1/10 sec | 1 sec |
| Access granted (battery low condition) | ON | ON | 1/10 sec | 1 sec |
| Access denied | OFF | ON | 1 sec; A | Once; B |
| Valid programming entry | ON | OFF | 1 sec | Once |
| Invalid programming entry (including duplicate access code) | OFF | ON | 1 sec; A | Once; B |
| Tamper shutdown beginning | OFF | ON | 2 sec | Once |
| Tamper shutdown state | OFF | ON | 1 sec; C | 10 sec |
| Tamper shutdown ending | ON | OFF | 2 sec; C | Once |
For PowerPlex 2000 only:
| Lock is ready when front lever is depressed | ON | OFF | 1/10 sec | Once |
| Lock's stored power isstarting to fade | OFF | ON | 1/10 sec | 1 sec |
=1/10 second;
=Twice;
= Can be observed only when you pump the lock's lever
PKG3172 0313
