  • Page 1 ATLAS M-Unit User’s Manual...
  • Page 2: Table Of Contents

    Diagnostic ............. 17 Electrical Override ........19 User interface Settings......20 Power settings ..........21 Language ............21 Volume ............22 Contrast ............22 Time and Date of the M-unit ..... 22 Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 3: Description

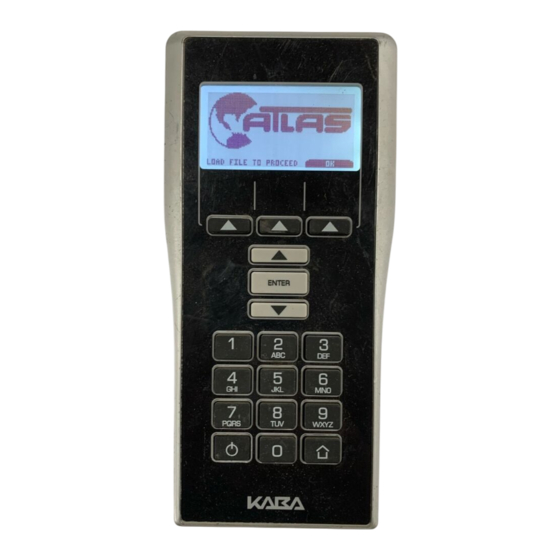

    Description Kaba’s ATLAS M-Unit is used to program & audit the lock. • The M-Unit uses the USB mass storage standard supported ® Windows operating systems. No driver is required. • The USB cable is used to charge the M-Unit. An initial charge of 12 hours is required before using the device.
  • Page 4: Quick Start

    If there is no file loaded on the M-Unit you will first be prompted to load a file (see below for how to load a file). Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 5: Download To M-Unit

    ‘Kaba M-Unit’. 3- Safely remove the USB drive ‘Kaba M- Unit’ from your computer once the file transfer is complete. 4- Unplug the USB cable and press the arrow corresponding with “ok”. Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 6: M-Unit File System

    Once connected to the computer you • must export the audit files for them to be visible (see Reports for details) To program a door 1- Choose Door from the main screen 2- Select 1-Program Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 7 The M-Unit will display a message if the action was successful. If unsuccessful make sure the lock is in programming mode and the cable is properly attached to both the M-Unit and the lock. Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 8: To Audit A Specific Door

    3- Put lock into communication mode with the programming card 4- Attach the programming cable to the lock and the M-Unit Choose the door to audit The M-Unit will display a message if the action was successful. If Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 9: To Audit Any Door

    M-Unit, otherwise audit will show up as ‘unknown door’ and may not be recognized by ATLAS. 1- Choose Door from the main screen Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 10 6- The audit file is saved in the internal memory of the M-Unit and can be viewed with the M-Unit by selecting Reports from the main screen and choosing the file. It can also be exported then transferred computer. Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 11: To View Audit Files

    To view audit files Lock audit 1- Select Reports from the main screen 2- Select 1-Audit list 3- Select file to view or push the corresponding arrow to “delete”. Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 12: M-Unit Audit

    4- When viewing, return to audit list or view more by pressing the arrow corresponding to your choice. M-Unit audit 1- Select Reports from the main screen Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 13: To Export Audit Files

    Note: This will create the .laf file for the ATLAS report. This will export all the files currently in the M- Unit memory to the cache visible on the computer. 1- Select Reports from the main screen Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 14: About The Lock

    2- Select 3-Export About the lock View details 1- Select Door from the main screen Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 15 2- Select 3-View Details 3- Choose the lock 4- Push the arrow corresponding to “back” to return to the list of locks Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 16: Update Lock Time

    Update Lock Time 1- Select Tools from the main screen 2- Select 1-Lock tools 3- Select 2-Reset Time Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 17: Diagnostic

    If unsuccessful make sure the lock is in programming mode and the cable is properly attached to both the M-Unit and the lock. Diagnostic 1- Select Tools from the main screen 2- Select 1-Lock tools Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 18 In a few seconds the M-Unit will display a message if the action was successful. If unsuccessful make sure the lock is in programming mode and the cable is properly attached to both the M-Unit and the lock. Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 19: Electrical Override

    Electrical Override 1- Select Tools from the main screen 2- Select 1-Lock tools 3- Select 1-Elec. Override Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 20: User Interface Settings

    M-Unit and the lock. NOTE: The programming card is not needed for this operation. User interface Settings 1- Select Tools from the main screen 2- Select 2-User Interface Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 21: Power Settings

    Power settings 1- Use the white arrows to change the values Use Enter to skip to ‘Power off Timeout’ and accept the modification or Home button cancel modification. Language Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 22: Volume

    Select desired language Volume Select desired volume Contrast Use the white arrows to change the contrast Time and Date of the M-unit Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 23 1. Choose Tools from the main screen 2. Select 3 – Change time 3. Use the white arrows to change values and Enter to change field 4. Press the arrow corresponding to “save” Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 24 5. Upon exiting you will be prompted for your login name and password Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
  • Page 25 Kaba Ilco Inc 7301 Boul. Décarie Montréal (QC) H4P 2G7 Kaba Ilco Inc. – ATLAS M-Unit - PK35XX_11_10...
