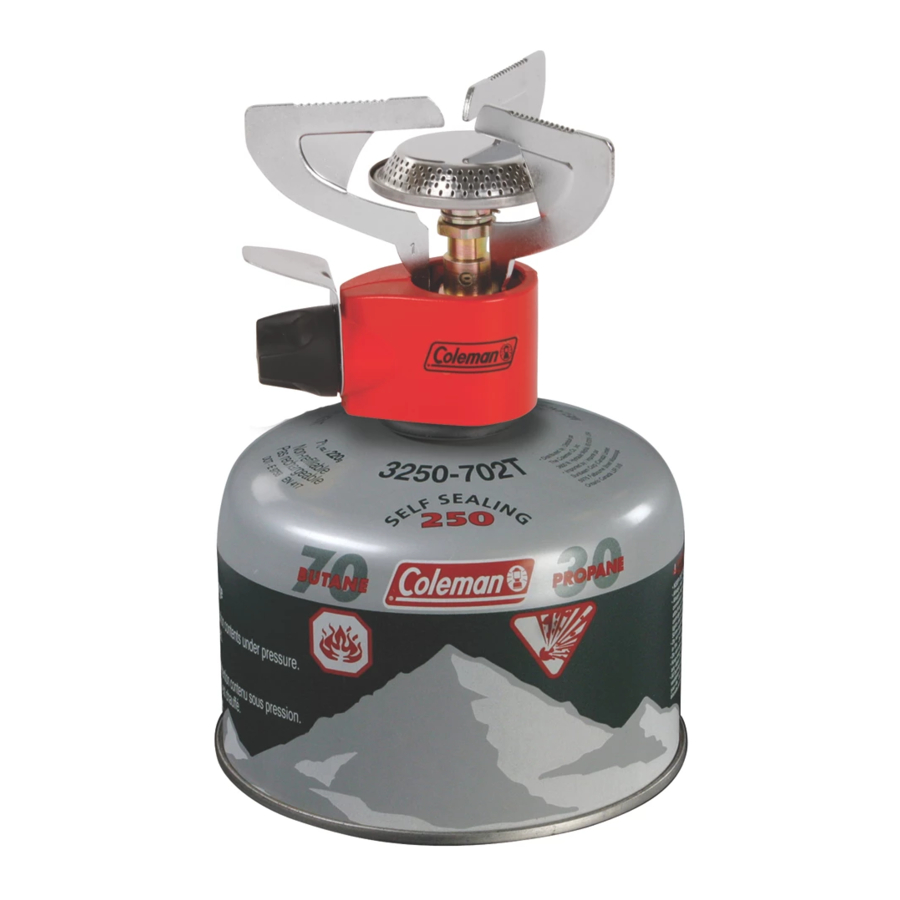

Coleman peak 1 - Butane/Propane Stove 3001 Series Manual

FOR YOUR SAFETY

If you smell gas:

1. Do not attempt to light appliance.
2. Extinguish any open flame.
3. Disconnect from fuel supply.

Do not store or use gasoline or other liquids with flammable vapors in the vicinity of this or any other appliance.

CARBON MONOXIDE HAZARD

• ONLY USE IN WELL-VENTILATED AREAS.
• CARBON MONOXIDE HAZARD—USING THIS APPLIANCE IN AN ENCLOSED SPACE MAY CAUSE DEATH.
• DO NOT USE IN CARAVANS, TENTS, MARINE CRAFT, CARS, MOBILE HOMES OR SIMILAR LOCATIONS.

This manual contains important information about the assembly, operation and maintenance of this outdoor LPG (liquefied petroleum gas) appliance. General safety information is presented on this page and is also located throughout these instructions. Particular attention should be paid to information accompanied by the safety alert symbol " ", " ", " ".
Keep this manual for future reference and to educate new users of this product. This manual should be read in conjunction with the labeling on the product.
Safety precautions are essential when any mechanical or LPG fueled equipment is involved. These precautions are necessary when using, storing, and servicing. Using this equipment with the respect and caution demanded will reduce the possibilities of personal injury or property damage.
The following symbols shown below are used extensively throughout these instructions. Always heed these precautions, as they are essential when using any mechanical or LPG fueled equipment.

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate personal injury, or property damage.

Failure to comply with the precautions and instructions provided with these stoves can result in death, serious bodily injury and property loss or damage from hazards of fire, explosion, burn, asphyxiation, and/or carbon monoxide poisoning.
Only persons who can understand and follow the instructions should use or service these stoves.
If you need assistance or information such as an instruction manual or labels, contact The Coleman Company, Inc.

• This product is fueled by LPG. LPG is invisible, odorless, and flammable. An odorant is normally added to help detect leaks and can be described as a "rotten egg" smell. The odorant can fade over time so leaking gas is not always detectable by smell alone.
• LPG is heavier than air and leaking LPG will sink to the lowest level possible. It can ignite by ignition sources including matches, lighters, sparks or open flames of any kind many feet away from the original leak. Use only LPG set up for vapor withdrawal.
• LPG should be stored or used in compliance with local ordinances and codes or with ANSI/ NFPA 58. Turn off LPG when not in use.

EXPLOSION - FIRE HAZARD

• Never store LPG (liquefied petroleum gas) near high heat, open flames, pilot lights, direct sunlight, other ignition sources or where temperatures exceed 120 degrees F (49°C).
• LPG is heavier than air and can accumulate in low places. If you smell gas, leave the area immediately.
• Never install or remove LPG cylinder while outdoor stove is lighted, near flame, pilot lights, other ignition sources or while outdoor stove is hot to touch.
• During lighting and operation, this product can be a source of ignition. Never use the stove in spaces that contain or may contain volatile or airborne combustibles, or products such as gasoline, solvents, paint thinner, dust particles or unknown chemicals. Minimum clearances from combustible materials: 24 inches from the sides and 48 inches from the top.
• Provide adequate clearances around air openings into the combustion chamber.

Not for home or recreational vehicle use. We cannot foresee every use which may be made of our products.
Check with your local fire safety authority if you have questions about use.
Other standards govern the use of fuel gases and heat producing products for specific uses. Your local authorities can advise you about these.

• Never refill disposable cylinders.
• Use only Coleman ® accessories or parts.
  During stove set-up, check all fittings for leaks using soapy water. Never use a flame.

BURN HAZARD

• Never leave stove unattended when hot or in use.
• Keep out of reach of children.

CARBON MONOXIDE HAZARD

• This stove is a combustion appliance. All combustion appliances produce carbon monoxide (CO) during the combustion process. This product is designed to produce extremely minute, non-hazardous amounts of CO if used and maintained in accordance with all warnings and instructions. Do not block air flow into or out of the stove.
• Carbon Monoxide (CO) poisoning produces flu-like symptoms, watery eyes, headaches, dizziness, fatigue and possibly death. You can't see it and you can't smell it. It's an invisible killer. If these symptoms are present during operation of this product get fresh air immediately!
• For outdoor use only.
• Never use inside house, camper, tent, vehicle or other unventilated or enclosed areas. This stove consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life.

SERVICE SAFETY

• Use only LPG set up for vapor withdrawal.
• Keep all connections and fittings clean. Always inspect gas cartridge, stove connections and "O" ring seal for damage, dirt and debris before attaching cartridge (Fig. 1). Replace if damaged or worn. Never use stove with damaged or worn seals.


• During set up, CHECK FOR LEAKS in one or more ways: Apply soapy water to connections. Bubbles indicate a leak. Listen for hiss of escaping gas. Feel for extreme cold. Smell for rotten egg odor. Never use a flame. Check that the connection is not cross-threaded and that it is tight. Perform another leak check. If there is still a leak, remove the cylinder and contact Coleman for service or repairs.
• Use as a cooking appliance only. Never alter in any way or use with any device or part not expressly approved by Coleman.
• Never use as a space heater.
• Clean stove frequently to avoid grease accumulation and possible grease fires.

To Light

EXPLOSION - FIRE HAZARD

• LPG is heavier than air and can accumulate in low places. If you smell gas, leave the area immediately.
• Always attach or detach LPG source outdoors; never while stove is lighted, near flame, pilot lights, other ignition sources or while stove is hot to touch.
• This stove is very hot during use and can ignite flammables too close to the burners. Keep flammables at least 24 inches from the sides and 48 inches from the top of the stove. Keep gasoline and other flammable liquids and vapors well away from stove.
• The stove must not be exposed to flammable vapors or liquids during lighting.

BURN HAZARD

• Never leave stove unattended when hot or in use.
• Keep out of reach of children.

Match Light:

• Set on sturdy, flat surface. For outdoor use only.
• Hold lighted match at burner and open FUEL VALVE. (Fig. 7)



• Adjust flame to desired heat with FUEL VALVE. (Fig. 8)


• Flame should be blue with hint of yellow on tips.

To Turn Off

• Turn FUEL VALVE "off". (Fig. 9)


MAINTENANCE DURING EACH USE

• Keep stove area clear and free from combustible materials, gasoline and other flammable vapors and liquids.
• Do not obstruct the flow of combustion and ventilation air.
• A good flame should be blue with minimal yellow tip. Some yellow tips on flames are acceptable as long as no carbon or soot deposits appear.
• Wipe clean with soft cloth and mild dish detergent. Do not use abrasives.
• To check if the gas cylinder is empty, disconnect the cylinder from the appliance and shake from side to side. If there is no sound or movement of liquid, the cylinder is empty.
• Annual service by an authorised person is recommend. Or if any of the following conditions are noticed; incomplete ignition, appreciable yellow tipping, carbon deposition, lifting, floating, lighting back or objectionable odor.
• DO NOT use this appliance if it has damaged or worn seals. DO NOT use this appliance if it is leaking, damaged or does not operate properly.
• Check that all seals between the appliance and the gas cylinder are in place and in good condition before connecting the gas cartridge. Remove all transit protection material.
• DO NOT move the appliance during operation.

To Store

EXPLOSION - FIRE HAZARD

• Never store LPG near high heat, open flames, pilot lights, direct sunlight, other ignition sources or where temperatures exceed 120 degrees F (49°C).
• The cylinder must be disconnected when the stove is in storage.

Things You Should Know

1. It is unsafe and illegal in some places to store or use LPG cylinders of greater than 1.14 kg (2.5 lbs) water capacity (approximately 1 lb. LPG) in occupied enclosures.
2. The usual storage areas for camping and picnic equipment are the basement, attic, or garage. To avoid the accumulation of dust, cobwebs, etc., that is common in these areas, place your stove in a plastic bag and seal it with a rubber band.
3. If your stove burns with a yellow smokey flame, pull to remove the burner, and check the burner and air tube for spider webs (Fig. 11).


4. If not completely satisfied with the performance of this product, please call one of the numbers listed on the cover of this manual.
