Coleman PEAK 1 Instructions For Use

To Clean To Store
• Make sure stove is cool.
DANGER
• Move stove away from flame (including pilot
lights) and other ignition sources.
• Remove LPG cylinder from stove. (Fig. 10)
• EXPLOSION - FIRE HAZARD
• Never store LPG near high heat, open
flames, pilot lights, direct sunlight, other igni-
tion sources or where temperatures exceed
120 degrees F (49 °C).
• The cylinder must be disconnected when the
stove is in storage.
Things You Should Know
1. It is unsafe and illegal in some places to store
or use LPG cylinders of greater than 1.14 kg
(2.5 lbs) water capacity (approximately 1 lb.
LPG) in occupied enclosures.
2. The usual storage areas for camping and picnic
equipment are the basement, attic, or garage.
To avoid the accumulation of dust, cobwebs,
etc., that is common in these areas, place
your stove in a plastic bag and seal it with a
rubber band.
3. If your stove burns with a yellow smokey flame,
pull to remove the burner, and check the
Fig. 10
burner and air tube for spider webs (Fig. 11).
4. If not completely satisfied with the performance
of this product, please call one of the numbers
• MAINTENANCE DURING EACH USE
listed on the cover of this manual.
• Keep stove area clear and free from
www.coleman.com
combustible materials, gasoline and other
flammable vapors and liquids.
Check for spiderwebs
• Do not obstruct the flow of combustion and
ventilation air.
• A good flame should be blue with minimal
yellow tip. Some yellow tips on flames are
acceptable as long as no carbon or soot
deposits appear.
• Wipe clean with soft cloth and mild dish
detergent. Do not use abrasives.
• To check if the gas cylinder is empty,
disconnect the cylinder from the appliance
and shake from side to side. If there is no
sound or movement of liquid, the cylinder
is empty.
• Annual service by an authorised person
is recommend. Or if any of the following
conditions are noticed; incomplete
ignition, appreciable yellow tipping, carbon
deposition, lifting, floating, lighting back or
objectionable odor.
• DO NOT use this appliance if it has damaged
or worn seals. DO NOT use this appliance if
it is leaking, damaged or does not operate
properly.
• Check that all seals between the appliance
and the gas cylinder are in place and in
good condition before connecting the gas
cartridge. Remove all transit protection
material.
• DO NOT move the appliance during
operation.
English-5
Warranty
Limited One Year Warranty
EXPRESS WARRANTY
from any of the following: negligent use or
Coleman Brands Pty. Ltd. ("Coleman") warrants
misuse of the product, commercial use of
that for a period of one (1) year from the date
the product, use contrary to the operating
of original retail purchase, this product will be
instructions; disassembly, repair or alteration
free from defects in material and workmanship.
by anyone other than Coleman or Coleman
Coleman will, depending on the circumstances,
service centre, the use of a part other than a
refund, repair or replace this product or any
genuine Coleman
component of the product found to be defective
during the warranty period. Replacement such as fire, flood, hurricanes and tornadoes.
will be made with a new or remanufactured To the extent permitted by the Australian
product or component. If the product is no Consumer Law, the Competition and
longer available, replacement may be made Consumer Regulation 2010 and the New
with a similar product of equal or greater value. Zealand Consumer Guarantees Act,
Coleman's liability is limited, depending on
To the extent permitted by law and subject to
the circumstances, to refund, replacement or
your non-excludable rights under the Australian
repair of Coleman
Consumer Law (Schedule 2 to the Competition
For the avoidance of doubt, any and all
and Consumer Act 2010 (Cth)) and the New
other warranties or conditions which are not
Zealand Consumer Guarantees Act, which are
guaranteed by the Australian Consumer Law,
not limited to a one (1) year period, this is your
the Competition and Consumer Regulation
exclusive remedy for any breach of this limited
2010 and the New Zealand Consumer
warranty or for any other claims otherwise
Guarantees Act and which are not expressly
relating to this limited warranty.
included in this warranty as additional
In Australia, our goods come with guarantees
warranties or conditions are expressly
that cannot be excluded under the Australian
Consumer Law. You are entitled to a excluded, including liability for incidental
replacement or refund for a major failure or consequential damages caused by the
and compensation for any other reasonably breach of any express or implied warranty or
foreseeable loss or damage. You are also condition.
entitled to have the goods repaired or replaced MAKING A WARRANTY CLAIM -
if the goods fail to be of acceptable quality and
RETURN TO COLEMAN FOR REPAIR
the failure does not amount to a major failure.
Take the product to an authorised Coleman
The benefits provided under this warranty are
retailer or Coleman service centre as soon
in addition to and do not affect purchaser's
as the warranty claim arises. You may locate
statutory rights under the Australian Consumer
the nearest authorised Coleman retailer or
Law or other rights at law.
Coleman service centre by visiting www.
This warranty is valid for the original retail
coleman.com or calling 1800 224 350 or + 61
purchaser from the date of initial retail purchase
2 8762 5000. Please ensure that you provide
and is not transferable. Please keep your
a written description of the problem with the
proof of purchase documentation, such as the
product, together with your contact name,
original sales receipt or the relevant credit card
address and telephone number and proof of
statement. Proof of purchase is required to
purchase.
obtain warranty performance. Coleman dealers,
Subject to the applicable consumer laws in
Coleman service centres, or retail stores selling
your jurisdiction, you must pay for the costs of
Coleman products do not have the right to
®
transporting the product, including packaging,
alter, modify or in any way change the terms
freight and insurance costs, to an authorised
and conditions of this warranty. The warranty is
Coleman retailer or Coleman service centre
valid only for products that are purchased new
for warranty service. If the warranty claim
Fig. 11
and unused in Australia and New Zealand, from
is substantiated and accepted by Coleman,
Coleman or Coleman dealers or retailers.
Coleman will at its cost, repair or replace
any product or parts and return the product
WARRANTY EXCLUSIONS AND
to you. Additionally, if the warranty claim is
LIMITATIONS
substantiated and accepted by Coleman,
THE AUSTRALIAN CONSUMER LAW
Coleman will reimburse you for the costs of
PROVIDES CONSUMERS WITH CERTAIN
transporting the product to an authorized
'CONSUMER GUARANTEES'. THESE
Coleman retailer or Coleman service
GUARANTEES APPLY WHERE THE GOODS
centre. Coleman reserves the right to seek
AND SERVICES COLEMAN SUPPLIES TO YOU
reimbursement for any costs and expenses
ARE OF A KIND ORDINARILY ACQUIRED FOR
incurred for a warranty claim if the product is
PERSONAL, DOMESTIC OR HOUSEHOLD USE
found to be in good working order.
OR COST LESS THAN $40,000, AND IN THE
If you have any questions regarding this
CASE OF GOODS, ARE NOT RE-SUPPLIED BY
warranty please call 1800 224 350 or + 61 2
YOU. NOTHING IN THIS LIMITED WARRANTY
8762 5000.
EXCLUDES, RESTRICTS OR MODIFIES
Coleman Brands Pty. Ltd.
RIGHTS WHICH YOU HAVE UNDER THE
AUSTRALIAN CONSUMER LAW IN RESPECT
ABN 74 091 681 195
OF THE CONSUMER GUARANTEES AND ALL
Suite W2C1, 75-85 O'Riordan Street,
OF THE PROVISIONS IN THIS SECTION ARE
Sydney Corporate Park, Alexandria, NSW 2015
TO BE READ SUBJECT TO THE AUSTRALIAN
Australia
CONSUMER LAW.
Telephone: 1800 224 350 or + 61 2 8762 5000
This warranty does not cover: (a)normal wear
Email: customerservice@colemanaust.com.au
of the product and/or its parts; (b) parts that
are not genuine Coleman parts, consumables,
® www.coleman.com
lost parts and accessories; (c) damage resulting
English-6
® part; or (d) acts of God,
products or components.
®
Coleman Brands Pty. Ltd.
ABN 74 091 681 195, Suite W2C1, 75-85 O'Riordan Street, Sydney Corporate
Park, Alexandria, NSW 2015, Australia
Telephne: 1800 224 350 or + 61 2 8762 5000
www.coleman.com
© 2016 The Coleman Company, Inc. All rights reserved.
Coleman ® , and are registered trademarks and
trademark of The Coleman Company, Inc.
The Coleman Company, Inc., a Jarden Corporation company (NYSE:JAH)
English-7
TM

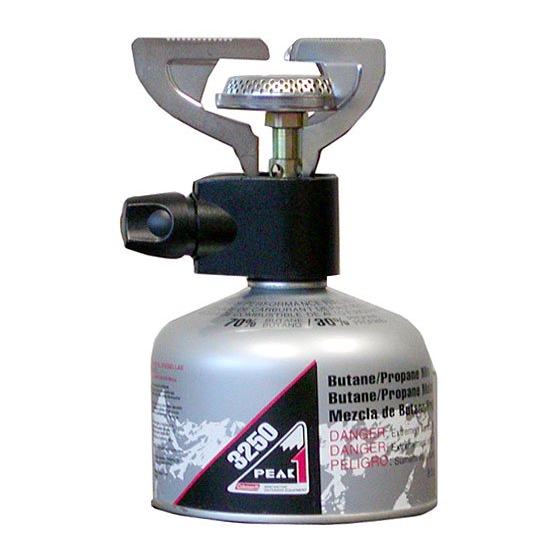

Butane/Propane Stove
Instructions for use
© 2016 The Coleman Company, Inc.
www.coleman.com
IMPORTANT
Important. Read these instructions for use carefully. Familiarise
yourself with the appliance before connecting it to its gas container.
Keep these instructions for future reference.
This instruction manual contains important information necessary for
the proper assembly and safe use of the appliance. Follow all warnings
and instructions when using the appliance. If you have questions
about assembly, operation, servicing or repair of this product, please
call Coleman on 1800 224 350. Coleman Brands Pty Ltd. Suite W2C1,
75-85 O'Riordan St, Alexandria, NSW 2015.
Gas cylinders shall be changed in a well-ventilated location, preferably
outside away from people and any sources of ignition, such as naked
ames, pilot ames, electric heaters / equipment. If there is a leak
on your appliance (smell of gas) and you cannot stop the gas ow,
remove the appliance to a well-ventilated location away from any
ignition source. Check for leaks using soapy water. Do not try to
detect leaks using a ame. This appliance must only be serviced by
an authorised person. Gas cylinders must be stored outdoors in a well
ventilated area out of the reach of children, any indoor storage shall
comply with AS/NZS 1596.
This appliance shall only be used with 70% butane / 30% propane
mix gas cartridge certi ed to EN 417. IT MAY BE HAZARDOUS TO
ATTEMPT TO FIT OTHER TYPES OF GAS CONTAINERS.
CAUTION: accessible parts may be very hot. Keep young children
away, USE OUTDOORS ONLY. Must only be operated on a horizontal
surface. Not suitable for marine environments. Do not modify this
TM appliance.
is a
4010051748 (ECN20055731-01)
3001 Series
Camp Stove
