Owner's Guide and Installation Manual
Attach sales receipt to this card and retain as your proof of purchase
DATE OF PURCHASE:
MODEL NUMBER:
To register your fixture, please visit our website www.montecarlofans.com

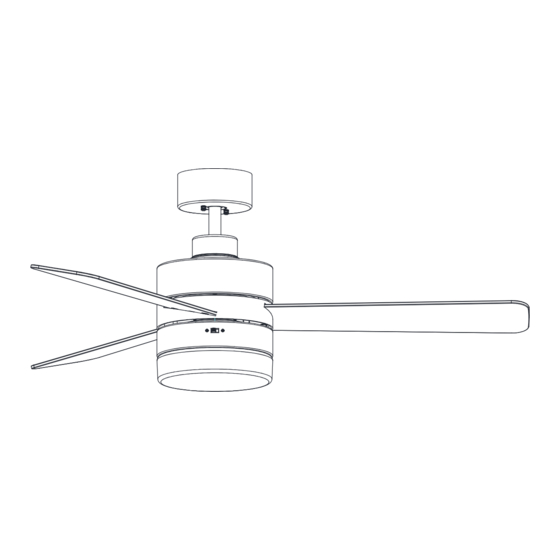

3ERAR44XXXD Series Fan
CUL Model NO. : 3ERAR44XXD
RETAILER NAME:
RETAILER ADDRESS:
6.9 kg
15.2 lbs
Total fan weight with light
Advertisement
Table of Contents
Related Manuals for Monte Carlo Fan Company 3ERAR44 D Series
Summary of Contents for Monte Carlo Fan Company 3ERAR44 D Series
- Page 1 Owner’s Guide and Installation Manual 3ERAR44XXXD Series Fan CUL Model NO. : 3ERAR44XXD Attach sales receipt to this card and retain as your proof of purchase DATE OF PURCHASE: RETAILER NAME: RETAILER ADDRESS: MODEL NUMBER: To register your fixture, please visit our website www.montecarlofans.com 6.9 kg 15.2 lbs Total fan weight with light...
-
Page 2: Cautions And Warnings
Cautions and Warnings WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, FOLLOW THESE INSTRUCTIONS. Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes and standards (ANSI/NFPA 70), including fire-rated construction. - Page 3 Before you begin installing the fan, Switch Before installing this fan make sure the Use metal outlet box suitable for fan power off at Service panel and lock outlet box is properly installed to the support and use only the screws provided service disconnecting means to prevent house structure.
- Page 4 SAFETY CABLE INSTALLATION Keeper pin Lag screw Cross pin Slot Safety cable Washer Lock washer Slip downrod into motor housing yoke, Install ball end of downrod into mounting Safety cable must be installed into the aligning holes and install cross pin and bracket opening.
- Page 5 Blade Plate on motor Light pan Insert blade into the slot on flywheel. Loosen 2 and remove 1 preassembled Connect the quick connector to the connector from the light pan. Be sure Install blade with screws and washers screw from the plate on motor. Save plugs connection clasped together firmly.
- Page 6 Glass Reverse switch Attach glass by locating dimples in light Setting the reverse switch on the left pan with grooves on the glass and twist hand side will result in downward airflow clockwise until tight. and setting the switch on the right hand side will result in upward airflow.
-
Page 7: Power Supply
Wall Control Wiring, Installation and Operation Warning: Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid electrical shock. Note: Before installing the wall transmitter, place it in OFF position. (Fig.2) Make series-wound connection for the wall controller with HOT wire from house and lead wires from fan. -
Page 8: Troubleshooting
Troubleshooting or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, installation, please call our Customer Service Center at the number printed on your parts list insert sheet. Warning and lock the service panel to prevent the power from being switched back on accidentally. If the service panel cannot be locked to prevent the power from being switched on accidentally, securely fasten a warning sign to the service panel. - Page 9 Feb.2022...
