- Page 1 Filter-EinbauanweisungFilter assembly instruction FKU, FK-FF, FKU-W Ferdinand Schad KG Steigstraße 25-27 D-78600 Kolbingen Telephone +49 (0) 74 63 - 980 - 0 Fax +49 (0) 74 63 - 980 - 200 info@schako.de www.schako.de...
- Page 2 Filter Assembly Instruction FKU, FK-FF, FKU-W Contents Description ............................3 FKU ......................................3 FK-FF ......................................4 FKU-W ....................................... 5 Z07/01 - 2 Version: 12.07.2013 Construction subject to change. No return possible!

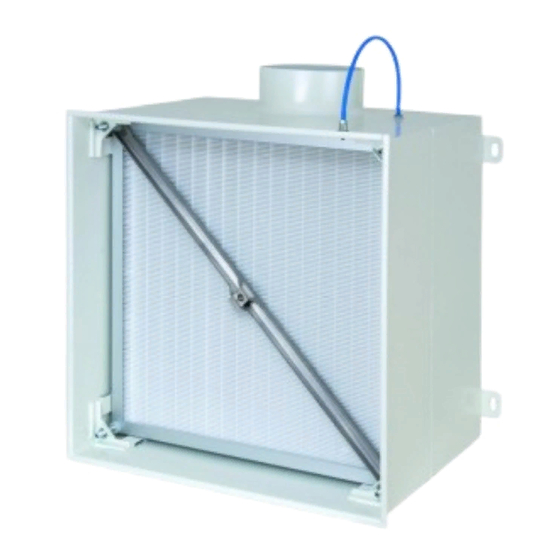

- Page 3 Filter Assembly Instruction FKU, FK-FF, FKU-W Description Shipping brace NW 400-650 Attention! Before the particle filter unit can be inserted, the shipping brace clamped by means of the filter clamps must be re- moved! NW 800 Loosen filter clamp (pos. 4) and remove it along with shipping brace.
- Page 4 Filter Assembly Instruction FKU, FK-FF, FKU-W FK-FF Shipping brace Attention! Before the particle filter unit can be inserted, the shipping brace clamped by means of the filter clamps must be re- moved! Loosen filter clamp (pos. 4) and remove it along with shipping brace.
- Page 5 Filter Assembly Instruction FKU, FK-FF, FKU-W FKU-W Shipping brace Attention! Before the particle filter unit can be inserted, the shipping Loosen filter clamp (pos. 4) and remove it along with shipping brace clamped by means of the filter clamps must be re- brace.
