6. Hanging the Fan (cont.)
1. Slip the coupling cover, canopy screw cover (painted side
face down), and canopy (opened side up) onto the downrod
(Fig. 10). Coupling cover goes all the way to the bottom.
2. Carefully reinstall the hanger ball onto the downrod, being
sure that the cross pin is in the correct position, the setscrew
is tightened and wires are not twisted (Fig. 10).
3. Carefully lift the fan motor assembly up to the mounting
bracket and seat the hanger ball in the mounting bracket socket.
Make sure the tab on the mounting bracket socket is properly
seated in the groove in the hanger ball (Fig. 11).
Rotate the socket assembly until the ball drops and locks
into the hanger bracket screw.
4. Secure the safety cable to the building structure using a
wood screw (Fig. 11).
F R- W1 8 1 5
Motor Wires Safety Cable
Downrod
Canopy Screw Cover
Coupling Cover

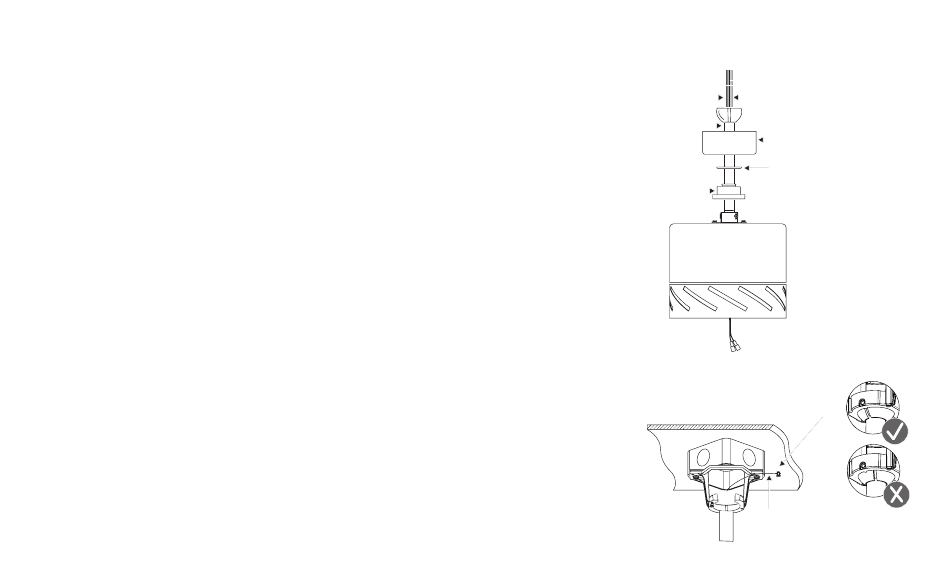

FIGURE 10
Wood Screw
Safety Cable
FIGURE 11
Canopy
