IM10012
DOWNFLEX 100NF
™
January, 2012
K2751-1
For use with machines having Code Numbers:
Safety Depends on You
Lincoln arc welding and cutting
equipment is designed and built
with safety in mind. However,
your overall safety can be
increased by proper installation
... and thoughtful operation on
your part. DO NOT INSTALL,
OPERATE OR REPAIR THIS
EQUIPMENT WITHOUT READ-
ING THIS MANUAL AND THE
SAFETY PRECAUTIONS CON-
TAINED THROUGHOUT. And,
most importantly, think before
you act and be careful.
OPERATOR'S MANUAL
Copyright © Lincoln Global Inc.
• World's Leader in Welding and Cutting Products •
• Sales and Service through Subsidiaries and Distributors Worldwide •
Cleveland, Ohio 44117-1199 U.S.A. TEL: 888.935.3878 FAX: 216.383.8823 WEB SITE: www.lincolnelectric.com
Advertisement
Table of Contents
Related Manuals for Lincoln Electric K2751-1
Summary of Contents for Lincoln Electric K2751-1
- Page 1 IM10012 DOWNFLEX 100NF ™ January, 2012 K2751-1 For use with machines having Code Numbers: Safety Depends on You Lincoln arc welding and cutting equipment is designed and built with safety in mind. However, your overall safety can be increased by proper installation ...
- Page 2 THANK YOU FOR SELECTING A QUALITY PRODUCT BY KEEP YOUR HEAD OUT OF THE FUMES. DON’T get too close to the arc. LINCOLN ELEC TRIC. Use corrective lenses if necessary to stay a reasonable distance away from the arc. READ and obey the Safety Data PLEASE EXAMINE CARTON AND EQUIPMENT FOR Sheet (SDS) and the warning label DAMAGE IMMEDIATELY...
- Page 3 W117.2-1974. A Free copy of “Arc Welding Safety” booklet E205 is available from the Lincoln Electric Company, 2.d. All welders should use the following procedures in order to 22801 St. Clair Avenue, Cleveland, Ohio 44117-1199.
-
Page 4: Electric Shock Can Kill
SAFETY ELECTRIC SHOCK ARC RAYS CAN BURN. CAN KILL. 3.a. The electrode and work (or ground) circuits are 4.a. Use a shield with the proper filter and cover plates to protect your electrically “hot” when the welder is on. Do eyes from sparks and the rays of the arc when welding or not touch these “hot”... - Page 5 SAFETY WELDING AND CUTTING CYLINDER MAY EXPLODE IF SPARKS CAN CAUSE DAMAGED. FIRE OR EXPLOSION. 7.a. Use only compressed gas cylinders containing the correct shielding gas for the process used 6.a. Remove fire hazards from the welding area. If and properly operating regulators designed for this is not possible, cover them to prevent the welding sparks the gas and pressure used.
- Page 6 SAFETY 5. Toujours porter des lunettes de sécurité dans la zone de PRÉCAUTIONS DE SÛRETÉ soudage. Utiliser des lunettes avec écrans lateraux dans les zones où l’on pique le laitier. Pour votre propre protection lire et observer toutes les instructions et les précautions de sûreté...
- Page 7 TABLE OF CONTENTS Page Installation .......................Section A Technical Specifications ..................A-1 Safety Precautions ....................A-2 Select Suitable Location ..................A-2 Environmental Area ....................A-2 Stacking .........................A-2 General Description....................A-3 Design Features ....................A-3 Hardware Overview ....................A-3 Hardware Uncrating ..................A-3, A-4 ________________________________________________________________________...
-
Page 8: Installation
INSTALLATION TECHNICAL SPECIFICATIONS - DownFlex 100-NF MODEL K2751-1 PHYSICAL DIMENSIONS LENGTH WIDTH HEIGHT WEIGHT 53.8 in. 35.9 in. 61.8 in. 330 lbs. 1366 mm 911 mm 1751 mm 150 kg. WORKING HEIGHT ADJUSTMENT 31.5 - 37.4 in. (800 - 950 mm) MAXIMUM LOAD 550 lbs. -
Page 9: Select Suitable Location
INSTALLATION READ ENTIRE INSTALLATION SECTION BEFORE STARTING INSTALLATION. Safety Precautions WARNING ELECTRIC SHOCK can kill. • Only qualified personnel should per- form this installation. • Insulate yourself from the work and ground. ------------------------------------------------------------ SELECT SUITABLE LOCATION The DOWNFLEX table must be installed on a dry, level and secure surface. -
Page 10: General Description

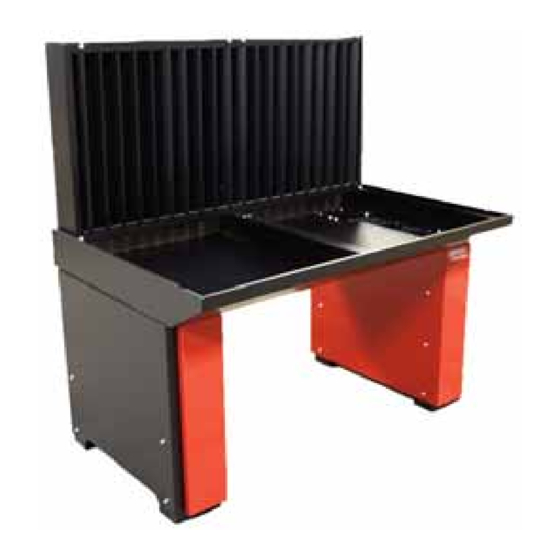

INSTALLATION GENERAL DESCRIPTION HARDWARE UNCRATING: TOOLS NEEDED The DOWNFLEX table(s) is a workbench that is to be connected to an external extraction/filtration system. It 10mm Wrench is used for welding, grinding and plasma cutting appli- 10mm Socket cations. The DOWNFLEX features a work grid, dust 13mm Wrench collection tray, backdraft kit and side panels. - Page 11 INSTALLATION 6. a. Using a 13mm wrench, install the four side panel 4. Using a phillips screwdriver and 12 sheet metal hinges onto the backdraft panel. screws, mount the dust cover plates to the dust collection tray. See Figure A.3. b.
- Page 12 NOTES DOWNFLEX...
- Page 13 NOTES DOWNFLEX...
- Page 14 Do not touch electrically live parts or Keep flammable materials away. Wear eye, ear and body protection. • • • WARNING electrode with skin or wet clothing. Insulate yourself from work and • ground. Spanish No toque las partes o los electrodos Mantenga el material combustible Protéjase los ojos, los oídos y el •...
- Page 15 Keep your head out of fumes. Turn power off before servicing. Do not operate with panel open or • • • WARNING Use ventilation or exhaust to guards off. • remove fumes from breathing zone. Spanish Los humos fuera de la zona de res- •...
- Page 16 • World's Leader in Welding and Cutting Products • • Sales and Service through Subsidiaries and Distributors Worldwide • Cleveland, Ohio 44117-1199 U.S.A. TEL: 216.481.8100 FAX: 216.486.1751 WEB SITE: www.lincolnelectric.com...
