GMAW

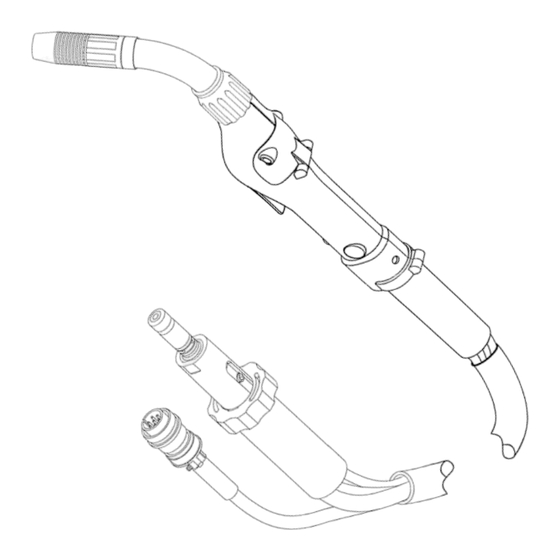

Push-Pull Gun
Python -Plus
Safety Depends on You
Lincoln arc welding equipment
is designed and built with safety
in mind. However, your over-
all safety can be increased by
proper installation...and thoughtful
operation on your part. DO NOT
INSTALL, OPERATE OR REPAIR
THIS EQUIPMENT WITHOUT
READING THIS MANUAL AND
THE SAFETY PRECAUTIONS
CONTAINED THROUGHOUT.
And, most importantly, think before
you act and be careful.
OPERATOR'S MANUAL
Python is a registered trademark of MK Products
Cleveland, Ohio 44117-1199 U.S.A. TEL: 216.481.8100 FAX: 216.486.1751 WEB SITE: www.lincolnelectric.com
RETURN TO MAIN MENU
OPERATOR'S MANUAL
n n
Model number K2447-1, K2447-2, K2447-3
World's Leader in Welding and Cutting Products
Sales and Service through Subsidiaries and Distibutors Worldwide
®
Copyright © 2005 Lincoln Global Inc.
IM875
MK 091-0564
September 2005
Rev A.
