GMI D1092S-069 Quick Start Manual

Characteristics:
General Description:

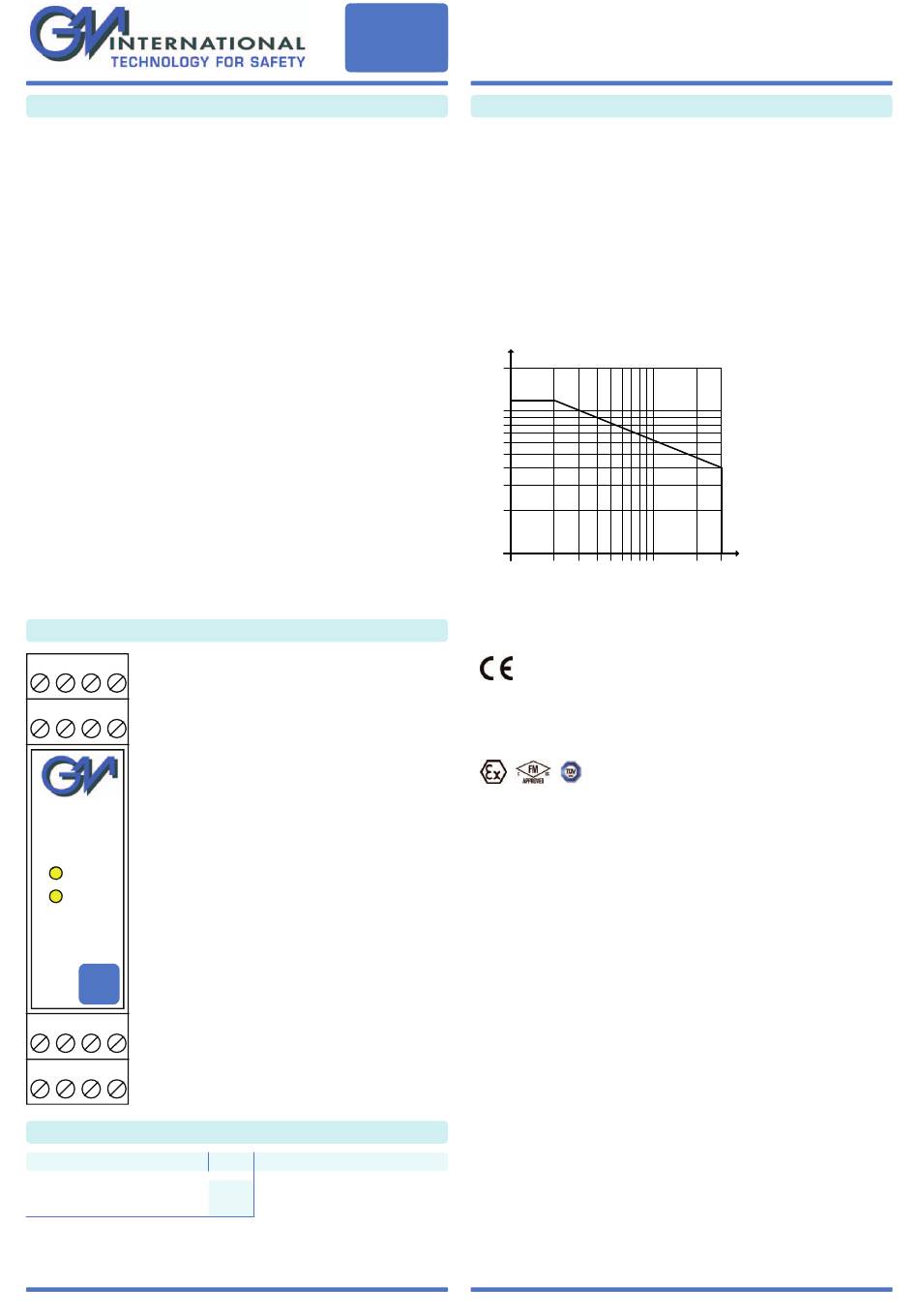

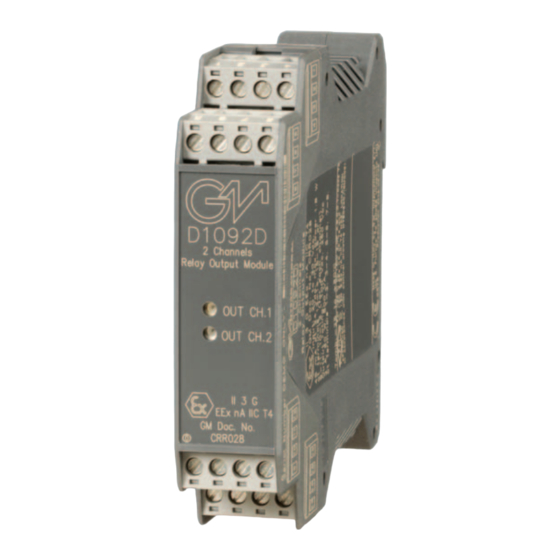

The single and dual channel DIN Rail Relay Output, D1092S-069 and D1092D-069
are relay modules suitable for the switching of safety related circuits,
up to SIL 3 level according to IEC61508, for high risk industries.
Isolation is provided between input and output contacts, and between the two channels
of D1092D-069.
Function:
1 or 2 totally independent and isolated relays for safety related circuits.
D1092S-069:
SIL 3 Safety Function for NE relay (de-energized in safe state) is available at
Terminal Blocks 1-2;
in this case, the safety function is met when the relay is de-energized (open contact).
SIL 3 Safety Function for NE relay (de-energized in safe state) is available at
Terminal Blocks 3-4;
in this case, the safety function is met when the relay is de-energized (closed contact).
D1092D-069:
SIL 3 Safety Function NE relay (de-energized in safe state) is available at
Terminal Blocks 1-2 and Terminal Blocks 5-6;
in this case, the safety function is met when the relays are de-energized (open contacts).
SIL 3 Safety Function for NE relay (de-energized in safe state) is available at
Terminal Blocks 3-4 and Terminal Blocks 7-8;
in this case the safety function is met when the relays are de-energized (closed contacts).
Signalling LEDs:
Relay status (yellow).
EMC:
Fully compliant with CE marking applicable requirements.
Front Panel and Features:
1 2 3 4 • SIL 3 according to IEC 61508
for Tproof = 10 / 20 years (10 / 20 % of total SIF)
for NE Relay (1 SPST NO or NC contact).
5 6 7 8
• PFDavg (1 year) 7.01 E-06, SFF 99.13 %.
• Installation in Zone 2, Division 2.
• 2 fully independent channels.
• 1 SPST NO contact and
1 SPST NC contact for each channel.
CH. 1
• Input/Output isolation.
CH. 2
• EMC Compatibility to EN61000-6-2, EN61000-6-4.
• ATEX, FM & FM-C Certifications.
• TUV Certification for SIL.
D1092
-069
• High Reliability, SMD components.
9 10 11 12
• High Density, two channels per unit.
• Simplified installation using standard
13 14 15 16
DIN Rail and plug-in terminal blocks.
Ordering Information:
Model: D1092
1 channel
2 channels
G.M. International DTS0248-5 Page 1/4
D1092
-069
S-069
D-069
SIL 3 Relay Output Module DIN-Rail
Models D1092S-069, D1092D-069
Technical Data:
Input: 24 Vdc nom (20.4 to 27.6 Vdc) reverse polarity protected,
ripple within voltage limits ≤ 5 Vpp.
Current consumption @ 24 V: 50 mA for each channel with relay energized, typical
(100 mA for 2 channels D1092D-069 when used as duplicator 1 input / 2 outputs).
Power dissipation: 1.2 W for each channel with 24 V input voltage and
relay energized, typical (2.4 W for 2 channels D1092D-069 when used as duplicator).
Max. power consumption: at 27.6 V input voltage and relay energized,
1.5 W for each channel (3.0 W for 2 channels D1092D-069 when used as duplicator).
Isolation (Test Voltage): Input/Output 2.5 KV; Input/Input 500 V;
Output/Output 2.5 KV; Output A/Output B 1.5 KV.
Output: voltage free SPST NO + SPST NC relay contact.
Contact material: Ag Alloy (Cd free).
Contact rating: 3 A 250 Vac 750 VA, 3 A 125 Vdc 120 W (resistive load).
DC Load breaking capacity:
V (V)
200
125
100
50
40
30
20
10
0.1 0.2 0.3 0.4 0.5
Mechanical / Electrical life: 50 * 10
Operate / Release time: 5 / 3 ms typical.
Bounce time NO / NC contact: 3 ms.
Frequency response: 10 Hz maximum.
Compatibility:
CE mark compliant, conforms to 94/9/EC Atex Directive and to
2004/108/CE EMC Directive.
Environmental conditions:
Operating: temperature limits –20 to + 60 °C,
relative humidity max 90 % non condensing, up to 35 °C.
Storage: temperature limits - 45 to + 80 °C.
Safety Description:
II 3G Ex nAC IIC T4 non-incendive electrical apparatus.
-20 °C ≤ Ta ≤ 60 °C.
Approvals: IMQ 09 ATEX 013 X conforms to EN60079-0, EN60079-15,
FM & FM-C No. 3024643, 3029921C, conforms to Class 3600, 3611, 3810 and
C22.2 No.142, C22.2 No.213, E60079-0, E60079-15.
TUV Certificate No. C-IS-183645-01, SIL 3 according to IEC 61508.
Please refer to Functional Safety Manual for SIL applications.
Proof Test Interval: 10 years for SIL3 application (10 % of SIF)
or 20 years for SIL3 application (20 % of SIF).
Mounting: T35 DIN Rail according to EN50022.
Weight: about 160 g D1092D-069, 125 g D1092S-069.
Connection: by polarized plug-in disconnect screw terminal blocks to accomodate
terminations up to 2.5 mm .
2
Location: Safe Area/Non Hazardous Locations or Zone 2, Group IIC T4,
Class I, Division 2, Groups A, B, C, D Temperature Code T4 and
Class I, Zone 2, Group IIC, IIB, IIA T4 installation.
Protection class: IP 20.
Dimensions: Width 22.5 mm, Depth 99 mm, Height 114.5 mm.
Resistive
Load
I (A)
1 2 3
/ 1 * 10 operation, typical.
6 5
