D5096S
INSTRUCTION MANUAL
5 A SIL 3 NO contact Relay Output Module
for NE or F&G/ND Load,
with open/short circuit diagnostic

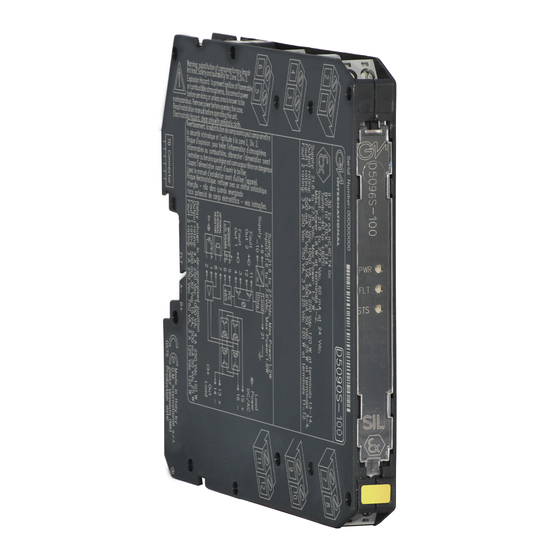

DIN-Rail and Termination Board, Model D5096S
D5096S - 5 A SIL 3 NO contact Relay Out Module for NE or F&G/ND Load with open/short circuit diagnostic G.M. International ISM0301-5
Advertisement
Table of Contents
Related Manuals for GMI D5096S
Summary of Contents for GMI D5096S
- Page 1 5 A SIL 3 NO contact Relay Output Module for NE or F&G/ND Load, with open/short circuit diagnostic DIN-Rail and Termination Board, Model D5096S D5096S - 5 A SIL 3 NO contact Relay Out Module for NE or F&G/ND Load with open/short circuit diagnostic G.M. International ISM0301-5...
-
Page 2: Technical Data
General Description: The D5096S is a relay module suitable for the switching of safety related circuits, up to SIL 3 level according to IEC 61508:2010 Ed. 2 for high risk industries. It provides isolation between input and output contacts. A wide compatibility towards different DCS/PLC is guaranteed: driving line pulse testing, executed by DCS/PLC, is permitted by a dedicated internal circuit, to prevent relay and LED flickering. -
Page 3: Ordering Information
+ Power Supply 24 Vdc (SIL 3) - Output NE Load or F&G/ND Load - Power Supply 24 Vdc G.M. International ISM0301-5 D5096S - 5 A SIL 3 NO contact Relay Out Module for NE or F&G/ND Load with open/short circuit diagnostic... -
Page 4: Function Diagram
To prevent relay contacts from damaging, connect an external protection (fuse or similar), chosen according to the relay breaking capacity diagram. D5096S - 5 A SIL 3 NO contact Relay Out Module for NE or F&G/ND Load with open/short circuit diagnostic G.M. International ISM0301-5... -
Page 5: Operation
Operation The single channel 5 A Relay Output D5096S is a relay module suitable for the switching of safety related circuits, up to SIL 3 level according to IEC 61508:2010 Ed.2 for high risk industries. It provides isolation between input and output contacts. D5096S has 2+2 SPST relay contacts connected in parallel and then in series to avoid spurious trip and to increase availability (see function diagram).
