D5095S-105
INSTRUCTION MANUAL
SIL3 Relay Low-Volt Module for 5 A NE/ND Loads
DIN-Rail and Termination Board
Model D5095S-105
D5095-105 - SIL 3 Relay Low-Volt Module for 5 A NE/ND Loads
G.M. International ISM0461-4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D5095-105 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GMI D5095-105

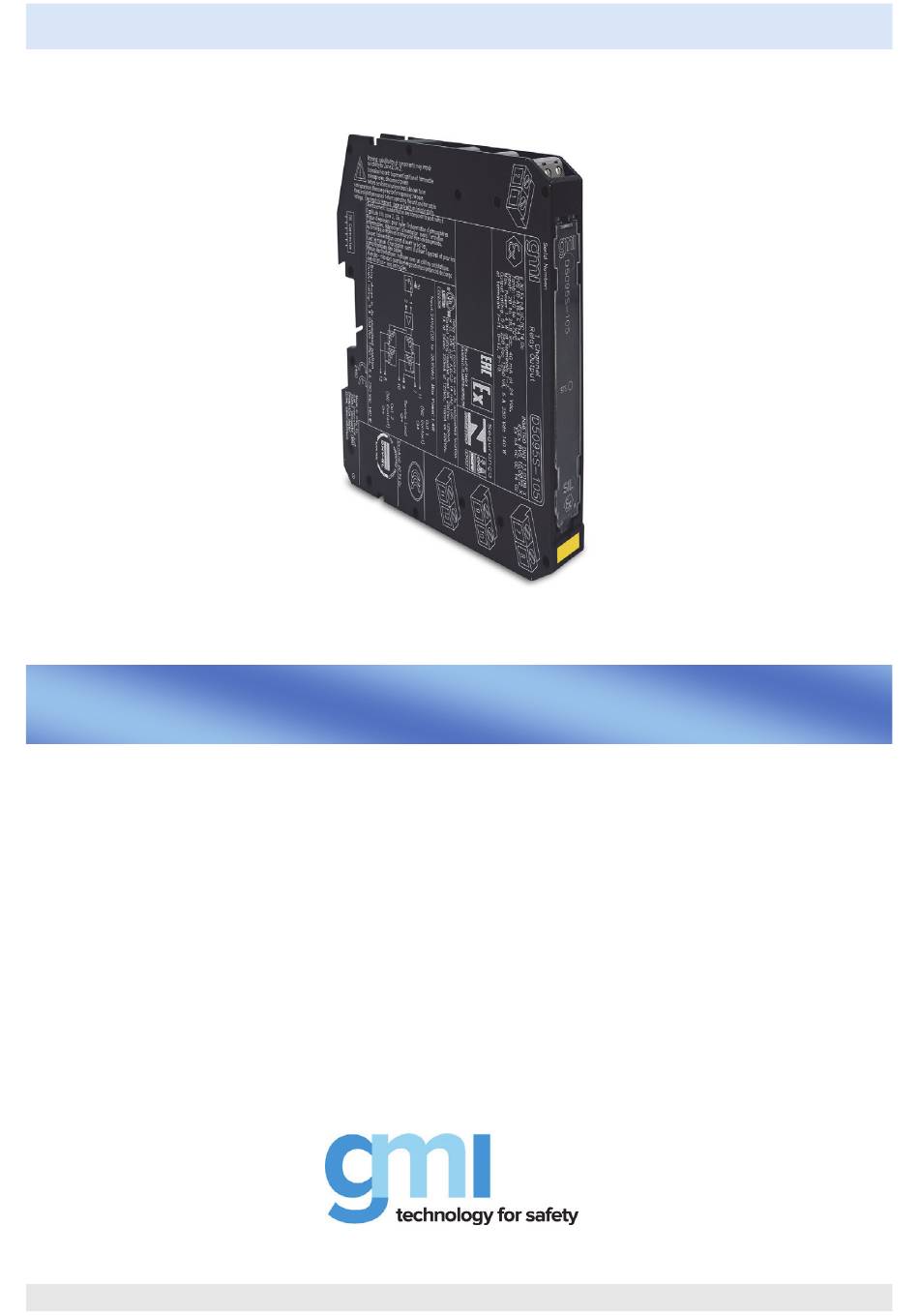

  • Page 1 D5095S-105 INSTRUCTION MANUAL SIL3 Relay Low-Volt Module for 5 A NE/ND Loads DIN-Rail and Termination Board Model D5095S-105 D5095-105 - SIL 3 Relay Low-Volt Module for 5 A NE/ND Loads G.M. International ISM0461-4...
  • Page 2 Location: installation in Safe Area/Non Hazardous Locations or Zone 2, Group IIC T4 or Class I, Division 2, Group A,B,C,D, T4. Protection class: IP 20. Dimensions: Width 12.5 mm, Depth 123 mm, Height 120 mm. D5095-105 - SIL 3 Relay Low-Volt Module for 5 A NE/ND Loads G.M. International ISM0461-4...
  • Page 3 2nd pole of Out 1 (NC contact) for NE Load or F&G/ND Load 2nd pole of Out 2 (NC contact) for NE Load or F&G/ND Load G.M. International ISM0461-4 D5095-105 - SIL 3 Relay Low-Volt Module for 5 A NE/ND Loads...
  • Page 4 All relay contacts are shown in de-energized position To prevent relay contacts from damaging, connect an external protection (fuse or similar), chosen according to the relay breaking capacity diagram. D5095-105 - SIL 3 Relay Low-Volt Module for 5 A NE/ND Loads G.M. International ISM0461-4...
  • Page 5 Warning D5095-105 series are electrical apparatus installed on EN/IEC60715 TH 35 standard DIN-Rail located in Safe Area/Non Hazardous Locations or Zone 2, Group IIC T4 or Class I, Division 2, Group A, B, C, D, T4 Hazardous Area within the specified operating temperature limits Tamb - 40 to +70 °C.
